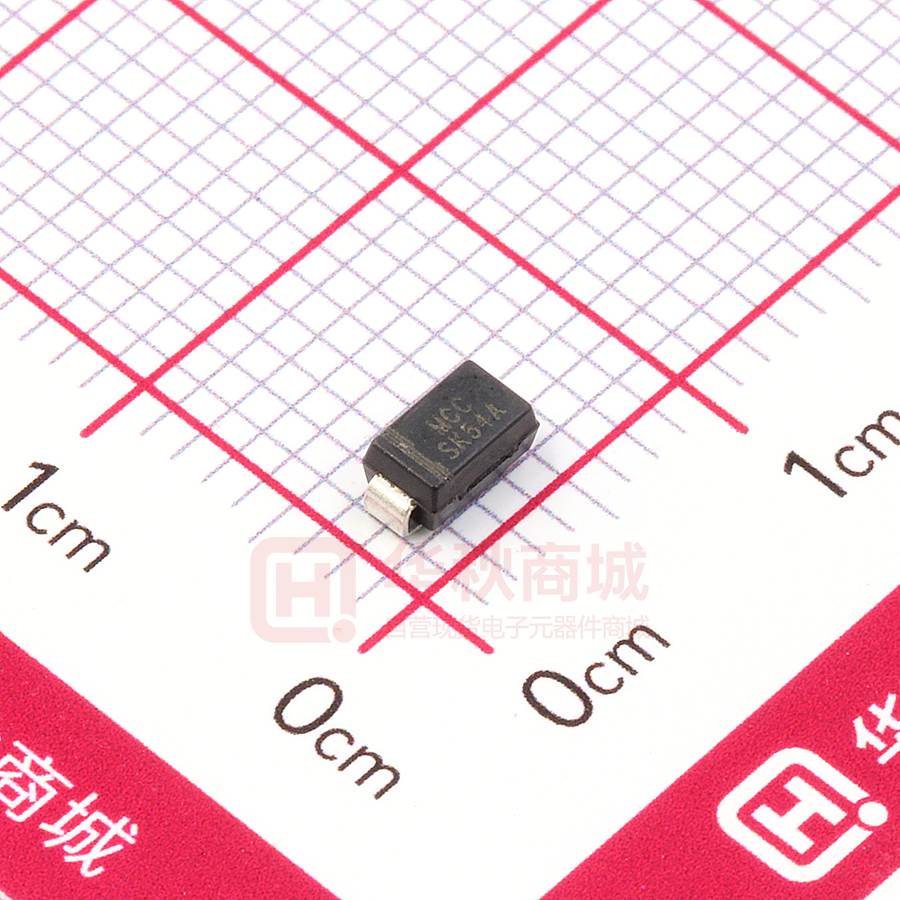

SK52A-L THRU SK510A-L Features • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • High Current Capability With Low Forward Voltage • For Surface Mount Applications • Extremely Low Thermal Resistance • Easy Pick And Place • Halogen Free Available Upon Request By Adding Suffix "-HF" 5 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C SMA (DO-214AC) • Maximum Thermal Resistance: 16°C/W Junction to Lead MCC Part Number Device Marking SK52A-L SK53A-L SK54A-L SK55A-L SK56A-L SK58A-L SK510A-L SK52A SK53A SK54A SK55A SK56A SK58A SK510A Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 20V 30V 40V 50V 60V 80V 100V 14V 21V 28V 35V 42V 56V 70V H 20V 30V 40V 50V 60V 80V 100V J Cathode Mark C E IF(AV) 5.0A TA=120⁰C Peak Forward Surge Current IFSM 100A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage SK52A-54A SK55A-56A SK58A-510A VF 0.55V 0.75V 0.85V IFM=5.0A; TJ=25⁰C* Maximum DC Reverse Current at Rated DC Blocking Voltage IR 0.1mA TJ=25⁰C; TJ=100⁰C Typical Junction Capacitance CJ 10mA 200pF B G Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current D F A DIM A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.075 0.096 1.90 2.44 0.050 0.064 1.27 1.63 0.002 0.008 0.051 0.203 --- 0.020 --0.51 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.189 0.220 4.80 5.59 0.157 0.187 4.00 4.75 0.090 0.115 2.25 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT Measured at 1.0MHz, VR=4.0V *Pulse test: Pulse width 200 µsec, Duty cycle 2% Note :1. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. 2.27mm 2.16mm 1.78mm Rev.3-3-07072019 1/4 MCCSEMI.COM SK52A-L THRU SK510A-L Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 120 5 100 Peak Forward Surge Current (A) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve 6 4 3 2 1 0 Resistive or Inductive Load 0 25 50 80 60 40 20 8.3 ms Single Half Sine-Wave 75 100 125 0 150 10 1 Ambient Temperature (°C) Fig. 4 - Typical Instantaneous Forward Characteristics Fig. 3 - Typical Instantaneous Forward Characteristics 20 20 10 TJ=125°C 5 Instantaneous Forward Current (A) Instantaneous Forward Current (A) 10 2 1 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 5 2 TJ=125°C 1 TJ=75°C 0.5 0.2 0.1 0.05 TJ=25°C 0.02 SK52A-54A-L 0.01 0.0 0.01 0.0 1.0 SK55A~56A-L 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Instantaneous Forward Voltage (V) Instantaneous Forward Voltage (V) Fig. 5 - Typical Instantaneous Forward Characteristics Fig. 6 - Typical Reverse Leakage Characteristics 20 Instantaneous Reverse Leakage Current (μA) 5 TJ=125°C 1 TJ=75°C 0.5 0.2 0.1 0.05 TJ=25°C 0.02 SK58A~510A-L 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 TJ=125°C 1000 100 1.0 TJ=75°C 10 TJ=25°C 1 20 Instantaneous Forward Voltage (V) Rev.3-3-07072019 TJ=150°C 10000 2 0.01 0.0 1.0 100000 10 Instantaneous Forward Current (A) 100 Number of Cycles at 60 Hz 40 60 SK52A~54A-L 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 MCCSEMI.COM SK52A-L THRU SK510A-L Curve Characteristics Fig. 7 - Typical Reverse Leakage Characteristics Fig. 8 - Typical Reverse Leakage Characteristics Instantaneous Reverse Leakage Current (μA) Instantaneous Reverse Leakage Current (μA) 10000 TJ=125°C 1000 100 TJ=75°C 10 TJ=25°C 1 20 40 60 SK55A~56A-L 80 100 Percent of Rated Peak Reverse Voltage (%) Rev.3-3-07072019 1000 TJ=125°C 100 10 TJ=75°C 1 0.1 0.01 20 TJ=25°C SK58A~510A-L 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 3/4 MCCSEMI.COM SK52A-L THRU SK510A-L Ordering Information Device Packing SK52A-LTP~SK510A-LTP Tape&Reel: 5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. SK52A-LTP-HF~SK510A-LTP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-3-07072019 4/4 MCCSEMI.COM
