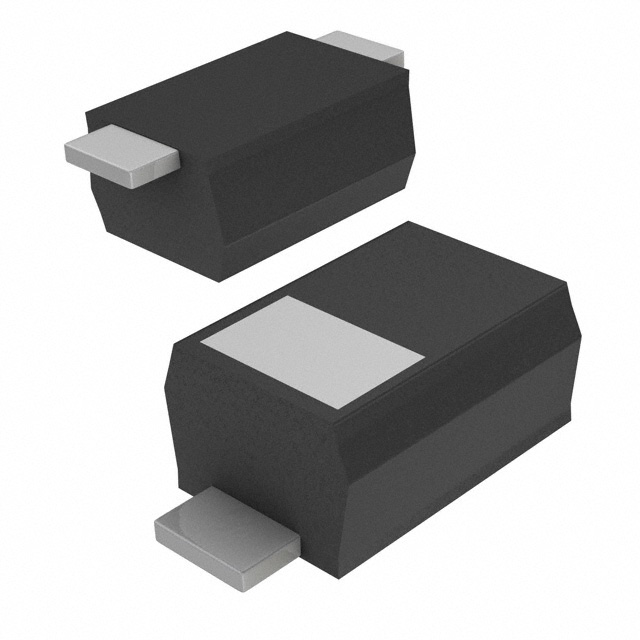

SL14PL THRU SL110PL Features Halogen Free. “Green” Device (Note 1) High Current Capability Low Forward Voltage Lead Free Finish/RoHS Compliant(Note 2) ("P" Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • • • 1 Amp Low VF Schottky Rectifier 40 to 100 Volts Maximum Ratings • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C SOD-123FL • Maximum Thermal Resistance: 20°C/W Junction to Lead MCC Part Number Device Marking SL14PL SL16PL SL110PL SL14 SL16 SL110 Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 40V 60V 100V 28V 42V 70V A B C 40V 60V 100V E Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1.0A TA=75⁰C Peak Forward Surge Current IFSM 28A 8.3ms,Half Sine DIM Maximum Instantaneous Forward Voltage SL14PL SL16PL SL110PL Maximum DC Reverse Current at Rated DC Blocking Voltage VF IR A B C D E G H IFM=1.0A; 0.40V 0.55V 0.60V TJ=25⁰C 0.1mA TJ=25⁰C DIMENSIONS INCHES MM MIN MAX MIN MAX 0.130 0.152 3.30 3.85 0.100 0.122 2.55 3.10 0.055 0.075 1.40 1.90 0.035 0.053 0.90 1.35 0.020 0.041 0.50 1.05 0.010 ---0.25 ------- 0.010 ---0.25 NOTE Suggested Solder Pad Layout 2.36mm Note: 1. Halogen free "Green” products are defined as those which contain
