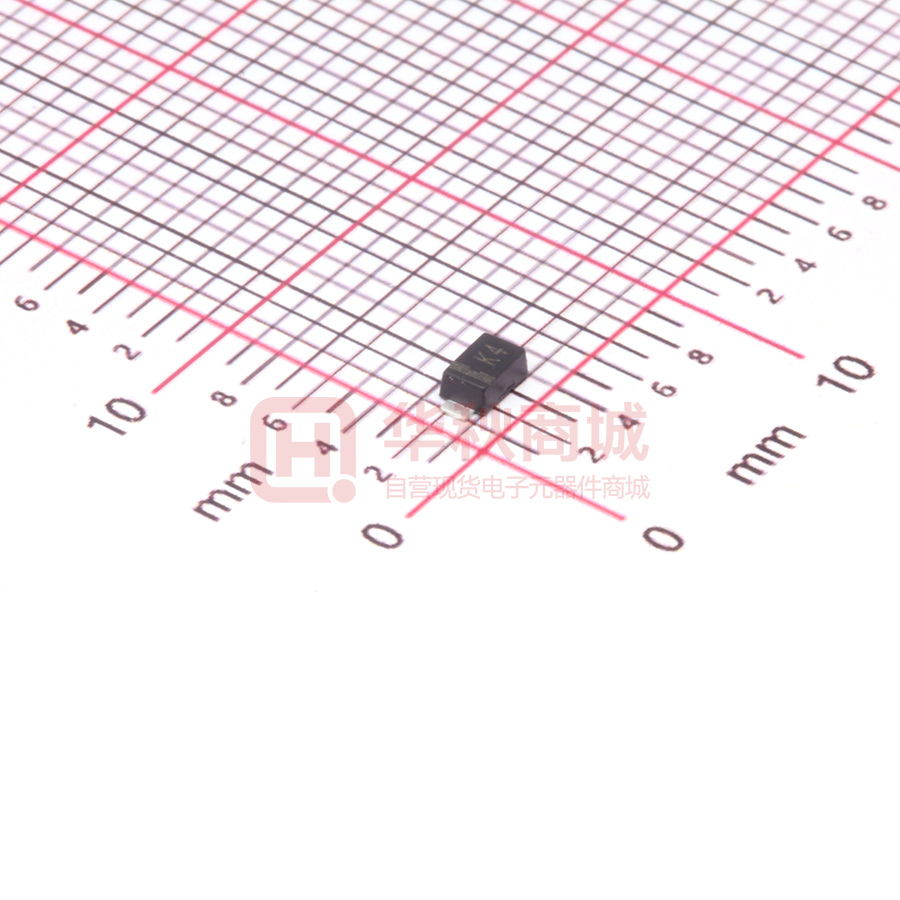

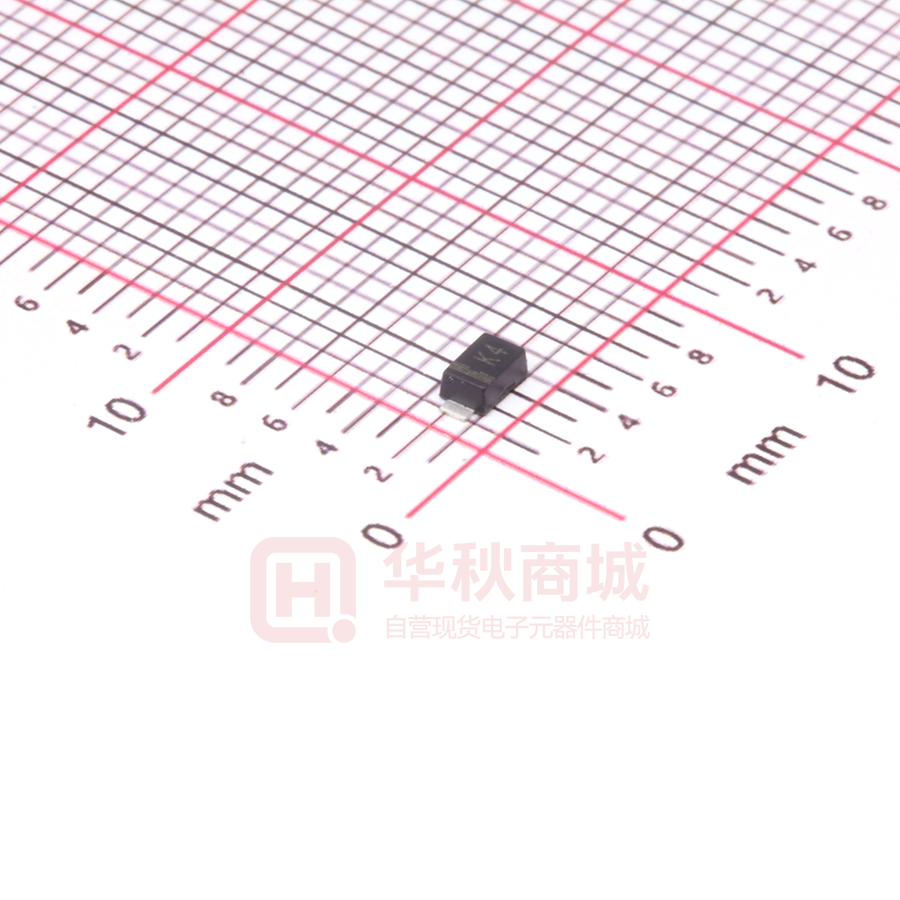

SM5819PL-TP

SM5817PL THRU SM5819PL Features • • • • • • • High Surge Capability Low Forward Voltage Low Profile Package Epoxy Meets UL 94 V-0 Flammability Rating Moisture Sensitivity Level 1 Halogen Free Available Upon Request By Adding Suffix "-HF" Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) Schottky Barrier Diodes 20 to 40 Volts Maximum Ratings • • • • • Operating Junction Temperature Range: -65⁰C to +125⁰C Storage Temperature Range: -65⁰C to +125⁰C Typical Thermal Resistance(Note2):88°C/W Junction to Ambient Typical Thermal Resistance(Note2):43°C/W Junction to Case Typical Thermal Resistance(Note2):30°C/W Junction to Lead MCC Part Number Device Marking SOD-123FL A B Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage SM5817PL K2 20V 14V 20V SM5818PL K3 30V 21V 30V SM5819PL K4 40V 28V 40V C E Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1.0A Repetitive Peak Forward Current IFRM Peak Forward Surge Current IFSM 30A PD 1.14W Power Dissipation Forward Voltage SM5817PL SM5818PL-5819PL SM5818PL-5819PL SM5818PL-5819PL SM5818PL-5819PL Maximum DC Reverse Current At Rated DC Blocking Voltage VF IR SM5818PL-5819PL Typical Junction Capacitance CJ TL=90°C 1.2A(Min) DIM 1.5A(Max) t=8.3ms 0.45V(Max) IF=1A 0.53V(Max) IF=1A 0.33V(Typ) IF=0.1A A B C D E G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.130 0.152 3.30 3.85 0.100 0.122 2.55 3.10 0.055 0.075 1.40 1.90 0.035 0.053 0.90 1.35 0.020 0.041 0.50 1.05 0.010 ---0.25 ------- 0.010 ---0.25 NOTE SUGGESTED SOLDER PAD LAYOUT 0.375V(Max) IF=0.1A 0.45V(Max) IF=0.5A 0.05mA 9.0mA 20µA TJ=25°C TJ=100°C VR=15V f=1.0MHz, Vr=4V 50pF 2.36mm 1.22mm 0.91mm Note :1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7a. 2. Thermal Resistance:PC Board Mounted on 0.2*0.2''(5*5mm) copper pad area. Rev.3-1-01012019 1/3 MCCSEMI.COM SM5817PL THRU SM5819PL Curve Characteristics Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 35 1.0 30 Peak Forward Surge Current (A) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve 1.2 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 0 25 50 100 75 20 15 10 5 0 125 8.3 ms Single Half Sine-Wave 1 100 10 Lead Temperature (°C) Number of Cycles at 60 Hz Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Reverse Leakage Characteristics 5 10000 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 25 2 1 TJ=125°C 0.5 0.2 TJ=75°C 0.1 0.05 TJ=25°C 0.02 0.01 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Instantaneous Forward Voltage (V) Rev.3-1-01012019 TJ=125°C 1000 TJ=75°C 100 TJ=25°C 10 1 20 40 60 100 80 Percent of Rated Peak Reverse Voltage (%) 2/3 MCCSEMI.COM SM5817PL THRU SM5819PL Ordering Information Device Packing Part Number-TP Tape&Reel: 2.5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 3/3 MCCSEMI.COM
