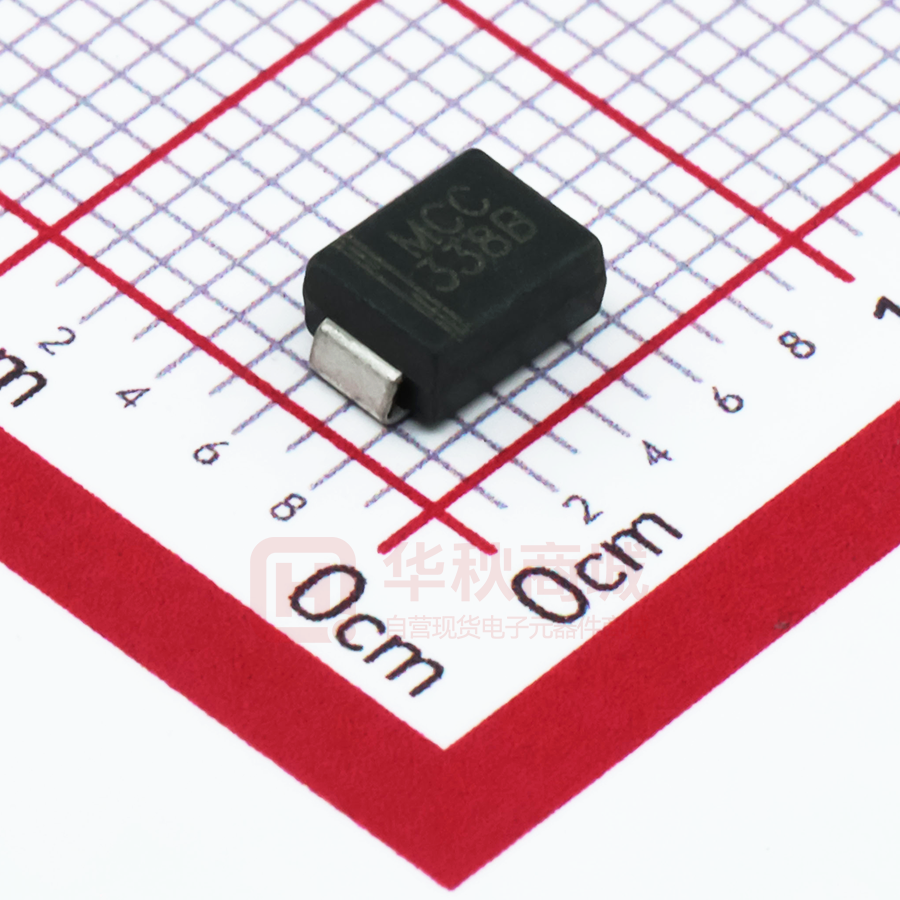

SMBJ5338B-TP

SMBJ5338B THRU SMBJ5388B Features • • • • • • • Low Profile Package for Surface Mountiong(Flat Handling Surface for Accurate Placement) Zener Voltage 5.1V to 200V Available on Tape and Reel(See E1A Std RS-481) Halogen Free. “Green” Device (Note 1) Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant (Note 2) ("P" Suffix Designates Compliant. See Ordering Information) 5.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 200V Maximum Ratings • • • • SMB (DO-214AA) (LEAD FRAME) Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C Thermal Resistance：15°C/W Junction to Lead Thermal Resistance：90°C/W Junction to Ambient(Note3) Parameter Symbol Rating H J Conditions Cathode Mark Steady State Power Dissipation P(AV) 5.0W Note 4 D A C E Maximum Forward Voltage VF 1.2V IF=1.0mA Note: 1.Halogen free "Green"products are defined as those which contain
