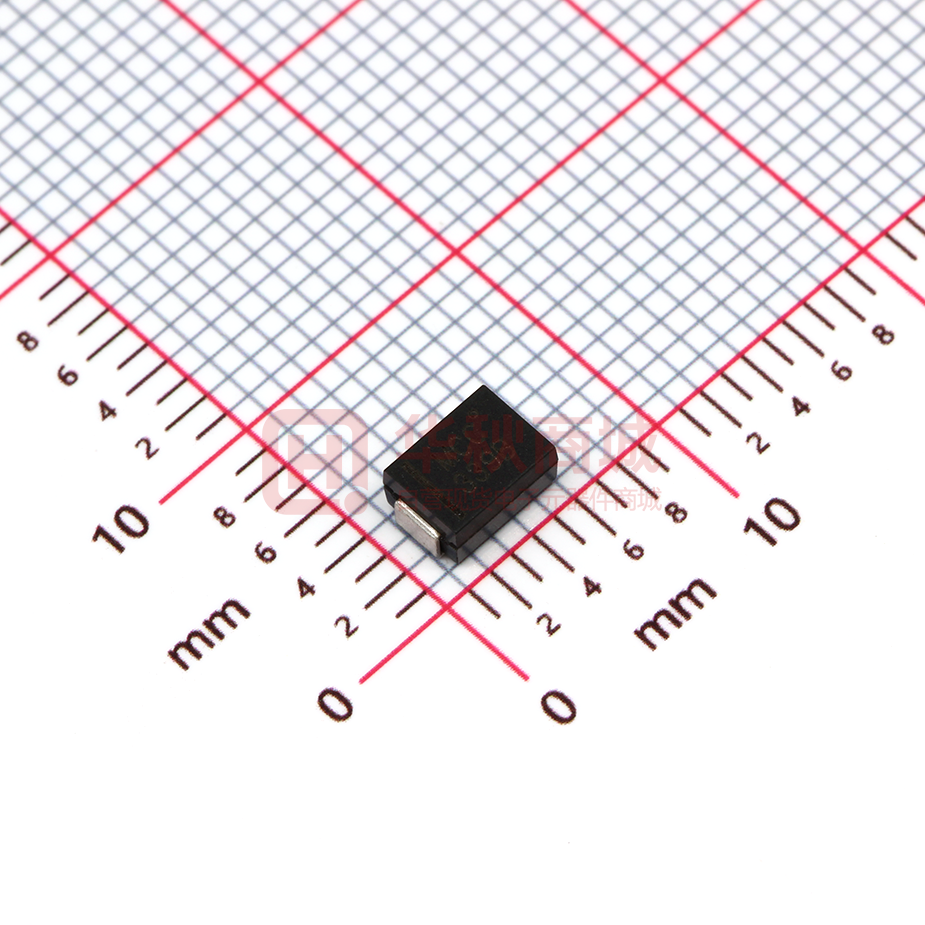

SMBJ5339B-TP

SMBJ5338B THRU SMBJ5388B Features • • • • • • • Low Profile Package for Surface Mountiong(Flat Handling Surface for Accurate Placement) Zener Voltage 5.1V to 200V Available on Tape and Reel(See E1A Std RS-481) Halogen Free Available Upon Request By Adding Suffix "-HF" Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates Compliant. See Ordering Information) 5.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 200V Maximum Ratings • • • • SMB (DO-214AA) (LEAD FRAME) Operating Junction Temperature Range: -55°C to +150°C Storage Temperature Range: -55°C to +150°C Thermal Resistance：15°C/W Junction to Lead Thermal Resistance：90°C/W Junction to Ambient(Note2) Parameter Symbol Rating H J Conditions Cathode Mark Steady State Power Dissipation P(AV) 5.0W Note 3 A E Maximum Forward Voltage VF 1.2V 3.Lead Temperature at 75°C = TL at Mounting Plane. Derate Linearly Above 75°C to Zero Power at 150°C Device Marking： MCC B G Note: 1.High Temperature Solder Exemption Applied, See EU Directive Annex 7a. 2.Ambient Temperature at 15°C = TA at Mounting Plane. Derate Linearly Above 15°C to Zero Power at 150°C D F IF=1.0A C DIM A B C D E F G H J DIMENSIONS INCHES MM MIN MAX MIN MAX 0.079 0.103 2.00 2.62 0.075 0.087 1.91 2.21 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 0.030 0.060 0.76 1.52 0.065 0.091 1.65 2.32 0.200 0.220 5.08 5.59 0.160 0.191 4.06 4.85 0.130 0.155 3.30 3.94 NOTE 369B Suggested Solder Pad Layout Cathode Band Logo 1.80mm Type No. For Example: 339B for SMBJ5339B 369B for SMBJ5369B 2.30mm 2.50mm Rev.3-1-01012019 1/5 MCCSEMI.COM SMBJ5338B THRU SMBJ5388B Electrical Characteristics @ 25°C Unless Otherwise Specified MCC Part Number SMBJ5338B SMBJ5339B SMBJ5340B SMBJ5341B SMBJ5342B SMBJ5343B SMBJ5344B SMBJ5345B SMBJ5346B SMBJ5347B SMBJ5348B SMBJ5349B SMBJ5350B SMBJ5351B SMBJ5352B SMBJ5353B SMBJ5354B SMBJ5355B SMBJ5356B SMBJ5357B SMBJ5358B SMBJ5359B SMBJ5360B SMBJ5361B SMBJ5362B SMBJ5363B SMBJ5364B SMBJ5365B SMBJ5366B SMBJ5367B SMBJ5368B SMBJ5369B SMBJ5370B SMBJ5371B SMBJ5372B SMBJ5373B SMBJ5374B SMBJ5375B SMBJ5376B SMBJ5377B SMBJ5378B SMBJ5379B SMBJ5380B SMBJ5381B SMBJ5382B SMBJ5383B SMBJ5384B SMBJ5385B SMBJ5386B SMBJ5387B SMBJ5388B Rev.3-1-01012019 Regulator Voltage Test Current Maximum Dynamic Impedance Maximum Reverse Current Test Voltage Maximum Regulator Current VZ V 5.1 5.6 6 6.2 6.8 7.5 8.2 8.7 9.1 10 11 12 13 14 15 16 17 18 19 20 22 24 25 27 28 30 33 36 39 43 47 51 56 60 62 68 75 82 87 91 100 110 120 130 140 150 160 170 180 190 200 IZ mA 240 220 200 200 175 175 150 150 150 125 125 100 100 100 75 75 70 65 65 65 50 50 50 50 50 40 40 30 30 30 25 25 20 20 20 20 20 15 15 15 12 12 10 10 8.0 8.0 8.0 8.0 5.0 5.0 5.0 ZZT Ω 1.5 1 1 1 1 1.5 1.5 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3.5 3.5 4 5 6 8 10 11 14 20 25 27 35 40 42 44 45 65 75 75 90 125 170 190 230 330 350 380 430 450 480 IR µA 1 1 1 1 10 10 10 10 7.5 5 5 2 1 1 1 1 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 VR V 1 2 3 3 5.2 5.7 6.2 6.6 6.9 7.6 8.4 9.1 9.9 10.6 11.5 12.2 12.9 13.7 14.4 15.2 16.7 18.2 19 20.6 21.2 22.8 25.1 27.4 29.7 32.7 35.8 38.8 42.6 45.5 47.1 51.7 56 62.2 66 69.2 76 83.6 91.2 98.8 106 114 122 129 137 144 152 IZM mA 930 865 790 765 700 630 580 545 520 475 430 395 365 340 315 295 280 264 250 237 216 198 190 176 170 158 144 132 122 110 100 93 86 79 76 70 63 58 54.5 52.5 47.5 43 39.5 36.6 34 31.6 29.4 28 26.4 25 23.6 2/5 Maximum Dynamic Knee Impedance ZZK @1.0mA Ω 400 400 300 200 200 200 200 200 150 125 125 125 100 75 75 75 75 75 75 75 75 100 110 120 130 140 150 160 170 190 210 230 280 350 400 500 620 720 760 760 800 1000 1150 1250 1500 1500 1650 1750 1750 1850 1850 Maximum Surge Current IZSM A 14.4 13.4 12.7 12.4 11.5 10.7 10 9.5 9.2 8.6 8 7.5 7 6.7 6.3 6 5.8 5.5 5.3 5.1 4.7 4.4 4.3 4.1 3.9 3.7 3.5 3.3 3.1 2.8 2.7 2.5 2.3 2.2 2.1 2 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.2 1.2 1.1 1.1 1.0 1.0 0.9 0.9 Maximum Voltage Regulation V 0.39 0.25 0.19 0.1 0.15 0.15 0.2 0.2 0.22 0.22 0.25 0.25 0.25 0.25 0.25 0.3 0.35 0.4 0.4 0.4 0.45 0.55 0.55 0.6 0.6 0.6 0.6 0.65 0.65 0.7 0.8 0.9 1 1.2 1.35 1.5 1.6 1.8 2 2.2 2.3 2.5 2.5 2.5 2.5 3 3 3 4 5 5 MCCSEMI.COM SMBJ5338B THRU SMBJ5388B Remarks: 1. Devices Listed Have a ± 5% Tolerance on Nominal VZ. Suffix C Denotes a +2% 2. Nominal Zener Voltage (VZ) is Tested With a 40 +/-10 Milliseconds Pulse Current at 25°C to Avoid Self-heat Affection. 3. The Zener Impedance (ZZT or ZZK) is Derived from The 60Hz AC Voltage, Which Results When an AC Current Having a rms value Equal to 10% of the DC Zener Current (IZT or IZK) Respectively. 4. The Maximum Reverse(Leakage) Current is Specified for Devices With ± 20% and ± 10% Voltage Tolerances on Nominal VZ in Another Column. 5. The Maximum Zener Current(IZM) Shown is for ± 5% Tolerance Devices. IZM for ± 10% and ± 20% Devices Can be Calculated Using the Formula: IZM = P V ZM Where “VZM” is VZ at The High End of The Voltage Tolerance Specified and “P” is The Rated Power of The Device. 6. The Surge Current (IZM) is Specified As The Maximum Peak of a Nonrecurring Sine Wave of 8.3 Milliseconds Duration. 7. Voltage Regulation (ΔVZ) is The Difference Between The Voltage Measured at 10% and 50% (IZM). Rev.3-1-01012019 3/5 MCCSEMI.COM SMBJ5338B THRU SMBJ5388B Curve Characteristics Fig. 2 - Typical Zener Breakdown Characteristics Fig. 1 - Power Derating Curve 6 10000 VZ - 6.0 thru 10 Volts 1000 TL Zener Current (mA) Power Dissipation (W) 5 4 3 2 TA 1 0 0 25 100 10 1 50 75 100 125 0.1 150 0 1 2 3 Temperature (°C) 4 5 6 7 8 9 10 11 Zener Voltage (V) Fig.  - Typical Zener Breakdown Characteristics Fig. 4 - Typical Zener Breakdown Characteristics 1000 1000 VZ - 11 thru 75 Volts 500 VZ - 82 thru 200 Volts 200 100 50 Zener Current (mA) Zener Current (mA) 100 20 10 5 2 1 10 1 0.5 0.2 0.1 10 Rev.3-1-01012019 20 30 40 50 Zener Voltage (V) 60 70 0.1 80 80 100 120 140 160 180 200 220 Zener Voltage (V) 4/5 MCCSEMI.COM SMBJ5338B THRU SMBJ5388B Ordering Information Device Packing Part Number-TP Tape&Reel:3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 5/5 MCCSEMI.COM
