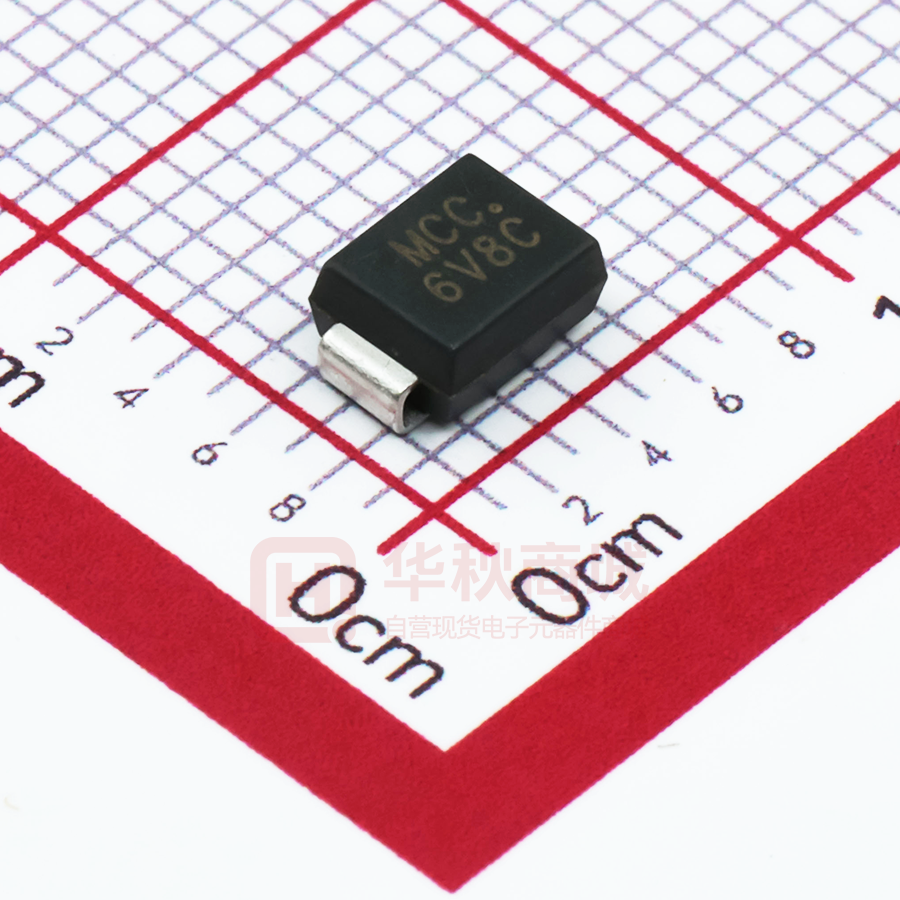

SMBJP6KE6.8CA-TP

SMBJP6KE6.8(C)A THRU SMBJP6KE550(C)A E480232 Features • • • • • • • • • 600 Watt TVS 5.0 to 440 Volts For Surface Mount Applicationsin Order to Optimize Board Space Low Inductance Excellent Clamping Capability Fast Response Time: Typical Less Than 1ps From 0V to VBR min Available in Both Unidirectional and Bidirectional Construction and Suffix"C" Designates Bidirectional Type Halogen Free. “Green” Device (Note 1) Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant. See Ordering Information) SMB (DO-214AA) (LEAD FRAME) Mechanical Data • Polarity: Color Band Denotes Positive end( cathode) Except Bi-directional Types H • Maximum Soldering Temperature:260°C for 10 Seconds • Terminals: Solderable Per MIL-STD-750, Method 2026 J Maximum Ratings • • • • Cathode Mark Operating Junction Temperature Range: -65°C to +150°C Storage Temperature Range: -65°C to +150°C Thermal Resistance : 20°C/W Junction to Lead D A C E B F Thermal Resistance : 25°C/W Junction to Case G Electrical Characteristics @ 25°C Unless Otherwise Specified Peak Pulse Power Surge Current on 10/1000μs Waveform IPP Peak Pulse Power Dissipation PPP 600W Maximum Instantaneous Forward Voltage @ at 1A for Unidirectional Only VF 1.5V DIM See the Table Note 3 Note 3 NOTES: NOTE Suggested Solder Pad Layout 1. Halogen free "Green” products are defined as those which contain
