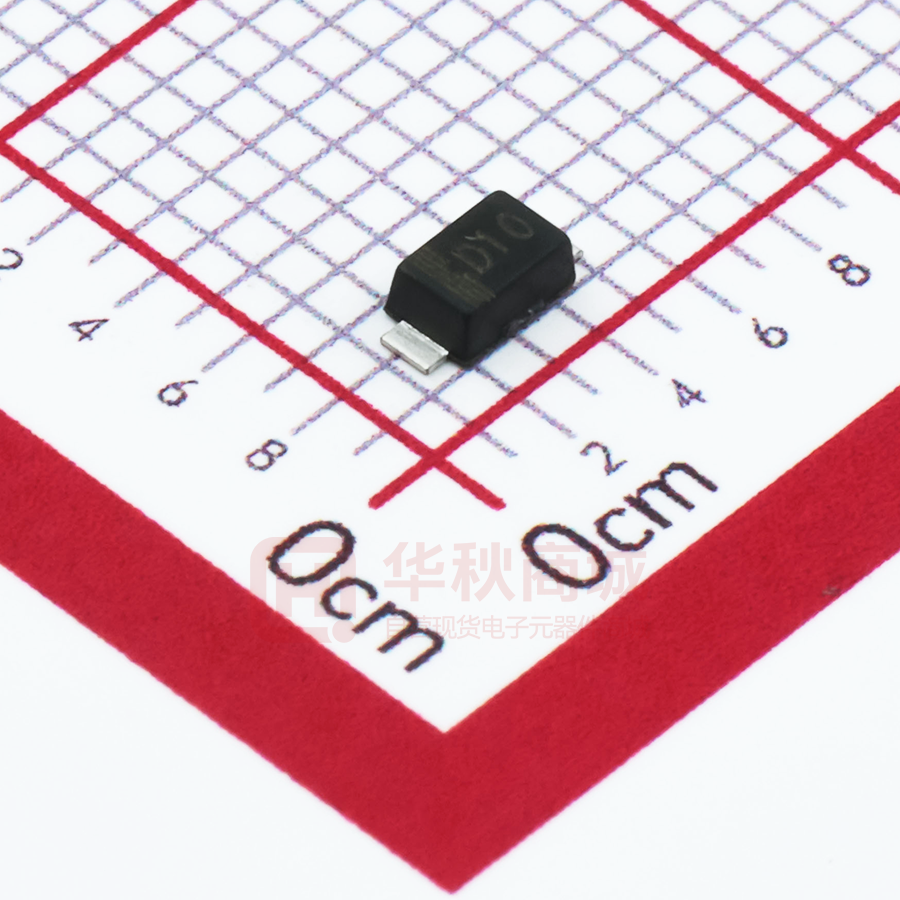

SMD110PL-TP

SMD110PL THRU SMD1200PL Features Halogen Free Available Upon Request By Adding Suffix "-HF" High Current Capability Low Forward Voltage Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • • • 1 Amp Schottky Rectifier 100 to 200 Volts Maximum Ratings • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C SOD-123FL • Maximum Thermal Resistance: 28°C/W Junction to Lead MCC Part Number Device Marking SMD110PL SMD1150PL SMD1200PL D10 D15 D20 Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 100V 150V 200V 70V 105V 140V A B 100V 150V 200V C E Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 1.0A TL=100⁰C Peak Forward Surge Current IFSM 30A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage SMD110PL-1150PL DIM VF SMD1200PL Maximum DC Reverse Current at Rated DC Blocking Voltage IR Typical Junction Capacitance CJ 0.85V IFM=1.0A; 0.95V TJ=25⁰C (Note:2) 0.01mA TJ=25⁰C 1mA TJ=100⁰C A B C D E G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.130 0.152 3.30 3.85 0.100 0.122 2.55 3.10 0.055 0.075 1.40 1.90 0.035 0.053 0.90 1.35 0.020 0.041 0.50 1.05 0.010 ---0.25 ------- 0.010 ---0.25 NOTE Suggested Solder Pad Layout 30pF Measured at 1.0MHz, VR=4.0V Note :1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7a. 2. Pulse test: Pulse width 300 µsec, Duty cycle 2% 2.36mm 1.22mm 0.91mm Rev.3-1-01012019 1/3 MCCSEMI.COM SMD110PL THRU SMD1200PL Curve Characteristics Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 35 1.0 30 Peak Forward Surge Current (A) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve 1.2 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 0 25 50 75 100 125 20 15 10 5 0 150 8.3 ms Single Half Sine-Wave 10 1 100 Lead Temperature (°C) Number of Cycles at 60 Hz Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Reverse Leakage Characteristics 10 Instantaneous Reverse Leakage Current (μA) 100 5 Instantaneous Forward Current (A) 25 2 1 TJ=125°C 0.5 0.2 TJ=75°C 0.1 0.05 TJ=25°C 0.02 0.01 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 10 TJ=75°C 1 0.1 0.01 20 TJ=25°C 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 TJ=125°C 2/3 MCCSEMI.COM SMD110PL THRU SMD1200PL Ordering Information Device Packing Part Number-TP Tape&Reel: 2.5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 3/3 MCCSEMI.COM
