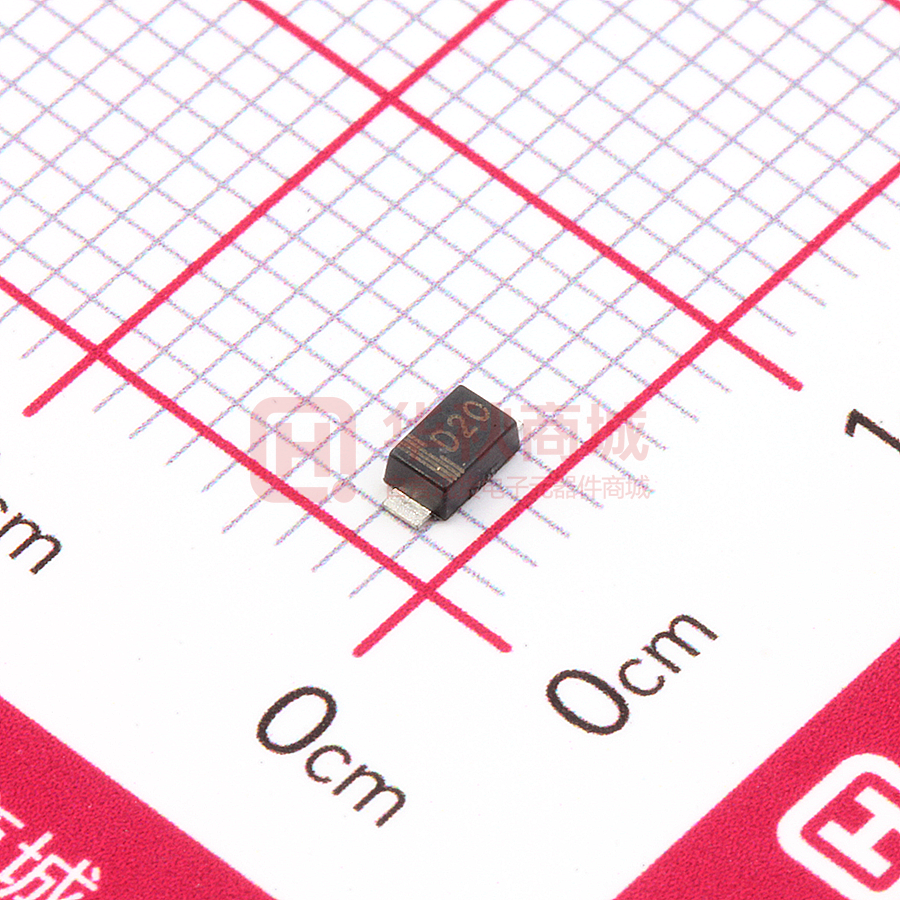

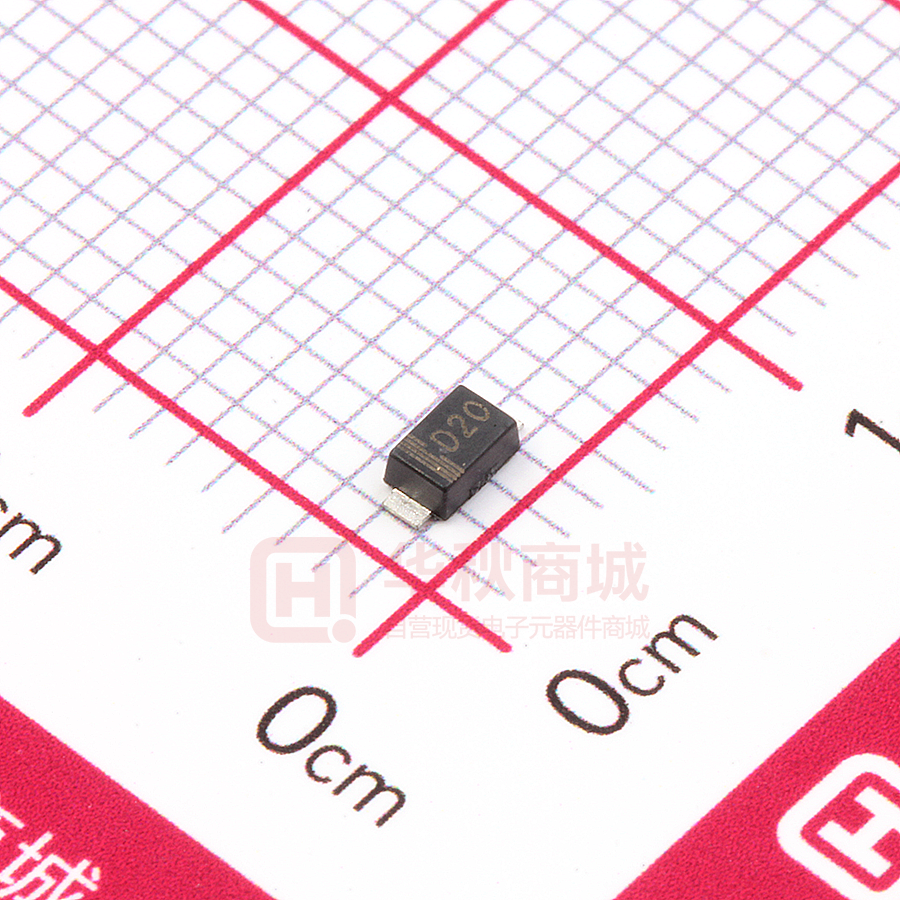

SMD1200PL-TP

MCC TM Micro Commercial Components SMD110PL THRU SMD1200PL
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features Halogen free available upon request by adding suffix "-HF" Schottky Barrier Rectifier High Current Capability Low Forward Voltage Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 • • • • • • • 1 Amp Schottky Rectifier 100 to 200 Volts SOD-123FL Maximum Ratings • • • Operating Temperature: -55°C to +150°C Storage Temperature: -55°C to +150°C Maximum Thermal Resistance; 28°C/W Junction To Lead MCC Catalog Number SMD110PL SMD1150PL SMD1200PL Device Marking D10 D15 D20 Maximum Recurrent Peak Reverse Voltage 100V 150V 200V Maximum RMS Voltage 70V 105V 140V Maximum DC Blocking Voltage 100V 150V 200V A B C E H D G Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage SMD110PL-1150PL SMD1200PL IF(AV) 1.0A TL = 90°C IFSM 30A 8.3ms, half sine VF .85V .95V IFM = 1.0A; TJ = 25°C(Note:2) DIM A B C D E G H DIMENSIONS INCHES MM MIN MAX MIN MAX .140 .152 3.55 3.85 .100 .122 2.55 3.10 .055 .075 1.40 1.90 .035 .053 0.90 1.35 .020 .041 0.50 1.05 .010 ----0.25 --------.010 ---.25 NOTE SUGGESTED SOLDER PAD LAYOUT Maximum DC Reverse Current At Rated DC Blocking Voltage 0.093” IR 0.5mA 20mA TA = 25°C TA = 100°C 0.048” Typical Junction Capacitance CJ 30pF Measured at 1.0MHz, VR=4.0V 0.036” Note:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7. 2.Pulse test: Pulse width 300 sec, Duty cycle 2% www.mccsemi.com 1 of 3 Revision: D 2013/01/01 MCC SMD110PL thru SMD1200PL TM Micro Commercial Components Figure 1 Typical Forward Characteristics 20 10 6 4 2 1 Amps .6 .4 .2 25°C .1 .06 .04 .02 .01 .4 .6 .8 1.0 1.2 1.4 Volts Instantaneous Forward Current - Amperesversus Instantaneous Forward Voltage - Volts Figure 3 Peak Forward Surge Current Figure 2 Forward Derating Curve 60 1.2 50 1.0 40 .8 30 20 .6 Amps 10 .4 0 1 2 4 6 20 0 50 75 100 125 °C Average Forward Rectified Current Lead Temperature -°C 40 60 80 100 Cycles Single Phase, Half Wave 60Hz Resistive or Inductive Load 0 8 10 150 175 Number Of Cycles At 60Hz - Cycles Amperesversus www.mccsemi.com Revision: D 2013/01/01 MCC TM Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 2.5Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: D 3 of 3 2013/01/01 1
