SMD15PL THRU SMD18PL
Features
Halogen Free Available Upon Request By Adding Suffix "-HF"
High Current Capability
Low Forward Voltage
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates
Compliant. See Ordering Information)
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
•
•
•
•
1 Amp
Schottky Rectifier
50 to 80 Volts
Maximum Ratings
• Operating Junction Temperature Range: -55⁰C to +125⁰C
• Storage Temperature Range: -55⁰C to +150⁰C

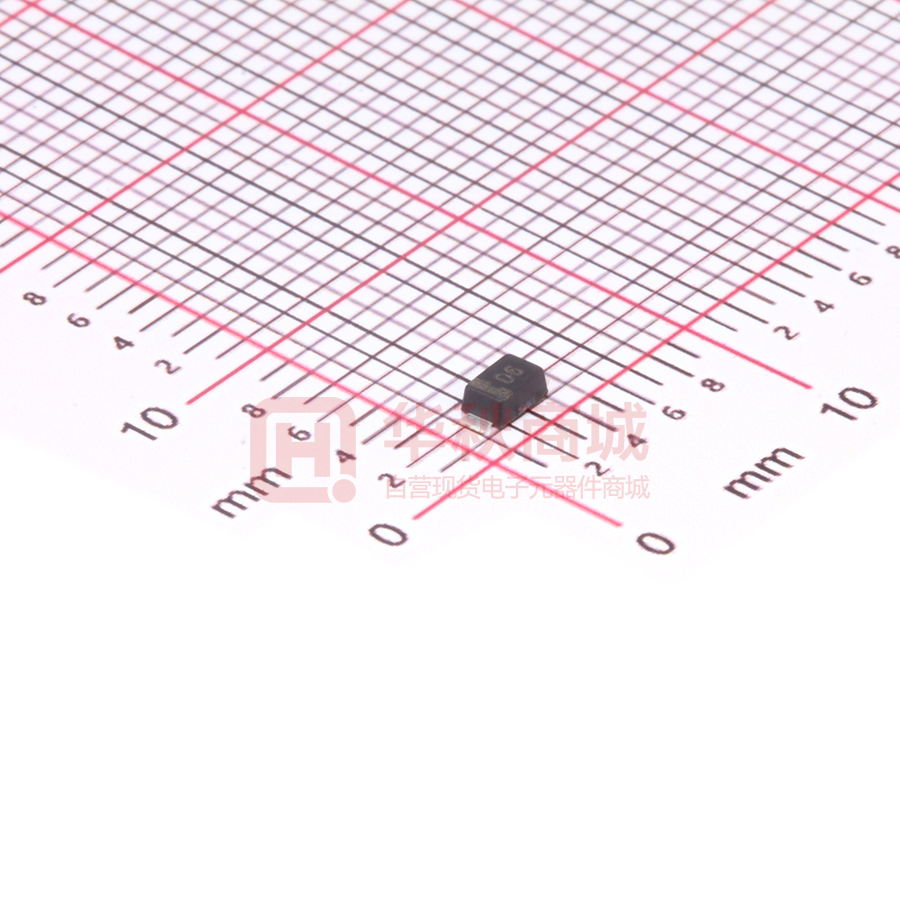

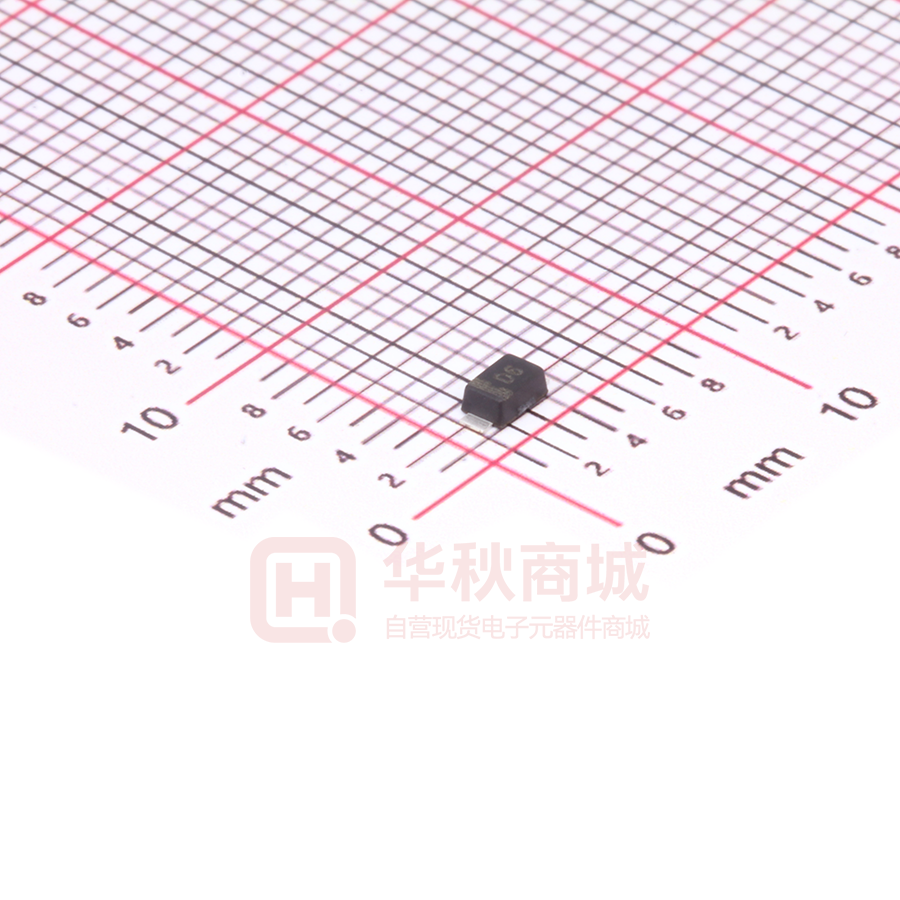

SOD-123FL
• Maximum Thermal Resistance: 28°C/W Junction to Lead
MCC
Part Number
Device
Marking
SMD15PL
SMD16PL
SMD18PL
D5
D6
D8
Maximum
Maximum DC
Recurrent
Maximum
Blocking
Peak Reverse RMS Voltage
Voltage
Voltage
50V
60V
80V
35V
42V
56V
A
B
50V
60V
80V
C
E
Cathode Mark
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
IF(AV)
1.0A
TL=90⁰C
Peak Forward Surge
Current
IFSM
30A
8.3ms,Half Sine
Maximum
Instantaneous
Forward Voltage
SMD15PL-16PL
DIM
VF
SMD18PL
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Junction
Capacitance
SMD15PL-16PL
SMD18PL
IR
0.70V
IFM=1.0A;
0.85V
TJ=25⁰C (Note 2)
0.1mA
TJ=25⁰C
10mA
TJ=100⁰C
A
B
C
D
E
G
H
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.130 0.152 3.30 3.85
0.100 0.122 2.55 3.10
0.055 0.075 1.40 1.90
0.035 0.053 0.90 1.35
0.020 0.041 0.50 1.05
0.010
---0.25
------- 0.010
---0.25
NOTE
Suggested Solder Pad Layout
CJ
110pF
30pF
Measured at
1.0MHz, VR=4.0V
Note :1. High Temperature Solder Exemption Applied, See EU Directive Annex 7a.
2. Pulse Test: Pulse Width 300 µsec, Duty Cycle 2%
2.36mm
1.22mm
0.91mm
Rev.3-1-01012019
1/3
MCCSEMI.COM
SMD15PL THRU SMD18PL
Curve Characteristics
Curve
Characteristics
35
1.0
30
Peak Forward Surge Current (A)
Average Forward Current (A)
Fig. 1 - Forward Current Derating Curve
1.2
0.8
0.6
0.4
0.2
Resistive or Inductive Load
0.0
0
50
25
75
100
15
10
5
8.3 ms Single Half Sine-Wave
1
100
10
Number of Cycles at 60 Hz
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 4 - Typical Instantaneous Forward Characteristics
5
TJ=125°C
2
Instantaneous Forward Current (A)
Instantaneous Forward Current (A)
20
Lead Temperature (°C)
5
1
0.5
0.2
0.1
TJ=75°C
0.05
TJ=25°C
0.02
0.01
0.0
0.1
0.2
0.3
0.4
SMD15PL-16PL
0.5
0.6
0.7
0.5
0.2
0.1
TJ=75°C
0.05
0.02
SMD18PL
TJ=25°C
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Instantaneous Forward Voltage (V)
Fig. 5 - Typical Reverse Leakage Characteristics
Fig. 6 - Typical Reverse Leakage Characteristics
1.0
Instantaneous Reverse Leakage Current (μA)
1000
TJ=125°C
100
TJ=75°C
10
TJ=25°C
40
60
SMD15PL-16PL
80
100
Percent of Rated Peak Reverse Voltage (%)
Rev.3-1-01012019
1
Instantaneous Forward Voltage (V)
1000
1
20
TJ=125°C
2
0.01
0.0
0.8
10000
Instantaneous Reverse Leakage Current (μA)
25
0
125
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current
100
TJ=125°C
10
TJ=75°C
1
0.1
TJ=25°C
0.01
20
40
60
SMD18PL
80
100
Percent of Rated Peak Reverse Voltage (%)
2/3
MCCSEMI.COM
SMD15PL THRU SMD18PL
Ordering Information
Device
Packing
Part Number-TP
Tape&Reel: 2.5Kpcs/Reel
Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF
***IMPORTANT NOTICE***
Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components
Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express
written approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
Rev.3-1-01012019
3/3
MCCSEMI.COM
