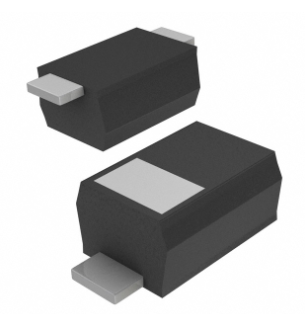

SMD26PL-TP

SMD22PL THRU SMD210PL Features Halogen Free Available Upon Request By Adding Suffix "-HF" High Surge Capability Low Forward Voltage Low Profile Package Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates RoHS Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • • • • Schottky Barrier Diodes 20 to 100 Volts Maximum Ratings • • • • • • • Operating Junction Temperature Range(SMD22PL~SMD24PL):-65⁰C to +125⁰C Operating Junction Temperature Range(SMD26PL~SMD210PL):-65⁰C to +150⁰C Storage Temperature Range(SMD22PL~SMD24PL):-65⁰C to +125⁰C Storage Temperature Range(SMD26PL~SMD210PL):-65⁰C to +150⁰C Typical Thermal Resistance(Note2): 60°C/W Junction to Ambient Typical Thermal Resistance(Note2): 30°C/W Junction to Case Typical Thermal Resistance(Note2): 21°C/W Junction to Lead MCC Part Number Device Marking SOD-123FL A B Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage SMD22PL M2 20V 14V 20V SMD24PL M4 40V 28V 40V SMD26PL M6 60V 42V 60V SMD28PL M8 80V 56V 80V SMD210PL M10 100V 70V 100V Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 2.0A TL=90⁰C Surge Forward Current IFSM 50A 8.3ms,Half Sine PD 1.68W Power Dissipation Forward Voltage C E Cathode Mark DIM A B C D E G H DIMENSIONS INCHES MM MIN MAX MIN MAX 0.130 0.152 3.30 3.85 0.100 0.122 2.55 3.10 0.055 0.075 1.40 1.90 0.035 0.053 0.90 1.35 0.020 0.041 0.50 1.05 0.010 ---0.25 ------- 0.010 ---0.25 NOTE Suggested Solder Pad Layout 0.5V(Max) 0.7V(Max) 0.85V(Max) IFM=2.0A; SMD22PL~24PL SMD26PL SMD28PL~210PL VF Maximum DC Reverse Current IR 0.1mA(Max) TJ=25⁰C Typical Junction Capacitance CJ 210pF(Typ) TJ=25⁰C 2.36mm 1.22mm f=1.0MHz,VR=4V Note :1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7a. 0.91mm 2. Thermal Resistance:PC Board Mounted on 0.2*0.2''(5*5mm) copper pad area. Rev.3-1-01012019 1/4 MCCSEMI.COM SMD22PL THRU SMD210PL Curve Characteristics Curve Characteristics Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 60 2.0 50 Peak Forward Surge Current (A) Average Forward Current (A) Fig. 1 - Forward Current Derating Curve 2.4 1.6 1.2 SMD22PL-24PL 0.8 SMD26PL-110PL 0.4 40 30 20 10 Resistive or Inductive Load 0 25 50 8.3 ms Single Half Sine-Wave 75 100 125 0 150 100 Number of Cycles at 60 Hz Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Instantaneous Forward Characteristics 5 5 2 2 1 TJ=125°C 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.01 0.0 0.1 0.2 0.3 0.4 SMD22PL-24PL 0.5 0.6 0.7 1 TJ=125°C 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.01 0.0 0.8 0.1 0.2 0.3 0.4 SMD26PL 0.5 0.6 0.7 Instantaneous Forward Voltage (V) Instantaneous Forward Voltage (V) Fig. 5 - Typical Instantaneous Forward Characteristics Fig. 6 - Typical Reverse Leakage Characteristics 5 2 1 TJ=125°C 0.5 TJ=75°C 0.2 0.1 0.05 TJ=25°C 0.02 0.01 0.2 0.3 0.4 0.5 0.6 SMD28PL-210PL 0.7 0.8 0.9 1.0 1000 TJ=125°C 100 TJ=75°C 10 1 20 TJ=25°C 40 60 SMD22PL-24PL 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) Rev.3-1-01012019 0.8 10000 Instantaneous Reverse Leakage Current (μA) Instantaneous Forward Current (A) 10 1 Lead Temperature (°C) Instantaneous Forward Current (A) Instantaneous Forward Current (A) 0.0 2/4 MCCSEMI.COM SMD22PL THRU SMD210PL Curve Characteristics Curve Characteristics Fig. 7 - Typical Reverse Leakage Characteristics Fig. 8 - Typical Reverse Leakage Characteristics 1000 Instantaneous Reverse Leakage Current (μA) Instantaneous Reverse Leakage Current (μA) 10000 TJ=125°C 100 TJ=75°C 10 1 0.1 20 TJ=25°C SMD26PL 40 60 80 100 10 TJ=125°C 1 0.1 TJ=75°C 0.01 TJ=25°C 0.001 20 40 60 SMD28PL-210PL 80 100 Percent of Rated Peak Reverse Voltage (%) Percent of Rated Peak Reverse Voltage (%) Rev.3-1-01012019 100 3/4 MCCSEMI.COM SMD22PL THRU SMD210PL Ordering Information Device Packing Part Number-TP Tape&Reel: 2.5Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-1-01012019 4/4 MCCSEMI.COM
