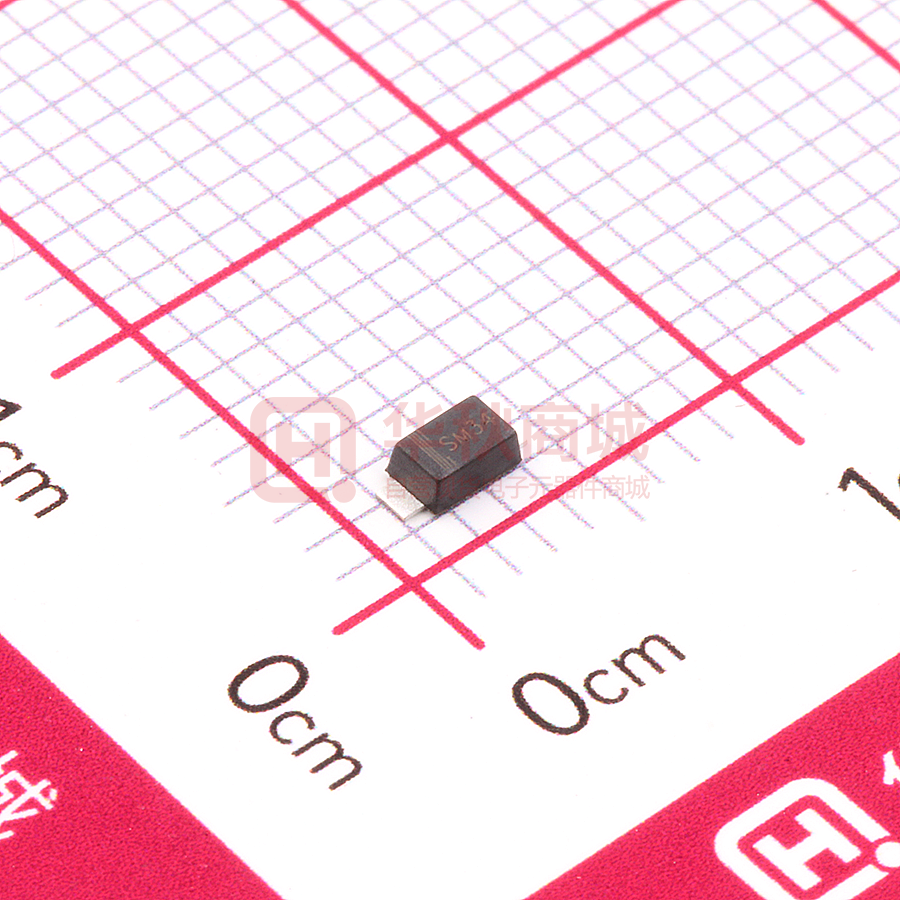

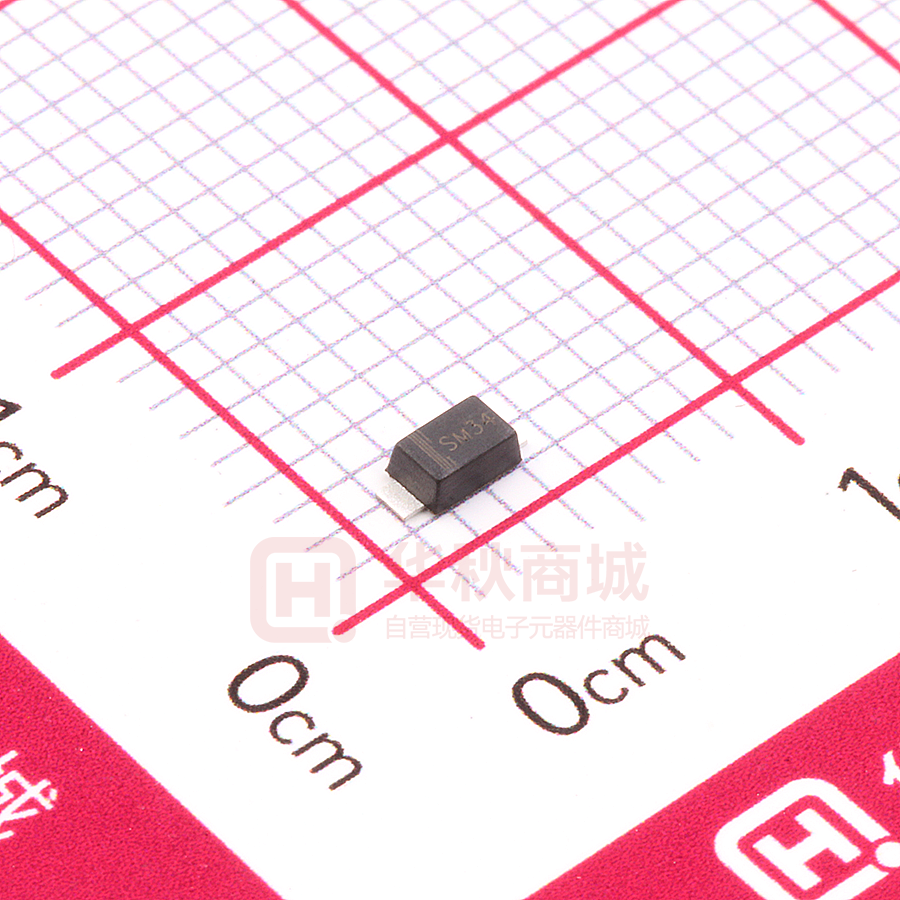

SMD34PL-TP

SMD32PL THRU SMD320PL Features Schottky Barrier Rectifier High Current Capability Low Forward Voltage Halogen Free. “Green” Device (Note 1) Lead Free Finish/RoHS Compliant(Note 2) ("P" Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • • • • • 3 Amp Schottky Rectifier 20 to 200 Volts Maximum Ratings • Operating Junction Temperature Range(32PL-34PL): -55⁰C to +125⁰C • Operating Junction Temperature Range(36PL-320PL):-55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C SOD-123FL • Maximum Thermal Resistance: 20°C/W Junction to Lead MCC Part Number Device Marking Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage A B 20V 14V 20V SM32 SMD32PL SM34 40V 28V 40V SMD34PL 60V 42V 60V SM36 SMD36PL SM38 80V 56V 80V SMD38PL 100V 70V 100V SM310 SMD310PL SM315 150V 105V 150V SMD315PL 200V 200V 200V SM320 SMD320PL Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 3.0A See Fig 1 Peak Forward Surge Current IFSM 80A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage SMD32PL~34PL SMD36PL SMD38PL-310PL SMD315PL-320PL Maximum DC Reverse Current at Rated DC Blocking Voltage VF 0.50V 0.65V 0.85V 0.90V C Cathode Mark H TJ=25⁰C D G DIM A B C D E G H IFM=3.0A; E DIMENSIONS INCHES MM MIN MAX MIN MAX 0.130 0.152 3.30 3.85 0.100 0.122 2.55 3.10 0.055 0.075 1.40 1.90 0.035 0.053 0.90 1.35 0.020 0.041 0.50 1.05 0.010 ---0.25 ------- 0.010 ---0.25 NOTE Suggested Solder Pad Layout IR 0.1mA TJ=25⁰C 10mA TJ=100⁰C 140pF Measured at 1.0MHz VR=4.0V TJ=25⁰C 2.36mm Typical Junction Capacitance SMD32PL~34PL SMD36PL SMD38PL-310PL SMD315PL-320PL CJ 130pF 95pF 65pF 1.22mm 0.91mm Note: 1. Halogen free "Green” products are defined as those which contain
