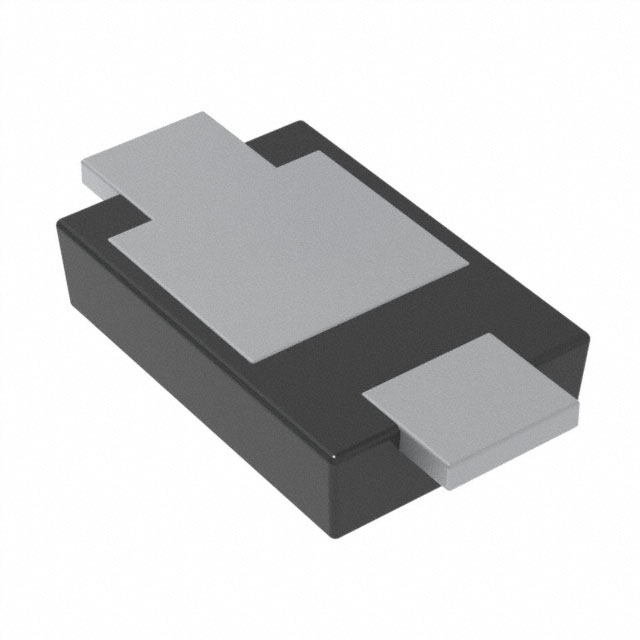

SMD36LHE1-TP

SMD36LHE1 Features • Halogen Free Available Upon Request By Adding Suffix "-HF" • High Current Capability • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information) • Guardring For Overvoltage Protection. • Silicon Epitaxial Planar Chip, Metal Silicon Junction • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 3 Amp Low VF Schottky Rectifier 60 Volts Maximum Ratings • Operating Junction Temperature Range: -55⁰C to +150⁰C • Storage Temperature Range: -55⁰C to +150⁰C SOD-123HE1 • Typical Thermal Resistance: 22°C/W Junction to Lead • Typical Thermal Resistance: 52°C/W Junction to Ambient HE • Typical Thermal Resistance: 12°C/W Junction to Case MCC Part Number Device Marking SMD36LHE1 E Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage S6 60V 42V B D Cathode Mark 60V A C Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 3.0A TL = 110°C Peak Forward Surge Current IFSM 80A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage VF 0.48V(Max) 0.43V(Typ) Maximum DC Reverse Current at Rated DC Blocking Voltage IR 150µA VR=60V;TJ=25⁰C 50mA VR=60V;TJ=125⁰C Maximum Reverse Recovery Time TRR 35ns IF=0.5A, IR=1.0A, Irr=0.25A IFM=3.0A; L3 B1 L2 L1 DIM A B B1 C D E L1 L2 L3 HE DIMENSIONS INCHES MM MIN MAX MIN MAX 0.030 0.035 0.75 0.90 0.033 0.041 0.85 1.05 0.033 0.041 0.85 1.05 0.004 0.010 0.10 0.25 0.075 0.083 1.90 2.10 0.114 0.122 2.90 3.10 0.079 0.096 2.00 2.45 0.016 0.033 0.40 0.85 0.051 0.067 1.30 1.70 0.138 0.154 3.50 3.90 NOTE Suggested Solder Pad Layout Note :1. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. mm 2.54 0.96 1.88 1.35 4.10 Rev.3-3-12012020 1/3 MCCSEMI.COM SMD36LHE1 Curve Characteristics Curve Characteristics Fig. 1 - Typical Instantaneous Forward Characteristics Fig. 2 - Typical Reverse Leakage Characteristics 20 10000 Instantaneous Reverse Current (μA) Instantaneous Forward Current (A) 10 TJ=125 C O 1 TJ=75 C O 0.1 TJ=25 C O 0.01 0.0 0.2 0.4 0.6 0.8 TJ=75°C 100 10 1 20 1.0 Instantaneous Forward Voltage (V) Rev.3-3-12012020 TJ=100°C 1000 TJ=25°C 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/3 MCCSEMI.COM SMD36LHE1 Ordering Information Device Packing Part Number-TP Tape&Reel: 3Kpcs/Reel Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp UHVHUYHV WKH ULJKW WR PDNH FKDQJHV ZLWKRXW IXUWKHU QRWLFH WR DQ\ SURGXFW KHUHLQ WR PDNH FRUUHFWLRQV PRGLILFDWLRQV  HQKDQFHPHQWV  LPSURYHPHQWV  RU RWKHU FKDQJHV  Micro Commercial Components Corp  GRHV QRW DVVXPH DQ\ OLDELOLW\ DULVLQJ RXW RI WKH DSSOLFDWLRQ RU XVH RI DQ\ SURGXFW GHVFULEHG KHUHLQ QHLWKHU GRHV LW FRQYH\DQ\OLFHQVHXQGHULWVSDWHQWULJKWVQRUWKHULJKWVRIRWKHUV7KHXVHURISURGXFWVLQVXFKDSSOLFDWLRQVVKDOODVVXPHDOO ULVNVRIVXFKXVHDQGZLOODJUHHWRKROGMicro Commercial Components CorpDQGDOOWKHFRPSDQLHVZKRVHSURGXFWVDUH UHSUHVHQWHGRQRXUZHEVLWHKDUPOHVVDJDLQVWDOOGDPDJHV0LFUR&RPPHUFLDO&RPSRQHQWV&RUSSURGXFWVDUHVROGVXEMHFW WRWKHJHQHUDOWHUPVDQGFRQGLWLRQVRIFRPPHUFLDOVDOHDVSXEOLVKHGDW KWWSVZZZPFFVHPLFRP+RPH7HUPV$QG&RQGLWLRQV ***LIFE SUPPORT*** 0&& VSURGXFWVDUHQRWDXWKRUL]HGIRUXVHDVFULWLFDOFRPSRQHQWVLQOLIHVXSSRUWGHYLFHVRUV\VWHPVZLWKRXWWKHH[SUHVV ZULWWHQDSSURYDORI0LFUR&RPPHUFLDO&RPSRQHQWV&RUSRUDWLRQ ***CUSTOMER AWARENESS*** &RXQWHUIHLWLQJ RIVHPLFRQGXFWRUSDUWVLVDJURZLQJ SUREOHP LQWKHLQGXVWU\0LFUR&RPPHUFLDO &RPSRQHQWV 0&&LVWDNLQJ VWURQJPHDVXUHVWRSURWHFWRXUVHOYHVDQGRXUFXVWRPHUVIURPWKHSUROLIHUDWLRQRIFRXQWHUIHLWSDUWV0&&VWURQJO\HQFRXUDJHV FXVWRPHUVWRSXUFKDVH0&&SDUWVHLWKHUGLUHFWO\IURP0&&RUIURP$XWKRUL]HG0&&'LVWULEXWRUVZKRDUHOLVWHGE\FRXQWU\RQ RXUZHESDJHFLWHGEHORZ3URGXFWVFXVWRPHUVEX\HLWKHUIURP0&&GLUHFWO\RUIURP$XWKRUL]HG0&&'LVWULEXWRUVDUHJHQXLQH SDUWV KDYH IXOO WUDFHDELOLW\ PHHW 0&& V TXDOLW\ VWDQGDUGV IRU KDQGOLQJ DQG VWRUDJH 0&& ZLOO QRW SURYLGH DQ\ ZDUUDQW\ FRYHUDJH RU RWKHU DVVLVWDQFH IRU SDUWV ERXJKW IURP 8QDXWKRUL]HG 6RXUFHV 0&& LV FRPPLWWHG WR FRPEDW WKLV JOREDO SUREOHP DQG HQFRXUDJH RXU FXVWRPHUV WR GR WKHLU SDUW LQ VWRSSLQJ WKLV SUDFWLFH E\ EX\LQJ GLUHFW RU IURP DXWKRUL]HG GLVWULEXWRUV Rev.3-3-12012020 3/3 MCCSEMI.COM
