SS12-L THRU SS110-L
Features
• Halogen Free. “Green” Device (Note 1)
• Lead Free Finish/RoHS Compliant(Note 2) ("P" Suffix Designates
Compliant. See Ordering Information)
• Low Forward Voltage and High Current Capability
• Epoxy Meets UL 94 V-0 Flammability Rating
• Moisture Sensitivity Level 1
Maximum Ratings
•
•
•
•
•
•
1 Amp
Schottky Rectifier
20 to 100 Volts
Operating Junction Temperature Range: -55°C to +125°C(SS12-L~SS14-L)
Operating Junction Temperature Range: -55°C to +150°C(SS15-L~SS110-L)
Storage Temperature Range: -55⁰C to +150⁰C
Maximum Thermal Resistance: 28°C/W Junction to Lead
Maximum Thermal Resistance: 55°C/W Junction to Case
Maximum Thermal Resistance: 88°C/W Junction to Ambient
MCC
Part Number
SS12-L
SS13-L
SS14-L
SS15-L
SS16-L
SS18-L
SS110-L
Device
Marking

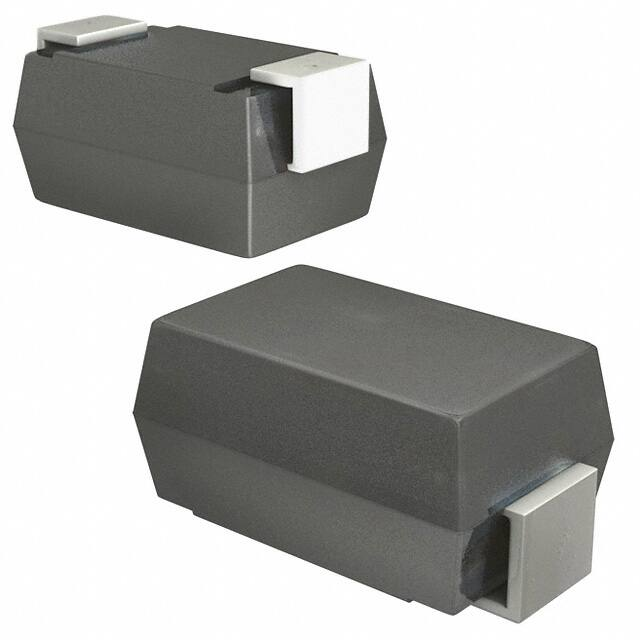

SMA (DO-214AC)
Maximum
Maximum DC
Recurrent
Maximum
Blocking
Peak Reverse RMS Voltage
Voltage
Voltage
SS12
SS13
SS14
SS15
SS16
SS18
SS110
20V
30V
40V
50V
60V
80V
100V
14V
21V
28V
35V
42V
56V
70V
H
J
20V
30V
40V
50V
60V
80V
100V
Cathode Mark
C
E
DIM
IF(AV)
1.0A
Fig.1
Peak Forward Surge
Current
IFSM
30A
8.3ms,Half Sine
VF
0.50V
0.70V
0.85V
IFM=1.0A;
TJ=25⁰C*
Maximum Instantaneous
Forward Voltage
SS12-L~SS14-L
SS15-L~SS16-L
SS18-L~SS110-L
Maximum DC Reverse
Current At Rated DC
Blocking Voltage
SS12-L~SS16-L
SS18-L~SS110-L
SS12-L~SS16-L
SS18-L~SS110-L
Typical Junction
Capacitance
SS12-L~SS14-L
SS15-L~SS16-L
SS18-L~SS110-L
B
G
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward Current
D
F
A
A
B
C
D
E
F
G
H
J
DIMENSIONS
INCHES
MM
MIN MAX MIN MAX
0.075 0.096 1.90 2.44
0.050 0.064 1.27 1.63
0.002 0.008 0.051 0.203
--- 0.020
--0.51
0.030 0.060 0.76 1.52
0.065 0.091 1.65 2.32
0.189 0.220 4.80 5.59
0.157 0.187 4.00 4.75
0.090 0.115 2.25 2.92
NOTE
SUGGESTED SOLDER PAD LAYOUT
IR
0.1mA
0.05mA
10mA
5mA
TJ=25⁰C
TJ=25⁰C
TJ=100⁰C
TJ=100⁰C
2.27mm
2.16mm
CJ
52pF
45pF
35pF
Measured at
1.0MHz, VR=4.0V
1.78mm
*Pulse Test: Pulse Width 300 µsec, Duty Cycle 2%
Note: 1. Halogen free "Green” products are defined as those which contain
