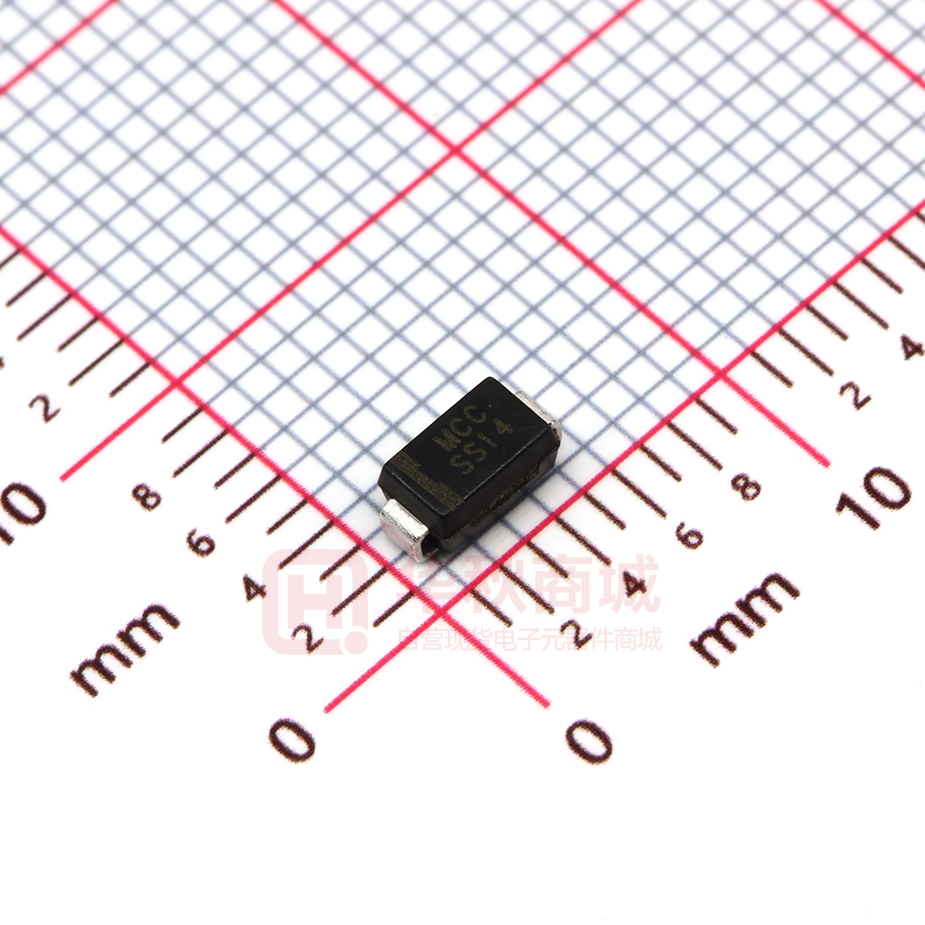

SS14-LTP

MCC SS12-L THRU SS110-L R Micro Commercial Components
  omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Low Forward Voltage Guard Ring Protection High Current Capability Halogen free available upon request by adding suffix "-HF" Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 • • • • • • 1 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings • • DO-214AC (SMA) (LEAD
FRAME) Storage Temperature: -55°C to +150°C Maximum Thermal Resistance; 2 8 °C/W Junction To Lead 55°C/W Junction To Case 88°C/W Junction To Ambient MCC Catalog Number SS12-L SS13-L SS14-L SS15-L SS16-L SS18-L SS110-L Device Marking SS12 SS13 SS14 SS15 SS16 SS18 SS110 Maximum Recurrent Peak Reverse Voltage 20V 30V 40V 50V 60V 80V 100V Maximum RMS Voltage 14V 21V 28V 35V 42V 56V 70V H Maximum DC Blocking Voltage 20V 30V 40V 50V 60V 80V 100V J A E Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage SS12-L~SS14-L SS15-L~SS16-L SS18-L~SS110-L Maximum DC Reverse Current At Rated DC Blocking Voltage SS12-L~SS16-L SS18-L~SS110-L SS12-L~SS14-L SS15-L~SS110-L Typical Junction Capacitance SS12-L~SS14-L SS15-L~SS16-L SS18-L~SS110-L Junction Temperature SS12-L~SS14-L SS15-L~SS110-L IF(AV) 1.0A D F Electrical Characteristics @ 25°C Unless Otherwise Specified 30A 8.3ms, half sine VF 0.50V 0.70V 0.85V IFM = 1.0A; TJ = 25°C * B G TL(Fig.1) IFSM C DIMENSIONS DIM A B C D E F G H J INCHES MIN .079 .050 .002 --.030 .065 .189 .157 .090 MM MIN 2.00 1.27 .05 --.76 1.65 4.80 4.00 2.25 MAX .096 .064 .008 .02 .060 .091 .220 .181 .115 MAX 2.44 1.63 .20 .51 1.52 2.32 5.59 4.60 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT 0.090” IR CJ TJ 0.5mA 0.1mA 10mA 5.0mA TA = 25°C TA = 25°C 52pF 45pF 35pF Measured at 1.0MHz, VR=4.0V TA = 100°C TA = 100°C 0.085” 0.070” -55~+125℃ -55~+150℃ *Pulse test: Pulse width 300 µsec, Duty cycle 2% Note: 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7. www.mccsemi.com Revision: E 1 of 3 2017/04/05 MCC Micro Commercial Components SS12-L thru SS110-L IFSM(A) IO(A) FIG.1: FORWARD CURRENT DERATING CURVE 1.0 SS12-SS14-L SS15-SS110-L 0.8 40 0.6 30 0.4 20 10 0.2 0 FIG2:Surge Forward Current Capadility 50 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5.0mm×5.0mm)Copper Pad Areas 0 75 50 25 0 100 125 1 150 TL(℃) 2 20 50 100 FIG.4：TYPICAL REVERSE CHARACTERISTICS IR(mA) IF(A) 10 Number of Cycles FIG.3: TYPICAL FORWARD CHARACTERISTICS 100 5 TJ=25 ℃ Pulse width=300us 2% Duty Cycle 100 SS12-SS14-L SS15-SS110-L 10 10 Tj=125℃ 1.0 1.0 0.1 SS12-SS14-L SS15-SS16-L SS18-SS110L 0.1 Tj=75℃ 0.01 Tj=25℃ 0.01 0.001 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 VF(V) 0 20 40 60 80 100 Voltage(%) www.mccsemi.com Revision: E 2 of 3 2017/04/05 R MCC R Micro Commercial Components Ordering Information : Device Packing Part Number-TP Tape&Reel: 5Kpcs/Reel Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. www.mccsemi.com Revision: E 3 of 3 2017/04/05
