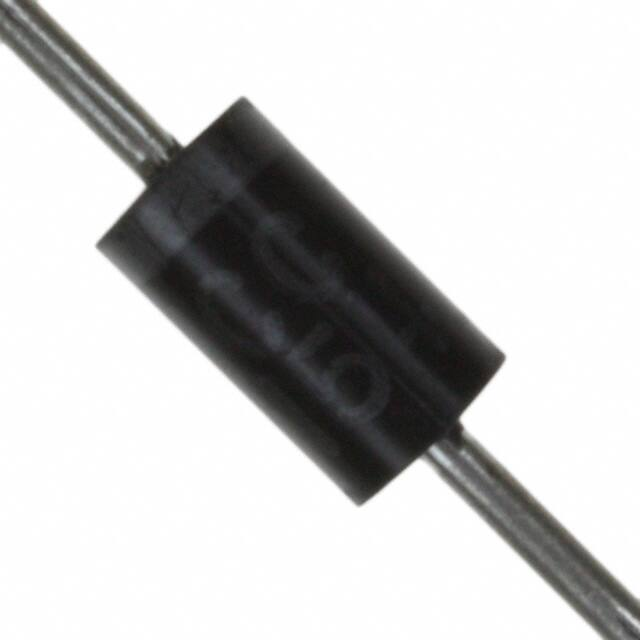

UF5407GP-TP

UF5400GP THRU UF5408GP Features • Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information) • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Low Forward Voltage Drop And High Surge Capability • Ultra Fast Switching Speed For High Efficiency • Halogen Free Available Upon Request By Adding Suffix "-HF" Maximum Ratings 3 Amp Ultra Fast Glass Passivated Recovery Rectifier 50 to 1000 Volts • Operating Junction Temperature Range: -55⁰C to +150⁰C • • • • Storage Temperature Range: -55⁰C to +150⁰C Typical Thermal Resistance: 20°C/W Junction to Ambient Typical Thermal Resistance: 13°C/W Junction to Case Typical Thermal Resistance: 8.5°C/W Junction to Lead MCC Part Number Device Marking UF5400GP UF5401GP UF5402GP UF5404GP UF5406GP UF5407GP UF5408GP UF5400GP UF5401GP UF5402GP UF5404GP UF5406GP UF5407GP UF5408GP DO-201AD Maximum Maximum DC Recurrent Maximum Blocking Peak Reverse RMS Voltage Voltage Voltage 50V 100V 200V 400V 600V 800V 1000V 35V 70V 140V 280V 420V 560V 700V D 50V 100V 200V 400V 600V 800V 1000V A Cathode Mark Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 3.0A See Fig. 1 Peak Forward Surge Current IFSM 100A 8.3ms,Half Sine Maximum Instantaneous Forward Voltage UF5400GP-5402GP UF5404GP UF5406GP-5408GP Maximum DC Reverse Current At Rated DC Blocking Voltage VF IR IFM=3.0A; 0.95V 1.3V 1.7V TA=25⁰C 10μA TA=25⁰C; 50μA TA=100⁰C 50ns 75ns IF=0.5A; IR=1.0A; IRR=0.25A 75pF 50pF Measured at 1.0MHz, VR=4.0V C Maximum Reverse Recovery Time UF5400GP-5404GP UF5406GP-5408GP Typical Junction Capacitance UF5400GP-5404GP UF5406GP-5408GP B D trr CJ DIM A B C D DIMENSIONS INCHES MM MIN MAX MIN MAX 0.287 0.374 7.30 9.50 0.189 0.208 4.80 5.30 0.048 0.052 1.20 1.30 1.000 ----- 25.40 ----- NOTE Note :1. High Temperature Solder Exemption Applied, See EU Directive Annex Notes 7a. Rev.3-2-10152020 1/3 MCCSEMI.COM UF5400GP THRU UF5408GP Curve Characteristics Fig. 1 - Forward Current Derating Curve 3.5 120 Peak Forward Surge Current (A) Average Forward Current (A) 3.0 TC 2.5 TA 2.0 1.5 1.0 0.5 0.0 Resistive or Inductive Load 0 50 25 100 80 60 40 20 8.3 ms Single Half Sine-Wave 75 100 125 0 150 10 1 100 Temperature (°C) Number of Cycles at 60 Hz Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 4 - Typical Reverse Leakage Characteristics 100 Instantaneous Reverse Leakage Current (μA) 20 Instantaneous Forward Current (A) Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current 10 UF5400GP-02GP 5 UF5406GP-08GP 2 1 UF5404GP 0.5 0.2 0.1 0.4 TJ=25°C 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 Instantaneous Forward Voltage (V) Rev.3-2-10152020 10 TJ=125°C 1 TJ=75°C TJ=25°C 0.1 0.01 20 40 60 80 100 120 Percent of Rated Peak Reverse Voltage (%) 2/3 MCCSEMI.COM UF5400GP THRU UF5408GP Ordering Information Device Packing Part Number-TP Tape&Reel: 1.2Kpcs/Reel Part Number-AP Ammo Packing: 1.2Kpcs/Ammo Box Part Number-BP Bulk: 500pcs/Box;12Kpcs/Carton Note : Adding "-HF" Suffix For Halogen Free, eg. Part Number-TP-HF ***IMPORTANT NOTICE*** Micro Commercial Components Corp. reserves the right to make changes without further notice to any product herein to make corrections, modifications , enhancements , improvements , or other changes . Micro Commercial Components Corp . does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. Micro Commercial Components Corp. products are sold subject to the general terms and conditions of commercial sale, as published at https://www.mccsemi.com/Home/TermsAndConditions. ***LIFE SUPPORT*** MCC's products are not authorized for use as critical components in life support devices or systems without the express written approval of Micro Commercial Components Corporation. ***CUSTOMER AWARENESS*** Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on our web page cited below. Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine parts, have full traceability, meet MCC's quality standards for handling and storage. MCC will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. MCC is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. Rev.3-2-10152020 3/3 MCCSEMI.COM
