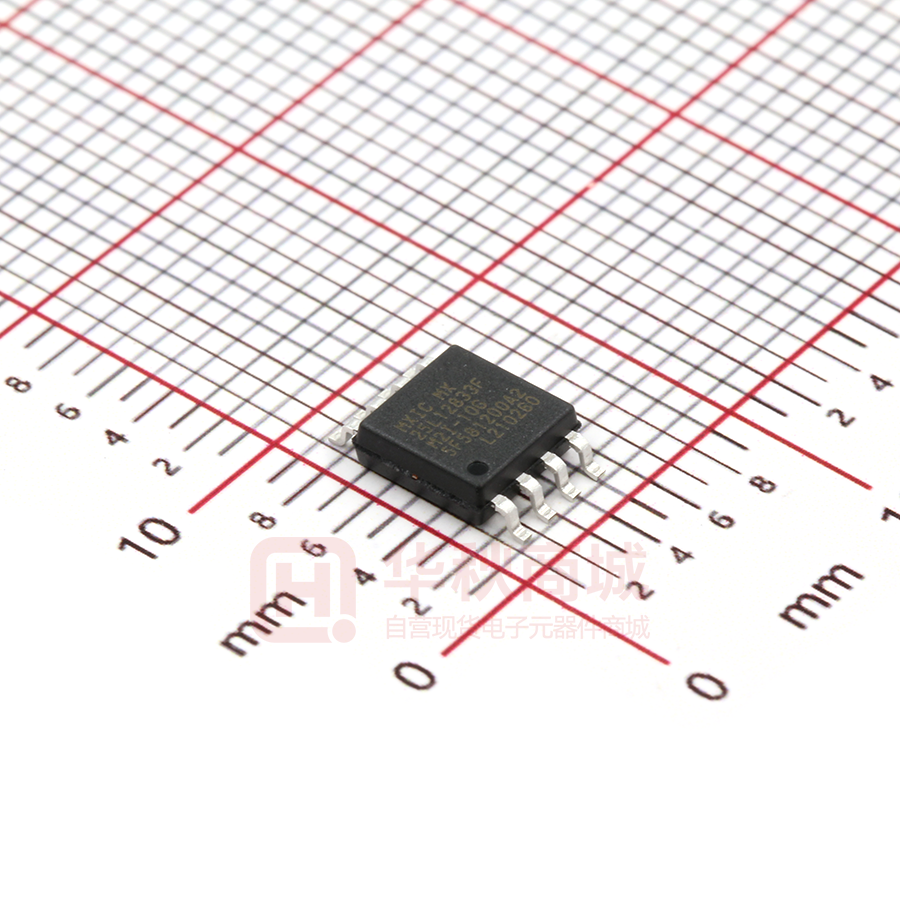

MX25L12833FM2I-10G

MX25L12833F MX25L12833F 3V, 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY Key Features • Protocol Support - Single I/O, Dual I/O and Quad I/O • Quad Peripheral Interface (QPI) available • Support clock frequency up to 133MHz • Program/Erase Suspend and Resume • Additional 8K-bit secured OTP P/N: PM2517 MX25L12833F Contents 1. FEATURES............................................................................................................................................................... 4 2. GENERAL DESCRIPTION...................................................................................................................................... 5 Table 1. Read performance Comparison.....................................................................................................5 3. PIN CONFIGURATIONS .......................................................................................................................................... 6 4. PIN DESCRIPTION................................................................................................................................................... 6 5. BLOCK DIAGRAM.................................................................................................................................................... 7 6. DATA PROTECTION................................................................................................................................................. 8 Table 2. Protected Area Sizes......................................................................................................................9 Table 3. 8K-bit Secured OTP Definition.....................................................................................................10 7. Memory Organization............................................................................................................................................ 11 Table 4. Memory Organization................................................................................................................... 11 8. DEVICE OPERATION............................................................................................................................................. 12 8-1. Quad Peripheral Interface (QPI) Read Mode........................................................................................... 14 9. COMMAND DESCRIPTION.................................................................................................................................... 15 9-1. 9-2. 9-3. 9-4. 9-5. 9-6. 9-7. 9-8. 9-9. 9-10. 9-11. 9-12. 9-13. 9-14. 9-15. 9-16. 9-17. 9-18. 9-19. 9-20. 9-21. 9-22. 9-23. P/N: PM2517 Table 5. Command Set...............................................................................................................................15 Write Enable (WREN)............................................................................................................................... 18 Write Disable (WRDI)................................................................................................................................ 19 Factory Mode Enable (FMEN).................................................................................................................. 20 Read Identification (RDID)........................................................................................................................ 21 Release from Deep Power-down (RDP), Read Electronic Signature (RES)............................................ 22 Read Electronic Manufacturer ID & Device ID (REMS)............................................................................ 24 QPI ID Read (QPIID)................................................................................................................................ 25 Table 6. ID Definitions ...............................................................................................................................25 Read Status Register (RDSR).................................................................................................................. 26 Read Configuration Register (RDCR)....................................................................................................... 27 Table 7. Status Register.............................................................................................................................30 Table 8. Configuration Register Table........................................................................................................31 Table 9. Output Driver Strength Table........................................................................................................32 Table 10. Dummy Cycle and Frequency Table (MHz)................................................................................32 Write Status Register (WRSR).................................................................................................................. 33 Table 11. Protection Modes........................................................................................................................34 Read Data Bytes (READ)......................................................................................................................... 37 Read Data Bytes at Higher Speed (FAST_READ)................................................................................... 38 Dual Output Read Mode (DREAD)........................................................................................................... 39 2 x I/O Read Mode (2READ).................................................................................................................... 40 Quad Read Mode (QREAD)..................................................................................................................... 41 4 x I/O Read Mode (4READ).................................................................................................................... 42 Burst Read................................................................................................................................................ 44 Performance Enhance Mode.................................................................................................................... 45 Sector Erase (SE)..................................................................................................................................... 48 Block Erase (BE32K)................................................................................................................................ 49 Block Erase (BE)...................................................................................................................................... 50 Chip Erase (CE)........................................................................................................................................ 51 Page Program (PP).................................................................................................................................. 52 2 Rev. 1.0, October 17, 2017 MX25L12833F 9-24. 9-25. 9-26. 9-27. 9-28. 9-29. 4 x I/O Page Program (4PP)..................................................................................................................... 54 Deep Power-down (DP)............................................................................................................................ 55 Enter Secured OTP (ENSO)..................................................................................................................... 56 Exit Secured OTP (EXSO)........................................................................................................................ 56 Read Security Register (RDSCUR).......................................................................................................... 56 Write Security Register (WRSCUR).......................................................................................................... 56 Table 12. Security Register Definition........................................................................................................57 9-30. Write Protection Selection (WPSEL)......................................................................................................... 58 9-31. Advanced Sector Protection..................................................................................................................... 60 9-32. Program/Erase Suspend/Resume............................................................................................................ 66 9-33. Erase Suspend......................................................................................................................................... 66 9-34. Program Suspend..................................................................................................................................... 66 9-35. Write-Resume........................................................................................................................................... 68 9-36. No Operation (NOP)................................................................................................................................. 68 9-37. Software Reset (Reset-Enable (RSTEN) and Reset (RST)).................................................................... 68 9-38. Read SFDP Mode (RDSFDP)................................................................................................................... 70 10. RESET.................................................................................................................................................................. 71 Table 13. Reset Timing-(Power On)...........................................................................................................71 Table 14. Reset Timing-(Other Operation).................................................................................................71 11. POWER-ON STATE.............................................................................................................................................. 72 12. ELECTRICAL SPECIFICATIONS......................................................................................................................... 73 Table 15. ABSOLUTE MAXIMUM RATINGS.............................................................................................73 Table 16. CAPACITANCE TA = 25°C, f = 1.0 MHz.....................................................................................73 Table 17. DC CHARACTERISTICS ..........................................................................................................75 Table 18. AC CHARACTERISTICS ..........................................................................................................76 13. OPERATING CONDITIONS.................................................................................................................................. 78 Table 19. Power-Up/Down Voltage and Timing..........................................................................................80 13-1. INITIAL DELIVERY STATE....................................................................................................................... 80 14. ERASE AND PROGRAMMING PERFORMANCE............................................................................................... 81 15. ERASE AND PROGRAMMING PERFORMANCE (Factory Mode) ................................................................... 81 16. DATA RETENTION............................................................................................................................................... 82 17. LATCH-UP CHARACTERISTICS......................................................................................................................... 82 18. ORDERING INFORMATION................................................................................................................................. 83 19. PART NAME DESCRIPTION................................................................................................................................ 84 20. PACKAGE INFORMATION................................................................................................................................... 85 20-1. 8-pin SOP (200mil)................................................................................................................................... 85 20-2. 16-pin SOP (300mil)................................................................................................................................. 86 20-3. 8-land WSON (6x5mm)............................................................................................................................ 87 20-4. 8-land WSON (8x6mm)............................................................................................................................ 88 21. REVISION HISTORY ............................................................................................................................................ 89 P/N: PM2517 3 Rev. 1.0, October 17, 2017 MX25L12833F 3V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY 1. FEATURES GENERAL • Supports Serial Peripheral Interface -- Mode 0 and Mode 3 • Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations • 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure • Protocol Support - Single I/O, Dual I/O and Quad I/O • Latch-up protected to 100mA from -1V to Vcc +1V • Fast read for SPI mode - Support clock frequency up to 133MHz for all protocols - Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions. - Configurable dummy cycle number for fast read operation • Quad Peripheral Interface (QPI) available • Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each - Any Block can be erased individually • Programming : - 256byte page buffer - Quad Input/Output page program(4PP) to enhance program performance • Typical 100,000 erase/program cycles • 20 years data retention • Command Reset • Program/Erase Suspend and Resume operation • Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES command for 1-byte Device ID - REMS command for 1-byte manufacturer ID and 1-byte device ID • Support Serial Flash Discoverable Parameters (SFDP) mode HARDWARE FEATURES • SCLK Input - Serial clock input • SI/SIO0 - Serial Data Input or Serial Data Input/Output for 2 x I/O read mode and 4 x I/O read mode • SO/SIO1 - Serial Data Output or Serial Data Input/Output for 2 x I/O read mode and 4 x I/O read mode • WP#/SIO2 - Hardware write protection or serial data Input/Output for 4 x I/O read mode • RESET# (16-pin package) - Hardware Reset pin • RESET#/SIO3 - Hardware Reset pin or Serial input & Output for 4 x I/O read mode • PACKAGE -8-pin SOP (200mil) -16-pin SOP (300mil) -8-land WSON (6x5mm) -8-land WSON (8X6mm) - All devices are RoHS Compliant and Halogenfree SOFTWARE FEATURES • Input Data Format - 1-byte Command code • Advanced Security Features - Block lock protection The BP0-BP3 and T/B status bit defines the size of the area to be protection against program and erase instructions - Advanced sector protection function (Solid Protect) • Additional 8K bit security OTP - Features unique identifier - Factory locked identifiable, and customer lockable P/N: PM2517 4 Rev. 1.0, October 17, 2017 MX25L12833F 2. GENERAL DESCRIPTION MX25L12833F is 128Mb bits Serial NOR Flash memory, which is configured as 16,777,216 x 8 internally. When it is in two or four I/O mode, the structure becomes 67,108,864 bits x 2 or 33,554,432 bits x 4. MX25L12833F features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus while it is in single I/O mode. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input. When it is in two I/O read mode, the SI pin and SO pin become SIO0 pin and SIO1 pin for address/dummy bits input and data output. When it is in four I/O read mode, the SI pin, SO pin, WP# and RESET# pin (of the 8-pin packages) become SIO0 pin, SIO1 pin, SIO2 pin and SIO3 pin for address/dummy bits input and data output. The MX25L12833F MXSMIO (Serial Multi I/O) provides sequential read operation on the whole chip. After program/erase command is issued, auto program/erase algorithms which program/erase and verify the specified page or sector/block locations will be executed. Program command is executed on byte basis, or page (256 bytes) basis, or word basis. Erase command is executed on 4K-byte sector, 32K-byte block, or 64K-byte block, or whole chip basis. To provide user with ease of interface, a status register is included to indicate the status of the chip. The status read command can be issued to detect completion status of a program or erase operation via WIP bit. Advanced security features enhance the protection and security functions, please see security features section for more details. When the device is not in operation and CS# is high, it will remain in standby mode. The MX25L12833F utilizes Macronix's proprietary memory cell, which reliably stores memory contents even after 100,000 program and erase cycles. Table 1. Read performance Comparison Numbers of Dummy Cycles Fast Read (MHz) Dual Output Fast Read (MHz) Quad Output Fast Read (MHz) Dual IO Fast Read (MHz) Quad IO Fast Read (MHz) 4 - - - 84* 66 6 104 104 84 104 84* 8 104* 104* 104* 104 104 10 133 133 133 133 120/133R Notes: 1. * mean default status. 2. R mean VCC range = 3.0V-3.6V. P/N: PM2517 5 Rev. 1.0, October 17, 2017 MX25L12833F 3. PIN CONFIGURATIONS 4. PIN DESCRIPTION 8-PIN SOP (200mil) CS# SO/SIO1 WP#/SIO2 GND 1 2 3 4 8 7 6 5 SYMBOL CS# DESCRIPTION Chip Select Serial Data Input (for 1 x I/O)/ Serial SI/SIO0 Data Input & Output (for 2xI/O or 4xI/O read mode) Serial Data Output (for 1 x I/O)/ Serial SO/SIO1 Data Input & Output (for 2xI/O or 4xI/O read mode) SCLK Clock Input Write protection Active low or Serial WP#/SIO2 Data Input & Output (for 4xI/O read mode) Hardware Reset Pin Active low or RESET#/SIO3 Serial Data Input & Output (for 4xI/O read mode) RESET# Hardware Reset Pin Active low VCC + 3V Power Supply GND Ground NC No Connection DNU Do not use VCC RESET#/SIO3 SCLK SI/SIO0 16-PIN SOP (300mil) DNU/SIO3 VCC RESET# NC NC NC CS# SO/SIO1 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 SCLK SI/SIO0 NC NC NC NC GND WP#/SIO2 8-WSON (6x5mm, 8x6mm) CS# SO/SIO1 WP#/SIO2 GND P/N: PM2517 1 2 3 4 8 7 6 5 VCC RESET#/SIO3 SCLK SI/SIO0 Notes: The pin of RESET#, RESET#/SIO3 or WP#/SIO2 will remain internal pull up function while this pin is not physically connected in system configuration. However, the internal pull up function will be disabled if the system has physical connection to RESET#, RESET#/SIO3 or WP#/SIO2 pin. 6 Rev. 1.0, October 17, 2017 MX25L12833F 5. BLOCK DIAGRAM X-Decoder Address Generator SI/SIO0 SO/SIO1 SIO2 * SIO3 * Y-Decoder Data Register WP# * HOLD# * RESET# * CS# SCLK Memory Array Sense Amplifier SRAM Buffer Mode Logic State Machine HV Generator Clock Generator Output Buffer * Depends on part number options. P/N: PM2517 7 Rev. 1.0, October 17, 2017 MX25L12833F 6. DATA PROTECTION During power transition, there may be some false system level signals which result in inadvertent erasure or programming. The device is designed to protect itself from these accidental write cycles. The state machine will be reset as standby mode automatically during power up. In addition, the control register architecture of the device constrains that the memory contents can only be changed after specific command sequences have completed successfully. In the following, there are several features to protect the system from the accidental write cycles during VCC powerup and power-down or from system noise. • Valid command length checking: The command length will be checked whether it is at byte base and completed on byte boundary. • Write Enable (WREN) command: WREN command is required to set the Write Enable Latch bit (WEL) before other command to change data. • Deep Power Down Mode: By entering deep power down mode, the flash device also is under protected from writing all commands except Release from deep power down mode command (RDP) and Read Electronic Signature command (RES), and softreset command. • Advanced Security Features: there are some protection and security features which protect content from inadvertent write and hostile access. P/N: PM2517 8 Rev. 1.0, October 17, 2017 MX25L12833F I. Block lock protection - The Software Protected Mode (SPM) use (BP3, BP2, BP1, BP0 and T/B) bits to allow part of memory to be protected as read only. The protected area definition is shown as "Table 2. Protected Area Sizes", the protected areas are more flexible which may protect various area by setting value of BP0-BP3 bits. - The Hardware Protected Mode (HPM) use WP#/SIO2 to protect the (BP3, BP2, BP1, BP0) bits and Status Register Write Protect bit. - In four I/O and QPI mode, the feature of HPM will be disabled. Table 2. Protected Area Sizes Protected Area Sizes (T/B bit = 0) Status bit BP3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 BP2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 BP1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 BP0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Protect Level 128Mb 0 (none) 1 (1 block, protected block 255th) 2 (2 blocks, block 254th-255th) 3 (4 blocks, block 252nd-255th) 4 (8 blocks, block 248th-255th) 5 (16 blocks, block 240th-255th) 6 (32 blocks, block 224th-255th) 7 (64 blocks, block 192nd-255th) 8 (128 blocks, block 128th-255th) 9 (256 blocks, protected all) 10 (256 blocks, protected all) 11 (256 blocks, protected all) 12 (256 blocks, protected all) 13 (256 blocks, protected all) 14 (256 blocks, protected all) 15 (256 blocks, protected all) Protected Area Sizes (T/B bit = 1) Status bit BP3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 P/N: PM2517 BP2 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 BP1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 BP0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Protect Level 128Mb 0 (none) 1 (1 block, protected block 0th) 2 (2 blocks, protected block 0th-1st) 3 (4 blocks, protected block 0th-3rd) 4 (8 blocks, protected block 0th-7th) 5 (16 blocks, protected block 0th-15th) 6 (32 blocks, protected block 0th-31st) 7 (64 blocks, protected block 0th-63rd) 8 (128 blocks, protected block 0th-127th) 9 (256 blocks, protected all) 10 (256 blocks, protected all) 11 (256 blocks, protected all) 12 (256 blocks, protected all) 13 (256 blocks, protected all) 14 (256 blocks, protected all) 15 (256 blocks, protected all) 9 Rev. 1.0, October 17, 2017 MX25L12833F II. Additional 8K-bit secured OTP for unique identifier: to provide 8K-bit One-Time Program area for setting device unique serial number - Which may be set by factory or system maker. The 8K-bit secured OTP area is composed of two rows of 4K-bit. Customer could lock the first 4K-bit OTP area and factory could lock the other. - Security register bit 0 indicates whether the second 4K-bit is locked by factory or not. - Customer may lock-down the customer lockable secured OTP by writing WRSCUR(write security register) command to set customer lock-down bit1 as "1". Please refer to "Table 12. Security Register Definition" for security register bit definition and "Table 3. 8K-bit Secured OTP Definition" for address range definition. - To program 8K-bit secured OTP by entering secured OTP mode (with ENSO command), and going through normal program procedure, and then exiting secured OTP mode by writing EXSO command. Note: Once lock-down whatever by factory or customer, the corresponding secured area cannot be changed any more. While in 8K-bit Secured OTP mode, array access is not allowed. Table 3. 8K-bit Secured OTP Definition Address range Size Customer Lock Standard Factory Lock xxx000-xxx1FF 4096-bit Determined by customer N/A xxx200-xxx3FF 4096-bit N/A Determined by factory P/N: PM2517 10 Rev. 1.0, October 17, 2017 MX25L12833F 7. Memory Organization Table 4. Memory Organization Block(64K-byte) Block(32K-byte) Sector 254 508 individual block lock/unlock unit:64K-byte 507 253 506 FF8FFFh 4087 FF7000h FF7FFFh … individual 16 sectors lock/unlock unit:4K-byte 4080 FF0000h FF0FFFh 4079 FEF000h FEFFFFh … 509 FF8000h 4072 FE8000h FE8FFFh 4071 FE7000h FE7FFFh … 510 4088 4064 FE0000h FE0FFFh 4063 FDF000h FDFFFFh … 255 FFFFFFh 4056 FD8000h FD8FFFh 4055 FD7000h FD7FFFh 4048 FD0000h FD0FFFh 47 02F000h 02FFFFh … 511 Address Range FFF000h … 4095 1 2 1 0 0 027FFFh … 028FFFh 027000h 32 020000h 020FFFh 31 01F000h 01FFFFh … 3 028000h 39 24 018000h 018FFFh 23 017000h 017FFFh … 4 individual block lock/unlock unit:64K-byte 40 16 010000h 010FFFh 15 00F000h 00FFFFh 8 008000h 008FFFh 7 007000h 007FFFh 000000h 000FFFh … 2 0 P/N: PM2517 individual 16 sectors lock/unlock unit:4K-byte … 5 … individual block lock/unlock unit:64K-byte 11 Rev. 1.0, October 17, 2017 MX25L12833F 8. DEVICE OPERATION 1. Before a command is issued, status register should be checked to ensure device is ready for the intended operation. 2. When incorrect command is inputted to this device, this device becomes standby mode and keeps the standby mode until next CS# falling edge. In standby mode, SO pin of this device should be High-Z. 3. When correct command is inputted to this device, this device becomes active mode and keeps the active mode until next CS# rising edge. 4. Input data is latched on the rising edge of Serial Clock (SCLK) and data shifts out on the falling edge of SCLK. The difference of Serial mode 0 and mode 3 is shown as "Figure 1. Serial Modes Supported". 5. For the following instructions: RDID, RDSR, RDSCUR, READ, FAST_READ, 2READ, DREAD, 4READ, QREAD, RDSFDP, RES, REMS, QPIID, RDDPB, RDSPB, RDLR, RDCR the shifted-in instruction sequence is followed by a data-out sequence. After any bit of data being shifted out, the CS# can be high. For the following instructions: WREN, WRDI, WRSR, SE, BE32K, BE, CE, PP, 4PP, DP, ENSO, EXSO, WRSCUR, WPSEL, GBLK, GBULK, SUSPEND, RESUME, NOP, RSTEN, RST, EQIO, RSTQIO the CS# must go high exactly at the byte boundary; otherwise, the instruction will be rejected and not executed. 6. While a Write Status Register, Program, or Erase operation is in progress, access to the memory array is neglected and will not affect the current operation of Write Status Register, Program, Erase. Figure 1. Serial Modes Supported CPOL CPHA shift in (Serial mode 0) 0 0 SCLK (Serial mode 3) 1 1 SCLK SI shift out MSB SO MSB Note: CPOL indicates clock polarity of Serial master, CPOL=1 for SCLK high while idle, CPOL=0 for SCLK low while not transmitting. CPHA indicates clock phase. The combination of CPOL bit and CPHA bit decides which Serial mode is supported. P/N: PM2517 12 Rev. 1.0, October 17, 2017 MX25L12833F Figure 2. Serial Input Timing tSHSL CS# tCHSL tSLCH tCHSH tSHCH SCLK tDVCH tCHCL tCHDX tCLCH LSB MSB SI High-Z SO Figure 3. Output Timing CS# tCH SCLK tCLQV tCLQX tCL tCLQV tCLQX LSB SO SI P/N: PM2517 tSHQZ ADDR.LSB IN 13 Rev. 1.0, October 17, 2017 MX25L12833F 8-1. Quad Peripheral Interface (QPI) Read Mode QPI protocol enables user to take full advantage of Quad I/O Serial NOR Flash by providing the Quad I/O interface in command cycles, address cycles and as well as data output cycles. Enable QPI mode By issuing EQIO command (35h), the QPI mode is enabled. After QPI mode has been enabled, the device enter quad mode (4-4-4) without QE bit status changed. Figure 4. Enable QPI Sequence CS# MODE 3 SCLK 0 1 2 3 4 5 6 7 MODE 0 SIO0 35h SIO[3:1] Reset QPI (RSTQIO) To reset the QPI mode, the RSTQIO (F5h) command is required. After the RSTQIO command is issued, the device returns from QPI mode (4 I/O interface in command cycles) to SPI mode (1 I/O interface in command cycles). Note: For EQIO and RSTQIO commands, CS# high width has to follow "From Write/Erase/Program to Read Status Register spec" tSHSL (as defined in "Table 18. AC CHARACTERISTICS") for next instruction. Figure 5. Reset QPI Mode CS# SCLK SIO[3:0] P/N: PM2517 F5h 14 Rev. 1.0, October 17, 2017 MX25L12833F 9. COMMAND DESCRIPTION Table 5. Command Set Address Byte Command Code SPI Dummay Cycle Data Byte 03 (hex) ADD3 0 1- ∞ ADD2 ADD3 8* 1- ∞ ADD1 ADD2 ADD3 4* 3 ADD1 ADD2 ADD3 8* 3 ADD1 ADD2 ADD3 6 * 3 ADD1 ADD2 ADD3 8* 3 ADD1 ADD2 ADD3 0 1-256 3 ADD1 ADD2 ADD3 0 1-256 V 3 ADD1 ADD2 ADD3 0 0 V V 3 ADD1 ADD2 ADD3 0 0 D8 (hex) V V 3 ADD1 ADD2 ADD3 0 0 60 or C7 (hex) V V 0 0 0 06 (hex) V V 0 0 0 04 (hex) V V 0 0 0 68 (hex) V V 0 0 0 35 (hex) V 0 0 0 V 0 0 0 V V 0 0 0 V V 0 0 0 B9 (hex) V V 0 0 0 AB (hex) V V 0 0 0 Total ADD Byte Byte 1 Byte 2 Byte 3 V 3 ADD1 ADD2 0B (hex) V 3 ADD1 BB (hex) V 3 3B (hex) V EB (hex) V 6B (hex) V 02 (hex) V 38 (hex) V 20 (hex) V 52 (hex) QPI Byte 4 Array access READ (normal read) FAST READ (fast read data) 2READ (2 x I/O read command) DREAD (1I 2O read) 4READ (4 I/O read) QREAD (1I 4O read) PP (page program) 4PP (quad page program) SE (sector erase) BE 32K (block erase 32KB) BE (block erase 64KB) CE (chip erase) V V Device operation WREN (write enable) WRDI (write disable) WPSEL (Write Protect Selection) EQIO (Enable QPI) RSTQIO (Reset QPI) PGM/ERS Suspend (Suspends Program/ Erase) PGM/ERS Resume (Resumes Program/ Erase) DP (Deep power down) RDP (Release from deep power down) F5 (hex) 75 or B0 (hex) 7A or 30 (hex) * Dummy cycle numbers will be different depending on the bit6 & bit 7 (DC0 & DC1) setting in configuration register. P/N: PM2517 15 Rev. 1.0, October 17, 2017 MX25L12833F NOP (No Operation) RSTEN (Reset Enable) RST (Reset Memory) GBLK (gang block lock) GBULK (gang block unlock) FMEN (factory mode enable) Address Byte Command Code SPI QPI Total ADD Byte Dummay Cycle Data Byte 00 (hex) V V 0 0 0 66 (hex) V V 0 0 0 99 (hex) V V 0 0 0 7E (hex) V V 0 0 0 98 (hex) V V 0 0 0 41 (hex) V V 0 0 0 9F (hex) V 0 0 3 AB (hex) V 0 0 3 90 (hex) V 0 0 3 0 0 3 0 0 (Note2) (Note2) Byte 1 Byte 2 Byte 3 Byte 4 Register Access RDID (read identification) RES (read electronic ID) REMS (read electronic manufacturer & device ID) QPIID (QPI ID Read) RDSFDP (Read SFDP Table) RDSR (read status register) RDCR (read configuration register) WRSR/WRCR (write status/configuration register) RDSCUR (read security register) WRSCUR (write security register) SBL (Set Burst Length) ENSO (enter secured OTP) EXSO (exit secured OTP) WRLR (write Lock register) RDLR (read Lock register) WRSPB (SPB bit program) ESSPB (all SPB bit erase) RDSPB (read SPB status) P/N: PM2517 AF (hex) V V 5A (hex) V 3 05 (hex) V V 0 0 1 15 (hex) V V 0 0 1 01 (hex) V V 0 0 1-2 2B (hex) V V 0 0 0 2F (hex) V V 0 0 0 C0 (hex) V V 0 0 1 B1 (hex) V V 0 0 0 C1 (hex) V V 0 0 0 2C (hex) V 0 0 1 2D (hex) V 0 0 1 E3 (hex) V 4 0 0 E4 (hex) V 0 0 0 E2 (hex) V 4 0 1 16 ADD1 ADD1 ADD1 ADD2 ADD2 ADD2 ADD3 ADD3 ADD3 ADD4 ADD4 Rev. 1.0, October 17, 2017 MX25L12833F WRDPB (write DPB register) RDDPB (read DPB register) Address Byte Command Code Total ADD Byte SPI Byte 1 Byte 2 Byte 3 Byte 4 Dummay Cycle Data Byte E1 (hex) V 4 ADD1 ADD2 ADD3 ADD4 0 1 E0 (hex) V 4 ADD1 ADD2 ADD3 ADD4 0 1 QPI Note 1: It is not recommended to adopt any other code/address not in the command definition table, which will potentially enter the hidden mode. Note 2: The RSTEN command must be executed before executing the RST command. If any other command is issued in-between RSTEN and RST, the RST command will be ignored. P/N: PM2517 17 Rev. 1.0, October 17, 2017 MX25L12833F 9-1. Write Enable (WREN) The Write Enable (WREN) instruction is for setting Write Enable Latch (WEL) bit. For those instructions like PP, 4PP, SE, BE32K, BE, CE, and WRSR, which are intended to change the device content WEL bit should be set every time after the WREN instruction setting the WEL bit. The sequence of issuing WREN instruction is: CS# goes low→sending WREN instruction code→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care in SPI mode. Figure 6. Write Enable (WREN) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 Command SI 06h High-Z SO Figure 7. Write Enable (WREN) Sequence (QPI Mode) CS# 0 Mode 3 1 SCLK Mode 0 Command 06h SIO[3:0] P/N: PM2517 18 Rev. 1.0, October 17, 2017 MX25L12833F 9-2. Write Disable (WRDI) The Write Disable (WRDI) instruction is to reset Write Enable Latch (WEL) bit. The sequence of issuing WRDI instruction is: CS# goes low→sending WRDI instruction code→CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care in SPI mode. The WEL bit is reset by following situations: - Power-up - Reset# pin driven low - WRDI command completion - WRSR command completion - PP command completion - 4PP command completion - SE command completion - BE32K command completion - BE command completion - CE command completion - PGM/ERS Suspend command completion - Softreset command completion - WRSCUR command completion - WPSEL command completion - GBLK command completion - GBULK command completion - WRLR command completion - WRSPB command completion - ESSPB command completion - WRDPB command completion Figure 8. Write Disable (WRDI) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 Command SI SO P/N: PM2517 04h High-Z 19 Rev. 1.0, October 17, 2017 MX25L12833F Figure 9. Write Disable (WRDI) Sequence (QPI Mode) CS# 0 Mode 3 1 SCLK Mode 0 Command 04h SIO[3:0] 9-3. Factory Mode Enable (FMEN) The Factory Mode Enable (FMEN) instruction is for enhance Program and Erase performance for increase factory production throughput. The FMEN instruction need to combine with the instructions which are intended to change the device content, like PP, 4PP, SE, BE32K, BE, and CE. The sequence of issuing FMEN instruction is: CS# goes low→sending FMEN instruction code→ CS# goes high. A valid factory mode operation need to included three sequences: WREN instruction → FMEN instruction→ Program or Erase instruction. Suspend command is not acceptable under factory mode. The FMEN is reset by following situations - Power-up - Reset# pin driven low - PP command completion - 4PP command completion - SE command completion - BE32K command completion - BE command completion - CE command completion - Softreset command completion Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care in SPI mode. Figure 10. Factory Mode Enable (FMEN) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 Command SI SO P/N: PM2517 41h High-Z 20 Rev. 1.0, October 17, 2017 MX25L12833F Figure 11. Factory Mode Enable (FMEN) Sequence (QPI Mode) CS# 0 Mode 3 1 SCLK Mode 0 Command 41h SIO[3:0] 9-4. Read Identification (RDID) The RDID instruction is for reading the manufacturer ID of 1-byte and followed by Device ID of 2-byte. The Macronix Manufacturer ID and Device ID are listed as "Table 6. ID Definitions". The sequence of issuing RDID instruction is: CS# goes low→ sending RDID instruction code→24-bits ID data out on SO→ to end RDID operation can drive CS# to high at any time during data out. While Program/Erase operation is in progress, it will not decode the RDID instruction, therefore there's no effect on the cycle of program/erase operation which is currently in progress. When CS# goes high, the device is at standby stage. Figure 12. Read Identification (RDID) Sequence (SPI mode only) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 13 14 15 16 17 18 28 29 30 31 SCLK Mode 0 Command SI 9Fh Manufacturer Identification SO High-Z 7 6 5 2 MSB P/N: PM2517 1 Device Identification 0 15 14 13 3 2 1 0 MSB 21 Rev. 1.0, October 17, 2017 MX25L12833F 9-5. Release from Deep Power-down (RDP), Read Electronic Signature (RES) The Release from Deep Power-down (RDP) instruction is completed by driving Chip Select (CS#) High. When Chip Select (CS#) is driven High, the device is put in the Stand-by Power mode. If the device was not previously in the Deep Power-down mode, the transition to the Stand-by Power mode is immediate. If the device was previously in the Deep Power-down mode, though, the transition to the Stand-by Power mode is delayed by tRES1, and Chip Select (CS#) must remain High for at least tRES1(max), as specified in "Table 18. AC CHARACTERISTICS". Once in the Stand-by Power mode, the device waits to be selected, so that it can receive, decode and execute instructions. The RDP instruction is only for releasing from Deep Power Down Mode. Reset# pin goes low will release the Flash from deep power down mode. RES instruction is for reading out the old style of 8-bit Electronic Signature, whose values are shown as "Table 6. ID Definitions". This is not the same as RDID instruction. It is not recommended to use for new design. For new design, please use RDID instruction. Even in Deep power-down mode, the RDP and RES are also allowed to be executed, only except the device is in progress of program/erase/write cycle; there's no effect on the current program/erase/write cycle in progress. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The RES instruction is ended by CS# goes high after the ID been read out at least once. The ID outputs repeatedly if continuously send the additional clock cycles on SCLK while CS# is at low. If the device was not previously in Deep Power-down mode, the device transition to standby mode is immediate. If the device was previously in Deep Power-down mode, there's a delay of tRES2 to transit to standby mode, and CS# must remain to high at least tRES2(max). Once in the standby mode, the device waits to be selected, so it can be receive, decode, and execute instruction. Figure 13. Read Electronic Signature (RES) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 28 29 30 31 32 33 34 35 36 37 38 SCLK Mode 0 Command SI ABh tRES2 3 Dummy Bytes 23 22 21 3 2 1 0 MSB SO Electronic Signature Out High-Z 7 6 5 4 3 2 1 0 MSB Deep Power-down Mode P/N: PM2517 22 Stand-by Mode Rev. 1.0, October 17, 2017 MX25L12833F Figure 14. Read Electronic Signature (RES) Sequence (QPI Mode) CS# MODE 3 0 1 2 3 4 5 6 7 SCLK MODE 0 3 Dummy Bytes Command SIO[3:0] X ABh X X X X X H0 L0 MSB LSB Data In Data Out Stand-by Mode Deep Power-down Mode Figure 15. Release from Deep Power-down (RDP) Sequence (SPI Mode) CS# 0 Mode 3 1 2 3 4 5 6 tRES1 7 SCLK Mode 0 Command SI ABh High-Z SO Deep Power-down Mode Stand-by Mode Figure 16. Release from Deep Power-down (RDP) Sequence (QPI Mode) CS# Mode 3 tRES1 0 1 SCLK Mode 0 Command SIO[3:0] ABh Deep Power-down Mode P/N: PM2517 23 Stand-by Mode Rev. 1.0, October 17, 2017 MX25L12833F 9-6. Read Electronic Manufacturer ID & Device ID (REMS) The REMS instruction returns both the JEDEC assigned manufacturer ID and the device ID. The Device ID values are listed in "Table 6. ID Definitions". The REMS instruction is initiated by driving the CS# pin low and sending the instruction code "90h" followed by two dummy bytes and one address byte (A7~A0). After which the manufacturer ID for Macronix (C2h) and the device ID are shifted out on the falling edge of SCLK with the most significant bit (MSB) first. If the address byte is 00h, the manufacturer ID will be output first, followed by the device ID. If the address byte is 01h, then the device ID will be output first, followed by the manufacturer ID. While CS# is low, the manufacturer and device IDs can be read continuously, alternating from one to the other. The instruction is completed by driving CS# high. Figure 17. Read Electronic Manufacturer & Device ID (REMS) Sequence (SPI Mode only) CS# SCLK Mode 3 0 1 2 Mode 0 3 4 5 6 7 8 Command SI 9 10 2 Dummy Bytes 15 14 13 90h 3 2 1 0 High-Z SO CS# 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 SCLK ADD (1) SI 7 6 5 4 3 2 1 0 Manufacturer ID SO 7 6 5 4 3 2 1 Device ID 0 7 MSB MSB 6 5 4 3 2 1 7 0 MSB Note: (1) ADD=00H will output the manufacturer's ID first and ADD=01H will output device ID first. P/N: PM2517 24 Rev. 1.0, October 17, 2017 MX25L12833F 9-7. QPI ID Read (QPIID) User can execute this QPIID Read instruction to identify the Device ID and Manufacturer ID. The sequence of issue QPIID instruction is CS# goes low→sending QPI ID instruction→Data out on SO→CS# goes high. Most significant bit (MSB) first. After the command cycle, the device will immediately output data on the falling edge of SCLK. The manufacturer ID, memory type, and device ID data byte will be output continuously, until the CS# goes high. Table 6. ID Definitions Command Type RDID 9Fh RES ABh REMS 90h QPIID AFh P/N: PM2517 MX25L12833F Manufacturer ID C2 Manufacturer ID C2 Manufacturer ID C2 Memory Type 20 Electronic ID 17 Device ID 17 Memory Type 20 25 Memory Density 18 Memory Density 18 Rev. 1.0, October 17, 2017 MX25L12833F 9-8. Read Status Register (RDSR) The RDSR instruction is for reading Status Register Bits. The Read Status Register can be read at any time (even in program/erase/write status register condition). It is recommended to check the Write in Progress (WIP) bit before sending a new instruction when a program, erase, or write status register operation is in progress. The sequence of issuing RDSR instruction is: CS# goes low→ sending RDSR instruction code→ Status Register data out on SO. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. Figure 18. Read Status Register (RDSR) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCLK Mode 0 command 05h SI SO Status Register Out High-Z 7 6 5 4 3 2 1 Status Register Out 0 7 6 5 4 3 2 1 0 7 MSB MSB Figure 19. Read Status Register (RDSR) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 N SCLK Mode 0 SIO[3:0] 05h H0 L0 H0 L0 H0 L0 H0 L0 MSB LSB Status Byte Status Byte Status Byte P/N: PM2517 26 Status Byte Rev. 1.0, October 17, 2017 MX25L12833F 9-9. Read Configuration Register (RDCR) The RDCR instruction is for reading Configuration Register Bits. The Read Configuration Register can be read at any time (even in program/erase/write configuration register condition). It is recommended to check the Write in Progress (WIP) bit before sending a new instruction when a program, erase, or write configuration register operation is in progress. The sequence of issuing RDCR instruction is: CS# goes low→ sending RDCR instruction code→ Configuration Register data out on SO. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. Figure 20. Read Configuration Register (RDCR) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCLK Mode 0 command 15h SI SO Configuration register Out High-Z 7 6 5 4 3 2 1 0 Configuration register Out 7 6 5 4 3 2 1 0 7 MSB MSB Figure 21. Read Configuration Register (RDCR) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 N SCLK Mode 0 SIO[3:0] 15h H0 L0 H0 L0 H0 L0 H0 L0 MSB LSB Config. Byte Config. Byte Config. Byte P/N: PM2517 27 Config. Byte Rev. 1.0, October 17, 2017 MX25L12833F For user to check if Program/Erase operation is finished or not, RDSR instruction flow are shown as follows: Figure 22. Program/Erase flow with read array data start WREN command RDSR command* WEL=1? No Yes Program/erase command Write program data/address (Write erase address) RDSR command WIP=0? No Yes RDSR command Read WEL=0, BP[3:0], QE, and SRWD data Read array data (same address of PGM/ERS) Verify OK? No Yes Program/erase successfully Program/erase another block? No Program/erase fail Yes * Issue RDSR to check BP[3:0]. * If WPSEL = 1, issue RDSPB and RDDPB to check the block status. Program/erase completed P/N: PM2517 28 Rev. 1.0, October 17, 2017 MX25L12833F Figure 23. Program/Erase flow without read array data (read P_FAIL/E_FAIL flag) start WREN command RDSR command* WEL=1? No Yes Program/erase command Write program data/address (Write erase address) RDSR command WIP=0? No Yes RDSR command Read WEL=0, BP[3:0], QE, and SRWD data RDSCUR command Yes P_FAIL/E_FAIL =1 ? No Program/erase fail Program/erase successfully Program/erase another block? No Yes * Issue RDSR to check BP[3:0]. * If WPSEL = 1, issue RDSPB and RDDPB to check the block status. Program/erase completed P/N: PM2517 29 Rev. 1.0, October 17, 2017 MX25L12833F Status Register The definition of the status register bits is as below: WIP bit. The Write in Progress (WIP) bit, a volatile bit, indicates whether the device is busy in program/erase/write status register progress. When WIP bit sets to 1, which means the device is busy in program/erase/write status register progress. When WIP bit sets to 0, which means the device is not in progress of program/erase/write status register cycle. WEL bit. The Write Enable Latch (WEL) bit is a volatile bit that is set to “1” by the WREN instruction. WEL needs to be set to “1” before the device can accept program and erase instructions, otherwise the program and erase instructions are ignored. WEL automatically clears to “0” when a program or erase operation completes. To ensure that both WIP and WEL are “0” and the device is ready for the next program or erase operation, it is recommended that WIP be confirmed to be “0” before checking that WEL is also “0”. If a program or erase instruction is applied to a protected memory area, the instruction will be ignored and WEL will clear to “0”. BP3, BP2, BP1, BP0 bits. The Block Protect (BP3, BP2, BP1, BP0) bits, non-volatile bits, indicate the protected area (as defined in "Table 2. Protected Area Sizes") of the device to against the program/erase instruction without hardware protection mode being set. To write the Block Protect (BP3, BP2, BP1, BP0) bits requires the Write Status Register (WRSR) instruction to be executed. Those bits define the protected area of the memory to against Page Program (PP), Sector Erase (SE), Block Erase 32KB (BE32K), Block Erase (BE) and Chip Erase (CE) instructions (only if Block Protect bits (BP3:BP0) set to 0, the CE instruction can be executed). The BP3, BP2, BP1, BP0 bits are "0" as default. Which is unprotected. QE bit. The Quad Enable (QE) bit is a non-volatile bit with a factory default of “0”. When QE is “0”, Quad mode commands are ignored; pins WP#/SIO2, DNU/SIO3 and the RESET#/SIO3 of 8-pin package function as WP#, DNU pin and RESET#, respectively. When QE is “1”, Quad mode is enabled and Quad mode commands are supported along with Single and Dual mode commands. Pins WP#/SIO2, DNU/SIO3 and the RESET#/SIO3 of 8-pin package function as SIO2 and SIO3, respectively, and their alternate pin functions are disabled. Enabling Quad mode also disables the HPM feature and the RESET feature of 8-pin package. SRWD bit. The Status Register Write Disable (SRWD) bit, non-volatile bit, is operated together with Write Protection (WP#/SIO2) pin for providing hardware protection mode. The hardware protection mode requires SRWD sets to 1 and WP#/SIO2 pin signal is low stage. In the hardware protection mode, the Write Status Register (WRSR) instruction is no longer accepted for execution and the SRWD bit and Block Protect bits (BP3, BP2, BP1, BP0) are read only. The SRWD bit defaults to be "0". Table 7. Status Register bit7 bit6 SRWD (status register write protect) QE (Quad Enable) 1=status register write 1=Quad Enable disabled 0=not Quad 0=status Enable register write enabled bit5 BP3 (level of protected block) (note 1) bit4 BP2 (level of protected block) bit3 BP1 (level of protected block) (note 1) (note 1) Non-volatile Non-volatile Non-volatile Non-volatile Non-volatile bit bit bit bit bit Note 1: Please refer to the "Table 2. Protected Area Sizes". P/N: PM2517 30 bit2 BP0 (level of protected block) (note 1) Non-volatile bit bit1 bit0 WEL WIP (write enable (write in latch) progress bit) 1=write 1=write enable operation 0=not write 0=not in write enable operation volatile bit volatile bit Rev. 1.0, October 17, 2017 MX25L12833F Configuration Register The Configuration Register is able to change the default status of Flash memory. Flash memory will be configured after the CR bit is set. ODS bit The output driver strength (ODS2, ODS1, ODS0) bits are volatile bits, which indicate the output driver level (as defined in Output Driver Strength Table) of the device. The Output Driver Strength is defaulted as 30 Ohms when delivered from factory. To write the ODS bits requires the Write Status Register (WRSR) instruction to be executed. TB bit The Top/Bottom (TB) bit is a non-volatile OTP bit. The Top/Bottom (TB) bit is used to configure the Block Protect area by BP bit (BP3, BP2, BP1, BP0), starting from TOP or Bottom of the memory array. The TB bit is defaulted as “0”, which means Top area protect. When it is set as “1”, the protect area will change to Bottom area of the memory device. To write the TB bits requires the Write Status Register (WRSR) instruction to be executed. Table 8. Configuration Register Table bit7 DC1 (Dummy cycle 1) bit6 DC0 (Dummy cycle 0) bit5 bit4 Reserved Reserved (note 2) (note 2) x x volatile bit volatile bit x x bit3 bit2 bit1 bit0 TB ODS 2 ODS 1 ODS 0 (top/bottom (output driver (output driver (output driver selected) strength) strength) strength) 0=Top area protect 1=Bottom (note 1) (note 1) (note 1) area protect (Default=0) OTP volatile bit volatile bit volatile bit Note 1: Please refer to "Table 9. Output Driver Strength Table" Note 2: Please refer to "Table 10. Dummy Cycle and Frequency Table (MHz)" P/N: PM2517 31 Rev. 1.0, October 17, 2017 MX25L12833F Table 9. Output Driver Strength Table ODS2 ODS1 ODS0 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Description Reserved 90 Ohms 45 Ohms 45 Ohms Reserved 15 Ohms 15 Ohms 30 Ohms (Default) Table 10. Dummy Cycle and Frequency Table (MHz) DC[1:0] 00 (default) 01 10 11 DC[1:0] 00 (default) 01 10 11 DC[1:0] 00 (default) 01 10 11 Numbers of Dummy clock cycles 8 6 8 10 Numbers of Dummy clock cycles 4 6 8 10 Fast Read 104 104 104 133 Dual Output Fast Read 104 104 104 133 Quad Output Fast Read 104 84 104 133 Dual IO Fast Read 84 104 104 133 Numbers of Dummy Quad IO Fast Read clock cycles 6 84 4 66 8 104 10 120/133R Note: "R" mean VCC range= 3.0V-3.6V. P/N: PM2517 32 Rev. 1.0, October 17, 2017 MX25L12833F 9-10. Write Status Register (WRSR) The WRSR instruction is for changing the values of Status Register Bits and Configuration Register Bits. Before sending WRSR instruction, the Write Enable (WREN) instruction must be decoded and executed to set the Write Enable Latch (WEL) bit in advance. The WRSR instruction can change the value of Block Protect (BP3, BP2, BP1, BP0) bits to define the protected area of memory (as shown in "Table 2. Protected Area Sizes"). The WRSR also can set or reset the Quad enable (QE) bit and set or reset the Status Register Write Disable (SRWD) bit in accordance with Write Protection (WP#/SIO2) pin signal, but has no effect on bit1(WEL) and bit0 (WIP) of the status register. The WRSR instruction cannot be executed once the Hardware Protected Mode (HPM) is entered. The sequence of issuing WRSR instruction is: CS# goes low→ sending WRSR instruction code→ Status Register data on SI→CS# goes high. The CS# must go high exactly at the 8 bits or 16 bits data boundary; otherwise, the instruction will be rejected and not executed. The self-timed Write Status Register cycle time (tW) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be check out during the Write Status Register cycle is in progress. The WIP sets 1 during the tW timing, and sets 0 when Write Status Register Cycle is completed, and the Write Enable Latch (WEL) bit is reset. Figure 24. Write Status Register (WRSR) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCLK Mode 0 SI SO command 01h Status Register In 7 6 4 5 Configuration Register In 2 3 0 15 14 13 12 11 10 9 1 8 MSB High-Z Note : The CS# must go high exactly at 8 bits or 16 bits data boundary to completed the write register command. Figure 25. Write Status Register (WRSR) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 Mode 3 SCLK Mode 0 Mode 0 SR in Command SIO[3:0] P/N: PM2517 01h H0 33 L0 CR in H1 L1 Rev. 1.0, October 17, 2017 MX25L12833F Software Protected Mode (SPM): - When SRWD bit=0, no matter WP#/SIO2 is low or high, the WREN instruction may set the WEL bit and can change the values of SRWD, BP3, BP2, BP1, BP0. The protected area, which is defined by BP3, BP2, BP1, BP0 and T/B bit, is at software protected mode (SPM). - When SRWD bit=1 and WP#/SIO2 is high, the WREN instruction may set the WEL bit can change the values of SRWD, BP3, BP2, BP1, BP0. The protected area, which is defined by BP3, BP2, BP1, BP0 and T/B bit, is at software protected mode (SPM) Note: If SRWD bit=1 but WP#/SIO2 is low, it is impossible to write the Status Register even if the WEL bit has previously been set. It is rejected to write the Status Register and not be executed. Hardware Protected Mode (HPM): - When SRWD bit=1, and then WP#/SIO2 is low (or WP#/SIO2 is low before SRWD bit=1), it enters the hardware protected mode (HPM). The data of the protected area is protected by software protected mode by BP3, BP2, BP1, BP0 and T/B bit and hardware protected mode by the WP#/SIO2 to against data modification. Note: To exit the hardware protected mode requires WP#/SIO2 driving high once the hardware protected mode is entered. If the WP#/SIO2 pin is permanently connected to high, the hardware protected mode can never be entered; only can use software protected mode via BP3, BP2, BP1, BP0 and T/B bit. If the system enter QPI or set QE=1, the feature of HPM will be disabled. Table 11. Protection Modes Mode Software protection mode (SPM) Hardware protection mode (HPM) Status register condition WP# and SRWD bit status Memory Status register can be written in (WEL bit is set to "1") and the SRWD, BP0-BP3 bits can be changed WP#=1 and SRWD bit=0, or WP#=0 and SRWD bit=0, or WP#=1 and SRWD=1 The protected area cannot be program or erase. The SRWD, BP0-BP3 of status register bits cannot be changed WP#=0, SRWD bit=1 The protected area cannot be program or erase. Note: 1. As defined by the values in the Block Protect (BP3, BP2, BP1, BP0) bits of the Status Register, as shown in "Table 2. Protected Area Sizes". P/N: PM2517 34 Rev. 1.0, October 17, 2017 MX25L12833F Figure 26. WRSR flow start WREN command RDSR command WEL=1? No Yes WRSR command Write status register data RDSR command WIP=0? No Yes RDSR command Read WEL=0, BP[3:0], QE, and SRWD data Verify OK? No Yes WRSR successfully P/N: PM2517 WRSR fail 35 Rev. 1.0, October 17, 2017 MX25L12833F Figure 27. WP# Setup Timing and Hold Timing during WRSR when SRWD=1 WP# tSHWL tWHSL CS# 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCLK 01h SI SO High-Z Note: WP# must be kept high until the embedded operation finish. P/N: PM2517 36 Rev. 1.0, October 17, 2017 MX25L12833F 9-11. Read Data Bytes (READ) The read instruction is for reading data out. The address is latched on rising edge of SCLK, and data shifts out on the falling edge of SCLK at a maximum frequency fR. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single READ instruction. The address counter rolls over to 0 when the highest address has been reached. The sequence of issuing READ instruction is: CS# goes low→sending READ instruction code→ 3-byte address on SI→ data out on SO→to end READ operation can use CS# to high at any time during data out. Figure 28. Read Data Bytes (READ) Sequence (SPI Mode only) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 28 29 30 31 32 33 34 35 36 37 38 39 SCLK Mode 0 SI command 03h 24-Bit Address 23 22 21 3 2 1 0 MSB SO Data Out 1 High-Z 7 6 5 4 3 2 Data Out 2 1 0 7 MSB P/N: PM2517 37 Rev. 1.0, October 17, 2017 MX25L12833F 9-12. Read Data Bytes at Higher Speed (FAST_READ) The FAST_READ instruction is for quickly reading data out. The address is latched on rising edge of SCLK, and data of each bit shifts out on the falling edge of SCLK at a maximum frequency fC. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single FAST_READ instruction. The address counter rolls over to 0 when the highest address has been reached. Read on SPI Mode The sequence of issuing FAST_READ instruction is: CS# goes low→ sending FAST_READ instruction code→ 3-byte address on SI→ 8 dummy cycles (default)→ data out on SO→ to end FAST_READ operation can use CS# to high at any time during data out. In the performance-enhancing mode, P[7:4] must be toggling with P[3:0] ; likewise P[7:0]=A5h,5Ah,F0h or 0Fh can make this mode continue and reduce the next 4READ instruction. Once P[7:4] is no longer toggling with P[3:0]; likewise P[7:0]=FFh,00h,AAh or 55h and afterwards CS# is raised and then lowered, the system then will escape from performance enhance mode and return to normal operation. While Program/Erase/Write Status Register cycle is in progress, FAST_READ instruction is rejected without any impact on the Program/Erase/Write Status Register current cycle. Figure 29. Read at Higher Speed (FAST_READ) Sequence (SPI Mode) CS# SCLK Mode 3 0 1 2 Mode 0 3 5 6 7 8 9 10 Command SI SO 4 28 29 30 31 24-Bit Address 23 22 21 0Bh 3 2 1 0 High-Z CS# 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 SCLK Configurable Dummy Cycle SI 7 6 5 4 3 2 1 0 DATA OUT 2 DATA OUT 1 SO 7 6 5 4 2 1 0 7 MSB MSB P/N: PM2517 3 38 6 5 4 3 2 1 0 7 MSB Rev. 1.0, October 17, 2017 MX25L12833F 9-13. Dual Output Read Mode (DREAD) The DREAD instruction enable double throughput of Serial NOR Flash in read mode. The address is latched on rising edge of SCLK, and data of every two bits (interleave on 2 I/O pins) shift out on the falling edge of SCLK at a maximum frequency fT. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single DREAD instruction. The address counter rolls over to 0 when the highest address has been reached. Once writing DREAD instruction, the following data out will perform as 2-bit instead of previous 1-bit. The sequence of issuing DREAD instruction is: CS# goes low→ sending DREAD instruction→3-byte address on SIO0→ 8 dummy cycles (default) on SIO0→ data out interleave on SIO1 & SIO0→ to end DREAD operation can use CS# to high at any time during data out. While Program/Erase/Write Status Register cycle is in progress, DREAD instruction is rejected without any impact on the Program/Erase/Write Status Register current cycle. Figure 30. Dual Read Mode Sequence CS# 0 1 2 3 4 5 6 7 8 SCLK … Command SI/SIO0 SO/SIO1 P/N: PM2517 30 31 32 9 3B … 24 ADD Cycle A23 A22 … 39 40 41 42 43 44 45 A1 A0 High Impedance Configurable Dummy Cycle Data Out 1 Data Out 2 D6 D4 D2 D0 D6 D4 D7 D5 D3 D1 D7 D5 39 Rev. 1.0, October 17, 2017 MX25L12833F 9-14. 2 x I/O Read Mode (2READ) The 2READ instruction enable double throughput of Serial NOR Flash in read mode. The address is latched on rising edge of SCLK, and data of every two bits (interleave on 2 I/O pins) shift out on the falling edge of SCLK at a maximum frequency fT. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single 2READ instruction. The address counter rolls over to 0 when the highest address has been reached. Once writing 2READ instruction, the following address/dummy/data out will perform as 2-bit instead of previous 1-bit. The sequence of issuing 2READ instruction is: CS# goes low→ sending 2READ instruction→ 3-byte address interleave on SIO1 & SIO0→ 4 dummy cycles (default) on SIO1 & SIO0→ data out interleave on SIO1 & SIO0→ to end 2READ operation can use CS# to high at any time during data out. While Program/Erase/Write Status Register cycle is in progress, 2READ instruction is rejected without any impact on the Program/Erase/Write Status Register current cycle. Figure 31. 2 x I/O Read Mode Sequence (SPI Mode only) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 Mode 3 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SCLK Mode 0 Command SI/SIO0 SO/SIO1 P/N: PM2517 BBh 12 ADD Cycles Configurable Dummy Cycle Data Out 1 Mode 0 Data Out 2 A22 A20 A18 A4 A2 A0 D6 D4 D2 D0 D6 D4 D2 D0 A23 A21 A19 A5 A3 A1 D7 D5 D3 D1 D7 D5 D3 D1 40 Rev. 1.0, October 17, 2017 MX25L12833F 9-15. Quad Read Mode (QREAD) The QREAD instruction enable quad throughput of Serial NOR Flash in read mode. A Quad Enable (QE) bit of status Register must be set to "1" before sending the QREAD instruction. The address is latched on rising edge of SCLK, and data of every four bits (interleave on 4 I/O pins) shift out on the falling edge of SCLK at a maximum frequency fQ. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single QREAD instruction. The address counter rolls over to 0 when the highest address has been reached. Once writing QREAD instruction, the following data out will perform as 4-bit instead of previous 1-bit. The sequence of issuing QREAD instruction is: CS# goes low→ sending QREAD instruction → 3-byte address on SI → 8 dummy cycle (Default) → data out interleave on SIO3, SIO2, SIO1 & SIO0→ to end QREAD operation can use CS# to high at any time during data out. While Program/Erase/Write Status Register cycle is in progress, QREAD instruction is rejected without any impact on the Program/Erase/Write Status Register current cycle. Figure 32. Quad Read Mode Sequence CS# 0 1 2 3 4 5 6 7 8 SCLK … Command SIO0 SIO1 SIO2 SIO3 P/N: PM2517 29 30 31 32 33 9 6B … 24 ADD Cycles A23 A22 … High Impedance 38 39 40 41 42 A2 A1 A0 Configurable dummy cycles Data Data Data Out 1 Out 2 Out 3 D4 D0 D4 D0 D4 D5 D1 D5 D1 D5 High Impedance D6 D2 D6 D2 D6 High Impedance D7 D3 D7 D3 D7 41 Rev. 1.0, October 17, 2017 MX25L12833F 9-16. 4 x I/O Read Mode (4READ) The 4READ instruction enable quad throughput of Serial NOR Flash in read mode. A Quad Enable (QE) bit of status Register must be set to "1" before sending the 4READ instruction. The address is latched on rising edge of SCLK, and data of every four bits (interleave on 4 I/O pins) shift out on the falling edge of SCLK at a maximum frequency fQ. The first address byte can be at any location. The address is automatically increased to the next higher address after each byte data is shifted out, so the whole memory can be read out at a single 4READ instruction. The address counter rolls over to 0 when the highest address has been reached. Once writing 4READ instruction, the following address/dummy/data out will perform as 4-bit instead of previous 1-bit. 4 x I/O Read on SPI Mode (4READ) The sequence of issuing 4READ instruction is: CS# goes low→ sending 4READ instruction→ 3-byte address interleave on SIO3, SIO2, SIO1 & SIO0→ 6 dummy cycles (Default) →data out interleave on SIO3, SIO2, SIO1 & SIO0→ to end 4READ operation can use CS# to high at any time during data out. 4 x I/O Read on QPI Mode (4READ) The 4READ instruction also support on QPI command mode. The sequence of issuing 4READ instruction QPI mode is: CS# goes low→ sending 4READ instruction→ 3-byte address interleave on SIO3, SIO2, SIO1 & SIO0→ 6 dummy cycles (Default) →data out interleave on SIO3, SIO2, SIO1 & SIO0→ to end 4READ operation can use CS# to high at any time during data out. While Program/Erase/Write Status Register cycle is in progress, 4READ instruction is rejected without any impact on the Program/Erase/Write Status Register current cycle. P/N: PM2517 42 Rev. 1.0, October 17, 2017 MX25L12833F Figure 33. 4 x I/O Read Mode Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 Mode 3 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 SCLK Mode 0 Command 6 ADD Cycles Data Out 1 Performance enhance indicator (Note 1) Data Out 2 Mode 0 Data Out 3 Configurable Dummy Cycle (Note 3) EBh A20 A16 A12 A8 A4 A0 P4 P0 D4 D0 D4 D0 D4 D0 SIO1 A21 A17 A13 A9 A5 A1 P5 P1 D5 D1 D5 D1 D5 D1 SIO2 A22 A18 A14 A10 A6 A2 P6 P2 D6 D2 D6 D2 D6 D2 SIO3 A23 A19 A15 A11 A7 A3 P7 P3 D7 D3 D7 D3 D7 D3 SIO0 Notes: 1. Hi-impedance is inhibited for the two clock cycles. 2. P7≠P3, P6≠P2, P5≠P1 & P4≠P0 (Toggling) is inhibited. 3. Configuration Dummy cycle numbers will be different depending on the bit6 & bit 7 (DC0 & DC1) setting in configuration register. Figure 34. 4 x I/O Read Mode Sequence (QPI Mode) CS# MODE 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 MODE 3 SCLK MODE 0 SIO[3:0] P/N: PM2517 MODE 0 EB A5 A4 A3 A2 A1 A0 Data In 24-bit Address X X X X Configurable Dummy Cycle 43 X X H0 L0 H1 L1 H2 L2 H3 L3 MSB Data Out Rev. 1.0, October 17, 2017 MX25L12833F 9-17. Burst Read The Burst Read feature allows applications to fill a cache line with a fixed length of data without using multiple read commands. Burst Read is disabled by default at power-up or reset. Burst Read is enabled by setting the Burst Length. When the Burst Length is set, reads will wrap on the selected boundary (8/16/32/64-bytes) containing the initial target address. For example if an 8-byte Wrap Depth is selected, reads will wrap on the 8-byte-page-aligned boundary containing the initial read address. To set the Burst Length, drive CS# low → send SET BURST LENGTH instruction code → send WRAP CODE → drive CS# high. Refer to the table below for valid 8-bit Wrap Codes and their corresponding Wrap Depth. Data 00h 01h 02h 03h 1xh Wrap Around Yes Yes Yes Yes No Wrap Depth 8-byte 16-byte 32-byte 64-byte X Once Burst Read is enabled, it will remain enabled until the device is power-cycled or reset. The SPI and QPI mode 4READ read commands support the wrap around feature after Burst Read is enabled. To change the wrap depth, resend the Burst Read instruction with the appropriate Wrap Code. To disable Burst Read, send the Burst Read instruction with Wrap Code 1xh. QPI and SPI “EBh” support wrap around feature after wrap around is enabled. Both SPI (8 clocks) and QPI (2 clocks) command cycle can be accepted by this instruction. The SIO[3:1] are don't care during SPI mode. Figure 35. Burst Read - SPI Mode CS# Mode 3 0 1 2 3 4 5 6 7 8 9 D7 D6 10 11 12 13 14 15 SCLK Mode 0 SIO C0h D5 D4 D3 D2 D1 D0 Figure 36. Burst Read - QPI Mode CS# Mode 3 0 1 2 3 SCLK Mode 0 SIO[3:0] C0h H0 MSB L0 LSB Note: MSB=Most Significant Bit LSB=Least Significant Bit P/N: PM2517 44 Rev. 1.0, October 17, 2017 MX25L12833F 9-18. Performance Enhance Mode The device could waive the command cycle bits if the two cycle bits after address cycle toggles. Performance enhance mode is supported in both SPI and QPI mode. In QPI mode, “EBh” and SPI “EBh” commands support enhance mode. The performance enhance mode is not supported in dual I/O mode. To enter performance-enhancing mode, P[7:4] must be toggling with P[3:0]; likewise P[7:0]=A5h, 5Ah, F0h or 0Fh can make this mode continue and skip the next 4READ instruction. To leave enhance mode, P[7:4] is no longer toggling with P[3:0]; likewise P[7:0]=FFh, 00h, AAh or 55h along with CS# is afterwards raised and then lowered. Issuing ”FFh” data cycle can also exit enhance mode. The system then will leave performance enhance mode and return to normal operation. After entering enhance mode, following CS# go high, the device will stay in the read mode and treat CS# go low of the first clock as address instead of command cycle. This sequence of issuing 4READ instruction is especially useful in random access: CS# goes low→send 4READ instruction→3-bytes address interleave on SIO3, SIO2, SIO1 & SIO0 →performance enhance toggling bit P[7:0]→ 4 dummy cycles (Default) →data out until CS# goes high → CS# goes low (the following 4READ instruction is ignored) → 3-bytes random access address. To conduct the Performance Enhance Mode Reset operation in SPI mode, FFh data cycle, 8 clocks, should be issued in 1I/O sequence. In QPI Mode, FFFFFFFFh data cycle, 8 clocks, in 4I/O should be issued. If the system controller is being Reset during operation, the flash device will return to the standard SPI operation. P/N: PM2517 45 Rev. 1.0, October 17, 2017 MX25L12833F Figure 37. 4 x I/O Read enhance performance Mode Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 n SCLK Mode 0 Data Out 2 Data Out n A20 A16 A12 A8 A4 A0 P4 P0 D4 D0 D4 D0 D4 D0 SIO1 A21 A17 A13 A9 A5 A1 P5 P1 D5 D1 D5 D1 D5 D1 SIO2 A22 A18 A14 A10 A6 A2 P6 P2 D6 D2 D6 D2 D6 D2 SIO3 A23 A19 A15 A11 A7 A3 P7 P3 D7 D3 D7 D3 D7 D3 Command 6 ADD Cycles Data Out 1 Performance enhance indicator (Note 1) Configurable Dummy Cycle (Note 2) EBh SIO0 CS# n+1 ........... n+7 ...... n+9 ........... n+13 ........... Mode 3 SCLK 6 ADD Cycles Performance enhance indicator (Note 1) Data Out 1 Data Out 2 Data Out n Mode 0 Configurable Dummy Cycle (Note 2) SIO0 A20 A16 A12 A8 A4 A0 P4 P0 D4 D0 D4 D0 D4 D0 SIO1 A21 A17 A13 A9 A5 A1 P5 P1 D5 D1 D5 D1 D5 D1 SIO2 A22 A18 A14 A10 A6 A2 P6 P2 D6 D2 D6 D2 D6 D2 SIO3 A23 A19 A15 A11 A7 A3 P7 P3 D7 D3 D7 D3 D7 D3 Notes: 1. If not using performance enhance recommend to keep 1 or 0 in performance enhance indicator. Reset the performance enhance mode, if P7=P3 or P6=P2 or P5=P1 or P4=P0, ex: AA, 00, FF. 2. Configuration Dummy cycle numbers will be different depending on the bit6 & bit 7 (DC0 & DC1) setting in configuration register. P/N: PM2517 46 Rev. 1.0, October 17, 2017 MX25L12833F Figure 38. 4 x I/O Read enhance performance Mode Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 A1 A0 8 9 10 11 12 13 14 15 16 17 H0 L0 H1 L1 SCLK Mode 0 SIO[3:0] EBh A5 A4 A3 A2 X X X X MSB LSB MSB LSB P(7:4) P(3:0) Data In Data Out performance enhance indicator Configurable Dummy Cycle (Note 1) CS# n+1 ............. SCLK Mode 0 SIO[3:0] A5 A4 A3 A2 A1 X A0 X X H0 L0 H1 L1 MSB LSB MSB LSB P(7:4) P(3:0) 6 Address cycles X Data Out performance enhance indicator Configurable Dummy Cycle (Note 1) Notes: 1. Configuration Dummy cycle numbers will be different depending on the bit6 & bit 7 (DC0 & DC1) setting in configuration register. 2. Reset the performance enhance mode, if P7=P3 or P6=P2 or P5=P1 or P4=P0, ex: AA, 00, FF. P/N: PM2517 47 Rev. 1.0, October 17, 2017 MX25L12833F 9-19. Sector Erase (SE) The Sector Erase (SE) instruction is for erasing the data of the chosen sector to be "1". The instruction is used for any 4K-byte sector. A Write Enable (WREN) instruction must execute to set the Write Enable Latch (WEL) bit before sending the Sector Erase (SE). Any address of the sector (please refer to "Table 4. Memory Organization") is a valid address for Sector Erase (SE) instruction. The CS# must go high exactly at the byte boundary (the least significant bit of the address byte been latched-in); otherwise, the instruction will be rejected and not executed. Address bits [Am-A12] (Am is the most significant address) select the sector address. The sequence of issuing SE instruction is: CS# goes low→ sending SE instruction code→ 3-byte address on SI→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The self-timed Sector Erase Cycle time (tSE) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be checked while the Sector Erase cycle is in progress. The WIP sets 1 during the tSE timing, and clears when Sector Erase Cycle is completed, and the Write Enable Latch (WEL) bit is cleared. If the Block is protected by BP bits (WPSEL=0; Block Lock (BP) protection mode) or SPB/DPB (WPSEL=1; Individual Sector protection mode), the Sector Erase (SE) instruction will not be executed on the block. Figure 39. Sector Erase (SE) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 29 30 31 SCLK Mode 0 24-Bit Address Command SI 20h A23 A22 A2 A1 A0 MSB Figure 40. Sector Erase (SE) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 24-Bit Address Command SIO[3:0] 20h A5 A4 A3 A2 A1 A0 MSB P/N: PM2517 48 Rev. 1.0, October 17, 2017 MX25L12833F 9-20. Block Erase (BE32K) The Block Erase (BE32K) instruction is for erasing the data of the chosen block to be "1". The instruction is used for 32K-byte block erase operation. A Write Enable (WREN) instruction be executed to set the Write Enable Latch (WEL) bit before sending the Block Erase (BE32K). Any address of the block (Please refer to "Table 4. Memory Organization") is a valid address for Block Erase (BE32K) instruction. The CS# must go high exactly at the byte boundary (the least significant bit of address byte been latched-in); otherwise, the instruction will be rejected and not executed. The sequence of issuing BE32K instruction is: CS# goes low→ sending BE32K instruction code→ 3-byte address on SI→CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The self-timed Block Erase Cycle time (tBE32K) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be checked while during the Block Erase cycle is in progress. The WIP sets during the tBE32K timing, and clears when Block Erase Cycle is completed, and the Write Enable Latch (WEL) bit is cleared. If the Block is protected by BP bits (WPSEL=0; Block Lock (BP) protection mode) or SPB/DPB (WPSEL=1; Individual Sector protection mode), the Block Erase (BE32K) instruction will not be executed on the block. Figure 41. Block Erase 32KB (BE32K) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 29 30 31 SCLK Mode 0 Command SI 24-Bit Address 52h A23 A22 A2 A1 A0 MSB Figure 42. Block Erase 32KB (BE32K) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 24-Bit Address Command SIO[3:0] 52h A5 A4 A3 A2 A1 A0 MSB P/N: PM2517 49 Rev. 1.0, October 17, 2017 MX25L12833F 9-21. Block Erase (BE) The Block Erase (BE) instruction is for erasing the data of the chosen block to be "1". The instruction is used for 64K-byte block erase operation. A Write Enable (WREN) instruction must be executed to set the Write Enable Latch (WEL) bit before sending the Block Erase (BE). Any address of the block (Please refer to "Table 4. Memory Organization") is a valid address for Block Erase (BE) instruction. The CS# must go high exactly at the byte boundary (the least significant bit of address byte been latched-in); otherwise, the instruction will be rejected and not executed. The sequence of issuing BE instruction is: CS# goes low→ sending BE instruction code→ 3-byte address on SI→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The self-timed Block Erase Cycle time (tBE) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be checked while the Block Erase cycle is in progress. The WIP sets during the tBE timing, and clears when Block Erase Cycle is completed, and the Write Enable Latch (WEL) bit is reset. If the Block is protected by BP bits (WPSEL=0; Block Lock (BP) protection mode) or SPB/DPB (WPSEL=1; Individual Sector protection mode), the Block Erase (BE) instruction will not be executed on the block. Figure 43. Block Erase (BE) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 29 30 31 SCLK Mode 0 Command SI 24-Bit Address D8h A23 A22 A2 A1 A0 MSB Figure 44. Block Erase (BE) Sequence (QPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 24-Bit Address Command SIO[3:0] D8h A5 A4 A3 A2 A1 A0 MSB P/N: PM2517 50 Rev. 1.0, October 17, 2017 MX25L12833F 9-22. Chip Erase (CE) The Chip Erase (CE) instruction is for erasing the data of the whole chip to be "1". A Write Enable (WREN) instruction must be executed to set the Write Enable Latch (WEL) bit before sending the Chip Erase (CE). The CS# must go high exactly at the byte boundary, otherwise the instruction will be rejected and not executed. The sequence of issuing CE instruction is: CS# goes low→sending CE instruction code→CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The self-timed Chip Erase Cycle time (tCE) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be checked while the Chip Erase cycle is in progress. The WIP sets during the tCE timing, and clears when Chip Erase Cycle is completed, and the Write Enable Latch (WEL) bit is cleared. When the chip is under "Block Lock (BP) protection mode" (WPSEL=0): The Chip Erase(CE) instruction will not be executed, if one (or more) sector is protected by BP3-BP0 bits. It will be only executed when BP3-BP0 all set to "0". When the chip is under "Individual Sector protection mode" (WPSEL=1): The Chip Erase (CE) instruction will be executed on unprotected block. The protected Block will be skipped. If one (or more) 4K byte sector was protected in top or bottom 64K byte block, the protected block will also skip the chip erase command. Figure 45. Chip Erase (CE) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 SCLK Mode 0 Command SI 60h or C7h Figure 46. Chip Erase (CE) Sequence (QPI Mode) CS# Mode 3 0 1 SCLK Mode 0 SIO[3:0] P/N: PM2517 Command 60h or C7h 51 Rev. 1.0, October 17, 2017 MX25L12833F 9-23. Page Program (PP) The Page Program (PP) instruction is for programming memory bits to "0". One to 256 bytes can be sent to the device to be programmed. A Write Enable (WREN) instruction must be executed to set the Write Enable Latch (WEL) bit before sending the Page Program (PP). If more than 256 data bytes are sent to the device, only the last 256 data bytes will be accepted and the previous data bytes will be disregarded. The Page Program instruction requires that all the data bytes fall within the same 256-byte page. The low order address byte A[7:0] specifies the starting address within the selected page. Bytes that will cross a page boundary will wrap to the beginning of the selected page. The device can accept (256 minus A[7:0]) data bytes without wrapping. If 256 data bytes are going to be programmed, A[7:0] should be set to 0. The sequence of issuing PP instruction is: CS# goes low→ sending PP instruction code→ 3-byte address on SI→ at least 1-byte on data on SI→ CS# goes high. The CS# must be kept to low during the whole Page Program cycle; The CS# must go high exactly at the byte boundary ( the latest eighth bit of data being latched in), otherwise the instruction will be rejected and will not be executed. The self-timed Page Program Cycle time (tPP) is initiated as soon as Chip Select (CS#) goes high. The Write in Progress (WIP) bit still can be checked while the Page Program cycle is in progress. The WIP sets during the tPP timing, and clears when Page Program Cycle is completed, and the Write Enable Latch (WEL) bit is cleared. If the Block is protected by BP bits (WPSEL=0; Block Lock (BP) protection mode) or SPB/DPB (WPSEL=1; Individual Sector protection mode) the Page Program (PP) instruction will not be executed. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. P/N: PM2517 52 Rev. 1.0, October 17, 2017 MX25L12833F Figure 47. Page Program (PP) Sequence (SPI Mode) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 28 29 30 31 32 33 34 35 36 37 38 39 SCLK 1 0 7 6 5 3 2 1 0 2079 2 2078 3 2077 23 22 21 02h SI Data Byte 1 24-Bit Address 2076 Command 2075 Mode 0 4 1 0 MSB MSB 2074 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 2073 2072 CS# SCLK Data Byte 2 7 SI 6 5 4 3 2 Data Byte 3 1 MSB 0 7 6 5 4 3 2 Data Byte 256 1 7 0 MSB 6 5 4 3 2 MSB Figure 48. Page Program (PP) Sequence (QPI Mode) CS# Mode 3 0 1 2 SCLK Mode 0 Command SIO[3:0] 02h Data In P/N: PM2517 24-Bit Address A5 A4 A3 A2 A1 A0 H0 L0 H1 L1 H2 L2 H3 L3 Data Byte Data Byte Data Byte Data Byte 1 2 3 4 53 H255 L255 ...... Data Byte 256 Rev. 1.0, October 17, 2017 MX25L12833F 9-24. 4 x I/O Page Program (4PP) The Quad Page Program (4PP) instruction is for programming the memory to be "0". A Write Enable (WREN) instruction must be executed to set the Write Enable Latch (WEL) bit and Quad Enable (QE) bit must be set to "1" before sending the Quad Page Program (4PP). The Quad Page Programming takes four pins: SIO0, SIO1, SIO2, and SIO3 as address and data input, which can improve programmer performance and the effectiveness of application. The other function descriptions are as same as standard page program. The sequence of issuing 4PP instruction is: CS# goes low→ sending 4PP instruction code→ 3-byte address on SIO[3:0]→ at least 1-byte on data on SIO[3:0]→CS# goes high. If the page is protected by BP bits (WPSEL=0; Block Lock (BP) protection mode) or SPB/DPB (WPSEL=1; Individual Sector protection mode), the Quad Page Program (4PP) instruction will not be executed. Figure 49. 4 x I/O Page Program (4PP) Sequence (SPI Mode only) CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 SCLK Mode 0 Data Data Data Data Byte 1 Byte 2 Byte 3 Byte 4 6 Address cycle A0 4 0 4 0 4 0 4 0 SIO1 A21 A17 A13 A9 A5 A1 5 1 5 1 5 1 5 1 SIO2 A22 A18 A14 A10 A6 A2 6 2 6 2 6 2 6 2 SIO3 A23 A19 A15 A11 A7 A3 7 3 7 3 7 3 7 3 SIO0 P/N: PM2517 Command 38h A20 A16 A12 A8 A4 54 Rev. 1.0, October 17, 2017 MX25L12833F 9-25. Deep Power-down (DP) The Deep Power-down (DP) instruction places the device into a minimum power consumption state, Deep Powerdown mode, in which the quiescent current is reduced from ISB1 to ISB2. The sequence of issuing DP instruction: CS# goes low→ send DP instruction code→ CS# goes high. The CS# must go high at the byte boundary (after exactly eighth bits of the instruction code have been latched-in); otherwise the instruction will not be executed. Both SPI (8 clocks) and QPI (2 clocks) command cycle can be accepted by this instruction. SIO[3:1] are "don't care". After CS# goes high there is a delay of tDP before the device transitions from Stand-by mode to Deep Power-down mode and before the current reduces from ISB1 to ISB2. Once in Deep Power-down mode, all instructions will be ignored except Release from Deep Power-down (RDP). The device exits Deep Power-down mode and returns to Stand-by mode if it receives a Release from Deep Powerdown (RDP) instruction, power-cycle, or reset. Figure 50. Deep Power-down (DP) Sequence (SPI Mode) CS# 0 Mode 3 1 2 3 4 5 6 tDP 7 SCLK Mode 0 Command B9h SI Stand-by Mode Deep Power-down Mode Figure 51. Deep Power-down (DP) Sequence (QPI Mode) CS# Mode 3 0 1 tDP SCLK Mode 0 Command SIO[3:0] B9h Stand-by Mode P/N: PM2517 55 Deep Power-down Mode Rev. 1.0, October 17, 2017 MX25L12833F 9-26. Enter Secured OTP (ENSO) The ENSO instruction is for entering the additional 8K-bit secured OTP mode. The additional 8K-bit secured OTP is independent from main array, which may use to store unique serial number for system identifier. After entering the Secured OTP mode, and then follow standard read or program procedure to read out the data or update data. The Secured OTP data cannot be updated again once it is lock-down. The sequence of issuing ENSO instruction is: CS# goes low→ sending ENSO instruction to enter Secured OTP mode→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. Please note that after issuing ENSO command user can only access secure OTP region with standard read or program procedure. Furthermore, once security OTP is lock down, only read related commands are valid. 9-27. Exit Secured OTP (EXSO) The EXSO instruction is for exiting the additional 8K-bit secured OTP mode. The sequence of issuing EXSO instruction is: CS# goes low→ sending EXSO instruction to exit Secured OTP mode→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. 9-28. Read Security Register (RDSCUR) The RDSCUR instruction is for reading the value of Security Register bits. The Read Security Register can be read at any time (even in program/erase/write status register/write security register condition) and continuously. The sequence of issuing RDSCUR instruction is : CS# goes low→sending RDSCUR instruction→Security Register data out on SO→ CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. 9-29. Write Security Register (WRSCUR) The WRSCUR instruction is for changing the values of Security Register Bits. The WREN (Write Enable) instruction is required before issuing WRSCUR instruction. The WRSCUR instruction may change the values of bit1 (LDSO bit) for customer to lock-down the 1st 4K-bit Secured OTP area. Once the LDSO bit is set to "1", the Secured OTP area cannot be updated any more. The sequence of issuing WRSCUR instruction is :CS# goes low→ sending WRSCUR instruction → CS# goes high. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. The CS# must go high exactly at the boundary; otherwise, the instruction will be rejected and not executed. P/N: PM2517 56 Rev. 1.0, October 17, 2017 MX25L12833F Security Register The definition of the Security Register bits is as below: Write Protection Selection bit. Please reference to "9-30. Write Protection Selection (WPSEL)". Erase Fail bit. The Erase Fail bit shows the status of last Erase operation. The bit will be set to "1" if the erase operation failed or the erase region was protected. It will be automatically cleared to "0" if the next erase operation succeeds. Please note that it will not interrupt or stop any operation in the flash memory. Program Fail bit. The Program Fail bit shows the status of the last Program operation. The bit will be set to "1" if the program operation failed or the program region was protected. It will be automatically cleared to "0" if the next program operation succeeds. Please note that it will not interrupt or stop any operation in the flash memory. Erase Suspend bit. Erase Suspend Bit (ESB) indicates the status of Erase Suspend operation. Users may use ESB to identify the state of flash memory. After the flash memory is suspended by Erase Suspend command, ESB is set to "1". ESB is cleared to "0" after erase operation resumes. Program Suspend bit. Program Suspend Bit (PSB) indicates the status of Program Suspend operation. Users may use PSB to identify the state of flash memory. After the flash memory is suspended by Program Suspend command, PSB is set to "1". PSB is cleared to "0" after program operation resumes. Lock-down Secured OTP (LDSO) bit. By writing WRSCUR instruction, the LDSO bit may be set to "1" for cus­ tomer lock-down purpose. However, once the bit is set to "1" (lock-down), the LDSO bit and the 1st 4K-bit Secured OTP area cannot be updated any more. While it is in 8K-bit secured OTP mode, main array access is not allowed. Secured OTP Indicator bit. The Secured OTP indicator bit shows the 2nd 4K-bit Secured OTP area is locked by factory or not. When it is "0", it indicates non-factory lock; "1" indicates factory-lock. Table 12. Security Register Definition bit7 WPSEL bit6 E_FAIL 0= Block Lock 0= normal (BP) protection Erase mode succeed 1= Individual 1= indicate Sector protection Erase failed mode (default=0) (default=0) Non-volatile bit (OTP) P/N: PM2517 Volatile bit bit5 P_FAIL bit4 bit3 bit2 ESB PSB Reserved (Erase (Program Suspend bit) Suspend bit) 0= normal Program succeed 1= indicate Program failed (default=0) - 0= Erase is not suspended 1= Erase suspended (default=0) Volatile bit Volatile bit Volatile bit 57 bit1 bit0 LDSO Secured OTP (lock-down Indicator bit 1st 4K-bit (2nd 4K-bit Secured Secured OTP) OTP) 0= not 0= Program lockdown 0= nonfactory is not lock suspended 1= lock-down (cannot 1= factory 1= Program suspended program/ lock (default=0) erase OTP) Volatile bit Non-volatile bit (OTP) Non-volatile bit (OTP) Rev. 1.0, October 17, 2017 MX25L12833F 9-30. Write Protection Selection (WPSEL) There are two write protection methods provided on this device, (1) Block Protection (BP) mode or (2) Individual Sector Protection mode. The protection modes are mutually exclusive. The WPSEL bit selects which protection mode is enabled. If WPSEL=0 (factory default), BP mode is enabled and Individual Sector Protection mode is disabled. If WPSEL=1, Individual Sector Protection mode is enabled and BP mode is disabled. The WPSEL command is used to set WPSEL=1. A WREN command must be executed to set the WEL bit before sending the WPSEL command. Please note that the WPSEL bit is an OTP bit. Once WPSEL is set to “1”, it cannot be programmed back to “0”. When WPSEL = 0: Block Lock (BP) protection mode, The memory array is write protected by the BP3-BP0 bits. When WPSEL =1: Individual Sector protection mode, Blocks are individually protected by their own SPB or DPB. On power-up, all blocks are write protected by the Dynamic Protection Bits (DPB) by default. The Individual Sector Protection instructions WRLR, RDLR, WRSPB, ESSPB, WRDPB, RDDPB, GBLK, and GBULK are activated. The BP3-BP0 bits of the Status Register are disabled and have no effect. Hardware protection is performed by driving WP#=0. Once WP#=0 all blocks and sectors are write protected regardless of the state of each SPB or DPB. The sequence of issuing WPSEL instruction is: CS# goes low → send WPSEL instruction to enable the Individual Sector Protect mode → CS# goes high. Figure 52. Write Protection Selection Start (Default in BP Mode) WPSEL=1 Set WPSEL Bit Individual Sector Protection P/N: PM2517 WPSEL=0 Block Protection (BP) 58 Rev. 1.0, October 17, 2017 MX25L12833F Figure 53. WPSEL Flow start WREN command RDSCUR command Yes WPSEL=1? No WPSEL disable, block protected by BP[3:0] WPSEL command RDSR command WIP=0? No Yes RDSCUR command WPSEL=1? No Yes WPSEL set successfully WPSEL set fail WPSEL enable. Block protected by Advance Sector Protection P/N: PM2517 59 Rev. 1.0, October 17, 2017 MX25L12833F 9-31. Advanced Sector Protection Advanced Sector Protection can protect individual 4KB sectors in the bottom and top 64KB of memory and protect individual 64KB blocks in the rest of memory. There is one non-volatile Solid Protection Bit (SPB) and one volatile Dynamic Protection Bit (DPB) assigned to each 4KB sector at the bottom and top 64KB of memory and to each 64KB block in the rest of memory. A sector or block is write-protected from programming or erasing when its associated SPB or DPB is set to “1”. The figure below helps describing an overview of these methods. The device is default to the Solid mode when shipped from factory. The detail algorithm of advanced sector protection is shown as follows: Solid Protection mode permits the SPB bits to be modified after power-on or a reset. The figure below is an overview of Advanced Sector Protection. Figure 54. Advanced Sector Protection Overview Start Set SPB Lock Bit ? SPBLKDN# = 0 SPB Lock bit locked All SPB can not be changeable SPBLKDN# = 1 SPB Lock bit Unlocked SPB is changeable SPB Access Register (SPB) Dynamic Protect Bit Register (DPB) DPB=1 sector protect Sector Array SPB=1 Write Protect SPB=0 Write Unprotect DPB=0 sector unprotect P/N: PM2517 DPB 0 SA 0 SPB 0 DPB 1 SA 1 SPB 1 DPB 2 SA 2 SPB 2 : : : : : : DPB N-1 SA N-1 SPB N-1 DPB N SA N SPB N 60 Rev. 1.0, October 17, 2017 MX25L12833F 9-31-1. Lock Register The Lock Register is a 16-bit one-time programmable register. Lock Register bit [6] is SPB Lock Down Bit (SPBLKDN) which is an unique bit assigned to control all SPB bit status. When SPBLKDN is 1, SPB can be changed. When it is locked as 0, all SPB can not be changed anymore, and SPBLKDN bit itself can not be altered anymore, either. The Lock Register is programmed using the WRLR (Write Lock Register) command. A WREN command must be executed to set the WEL bit before sending the WRLR command. Lock Register Bits Field Name Function Type Default State 15 to 7 RFU Reserved OTP 1 6 SPBLKDN SPB Lock Down OTP 1 5 to 0 RFU Reserved OTP 1 Description Reserved for Future Use 1 = SPB changeable 0 = freeze SPB Reserved for Future Use Figure 55. Read Lock Register (RDLR) Sequence CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCLK Mode 0 command 2Dh SI Register Out High-Z SO 7 6 5 4 3 2 Register Out 1 0 15 14 13 12 11 10 9 7 8 MSB MSB Figure 56. Write Lock Register (WRLR) Sequence CS# Mode 3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCLK Mode 0 SI SO P/N: PM2517 Command 2Ch High-Z Lock Register In 7 6 5 4 3 2 1 0 15 14 13 12 11 10 9 8 MSB 61 Rev. 1.0, October 17, 2017 MX25L12833F 9-31-2. Solid Protection Bits The Solid Protection Bits (SPBs) are nonvolatile bits for enabling or disabling write-protection to sectors and blocks. The SPB bits have the same endurance as the Flash memory. An SPB is assigned to each 4KB sector in the bottom and top 64KB of memory and to each 64KB block in the remaining memory. The factory default state of the SPB bits is “0”, which has the sector/block write-protection disabled. When an SPB is set to “1”, the associated sector or block is write-protected. Program and erase operations on the sector or block will be inhibited. SPBs can be individually set to “1” by the WRSPB command. However, the SPBs cannot be individually cleared to “0”. Issuing the ESSPB command clears all SPBs to “0”. A WREN command must be executed to set the WEL bit before sending the WRSPB or ESSPB command. The RDSPB command reads the status of the SPB of a sector or block. The RDSPB command returns 00h if the SPB is “0”, indicating write-protection is disabled. The RDSPB command returns FFh if the SPB is “1”, indicating write-protection is enabled. Note: If SPBLKDN=0, commands to set or clear the SPB bits will be ignored. SPB Register Bit Description 7 to 0 SPB (Solid Protection Bit) P/N: PM2517 Bit Status 00h = Unprotect Sector / Block FFh = Protect Sector / Block 62 Default Type 00h Non-volatile Rev. 1.0, October 17, 2017 MX25L12833F Figure 57. Read SPB Status (RDSPB) Sequence CS# 0 Mode 3 1 2 3 4 5 6 7 8 37 38 39 40 41 42 43 44 45 46 47 9 SCLK Mode 0 Command SI 32-Bit Address (Note) E2h A31 A30 A2 A1 A0 MSB Data Out High-Z SO 7 6 5 4 3 2 1 0 MSB Note: A31-A24 are don't care. Figure 58. SPB Erase (ESSPB) Sequence CS# 1 0 Mode 3 2 3 4 5 6 7 SCLK Mode 0 Command SI E4h High-Z SO Figure 59. SPB Program (WRSPB) Sequence CS# Mode 3 0 1 2 3 4 5 6 7 8 9 37 38 39 SCLK Mode 0 SI Command 32-Bit Address (Note) E3h A31 A30 A2 A1 A0 MSB Note: A31-A24 are don't care P/N: PM2517 63 Rev. 1.0, October 17, 2017 MX25L12833F 9-31-3. Dynamic Protection Bits The Dynamic Protection Bits (DPBs) are volatile bits for quickly and easily enabling or disabling write-protection to sectors and blocks. A DPB is assigned to each 4KB sector in the bottom and top 64KB of memory and to each 64KB block in the rest of the memory. The DBPs can enable write-protection on a sector or block regardless of the state of the corresponding SPB. However, the DPB bits can only unprotect sectors or blocks whose SPB bits are “0” (unprotected). When a DPB is “1”, the associated sector or block will be write-protected, preventing any program or erase operation on the sector or block. All DPBs default to “1” after power-on or reset. When a DPB is cleared to “0”, the associated sector or block will be unprotected if the corresponding SPB is also “0”. DPB bits can be individually set to “1” or “0” by the WRDPB command. The DBP bits can also be globally cleared to “0” with the GBULK command or globally set to “1” with the GBLK command. A WREN command must be executed to set the WEL bit before sending the WRDPB, GBULK, or GBLK command. The RDDPB command reads the status of the DPB of a sector or block. The RDDPB command returns 00h if the DPB is “0”, indicating write-protection is disabled. The RDDPB command returns FFh if the DPB is “1”, indicating write-protection is enabled. DPB Register Bit Description Bit Status 00h = Unprotect Sector / Block FFh = Protect Sector / Block 7 to 0 DPB (Dynamic Protection Bit) Default Type FFh Volatile Figure 60. Read DPB Register (RDDPB) Sequence CS# 0 Mode 3 1 2 3 4 5 6 7 8 37 38 39 40 41 42 43 44 45 46 47 9 SCLK Mode 0 Command SI 32-Bit Address (Note) E0h A31 A30 A2 A1 A0 MSB Data Out High-Z SO 7 6 5 4 3 2 1 0 MSB Note: A31-A24 are don't care. Figure 61. Write DPB Register (WRDPB) Sequence CS# Mode 3 0 1 2 3 4 5 6 7 8 37 38 39 40 41 42 43 44 45 46 47 9 SCLK Mode 0 SI Command E1h Data Byte 1 32-Bit Address (Note) A31 A30 A2 A1 A0 MSB 7 6 5 4 3 2 1 0 MSB Note: A31-A24 are don't care. P/N: PM2517 64 Rev. 1.0, October 17, 2017 MX25L12833F 9-31-4. Gang Block Lock/Unlock (GBLK/GBULK) These instructions are only effective if WPSEL=1. The GBLK and GBULK instructions provide a quick method to set or clear all DPB bits at once. The WREN (Write Enable) instruction is required before issuing the GBLK/GBULK instruction. The sequence of issuing GBLK/GBULK instruction is: CS# goes low → send GBLK/GBULK (7Eh/98h) instruction →CS# goes high. The GBLK and GBULK commands are accepted in both SPI and QPI mode. The CS# must go high exactly at the byte boundary, otherwise, the instruction will be rejected and not be executed. 9-31-5. Sector Protection States Summary Table Protection Status DPB SPB Sector/Block Protection State 0 0 Unprotected 0 1 Protected 1 0 Protected 1 1 Protected P/N: PM2517 65 Rev. 1.0, October 17, 2017 MX25L12833F 9-32. Program/Erase Suspend/Resume The device allow the interruption of Sector-Erase, Block-Erase or Page-Program operations and conduct other operations. After issue suspend command, the system can determine if the device has entered the Erase-Suspended mode through Bit2 (PSB) and Bit3 (ESB) of security register. (please refer to "Table 12. Security Register Definition") Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. 9-33. Erase Suspend Erase suspend allow the interruption of all erase operations. After the device has entered Erase-Suspended mode, the system can read any sector(s) or Block(s) except those being erased by the suspended erase operation. Reading the sector or Block being erase suspended is invalid. After erase suspend, WEL bit will be clear, only read related, resume and reset command can be accepted. (including: 03h, 0Bh, 3Bh, 6Bh, BBh, EBh, 5Ah, C0h, 06h, 04h, 2Bh, 9Fh, AFh, 05h, ABh, 90h, B1h, C1h, B0h, 30h, 66h, 99h, 00h, 35h, F5h, 15h, 2Dh, E2h, E0h) If the system issues an Erase Suspend command after the sector erase operation has already begun, the device will not enter Erase-Suspended mode until tESL time has elapsed. Erase Suspend Bit (ESB) indicates the status of Erase Suspend operation. Users may use ESB to identify the state of flash memory. After the flash memory is suspended by Erase Suspend command, ESB is set to "1". ESB is cleared to "0" after erase operation resumes. 9-34. Program Suspend Program suspend allows the interruption of all program operations. After the device has entered ProgramSuspended mode, the system can read any sector(s) or Block(s) except those be­ing programmed by the suspended program operation. Reading the sector or Block being program suspended is invalid. After program suspend, WEL bit will be cleared, only read related, resume and reset command can be accepted. (including: 03h, 0Bh, 3Bh, 6Bh, BBh, EBh, 5Ah, C0h, 06h, 04h, 2Bh, 9Fh, AFh, 05h, ABh, 90h, B1h, C1h, B0h, 30h, 66h, 99h, 00h, 35h, F5h, 15h, 2Dh, E2h, E0h) Program Suspend Bit (PSB) indicates the status of Program Suspend operation. Users may use PSB to identify the state of flash memory. After the flash memory is suspended by Program Suspend command, PSB is set to "1". PSB is cleared to "0" after program operation resumes. P/N: PM2517 66 Rev. 1.0, October 17, 2017 MX25L12833F Figure 62. Suspend to Read Latency tPSL / tESL CS# Suspend Command Read Command tPSL: Program Latency tESL: Erase Latency Figure 63. Resume to Read Latency tSE / tBE / tPP CS# Resume Command Read Command Figure 64. Resume to Suspend Latency tPRS / tERS CS# Resume Command Suspend Command tPRS: Program Resume to another Suspend tERS: Erase Resume to another Suspend P/N: PM2517 67 Rev. 1.0, October 17, 2017 MX25L12833F 9-35. Write-Resume The Write operation is being resumed when Write-Resume instruction issued. ESB or PSB (suspend status bit) in Status register will be changed back to “0”. The operation of Write-Resume is as follows: CS# drives low → send write resume command cycle (30H) → drive CS# high. By polling Busy Bit in status register, the internal write operation status could be checked to be completed or not. The user may also wait the time lag of tSE, tBE, tPP for Sector-erase, Block-erase or Page-programming. WREN (command "06") is not required to issue before resume. Resume to another suspend operation requires latency time of 1ms. Please note that, if "performance enhance mode" is executed during suspend operation, the device can not be resumed. To restart the write command, disable the "performance enhance mode" is required. After the "performance enhance mode" is disabled, the write-resume command is effective. 9-36. No Operation (NOP) The “No Operation” command is only able to terminate the Reset Enable (RSTEN) command and will not affect any other command. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care during SPI mode. 9-37. Software Reset (Reset-Enable (RSTEN) and Reset (RST)) The Software Reset operation combines two instructions: Reset-Enable (RSTEN) command following a Reset (RST) command. It returns the device to a standby mode. All the volatile bits and settings will be cleared then, which makes the device return to the default status as power on. To execute Reset command (RST), the Reset-Enable (RSTEN) command must be executed first to perform the Reset operation. If there is any other command to interrupt after the Reset-Enable command, the Reset-Enable will be invalid. Both SPI (8 clocks) and QPI (2 clocks) command cycle can accept by this instruction. The SIO[3:1] are don't care when during SPI mode. If the Reset command is executed during program or erase operation, the operation will be disabled, the data under processing could be damaged or lost. The reset time is different depending on the last operation. For details, please refer to "Table 14. Reset Timing(Other Operation)" for tREADY2. P/N: PM2517 68 Rev. 1.0, October 17, 2017 MX25L12833F Figure 65. Software Reset Recovery Stand-by Mode 66 CS# 99 tREADY2 Mode Note: Refer to "Table 14. Reset Timing-(Other Operation)" for tREADY2. Figure 66. Reset Sequence (SPI mode) tSHSL CS# SCLK Mode 3 Mode 3 Mode 0 Mode 0 Command Command 99h 66h SIO0 Figure 67. Reset Sequence (QPI mode) tSHSL CS# MODE 3 MODE 3 MODE 3 SCLK MODE 0 SIO[3:0] P/N: PM2517 Command MODE 0 66h Command MODE 0 99h 69 Rev. 1.0, October 17, 2017 MX25L12833F 9-38. Read SFDP Mode (RDSFDP) The Serial Flash Discoverable Parameter (SFDP) standard provides a consistent method of describing the functional and feature capabilities of serial flash devices in a standard set of internal parameter tables. These parameter tables can be interrogated by host system software to enable adjustments needed to accommodate divergent features from multiple vendors. The concept is similar to the one found in the Introduction of JEDEC Standard, JESD68 on CFI. The sequence of issuing RDSFDP instruction is CS# goes low→send RDSFDP instruction (5Ah)→send 3 address bytes on SI pin→send 1 dummy byte on SI pin→read SFDP code on SO→to end RDSFDP operation can use CS# to high at any time during data out. SFDP is a JEDEC Standard, JESD216B. For SFDP register values detail, please contact local Macronix sales channel for Application Note. Figure 68. Read Serial Flash Discoverable Parameter (RDSFDP) Sequence CS# 0 1 2 3 4 5 6 7 8 9 10 28 29 30 31 SCLK Command SI SO 24 BIT ADDRESS 23 22 21 5Ah 3 2 1 0 High-Z CS# 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 SCLK Dummy Cycle SI 7 6 5 4 3 2 1 0 DATA OUT 2 DATA OUT 1 SO 7 6 5 3 2 1 0 7 MSB MSB P/N: PM2517 4 70 6 5 4 3 2 1 0 7 MSB Rev. 1.0, October 17, 2017 MX25L12833F 10. RESET Driving the RESET# pin low for a period of tRLRH or longer will reset the device. After reset cycle, the device is at the following states: - Standby mode - All the volatile bits such as WEL/WIP/SRAM lock bit will return to the default status as power on. - 3-byte address mode If the device is under programming or erasing, driving the RESET# pin low will also terminate the operation and data could be lost. During the resetting cycle, the SO data becomes high impedance and the current will be reduced to minimum. Figure 69. RESET Timing CS# tRHSL SCLK tRH tRS RESET# tRLRH tREADY1 / tREADY2 Table 13. Reset Timing-(Power On) Symbol Parameter tRHSL Reset# high before CS# low tRS Reset# setup time tRH Reset# hold time tRLRH Reset# low pulse width tREADY1 Reset Recovery time Min. 10 15 15 10 35 Typ. Max. Unit us ns ns us us Min. 10 15 15 10 40 35 310 12 25 100 40 Typ. Max. Unit us ns ns us us us us ms ms ms ms Table 14. Reset Timing-(Other Operation) Symbol tRHSL tRS tRH tRLRH Parameter Reset# high before CS# low Reset# setup time Reset# hold time Reset# low pulse width Reset Recovery time (During instruction decoding) Reset Recovery time (for read operation) Reset Recovery time (for program operation) tREADY2 Reset Recovery time(for SE4KB operation) Reset Recovery time (for BE64K/BE32KB operation) Reset Recovery time (for Chip Erase operation) Reset Recovery time (for WRSR operation) P/N: PM2517 71 Rev. 1.0, October 17, 2017 MX25L12833F 11. POWER-ON STATE The device is at below states when power-up: - Standby mode (please note it is not deep power-down mode) - Write Enable Latch (WEL) bit is reset The device must not be selected during power-up and power-down stage unless the VCC achieves below correct level: - VCC minimum at power-up stage and then after a delay of tVSL - GND at power-down Please note that a pull-up resistor on CS# may ensure a safe and proper power-up/down level. An internal power-on reset (POR) circuit may protect the device from data corruption and inadvertent data change during power up state. When VCC is lower than VWI (POR threshold voltage value), the internal logic is reset and the flash device has no response to any command. For further protection on the device, if the VCC does not reach the VCC minimum level, the correct operation is not guaranteed. The read, write, erase, and program command should be sent after the below time delay: - tVSL after VCC reached VCC minimum level Please refer to the "Figure 77. Power-up Timing". Note: - To stabilize the VCC level, the VCC rail decoupled by a suitable capacitor close to package pins is recommended. (generally around 0.1uF) - At power-down stage, the VCC drops below VWI level, all operations are disable and device has no response to any command. The data corruption might occur during the stage while a write, program, erase cycle is in progress. P/N: PM2517 72 Rev. 1.0, October 17, 2017 MX25L12833F 12. ELECTRICAL SPECIFICATIONS Table 15. ABSOLUTE MAXIMUM RATINGS RATING VALUE Ambient Operating Temperature Industrial grade -40°C to 85°C Storage Temperature -65°C to 150°C Applied Input Voltage -0.5V to VCC+0.5V Applied Output Voltage -0.5V to VCC+0.5V VCC to Ground Potential -0.5V to 4.0V NOTICE: 1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is stress rating only and functional operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended period may affect reliability. 2. Specifications contained within the following tables are subject to change. 3. During voltage transitions, all pins may overshoot Vss to -2.0V and Vcc to +2.0V for periods up to 20ns, see Figure 70 and Figure 71. Figure 71. Maximum Positive Overshoot Waveform Figure 70. Maximum Negative Overshoot Waveform 20ns 20ns 20ns Vss Vcc + 2.0V Vss-2.0V Vcc 20ns 20ns 20ns Table 16. CAPACITANCE TA = 25°C, f = 1.0 MHz Symbol Parameter CIN COUT P/N: PM2517 Min. Typ. Max. Unit Input Capacitance 6 pF VIN = 0V Output Capacitance 8 pF VOUT = 0V 73 Conditions Rev. 1.0, October 17, 2017 MX25L12833F Figure 72. INPUT TEST WAVEFORMS AND MEASUREMENT LEVEL Input timing reference level 0.8VCC Output timing reference level 0.7VCC AC Measurement Level 0.8V 0.2VCC 0.5VCC Note: Input pulse rise and fall time are 66MHz 45% x (1/fSCLK) Others (fSCLK) tCLH Clock High Time ≤ 66MHz 7 tCL(1) Normal Read (fRSCLK) 7 > 66MHz 45% x (1/fSCLK) Others (fSCLK) ≤ 66MHz 7 fTSCLK Alt. fC fR fT fQ tCLL Clock Low Time Normal Read (fRSCLK) tCLCH(10) Clock Rise Time (peak to peak) tCHCL(10) Clock Fall Time (peak to peak) tSLCH tCSS CS# Active Setup Time (relative to SCLK) tCHSL CS# Not Active Hold Time (relative to SCLK) tDVCH tDSU Data In Setup Time tCHDX tDH Data In Hold Time tCHSH CS# Active Hold Time (relative to SCLK) tSHCH CS# Not Active Setup Time (relative to SCLK) From Read to next Read tSHSL tCSH CS# Deselect Time From Write/Erase/Program to Read Status Register tSHQZ(10) tDIS Output Disable Time Loading: 30pF Clock Low to Output Valid tCLQV tV Loading: 30pF/15pF Loading: 15pF Loading: 30pF tCLQX tHO Output Hold Time Loading: 15pF tWHSL(3) Write Protect Setup Time tSHWL(3) Write Protect Hold Time tDP(10) CS# High to Deep Power-down Mode CS# High to Standby Mode without Electronic Signature tRES1(10) Read CS# High to Standby Mode with Electronic Signature tRES2(10) Read tW Write Status/Configuration Register Cycle Time tBP Byte-Program tPP Page Program Cycle Time tSE Sector Erase Cycle Time tBE32 Block Erase (32KB) Cycle Time tBE Block Erase (64KB) Cycle Time tCE Chip Erase Cycle Time tESL(6) Erase Suspend Latency (6) tPSL Program Suspend Latency tPRS(7) Latency between Program Resume and next Suspend tERS(8) Latency between Erase Resume and next Suspend P/N: PM2517 76 Typ. Max. 133 50 84(5) 84(5) Unit MHz MHz MHz MHz ns ns ns ns 7 0.1 0.1 3 3 2 2 3 3 7 ns ns V/ns V/ns ns ns ns ns ns ns ns 30 ns 8 8 6 1 1 20 100 16 0.33 25 140 250 26 0.3 0.3 100 400 10 ns ns ns ns ns ns ns us 30 us 30 us 40 40 1.2 120 650 650 60 25 25 ms us ms ms ms ms s us us us us Rev. 1.0, October 17, 2017 MX25L12833F Notes: 1. tCH + tCL must be greater than or equal to 1/ Frequency. 2. Typical values given for TA=25°C. Not 100% tested. 3. Only applicable as a constraint for a WRSR instruction when SRWD is set at 1. 4. Test condition is shown as "Figure 72. INPUT TEST WAVEFORMS AND MEASUREMENT LEVEL" and "Figure 73. OUTPUT LOADING". 5. By default dummy cycle value. Please refer to the "Table 1. Read performance Comparison". 6. Latency time is required to complete Erase/Program Suspend operation until WIP bit is "0". 7. For tPRS, minimum timing must be observed before issuing the next program suspend command. However, a period equal to or longer than the typical timing is required in order for the program operation to make progress. 8. For tERS, minimum timing must be observed before issuing the next erase suspend command. However, a period equal to or longer than the typical timing is required in order for the erase operation to make progress. 9. Not 100% tested. 10.The value guaranteed by characterization, not 100% tested in production. P/N: PM2517 77 Rev. 1.0, October 17, 2017 MX25L12833F 13. OPERATING CONDITIONS At Device Power-Up and Power-Down AC timing illustrated in "Figure 75. AC Timing at Device Power-Up" and "Figure 76. Power-Down Sequence" are for the supply voltages and the control signals at device power-up and power-down. If the timing in the figures is ignored, the device will not operate correctly. During power-up and power-down, CS# needs to follow the voltage applied on VCC to keep the device not to be selected. The CS# can be driven low when VCC reach Vcc(min.) and wait a period of tVSL. Figure 75. AC Timing at Device Power-Up VCC VCC(min) GND tVR tSHSL CS# tSLCH tCHSL tCHSH tSHCH SCLK tDVCH tCHCL tCHDX LSB IN MSB IN SI High Impedance SO Symbol tVR tCLCH Parameter VCC Rise Time Notes 1 Min. Max. 500000 Unit us/V Notes : 1. Sampled, not 100% tested. 2. For AC spec tCHSL, tSLCH, tDVCH, tCHDX, tSHSL, tCHSH, tSHCH, tCHCL, tCLCH in the figure, please refer to Table 17. AC CHARACTERISTICS. P/N: PM2517 78 Rev. 1.0, October 17, 2017 MX25L12833F Figure 76. Power-Down Sequence During power-down, CS# needs to follow the voltage drop on VCC to avoid mis-operation. VCC CS# SCLK Figure 77. Power-up Timing VCC VCC(max) Chip Selection is Not Allowed VCC(min) tVSL Device is fully accessible VWI time P/N: PM2517 79 Rev. 1.0, October 17, 2017 MX25L12833F Figure 78. Power Up/Down and Voltage Drop When powering down the device, VCC must drop below VPWD for at least tPWD to ensure the device will initialize correctly during power up. Please refer to "Figure 78. Power Up/Down and Voltage Drop" and "Table 19. Power-Up/ Down Voltage and Timing" below for more details. VCC VCC (max.) Chip Select is not allowed VCC (min.) tVSL Full Device Access Allowed VPWD (max.) tPWD Time Table 19. Power-Up/Down Voltage and Timing Symbol tVSL VWI VPWD tPWD VCC Parameter VCC(min.) to device operation Write Inhibit Voltage VCC voltage needed to below VPWD for ensuring initialization will occur The minimum duration for ensuring initialization will occur VCC Power Supply Min. 800 1.5 300 2.7 Max. 2.5 0.9 3.6 Unit us V V us V Note: These parameters are characterized only. 13-1. INITIAL DELIVERY STATE The device is delivered with the memory array erased: all bits are set to 1 (each byte contains FFh). The Status Register contains 00h (all Status Register bits are 0). P/N: PM2517 80 Rev. 1.0, October 17, 2017 MX25L12833F 14. ERASE AND PROGRAMMING PERFORMANCE Parameter Min. Typ. (1) Write Status Register Cycle Time Max. (2) Unit 40 ms Sector Erase Cycle Time (4KB) 25 120 ms Block Erase Cycle Time (32KB) 0.14 0.65 s Block Erase Cycle Time (64KB) 0.25 0.65 s Chip Erase Cycle Time 26 60 s Byte Program Time (via page program command) 16 40 us 0.33 1.2 ms Page Program Time Erase/Program Cycle 100,000 cycles Note: 1. Typical program and erase time assumes the following conditions: 25°C, 3.3V, and checkerboard pattern. 2. Under worst conditions of 85°C and 2.7V. 3. System-level overhead is the time required to execute the first-bus-cycle sequence for the programming command. 4. The maximum chip programming time is evaluated under the worst conditions of 0°C, VCC=3.3V, and 100K cycle with 90% confidence level. 15. ERASE AND PROGRAMMING PERFORMANCE (Factory Mode) Parameter Min. Typ. Max. Unit Sector Erase Cycle Time (4KB) 15 ms Block Erase Cycle Time (32KB) 100 ms Block Erase Cycle Time (64KB) 200 ms Chip Erase Cycle Time 25 s 0.33 ms Page Program Time Erase/Program Cycle 50 cycles Notice: 1. Factory Mode must be operated in 20°C to 45°C and VCC 3.0V-3.6V. 2. In Factory mode, the Erase/Program operation should not exceed 50 cycles, and "ERASE AND PROGRAMMING PERFORMANCE" 100k cycles will not be affected. 3. During factory mode, Suspend command (B0) cannot be executed. P/N: PM2517 81 Rev. 1.0, October 17, 2017 MX25L12833F 16. DATA RETENTION Parameter Condition Min. Data retention 55˚C 20 Max. Unit years 17. LATCH-UP CHARACTERISTICS Min. Max. Input Voltage with respect to GND on all power pins, SI, CS# -1.0V 2 VCCmax Input Voltage with respect to GND on SO -1.0V VCC + 1.0V -100mA +100mA Current Includes all pins except VCC. Test conditions: VCC = 3.0V, one pin at a time. P/N: PM2517 82 Rev. 1.0, October 17, 2017 MX25L12833F 18. ORDERING INFORMATION Please contact Macronix regional sales for the latest product selection and available form factors. PART NO. TEMPERATURE PACKAGE MX25L12833FM2I-10G -40°C to 85°C 8-SOP (200mil) MX25L12833FZNI-10G -40°C to 85°C 8-WSON (6x5mm) MX25L12833FZ2I-10G -40°C to 85°C 8-WSON (8x6mm) MX25L12833FMI-10G -40°C to 85°C 16-SOP (300mil) P/N: PM2517 83 Remark Rev. 1.0, October 17, 2017 MX25L12833F 19. PART NAME DESCRIPTION MX 25 L 12833F M2 I 10 G OPTION: G: RoHS Compliant & Halogen-free SPEED: 10: 104MHz TEMPERATURE RANGE: I: Industrial (-40°C to 85°C) PACKAGE: M2: 8-SOP (200mil) M: 16-SOP (300mil) ZN: 8-WSON (6x5mm) Z2: 8-WSON (8x6mm) DENSITY & MODE: 12833F: 128Mb TYPE: L: 3V DEVICE: 25: Serial NOR Flash P/N: PM2517 84 Rev. 1.0, October 17, 2017 MX25L12833F 20. PACKAGE INFORMATION 20-1. 8-pin SOP (200mil) P/N: PM2517 85 Rev. 1.0, October 17, 2017 MX25L12833F 20-2. 16-pin SOP (300mil) P/N: PM2517 86 Rev. 1.0, October 17, 2017 MX25L12833F 20-3. 8-land WSON (6x5mm) P/N: PM2517 87 Rev. 1.0, October 17, 2017 MX25L12833F 20-4. 8-land WSON (8x6mm) P/N: PM2517 88 Rev. 1.0, October 17, 2017 MX25L12833F 21. REVISION HISTORY Revision No. 0.01 Description 1. Updated SFDP version 2. Content and format modifications for 8-WSON package outline 3. Format modifications for package outline 4. Content correction Page P70 P87 P85-86 P4,15,22,81 Date SEP/07/2017 1.0 1. Removed "Advanced Information" to align with the product status 2. Added 8-land WSON (8X6mm) package informaion 3. Updated Program and Erase values All OCT/17/2017 P/N: PM2517 89 P4,6,83,84,88 P76,81 Rev. 1.0, October 17, 2017 MX25L12833F Except for customized products which has been expressly identified in the applicable agreement, Macronix's products are designed, developed, and/or manufactured for ordinary business, industrial, personal, and/or household applications only, and not for use in any applications which may, directly or indirectly, cause death, personal injury, or severe property damages. In the event Macronix products are used in contradicted to their target usage above, the buyer shall take any and all actions to ensure said Macronix's product qualified for its actual use in accordance with the applicable laws and regulations; and Macronix as well as it’s suppliers and/or distributors shall be released from any and all liability arisen therefrom. Copyright© Macronix International Co., Ltd. 2017. All rights reserved, including the trademarks and tradename thereof, such as Macronix, MXIC, MXIC Logo, MX Logo, Integrated Solutions Provider, Nbit, Macronix NBit, eLiteFlash, HybridNVM, HybridFlash, HybridXFlash, XtraROM, Phines, KH Logo, BE-SONOS, KSMC, Kingtech, MXSMIO, Macronix vEE, Macronix MAP, Rich Book, Rich TV, OctaRAM, OctaBus, OctaFlash and FitCAM. The names and brands of third party referred thereto (if any) are for identification purposes only. For the contact and order information, please visit Macronix’s Web site at: http://www.macronix.com MACRONIX INTERNATIONAL CO., LTD. reserves the right to change product and specifications without notice. 90
