MX29SL800CTXBI-90G

MX29SL800CTXBI-90G

  • 厂商:

    MCNIX(旺宏电子)

  • 封装:

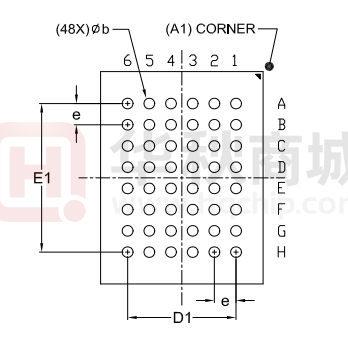

    TFBGA48_6X8MM

  • 描述:

    FLASH存储器 FLASH - NOR 存储器 IC 8Mb 并联 90ns TFBGA48_6X8MM

  • 数据手册
  • 价格&库存
MX29SL800CTXBI-90G 数据手册
MX29SL800C T/B MX29SL802C T/B 8M-BIT [1M x 8 / 512K x 16] SINGLE VOLTAGE 1.8V ONLY FLASH MEMORY FEATURES GENERAL FEATURES • Single Power Supply Operation - 1.65 to 2.2 volt for read, erase, and program operations • 1,048,576 x 8 / 524,288 x 16 switchable • Boot Sector Architecture - T = Top Boot Sector - B = Bottom Boot Sector • Sector Structure - 16K-Byte x 1, 8K-Byte x 2, 32K-Byte x 1, and 64K-Byte x 15 • Sector protection - Hardware method to disable any combination of sectors from program or erase operations - Temporary sector unprotected allows code changes in previously locked sectors • Latch-up protected to 100mA from -1V to Vcc + 1V • Compatible with JEDEC standard - Pinout and software compatible to single power supply Flash PERFORMANCE • High Performance - Access time: 90ns - Byte/Word program time: 12us/18us (typical) - Erase time: 1.3s/sector, 18s/chip (typical) • Low Power Consumption - Low active read current: 6mA (maximum) at 5MHz - Low standby current: 1uA (typical) • Minimum 100,000 erase/program cycle • 10 years data retention SOFTWARE FEATURES • Erase Suspend/ Erase Resume - Suspends sector erase operation to read data from or program data to another sector which is not being erased • Status Reply - Data# Polling & Toggle bits provide detection of program and erase operation completion • Support Common Flash Interface (CFI) HARDWARE FEATURES • Ready/Busy# (RY/BY#) Output - Provides a hardware method of detecting program and erase operation completion • Hardware Reset (RESET#) Input - Provides a hardware method to reset the internal state machine to read mode PACKAGE • 48-Pin TSOP • 48-Ball CSP (LFBGA/TFBGA/WFBGA) • 48-Ball XFLGA • All Pb-free devices are RoHS Compliant P/N:PM1244 REV. 2.0, NOV. 20, 2008 1 MX29SL800C T/B MX29SL802C T/B PIN CONFIGURATIONS 48 TSOP (Standard Type) (12mm x 20mm) 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE# RESET# NC NC RY/BY# A18 A17 A7 A6 A5 A4 A3 A2 A1 A16 BYTE# GND Q15/A-1 Q7 Q14 Q6 Q13 Q5 Q12 Q4 VCC Q11 Q3 Q10 Q2 Q9 Q1 Q8 Q0 OE# GND CE# A0 48-Ball CSP( Ball Pitch = 0.8 mm), Top View, Balls Facing Down 6 A13 A12 A14 A15 A16 BYTE# Q15/ A-1 GND 5 A9 A8 A10 A11 Q7 Q14 Q13 Q6 WE# RESET# NC NC Q5 Q12 VCC Q4 RY/BY# NC A18 NC Q2 Q10 Q11 Q3 A7 A17 A6 A5 Q0 Q8 Q9 Q1 A3 A4 A2 A1 A0 CE# OE# GND B C D E G H 4 3 2 1 A P/N:PM1244 F REV. 2.0, NOV. 20, 2008 2 MX29SL800C T/B MX29SL802C T/B 48-Ball XFLGA (Land Pitch = 0.5mm, Package Height = 0.5mm), Top View, Balls Facing Down RESET# A9 A11 NC A10 A13 A14 A18 A8 A12 A15 Q8 Q10 Q4 Q11 A16 OE# Q9 BYTE# NC Q5 Q6 Q7 Q0 Q1 Q2 Q3 VCC Q12 Q13 Q14 Q15/ A-1 GND C D E F G H 6 A2 A4 A6 A17 5 A1 A3 A7 NC 4 A0 A5 3 CE# GND 2 NC NC WE# 1 A B J K L 48-Ball WFBGA (Balls Facing Down, 4 x 6 x 0.75 mm for 29SL802C) 6 A2 A4 A6 A17 5 A1 A3 A7 NC 4 A0 A5 3 CE# 2 GND 1 A NC NC WE# NC NC A9 A11 A10 A13 A14 A18 A8 A12 A15 Q8 Q10 Q4 Q11 A16 OE# Q9 NC Q5 Q6 Q7 Q0 Q1 Q2 Q3 VCC Q12 Q13 Q14 Q15 GND B C D E F G H J NC P/N:PM1244 K L REV. 2.0, NOV. 20, 2008 3 MX29SL800C T/B MX29SL802C T/B PIN DESCRIPTION LOGIC SYMBOL SYMBOL PIN NAME A0~A18 Address Input Q0~Q14 Data Input/Output Q15/A-1 Q15 (data input/output, word mode)/ 19 A0-A18 16 or 8 Q0-Q15 (A-1) A-1(LSB address input, byte mode) CE# Chip Enable Input WE# Write Enable Input BYTE# Word/Byte Selection input OE# RESET# Hardware Reset Pin WE# OE# Output Enable Input RY/BY# Ready/Busy Output VCC Power Supply Pin (1.65V~2.2V) GND Ground Pin CE# RESET# RY/BY# BYTE# P/N:PM1244 REV. 2.0, NOV. 20, 2008 4 MX29SL800C T/B MX29SL802C T/B BLOCK DIAGRAM CE# OE# WE# RESET# BYTE# WRITE CONTROL STATE INPUT LOGIC HIGH VOLTAGE MACHINE (WSM) LATCH BUFFER STATE FLASH REGISTER ARRAY ARRAY Y-DECODER AND X-DECODER ADDRESS A0-AM PROGRAM/ERASE Y-PASS GATE SOURCE HV COMMAND DATA DECODER SENSE AMPLIFIER PGM DATA HV COMMAND DATA LATCH PROGRAM DATA LATCH Q0-Q15/A-1 I/O BUFFER AM: MSB address P/N:PM1244 REV. 2.0, NOV. 20, 2008 5 MX29SL800C T/B MX29SL802C T/B Table 1. BLOCK STRUCTURE MX29SL800CT/MX29SL802CT SECTOR ARCHITECTURE Sector Sector Size Byte Mode Word Mode Address range Sector Address Byte Mode (x8) Word Mode (x16) A18 A17 A16 A15 A14 A13 A12 SA0 64Kbytes 32Kwords 00000h-0FFFFh 00000h-07FFFh 0 0 0 0 X X X SA1 64Kbytes 32Kwords 10000h-1FFFFh 08000h-0FFFFh 0 0 0 1 X X X SA2 64Kbytes 32Kwords 20000h-2FFFFh 10000h-17FFFh 0 0 1 0 X X X SA3 64Kbytes 32Kwords 30000h-3FFFFh 18000h-1FFFFh 0 0 1 1 X X X SA4 64Kbytes 32Kwords 40000h-4FFFFh 20000h-27FFFh 0 1 0 0 X X X SA5 64Kbytes 32Kwords 50000h-5FFFFh 28000h-2FFFFh 0 1 0 1 X X X SA6 64Kbytes 32Kwords 60000h-6FFFFh 30000h-37FFFh 0 1 1 0 X X X SA7 64Kbytes 32Kwords 70000h-7FFFFh 38000h-3FFFFh 0 1 1 1 X X X SA8 64Kbytes 32Kwords 80000h-8FFFFh 40000h-47FFFh 1 0 0 0 X X X SA9 64Kbytes 32Kwords 90000h-9FFFFh 48000h-4FFFFh 1 0 0 1 X X X SA10 64Kbytes 32Kwords A0000h-AFFFFh 50000h-57FFFh 1 0 1 0 X X X SA11 64Kbytes 32Kwords B0000h-BFFFFh 58000h-5FFFFh 1 0 1 1 X X X SA12 64Kbytes 32Kwords C0000h-CFFFFh 60000h-67FFFh 1 1 0 0 X X X SA13 64Kbytes 32Kwords D0000h-DFFFFh 68000h-6FFFFh 1 1 0 1 X X X SA14 64Kbytes 32Kwords E0000h-EFFFFh 70000h-77FFFh 1 1 1 0 X X X SA15 32Kbytes 16Kwords F0000h-F7FFFh 78000h-7BFFFh 1 1 1 1 0 X X SA16 8Kbytes 4Kwords F8000h-F9FFFh 7C000h-7CFFFh 1 1 1 1 1 0 0 SA17 8Kbytes 4Kwords FA000h-FBFFFh 7D000h-7DFFFh 1 1 1 1 1 0 1 SA18 16Kbytes 8Kwords FC000h-FFFFFh 7E000h-7FFFFh 1 1 1 1 1 1 X P/N:PM1244 REV. 2.0, NOV. 20, 2008 6 MX29SL800C T/B MX29SL802C T/B MX29SL800CB/MX29SL802CB SECTOR ARCHITECTURE Sector Sector Size Byte Mode Word Mode Address range Sector Address Byte Mode (x8) Word Mode (x16) A18 A17 A16 A15 A14 A13 A12 SA0 16Kbytes 8Kwords 00000h-03FFFh 00000h-01FFFh 0 0 0 0 0 0 X SA1 8Kbytes 4Kwords 04000h-05FFFh 02000h-02FFFh 0 0 0 0 0 1 0 SA2 8Kbytes 4Kwords 06000h-07FFFh 03000h-03FFFh 0 0 0 0 0 1 1 SA3 32Kbytes 16Kwords 08000h-0FFFFh 04000h-07FFFh 0 0 0 0 1 X X SA4 64Kbytes 32Kwords 10000h-1FFFFh 08000h-0FFFFh 0 0 0 1 X X X SA5 64Kbytes 32Kwords 20000h-2FFFFh 10000h-17FFFh 0 0 1 0 X X X SA6 64Kbytes 32Kwords 30000h-3FFFFh 18000h-1FFFFh 0 0 1 1 X X X SA7 64Kbytes 32Kwords 40000h-4FFFFh 20000h-27FFFh 0 1 0 0 X X X SA8 64Kbytes 32Kwords 50000h-5FFFFh 28000h-2FFFFh 0 1 0 1 X X X SA9 64Kbytes 32Kwords 60000h-6FFFFh 30000h-37FFFh 0 1 1 0 X X X SA10 64Kbytes 32Kwords 70000h-7FFFFh 38000h-3FFFFh 0 1 1 1 X X X SA11 64Kbytes 32Kwords 80000h-8FFFFh 40000h-47FFFh 1 0 0 0 X X X SA12 64Kbytes 32Kwords 90000h-9FFFFh 48000h-4FFFFh 1 0 0 1 X X X SA13 64Kbytes 32Kwords A0000h-AFFFFh 50000h-57FFFh 1 0 1 0 X X X SA14 64Kbytes 32Kwords B0000h-BFFFFh 58000h-5FFFFh 1 0 1 1 X X X SA15 64Kbytes 32Kwords C0000h-CFFFFh 60000h-67FFFh 1 1 0 0 X X X SA16 64Kbytes 32Kwords D0000h-DFFFFh 68000h-6FFFFh 1 1 0 1 X X X SA17 64Kbytes 32Kwords E0000h-EFFFFh 70000h-77FFFh 1 1 1 0 X X X SA18 64Kbytes 32Kwords F0000h-FFFFFh 78000h-7FFFFh 1 1 1 1 X X X P/N:PM1244 REV. 2.0, NOV. 20, 2008 7 MX29SL800C T/B MX29SL802C T/B Table 2. BUS OPERATION ADDRESS DESCRIPTION CE# OE# WE#RESET# A18 A11 A9 A12 A10 Read L L H A8 A2 Q8~Q14 Q15/A-1 Q8~Q14 Dout DIN DIN H L H AIN Reset X X X L X Temporary sector Unprotection X X X Vhv AIN Output Disable L H H H VCC± X X VCC± BYTE#=Vil =Vih Dout L 0.3V Q0~Q7 BYTE# AIN Write Standby A6 A5 A1 A0 A7 H Q8~Q15 High Z High Z High Z DIN DIN A-1 =High Z X High Z X X High Z High Z High Z X X High Z High Z High Z X 0.3V Sector Protect L H L Vhv SA X X X L X H L DIN X X L Chip Unprotected L H L Vhv X X X X H X H L DIN X X X Sector Protection Verify L L H H SA X Vhv X L X H L CODE(4) X X L Notes: 1. Vhv is the very high voltage, 10V to 11V. 2. X means input high (Vih) or input low (Vil). 3. SA means sector address: A12~A18. 4. Code=00H/XX00H means unprotected. Code=01H/XX01H means protected. P/N:PM1244 REV. 2.0, NOV. 20, 2008 8 MX29SL800C T/B MX29SL802C T/B REQUIREMENTS FOR READING ARRAY DATA Read array action is to read the data stored in the array out. While the memory device is in powered up or has been reset, it will automatically enter the status of read array. If the microprocessor wants to read the data stored in the array, it has to drive CE# (device enable control pin) and OE# (Output control pin) as Vil, and input the address of the data to be read into address pin at the same time. After a period of read cycle (Tce or Taa), the data being read out will be displayed on output pin for microprocessor to access. If CE# or OE# is Vih, the output will be in tri-state, and there will be no data displayed on output pin at all. After the memory device completes embedded operation (automatic Erase or Program), it will automatically return to the status of read array, and the device can read the data in any address in the array. In the process of erasing, if the device receives the Erase suspend command, erase operation will be stopped after a period of time no more than Tready1 and the device will return to the status of read array. At this time, the device can read the data stored in any address except the sector being erased in the array. In the status of erase suspend, if user wants to read the data in the sectors being erased, the device will output status data onto the output. Similarly, if program command is issued after erase suspend, after program operation is completed, system can still read array data in any address except the sectors to be erased. The device needs to issue reset command to enable read array operation again in order to arbitrarily read the data in the array in the following two situations: 1. In program or erase operation, the programming or erasing failure causes Q5 to go high. 2. The device is in auto select mode or CFI mode. In the two situations above, if reset command is not issued, the device is not in read array mode and system must issue reset command before reading array data. WRITE COMMANDS/COMMAND SEQUENCES To write a command to the device, system must drive WE# and CE# to Vil, and OE# to Vih. In a command cycle, all address are latched at the later falling edge of CE# and WE#, and all data are latched at the earlier rising edge of CE# and WE#. Figure 1 illustrates the AC timing waveform of a write command, and Table 3 defines all the valid command sets of the device. System is not allowed to write invalid commands not defined in this datasheet. Writing an invalid command will bring the device to an undefined state. RESET# OPERATION Driving RESET# pin low for a period more than Trp will reset the device back to read mode. If the device is in program or erase operation, the reset operation will take at most a period of Tready1 for the device to return to read array mode. Before the device returns to read array mode, the RY/BY# pin remains low (busy status). When RESET# pin is held at GND±0.3V, the device consumes standby current(Isb).However, device draws larger current if RESET# pin is held at Vil but not within GND±0.3V. It is recommended that the system to tie its reset signal to RESET# pin of flash memory, so that the flash memory will be reset during system reset and allows system to read boot code from flash memory. P/N:PM1244 REV. 2.0, NOV. 20, 2008 9 MX29SL800C T/B MX29SL802C T/B SECTOR PROTECT OPERATION When a sector is protected, program or erase operation will be disabled on these sectors. MX29SL800C/MX29SL802C T/B provides two methods for sector protection. Once the sector is protected, the sector remains protected until next chip unprotect, or is temporarily unprotected by asserting RESET# pin at Vhv. Refer to temporary sector unprotect operation for further details. The first method is by applying Vhv on RESET# pin. Refer to Figure 12 for timing diagram and Figure 13 for the algorithm for this method. The other method is asserting Vhv on A9 and OE# pins, with A6 and CE# at Vil. The protection operation begins at the falling edge of WE# and terminates at the rising edge. Contact Macronix for details. CHIP UNPROTECT OPERATION MX29SL800C/MX29SL802C T/B provides two methods for chip unprotect. The chip unprotect operation unprotects all sectors within the device. It is recommended to protect all sectors before activating chip unprotect mode. All sectors are unprotected when shipped from the factory. The first method is by applying Vhv on RESET# pin. Refer to Figure 12 for timing diagram and Figure 13 for algorithm of the operation. The other method is asserting Vhv on A9 and OE# pins, with A6 at Vih and CE# at Vil (see Table 2). The unprotect operation begins at the falling edge of WE# and terminates at the rising edge. Contact Macronix for details. TEMPORARY SECTOR UNPROTECT OPERATION System can apply RESET# pin at Vhv to place the device in temporary unprotect mode. In this mode, previously protected sectors can be programmed or erased just as it is unprotected. The devices returns to normal operation once Vhv is removed from RESET# pin and previously protected sectors are again protected. AUTOMATIC SELECT OPERATION When the device is in Read array mode, erase-suspended read array mode or CFI mode, user can issue read silicon ID command to enter read silicon ID mode. After entering read silicon ID mode, user can query several silicon IDs continuously and does not need to issue read silicon ID mode again. When A0 is Low, device will output Macronix Manufacture ID C2. When A0 is high, device will output Device ID. In read silicon ID mode, issuing reset command will reset device back to read array mode or erase-suspended read array mode. Another way to enter read silicon ID is to apply high voltage on A9 pin with CE#, OE#, A6 and A1 at Vil. While the high voltage of A9 pin is discharged, device will automatically leave read silicon ID mode and go back to read array mode or erase-suspended read array mode. When A0 is Low, device will output Macronix Manufacture ID C2. When A0 is high, device will output Device ID. P/N:PM1244 REV. 2.0, NOV. 20, 2008 10 MX29SL800C T/B MX29SL802C T/B VERIFY SECTOR PROTECT STATUS OPERATION MX29SL800C/MX29SL802C T/B provides hardware sector protection against Program and Erase operation for protected sectors. The sector protect status can be read through Sector Protect Verify command. This method requires Vhv on A9 pin, Vih on WE# and A1 pins, Vil on CE#, OE#, A6 and A0 pins, and sector address on A12 to A18 pins. If the read out data is 01H, the designated sector is protected. Oppositely, if the read out data is 00H, the designated sector is still not being protected. DATA PROTECTION To avoid accidental erasure or programming of the device, the device is automatically reset to read array mode during power up. Besides, only after successful completion of the specified command sets will the device begin its erase or program operation. Other features to protect the data from accidental alternation are described as followed. WRITE PULSE "GLITCH" PROTECTION CE#, WE#, OE# pulses shorter than 5ns are treated as glitches and will not be regarded as an effective write cycle. LOGICAL INHIBIT A valid write cycle requires both CE# and WE# at Vil with OE# at Vih. Write cycle is ignored when either CE# at Vih, WE# a Vih, or OE# at Vil. POWER-UP SEQUENCE Upon power up, MX29SL800C/MX29SL802C T/B is placed in read array mode. Furthermore, program or erase operation will begin only after successful completion of specified command sequences. POWER-UP WRITE INHIBIT When WE#, CE# is held at Vil and OE# is held at Vih during power up, the device ignores the first command on the rising edge of WE#. POWER SUPPLY DECOUPLING A 0.1uF capacitor should be connected between the Vcc and GND to reduce the noise effect. P/N:PM1244 REV. 2.0, NOV. 20, 2008 11 MX29SL800C T/B MX29SL802C T/B TABLE 3. MX29SL800C/MX29SL802C T/B COMMAND DEFINITIONS Automatic Select Command Read Reset Mode Mode Hex 1st Bus Cyc 2nd Bus Cyc 3rd Bus Cyc Sector Protect Silicon ID Device ID Verify Program Word Byte Word Byte Word Byte Word Byte Addr Addr XXX 555 AAA 555 AAA 555 AAA 555 AAA Data Data F0 AA AA AA AA AA AA AA AA Addr 2AA 555 2AA 555 2AA 555 2AA 555 Data 55 55 55 55 55 55 55 55 Addr 555 AAA 555 AAA 555 AAA 555 AAA Data 90 90 90 90 90 90 A0 A0 (Sector) (Sector) 4th Bus Cyc Addr X00 X00 X01 X02 X02 X04 Addr Addr Data C2H C2H ID ID 00/01 00/01 Data Data 5th Bus Cyc Addr 6th Bus Cyc Addr Data Data Command Chip Erase Sector Erase CFI Read Erase Erase Suspend Resume Hex Word Byte Word Byte Word Byte Word/Byte Word/Byte 1st Bus Cyc Addr 555 AAA 555 AAA 55 AA XXX XXX Data AA AA AA AA 98 98 B0 30 2nd Bus Cyc Addr 2AA 555 2AA 555 Data 55 55 55 55 Addr 555 AAA 555 AAA Data 80 80 80 80 Addr 555 AAA 555 AAA Data AA AA AA AA Addr 2AA 555 2AA 555 Data 55 55 55 55 Addr 555 AAA Sector Sector Data 10 10 30 30 3rd Bus Cyc 4th Bus Cyc 5th Bus Cyc 6th Bus Cyc Notes: 1. Device ID: 22EAH/EAH for Top Boot Sector device. 226BH/6BH for Bottom Boot Sector device. 2. For sector protect verify result, XX00H/00H means sector is not protected, XX01H/01H means sector has been protected. 3. Sector Protect command is valid during Vhv at RESET# pin, Vih at A1 pin and Vil at A0, A6 pins. The last Bus cyc is for protect verify. P/N:PM1244 REV. 2.0, NOV. 20, 2008 12 MX29SL800C T/B MX29SL802C T/B RESET In the following situations, executing reset command will reset device back to read array mode: • Among erase command sequence (before the full command set is completed) • Sector erase time-out period • Erase fail (while Q5 is high) • Among program command sequence (before the full command set is completed, erase-suspended program included) • Program fail (while Q5 is high, and erase-suspended program fail is included) • Read silicon ID mode • Sector protect verify • CFI mode While device is at the status of program fail or erase fail (Q5 is high), user must issue reset command to reset device back to read array mode. While the device is in read silicon ID mode, sector protect verify or CFI mode, user must issue reset command to reset device back to read array mode. When the device is in program mode (not program fail) or erase mode (not erase fail), device will ignore reset command. AUTOMATIC SELECT COMMAND SEQUENCE Automatic Select mode is used to access the manufacturer ID, device ID and to verify whether or not a sector is protected. The automatic select mode has four command cycles. The first two are unlock cycles, and followed by a specific command. The fourth cycle is a normal read cycle, and user can read at any address any number of times without entering another command sequence. The reset command is necessary to exit the Automatic Select mode and back to read array. The following table shows the identification code with corresponding address. Manufacturer ID Device ID Sector Protect Verify Address Data (Hex) Representation Word X00 00C2 Byte X00 C2 Word X01 22EA/226B Top/Bottom Boot Sector Byte X02 EA/6B Top/Bottom Boot Sector Word (Sector address) X 02 00/01 Unprotected/protected Byte (Sector address) X 04 00/01 Unprotected/protected There is an alternative method to that shown in Table 3, which is intended for EPROM programmers and requires Vhv on address bit A9. P/N:PM1244 REV. 2.0, NOV. 20, 2008 13 MX29SL800C T/B MX29SL802C T/B AUTOMATIC PROGRAMMING The MX29SL800C/MX29SL802C T/B can provide the user program function by the form of Byte-Mode or Word-Mode. As long as the users enter the right cycle defined in the Table.3 (including 2 unlock cycles and A0H), any data user inputs will automatically be programmed into the array. Once the program function is executed, the internal write state controller will automatically execute the algorithms and timings necessary for program and verification, which includes generating suitable program pulse, verifying whether the threshold voltage of the programmed cell is high enough and repeating the program pulse if any of the cells does not pass verification. Meanwhile, the internal control will prohibit the programming to cells that pass verification while the other cells fail in verification in order to avoid over-programming. Programming will only change the bit status from "1" to "0". That is to say, it is impossible to convert the bit status from "0" to "1" by programming. Meanwhile, the internal write verification only detects the errors of the "1" that is not successfully programmed to "0". Any command written to the device during programming will be ignored except hardware reset, which will terminate the program operation after a period of time no more than Tready1. When the embedded program algorithm is complete or the program operation is terminated by hardware reset, the device will return to the reading array data mode. With the internal write state controller, the device requires the user to write the program command and data only. The typical chip program time at room temperature of the MX29SL800C/MX29SL802C T/B is 9.6 seconds. (Word-Mode) When the embedded program operation is on going, user can confirm if the embedded operation is finished or not by the following methods: Status Q7 Q6 Q5 RY/BY#*2 In progress*1 Q7# Toggling 0 0 Finished Q7 Stop toggling 0 1 Exceed time limit Q7# Toggling 1 0 *1: The status "in progress" means both program mode and erase-suspended program mode. *2: RY/BY# is an open drain output pin and should be weakly connected to VDD through a pull-up resistor. *3: When an attempt is made to program a protected sector, Q7 will output its complement data or Q6 continues to toggle for about 1us or less and the device returns to read array state without programing the data in the protected sector. P/N:PM1244 REV. 2.0, NOV. 20, 2008 14 MX29SL800C T/B MX29SL802C T/B CHIP ERASE Chip Erase is to erase all the data with "1" and "0" as all "1". It needs 6 cycles to write the action in, and the first two cycles are "unlock" cycles, the third one is a configuration cycle, the fourth and fifth are also "unlock" cycles, and the sixth cycle is the chip erase operation. During chip erasing, all the commands will not be accepted except hardware rests or the working voltage is too low that chip erase will be interrupted. After Chip Erase, the chip will return to the state of Read Array. When the embedded chip erase operation is on going, user can confirm if the embedded operation is finished or not by the following methods: Status Q7 Q6 Q5 Q2 RY/BY# In progress 0 Toggling 0 Toggling 0 Finished 1 Stop toggling 0 1 1 Exceed time limit 0 Toggling 1 Toggling 0 SECTOR ERASE Sector Erase is to erase all the data in a sector with "1" and "0" as all "1". It requires six command cycles to issue. The first two cycles are "unlock cycles", the third one is a configuration cycle, the fourth and fifth are also "unlock cycles" and the sixth cycle is the sector erase command. After the sector erase command sequence is issued, there is a timeout period of 50us counted internally. During the time-out period, additional sector address and sector erase command can be written multiply. Once user enters another sector erase command, the time-out period of 50us is recounted. If user enters any command other than sector erase or erase suspend during time-out period, the erase command would be aborted and the device is reset to read array condition. The number of sectors could be from one sector to all sectors. After time-out period passing by, additional erase command is not accepted and erase embedded operation begins. During sector erasing, all commands will not be accepted except hardware reset and erase suspend and user can check the status as chip erase. When the embedded erase operation is on going, user can confirm if the embedded operation is finished or not by the following methods: Status Q7 Q6 Q5 Q3 Q2 RY/BY#*2 Time-out period 0 Toggling 0 0 Toggling 0 In progress 0 Toggling 0 1 Toggling 0 Finished 1 Stop toggling 0 1 1 1 Exceed time limit 0 Toggling 1 1 Toggling 0 *1: The status Q3 is the time-out period indicator. When Q3=0, the device is in time-out period and is acceptible to another sector address to be erased. When Q3=1, the device is in erase operation and only erase suspend is valid. *2: RY/BY# is open drain output pin and should be weakly connected to VDD through a pull-up resistor. *3: When an attempt is made to erase a protected sector, Q7 will output its complement data or Q6 continues to toggle for 100us or less and the device returned to read array status without erasing the data in the protected sector. P/N:PM1244 REV. 2.0, NOV. 20, 2008 15 MX29SL800C T/B MX29SL802C T/B SECTOR ERASE SUSPEND During sector erasure, sector erase suspend is the only valid command. If user issue erase suspend command in the time-out period of sector erasure, device time-out period will be over immediately and the device will go back to erasesuspended read array mode. If user issue erase suspend command during the sector erase is being operated, device will suspend the ongoing erase operation, and after the Tready1(
MX29SL800CTXBI-90G 价格&库存

很抱歉,暂时无法提供与“MX29SL800CTXBI-90G”相匹配的价格&库存,您可以联系我们找货

免费人工找货
