MX30LF1G18AC
3V, 1G-bit NAND Flash Memory
MX30LF1G18AC
P/N: PM2133
REV. 1.2, May 27, 2016
1
MX30LF1G18AC
Contents
1. FEATURES........................................................................................................................................5
2. GENERAL DESCRIPTIONS..............................................................................................................6
Figure 1. Logic Diagram.......................................................................................................................... 6
2-1. ORDERING INFORMATION....................................................................................................7
3. PIN CONFIGURATIONS....................................................................................................................8
3-1. PIN DESCRIPTIONS..............................................................................................................10
4. BLOCK DIAGRAM...........................................................................................................................12
5. SCHEMATIC CELL LAYOUT AND ADDRESS ASSIGNMENT.......................................................13
Table 1. Address Allocation................................................................................................................... 13
6. DEVICE OPERATIONS....................................................................................................................14
6-1. Address Input/Command Input/Data Input.........................................................................14
Figure 2. AC Waveforms for Command / Address / Data Latch Timing................................................ 14
Figure 3. AC Waveforms for Address Input Cycle................................................................................. 14
Figure 4. AC Waveforms for Command Input Cycle............................................................................. 15
Figure 5. AC Waveforms for Data Input Cycle...................................................................................... 15
6-2. Page Read.............................................................................................................................16
Figure 6. AC Waveforms for Read Cycle.............................................................................................. 16
Figure 7. AC Waveforms for Read Operation (Intercepted by CE#)..................................................... 17
Figure 8. AC Waveforms for Read Operation (with CE# Don't Care).................................................... 18
Figure 9-1. AC Waveforms for Sequential Data Out Cycle (After Read)............................................... 18
Figure 9-2. AC Waveforms for Sequential Data Out Cycle (After Read) - EDO Mode.......................... 19
Figure 10. AC Waveforms for Random Data Output............................................................................. 20
6-3. Cache Read Sequential........................................................................................................21
Figure 11-1. AC Waveforms for Cache Read Sequential...................................................................... 22
6-4. Cache Read Random............................................................................................................23
Figure 11-2. AC Waveforms for Cache Read Random......................................................................... 24
6-5. Page Program.......................................................................................................................25
Figure 12. AC Waveforms for Program Operation after Command 80H............................................... 25
Figure 13. AC Waveforms for Random Data In (For Page Program).................................................... 26
Figure 14. AC Waveforms for Program Operation with CE# Don't Care............................................... 27
6-6. Cache Program.....................................................................................................................28
Figure 15-1. AC Waveforms for Cache Program ................................................................................. 29
Figure 15-2. AC Waveforms for Sequence of Cache Program ............................................................ 30
P/N: PM2133
REV. 1.2, May 27, 2016
2
MX30LF1G18AC
6-7. Block Erase...........................................................................................................................31
Figure 16. AC Waveforms for Erase Operation..................................................................................... 31
6-8. ID Read..................................................................................................................................32
Table 2. ID Codes Read Out by ID Read Command 90H..................................................................... 32
Table 3. The Definition of Byte2-Byte4 of ID Table................................................................................ 33
Figure 17-1. AC Waveforms for ID Read Operation.............................................................................. 34
Figure 17-2. AC Waveforms for ID Read (ONFI Identifier) Operation................................................... 34
6-9. Status Read...........................................................................................................................35
Table 4. Status Output........................................................................................................................... 35
Figure 18. Bit Assignment (HEX Data).................................................................................................. 36
Figure 19. AC Waveforms for Status Read Operation.......................................................................... 36
6-10. Block Protection Status Read.............................................................................................37
Table 5. Block-Protection Status Output............................................................................................... 37
Table 6. Address Cycle Definition of Block............................................................................................ 37
Figure 20. AC Waveforms for Block Protection Status Read................................................................ 38
6-11. Reset......................................................................................................................................39
Figure 21. AC waveforms for Reset Operation..................................................................................... 39
6-12. Parameter Page Read (ONFI)...............................................................................................40
Figure 22. AC waveforms for Parameter Page Read (ONFI) Operation .............................................. 40
Figure 23. AC Waveforms for Parameter Page Read (ONFI) Random Operation (For 05h-E0h)........ 41
Table 7. Parameter Page (ONFI).......................................................................................................... 42
6-13. Unique ID Read (ONFI).........................................................................................................44
Figure 24. AC waveforms for Unique ID Read Operation..................................................................... 44
Figure 25. AC waveforms for Unique ID Read Operation (For 05h-E0h).............................................. 45
6-14. Feature Set Operation (ONFI)..............................................................................................46
Table 8-1. Definition of Feature Address............................................................................................... 46
Table 8-2. Sub-Feature Parameter Table of Feature Address - 90h (Array Operation Mode)............... 46
Table 8-3. Sub-Feature Parameter Table of Feature Address - A0h (Block Protection Operation) (note 1)..........46
6-14-1.Set Feature (ONFI)................................................................................................................... 47
Figure 26. AC Waveforms for Set Feature (ONFI) Operation .............................................................. 47
6-14-2.Get Feature (ONFI)................................................................................................................... 48
Figure 27. AC Waveforms for Get Feature (ONFI) Operation............................................................... 48
6-14-3.Secure OTP (One-Time-Programmable) Feature.................................................................. 49
Figure 28. AC Waveforms for OTP Data Read..................................................................................... 49
Figure 29. AC Waveforms for OTP Data Read with Random Data Output........................................... 50
Figure 30. AC Waveforms for OTP Data Program................................................................................ 51
Figure 31. AC Waveforms for OTP Data Program with Random Data Input......................................... 52
Figure 32. AC Waveforms for OTP Protection Operation ..................................................................... 53
6-14-4.Block Protection...................................................................................................................... 54
Table 9. Definition of Protection Bits..................................................................................................... 54
Figure 33. PT Pin and Block Protection Mode Operation .................................................................... 55
P/N: PM2133
REV. 1.2, May 27, 2016
3
MX30LF1G18AC
7. PARAMETERS.................................................................................................................................56
7-1. ABSOLUTE MAXIMUM RATINGS........................................................................................56
Figure 34. Maximum Negative Overshoot Waveform........................................................................... 56
Figure 35. Maximum Positive Overshoot Waveform............................................................................. 56
Table 10. Operating Range................................................................................................................... 57
Table 11. DC Characteristics................................................................................................................. 57
Table 12. Capacitance........................................................................................................................... 58
Table 13. AC Testing Conditions........................................................................................................... 58
Table 14. Program and Erase Characteristics....................................................................................... 58
Table 15. AC Characteristics................................................................................................................. 59
8. OPERATION MODES: LOGIC AND COMMAND TABLES.............................................................60
Table 16. Logic Table............................................................................................................................ 60
Table 17. HEX Command Table............................................................................................................ 61
8-1. R/B#: Termination for The Ready/Busy# Pin (R/B#).........................................................62
Figure 36. R/B# Pin Timing Information................................................................................................ 63
8-2. Power On/Off Sequence.......................................................................................................64
Figure 37. Power On/Off Sequence ..................................................................................................... 64
8-2-1.WP# Signal ............................................................................................................................... 65
Figure 38-1. Enable Programming of WP# Signal................................................................................ 65
Figure 38-2. Disable Programming of WP# Signal................................................................................... 65
Figure 38-3. Enable Erasing of WP# Signal.......................................................................................... 65
Figure 38-4. Disable Erasing of WP# Signal......................................................................................... 65
9. SOFTWARE ALGORITHM...............................................................................................................66
9-1. Invalid Blocks (Bad Blocks) ................................................................................................66
Figure 39. Bad Blocks........................................................................................................................... 66
Table 18. Valid Blocks........................................................................................................................... 66
9-2. Bad Block Test Flow.............................................................................................................67
Figure 40. Bad Block Test Flow............................................................................................................. 67
9-3. Failure Phenomena for Read/Program/Erase Operations................................................67
Table 19. Failure Modes........................................................................................................................ 67
9-4. Program.................................................................................................................................68
Figure 41. Failure Modes...................................................................................................................... 68
Figure 42. Program Flow Chart............................................................................................................. 68
9-5. Erase......................................................................................................................................68
Figure 43. Erase Flow Chart................................................................................................................. 69
Figure 44. Read Flow Chart.................................................................................................................. 69
10. PACKAGE INFORMATION..............................................................................................................70
11. REVISION HISTORY .......................................................................................................................72
P/N: PM2133
REV. 1.2, May 27, 2016
4
MX30LF1G18AC
3V, 1Gb NAND Flash Memory
1. FEATURES
• 1G-bit
• Block Protection
SLC NAND Flash
- Bus: x8
- Page size: (2048+64) byte,
- Block size: (128K+4K) byte,
- PT (Protection) pin: active high at power-on,
which protects the entire chip. The pin has an
internal weak pull down.
• ONFI 1.0 compliant
- Temporary protection/un-protection function
(enabling by PT pin)
• Multiplexed Command/Address/Data
- Solid protection
(enabling by PT pin)
• User Redundancy
- 64-byte attached to each page
• Device Status Indicators
• Fast Read Access
- Ready/Busy (R/B#) pin
- Latency of array to register: 25us
- Status Register
- Sequential read: 20ns
• Chip Enable Don't Care
• Cache Read Support
- Simplify System Interface
• Page Program Operation
• Unique ID Read support (ONFI)
- Page program time: 300us( typ.)
• Secure OTP support
• Cache Program Support
• High Reliability
• Block Erase Operation
- Endurance: typical 100K cycles (with 4-bit ECC
per (512+16) Byte)
- Block erase time: 1ms (typ.)
• Single Voltage Operation:
- Data Retention: 10 years
- VCC: 2.7 - 3.6V
• Wide Temperature Operating Range
• Low Power Dissipation
-40°C to +85°C
- Max. 30mA
Active current (Read/Program/Erase)
• Package:
1) 48-TSOP(I) (12mm x 20mm)
• Sleep Mode
2) 63-ball 9mmx11mm VFBGA
- 50uA (Max) standby current
All packaged devices are RoHS Compliant and
Halogen-free.
• Hardware Data Protection: WP# pin
P/N: PM2133
REV. 1.2, May 27, 2016
5
MX30LF1G18AC
2. GENERAL DESCRIPTIONS
The MX30LF1G18AC is a 1Gb SLC NAND Flash memory device. Its standard NAND Flash features and
reliable quality of typical P/E cycles 100K (with ECC), which makes it most suitable for embedded system
code and data storage.
The product family requires 4-bit ECC per (512+16)B.
The MX30LF1G18AC is typically accessed in pages of 2,112 bytes for read and program operations.
The MX30LF1G18AC array is organized as thousands of blocks, which is composed by 64 pages of (2,048+64)
byte in two NAND strings structure with 32 serial connected cells in each string. Each page has an additional
64 bytes for ECC and other purposes. The device has an on-chip buffer of 2,112 bytes for data load and
access.
The Cache Read Operation of the MX30LF1G18AC enables first-byte read-access latency of 25us and sequential read of 20ns and the latency time of next sequential page will be shorten from tR to tRCBSY.
The MX30LF1G18AC power consumption is 30mA during all modes of operations (Read/Program/Erase),
and 50uA in standby mode.
Figure 1. Logic Diagram
ALE
CLE
IO7 - IO0
CE#
RE#
WE#
1Gb
R/B#
WP#
PT
P/N: PM2133
REV. 1.2, May 27, 2016
6
MX30LF1G18AC
2-1. ORDERING INFORMATION
Part Name Description
MX 30 L F 1G 18A C - T
I
xx
RESERVE
OPERATING TEMPERATURE:
I: Industrial (-40°C to 85°C)
PACKAGE TYPE:
T: 48TSOP
XK: 0.8mm Ball Pitch, 0.45mm Ball Size
and 1.0mm height of VFBGA
Package: RoHS Compliant & Halogen-free
GENERATION: C
OPTION CODE:
18A=4-bit ECC Requirement with standard feature,
x8, mode A
Mode A: Number of die
Number of CE# = 1,
Number of R/B# = 1
DENSITY:
1G=1G-bit
CLASSIFICATION:
F = SLC + Large Block
VOLTAGE:
L = 2.7V to 3.6V
TYPE:
30 = NAND Flash
BRAND:
MX
Part Number
Density
Organization
VCC Range
Package
Temperature Grade

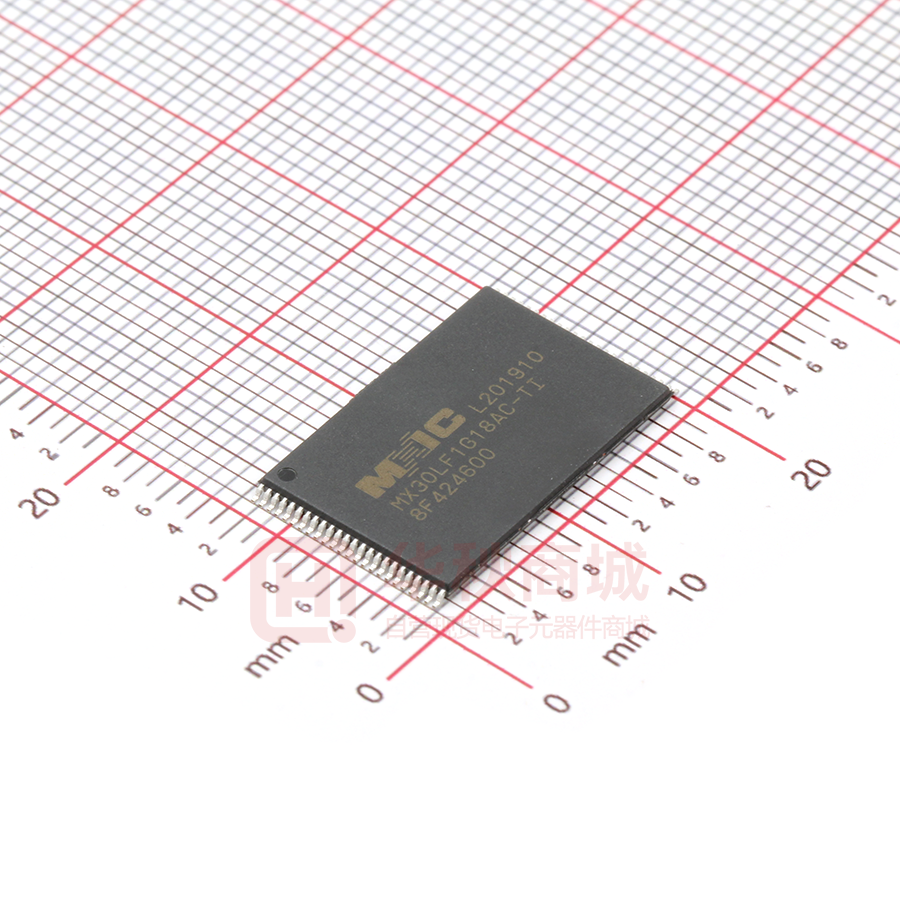

MX30LF1G18AC-TI
1Gb
x8
3V
48-TSOP
Industrial
MX30LF1G18AC-XKI
1Gb
x8
3V
63-VFBGA
Industrial
P/N: PM2133
REV. 1.2, May 27, 2016
7
MX30LF1G18AC
3. PIN CONFIGURATIONS
48-TSOP
NC
NC
NC
NC
NC
NC
R/B#
RE#
CE#
NC
NC
VCC
VSS
NC
NC
CLE
ALE
WE#
WP#
NC
NC
NC
NC
NC
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
VSS1
NC
NC
NC
IO7
IO6
IO5
IO4
NC
VCC1
PT
VCC
VSS
NC
VCC1
NC
IO3
IO2
IO1
IO0
NC
NC
NC
VSS1
Note 1. These pins might not be connected internally. However, it is recommended to connect these
pins to power(or ground) as designated for ONFI compatibility.
P/N: PM2133
REV. 1.2, May 27, 2016
8
MX30LF1G18AC
63-ball 9mmx11mm VFBGA
1
2
A
NC
NC
B
NC
3
4
5
6
8
7
C
WP#
ALE
Vss
CE#
WE#
R/B#
D
Vcc
1
RE#
CLE
NC
NC
NC
E
NC
NC
NC
NC
NC
NC
F
NC
NC
NC
NC
Vss
1
NC
G
NC
Vcc
PT
NC
NC
NC
H
NC
I/O0
NC
NC
NC
Vcc
J
NC
IO1
NC
Vcc
IO5
IO7
K
Vss
IO2
IO3
IO4
I/O6
Vss
1
9
10
NC
NC
NC
NC
L
NC
NC
NC
NC
M
NC
NC
NC
NC
Note 1. These pins might not be connected internally; however, it is recommended to connect these
pins to power (or ground) as designated for ONFI compatibility.
P/N: PM2133
REV. 1.2, May 27, 2016
9
MX30LF1G18AC
3-1. PIN DESCRIPTIONS
SYMBOL
IO7 - IO0
PIN NAME
Data I/O port
CE#
Chip Enable (Active Low)
RE#
Read Enable (Active Low)
WE#
Write Enable (Active Low)
CLE
Command Latch Enable
ALE
Address Latch Enable
WP#
R/B#
Write Protect (Active Low)
PT (Protection) pin connecting to high
for entire chip protected and enabling
the Block Protection. A weak pull-down
internally.
Ready/Busy (Open Drain)
VSS
Ground
VCC
Power Supply for Device Operation
PT
NC
Not Connected Internally
P/N: PM2133
REV. 1.2, May 27, 2016
10
MX30LF1G18AC
PIN FUNCTIONS
COMMAND LATCH ENABLE: CLE
The MX30LF1G18AC device is a sequential
access memory that utilizes multiplexing input of
Command/Address/Data.
The CLE controls the command input. When the
CLE goes high, the command data is latched at the
rising edge of the WE#.
I/O PORT: IO7 - IO0
ADDRESS LATCH ENABLE: ALE
The IO7 to IO0 pins are for address/command
input and data output to/from the device.
The ALE controls the address input. When the ALE
goes high, the address is latched at the rising edge
of WE#.
CHIP ENABLE: CE#
The device goes into low-power Standby Mode
when CE# goes high during a read operation and
not at busy stage.
WRITE PROTECT: WP#
The WP# signal keeps low and then the memory will
not accept the program/erase operation. It is recommended to keep WP# pin low during power on/off
sequence. Please refer to Figure 37. Power On/Off
Sequence.
The CE# goes low to enable the device to be
ready for standard operation. When the CE# goes
high, the device is deselected. However, when the
device is at busy stage, the device will not go to
standby mode when CE# pin goes high.
READY/Busy: R/B#
READ ENABLE: RE#
The RE# (Read Enable) allows the data to be
output by a tREA time after the falling edge of
RE#. The internal address counter is automatically
increased by one at the falling edge of RE#.
The R/B# is an open-drain output pin. The R/B#
outputs the ready/busy status of read/program/
erase operation of the device. When the R/B# is at
low, the device is busy for read or program or erase
operation. When the R/B# is at high, the read/
program/erase operation is finished.
WRITE ENABLE: WE#
Please refer to 8-1. R/B#: Termination for The
Ready/Busy# Pin (R/B#) for details.
When the WE# goes low, the address/data/
command are latched at the rising edge of WE#.
PT: Protection
When the PT pin is high at power on, the whole
chip is protected even the WP# is at high; the unprotection procedure (through BP bits setting) is
necessary before any program/erase operation.
When the PT pin is connected to low or floating, the
function of block protection is disabled.
P/N: PM2133
REV. 1.2, May 27, 2016
11
MX30LF1G18AC
CE#
High Voltage
Circuit
WE#
WP#
RE#
PT
IO Port
CLE
ALE
Control
Logic
X-DEC
4. BLOCK DIAGRAM
Memory Array
Page Buffer
ADDRESS
COUNTER
Y-DEC
R/B#
IO[7:0]
Data
Buffer
P/N: PM2133
REV. 1.2, May 27, 2016
12
MX30LF1G18AC
5. SCHEMATIC CELL LAYOUT AND ADDRESS ASSIGNMENT
MX30LF1G18AC is composed by 64 pages of (2,048+64)-byte in two NAND strings structure with 32 serial
connected cells in each string. Each page has an additional 64 bytes for ECC and other purposes. The device
has an on-chip buffer of 2,112 bytes for data load and access. Each 2K-Byte page has the two area, one is
the main area which is 2048-bytes and the other is spare area which is 64-byte.
There are four address cycles for the address allocation, please refer to the table below.
Table 1. Address Allocation
Addresses
Column address - 1st cycle
Column address - 2nd cycle
Row address - 3rd cycle
Row address - 4th cycle
IO7
IO6
IO5
IO4
IO3
IO2
IO1
IO0
A7
L
A19
A27
A6
L
A18
A26
A5
L
A17
A25
A4
L
A16
A24
A3
A11
A15
A23
A2
A10
A14
A22
A1
A9
A13
A21
A0
A8
A12
A20
P/N: PM2133
REV. 1.2, May 27, 2016
13
MX30LF1G18AC
6. DEVICE OPERATIONS
6-1. Address Input/Command Input/Data Input
Address input bus operation is for address input to select the memory address. The command input bus
operation is for giving command to the memory. The data input bus is for data input to the memory device.
Figure 2. AC Waveforms for Command / Address / Data Latch Timing
CLE
ALE
CE#
tCS
/
/ tCLS / tALS
tCH tCLH
tWP
WE#
tDS
tDH
IO[7:0]
Figure 3. AC Waveforms for Address Input Cycle
tCLS
CLE
tWC
tWC
tWC
CE#
tWP
tWH
tWP
tWH
tWP
tWH
tWP
WE#
tALS
tALH
ALE
tDS
IO[7:0]
tDH
1st Address
Cycle
tDS
tDH
2nd Address
Cycle
P/N: PM2133
tDS
tDH
3rd Address
Cycle
tDS
tDH
4th Address
Cycle
REV. 1.2, May 27, 2016
14
MX30LF1G18AC
Figure 4. AC Waveforms for Command Input Cycle
CLE
tCLS
tCLH
tCS
tCH
CE#
tWP
WE#
tALS
tALH
ALE
tDS
tDH
IO[7:0]
Figure 5. AC Waveforms for Data Input Cycle
tCLH
CLE
tCH
CE#
tWC
tWP
tWH
tWP
tWH
tWP
tWP
WE#
ALE
tALS
tDS
IO[7:0]
tDH
Din0
tDS
tDH
Din1
P/N: PM2133
tDS
tDH
Din2
tDS
tDH
DinN
REV. 1.2, May 27, 2016
15
MX30LF1G18AC
6-2. Page Read
The MX30LF1G18AC array is accessed in Page of 2,112 bytes. External reads begins after the R/B# pin
goes to READY.
The Read operation may also be initiated by writing the 00h command and giving the address (column and
row address) and being confirmed by the 30h command, the MX30LF1G18AC begins the internal read
operation and the chip enters busy state. The data can be read out in sequence after the chip is ready. Refer
to Figure 6. AC Waveforms for Read Cycle.
If the host side uses a sequential access time (tRC) of less than 30ns, the data can be latched on the next
falling edge of RE# as the waveform of EDO mode (Figure 9-2. AC Waveforms for Sequential Data Out
Cycle (After Read) - EDO Mode).
To access the data in the same page randomly, a command of 05h may be written and only column address
following and then confirmed by E0h command.
Figure 6. AC Waveforms for Read Cycle
CLE
tCLS
tCLS
tCLH
tCLH
tCS
CE#
tWC
WE#
tALS
tAR
tALH
tALH
ALE
tRR
tR
tOH
tRC
RE#
tWB
tDS
IO[7:0]
00h
tDH
tDS tDH
1st Address
Cycle
tDS tDH
2nd Address
Cycle
tDS tDH
3rd Address
Cycle
tDS tDH
4th Address
Cycle
tREA
tDS tDH
Dout
30h
Dout
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
16
MX30LF1G18AC
Figure 7. AC Waveforms for Read Operation (Intercepted by CE#)
CLE
tCHZ
CE#
WE#
tAR
ALE
tOH
tRC
RE#
tRR
tR
tWB
IO[7:0]
00h
1st Address
Cycle
2nd Address
Cycle
3rd Address
Cycle
4th Address
Cycle
30h
Dout 0
Dout 1
Dout 2
Dout 3
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
17
MX30LF1G18AC
Figure 8. AC Waveforms for Read Operation (with CE# Don't Care)
CLE
CE# Don’t Care
CE#
WE#
ALE
RE#
IO[7:0]
00h
Start Addr (4 Cycles)
Data Output (Sequential)
30h
R/B#
Busy
Note: The CE# "Don't Care" feature may simplify the system interface, which allows controller to directly
download the code from flash device, and the CE# transitions will not stop the read operation
during the latency time.
Figure 9-1. AC Waveforms for Sequential Data Out Cycle (After Read)
t CEA
CE#
tRC
tRP
RE#
t REH
t RP
t RHZ
tREA
IO[7:0]
tOH
Dout0
t REH
t RP
tRHZ
t REA
tOH
Dout1
t REA
t RP
tCOH
t CHZ
t RHZ
tRHZ
t OH
tOH
Dout2
DoutN
tRR
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
18
MX30LF1G18AC
Figure 9-2. AC Waveforms for Sequential Data Out Cycle (After Read) - EDO Mode
t CEA
CE#
tRC
tRP
RE#
t REH
tRHZ
t REA
IO[7:0]
t RP
tRLOH t
Dout0
t REH
tRHZ
REA
t RP
tRLOH t
Dout1
t RP
t REH
t CHZ
t COH
tRHZ
REA
t RLOH
Dout2
tOH
DoutN
tRR
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
19
MX30LF1G18AC
Figure 10. AC Waveforms for Random Data Output
A
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRHW
tRR
tR
tWB
IO[7:0]
00h
1st Address
Cycle
2nd Address
Cycle
3rd Address
Cycle
4th Address
Cycle
Dout M
30h
Dout M+1
05h
R/B#
CLE
Busy
A
CE#
WE#
tWHR
ALE
RE#
tREA
IO[7:0]
05h
1st Address
Cycle
2nd Address
Cycle
E0h
Dout N
Dout N+1
R/B#
Repeat if needed
P/N: PM2133
REV. 1.2, May 27, 2016
20
MX30LF1G18AC
6-3. Cache Read Sequential
The cache read sequential operation is for throughput enhancement by using the internal cache buffer. It
allows the consecutive pages to be read-out without giving next page address, which reduces the latency
time from tR to tRCBSY between pages or blocks. While the data is read out on one page, the data of next
page can be read into the cache buffer.
After writing the 00h command, the column and row address should be given for the start page selection,
and followed by the 30h command for address confirmation. After that, the CACHE READ operation starts
after a latency time tR and following a 31h command with the latency time of tRCBSY, the data can be readout sequentially from 1st column address (A[11:0]=000h) without giving next page address input. The 31h
command is necessary to confirm the next cache read sequential operation and followed by a tRCBSY
latency time before next page data is necessary. The CACHE READ SEQUENTIAL command is also valid
for the consecutive page cross block.
The random data out (05h-E0h) command set is available to change the column address of the current page
data in the cache register.
The user can check the chip status by the following method:
- R/B# pin ("0" means the data is not ready, "1" means the user can read the data)
- Status Register (SR[6] functions the same as R/B# pin, SR[5] indicates the internal chip operation, "0"
means the chip is in internal operation and "1" means the chip is idle.) Status Register can be checked
after the Read Status command (70h) is issued. Command 00h should be given to return to the cache read
sequential operation.
To confirm the last page to be read-out during the cache read sequential operation, a 3Fh command is
needed to replace the 31h command prior to the last data-out.
P/N: PM2133
REV. 1.2, May 27, 2016
21
MX30LF1G18AC
Figure 11-1. AC Waveforms for Cache Read Sequential
A
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tRCBSY
tR
tWB
IO[7:0]
00h
1st Address
Cycle
3rd Address
Cycle
2nd Address
Cycle
4th Address
Cycle
tWB
Page 1
Dout 1
Page 1
Dout 0
31h
30h
Page 1
Dout 2111
R/B#
Busy
Busy
CLE
A
tCLR
tCLR
CE#
WE#
tAR
tAR
ALE
tRC
tRC
RE#
tRR
tRR
tRCBSY
tRCBSY
tWB
tWB
IO[7:0]
Page 1
Dout 2111
Page 2
Dout 0
31h
Page 2
Page 2
Dout 1
Dout 2111
Page 3
Dout 0
3Fh
Page 3
Dout 1
Page 3
Dout 2111
R/B#
Busy
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
22
MX30LF1G18AC
6-4. Cache Read Random
The main difference from the Cache Read Sequential operation is the Cache Read Random operation may
allow the random page to be read-out with cache operation not just for the consecutive page only.
After writing the 00h command, the column and row address should be given for the start page selection,
and followed by the 30h command for address confirmation. The column address is ignored in the cache
read random operation. And then, the CACHE READ RANDOM operation starts after a latency time tR and
following a 00h command with the selected page address and following a 31h command, the data can be
read-out sequentially from the 1st column address (A[11:0] =000h) after the latency time of tRCBSY. After the
previous selected page data out, a new selected page address can be given by writing the 00h-31h command
set again. The CACHE READ RANDOM command is also valid for the consecutive page cross block.
The random data out (05h-E0h) command set is available to change the column address of the current page
data in the cache register.
The user can check the chip status by the following method:
- R/B# pin ("0" means the data is not ready, "1" means the user can read the data)
- Status Register can be checked after the Read Status command (70h) is issued. (SR[6] behaves the same
as R/B# pin, SR[5] indicates the internal chip operation, "0" means the chip is in internal operation and "1"
means the chip is idle.) Command 00h should be given to return to the cache read operation.
To confirm the last page to be read-out during the cache read operation, a 3Fh command is needed to replace
the 31h command prior to the last data-out.
P/N: PM2133
REV. 1.2, May 27, 2016
23
MX30LF1G18AC
Figure 11-2. AC Waveforms for Cache Read Random
A
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tR
tWB
tWB
IO[7:0]
00h
1st Address
Cycle
2nd Address 3rd Address
Cycle
Cycle
4th Address
Cycle
1st Address
Cycle
00h
30h
2nd Address 3rd Address
Cycle
Cycle
4th Address
Cycle
31h
tRCBSY
Page n
Dout 0
Page n
Dout 1
Page n
Dout 2111
Page m address
Page n address
R/B#
Busy
Busy
A
CLE
tCLR
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tWB
IO[7:0]
Page n
Dout 0
Page n
Dout 1
Page n
Dout 2111
00h
1st Address
Cycle
2nd Address 3rd Address
Cycle
Cycle
4th Address
Cycle
tRCBSY
Page m
Dout 0
31h
Page m
Dout 1
Page m
Dout 2111
Page x address
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
24
MX30LF1G18AC
6-5. Page Program
The memory is programmed by page, which is 2,112 bytes. After Program load command (80h) is issued
and the row and column address is given, the data will be loaded into the chip sequentially. Random Data
Input command (85h) allows multi-data load in non-sequential address. After data load is complete, program
confirm command (10h) is issued to start the page program operation. The page program operation in a
block should start from the low address to high address. Partial program in a page is allowed up to 4 times.
However, the random data input mode for programming a page is allowed and number of times is not limited.
The status of the program completion can be detected by R/B# pin or Status register bit SR[6].
The program result is shown in the chip status bit (SR[0]). SR[0] = 1 indicates the Page Program is not
successful and SR[0] = 0 means the program operation is successful.
During the Page Program progressing, only the read status register command and reset command are
accepted, others are ignored.
Figure 12. AC Waveforms for Program Operation after Command 80H
CLE
tCLS
tCLH
CE#
tCS
tWC
WE#
tALS
tWB
tALH
tALH
ALE
RE#
tDS tDH
IO[7:0]
80h
tDS/tDH
Din
0
-
1st Address
Cycle
2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Din
n
10h
70h
Status
Output
tPROG
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
25
MX30LF1G18AC
Figure 13. AC Waveforms for Random Data In (For Page Program)
A
CLE
CE#
tWC
tADL
WE#
ALE
RE#
IO[7:0]
80h
1st Address 2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Cycle
Din A
Din A+N
R/B#
A
CLE
CE#
tWC
tADL
WE#
tWB
ALE
RE#
IO[7:0]
85h
1st Address 2nd Address
Cycle
Cycle
Din B+M
Din B
70h
10h
Status
tPROG
R/B#
Repeat if needed
IO0 = 0; Pass
IO0 = 1; Fail
Note: Random Data In is also supported in cache program.
P/N: PM2133
REV. 1.2, May 27, 2016
26
MX30LF1G18AC
Figure 14. AC Waveforms for Program Operation with CE# Don't Care
A
CLE
CE#
WE#
ALE
IO[7:0]
80h
Start Add. (4 Cycles)
Data Input
A
CLE
CE#
WE#
ALE
IO[7:0]
Data Input
Data Input
10h
Note: The CE# "Don't Care" feature may simplify the system interface, which allows the controller to
directly write data into flash device, and the CE# transitions will not stop the program operation
during the latency time.
P/N: PM2133
REV. 1.2, May 27, 2016
27
MX30LF1G18AC
6-6. Cache Program
The cache program feature enhances the program performance by using the cache buffer of 2,112-byte.
The serial data can be input to the cache buffer while the previous data stored in the buffer are programming
into the memory cell. Cache Program command sequence is almost the same as page program command
sequence. Only the Program Confirm command (10h) is replaced by cache Program command (15h).
After the Cache Program command (15h) is issued. The user can check the status by the following methods.
- R/B# pin
- Cache Status Bit (SR[6] = 0 indicates the cache is busy; SR[6] = 1 means the cache is ready).
The user can issue another Cache Program Command Sequence after the Cache is ready. The user can
always monitor the chip state by Ready/Busy Status Bit (SR[5]). The user can issues either program confirm
command (10h) or cache program command (15h) for the last page if the user monitor the chip status by
issuing Read Status Command (70h).
However, if the user only monitors the R/B# pin, the user needs to issue the program confirm command (10h)
for the last page.
The user can check the Pass/Fail Status through P/F Status Bit (SR[0]) and Cache P/F Status Bit (SR[1]).
SR[1] represents Pass/Fail Status of the previous page. SR[1] is updated when SR[6] change from 0 to 1 or
Chip is ready. SR[0] shows the Pass/Fail status of the current page. It is updated when SR[5] change from "0"
to "1" or the end of the internal programming. For more details, please refer to the related waveforms.
P/N: PM2133
REV. 1.2, May 27, 2016
28
MX30LF1G18AC
Figure 15-1. AC Waveforms for Cache Program
A
CLE
CE#
tADL
tWC
WE#
tWB
ALE
RE#
IO[7:0]
80h
1st Address
Cycle
2nd Address 3rd Address
Cycle
Cycle
4th Address
Cycle
Din
Din
15h
tCBSY
R/B#
Busy
A
CLE
CE#
tADL
WE#
tWB
ALE
RE#
IO[7:0]
80h
1st Address
Cycle
2nd Address 3rd Address
Cycle
Cycle
4th Address
Cycle
Din
Din
70h
10h
Status
Output
tPROG
R/B#
Note
Busy
Note: It indicates the last page Input & Program.
P/N: PM2133
REV. 1.2, May 27, 2016
29
MX30LF1G18AC
Figure 15-2. AC Waveforms for Sequence of Cache Program
A
IO[7:0]
1st Address 2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Cycle
80h
Din
Din
15h
80h
1st Address 2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Cycle
Din
Din
15h
80h
R/B#
Busy - tCBSY
Busy - tCBSY
A
IO[7:0]
80h
1st Address 2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Cycle
Din
Din
15h
80h
1st Address 2nd Address 3rd Address 4th Address
Cycle
Cycle
Cycle
Cycle
Din
Din
10h
70h
R/B#
Busy - tPROG
Busy - tCBSY
Note: tPROG = Page(Last) programming time + Page (Last-1) programming time - Input cycle time of
command & address - Data loading time of page (Last).
Note 2
P/N: PM2133
REV. 1.2, May 27, 2016
30
MX30LF1G18AC
6-7. Block Erase
The MX30LF1G18AC supports a block erase command. This command will erase a block of 64 pages associated with the most significant address bits.
The completion of the erase operation can be detected by R/B# pin or Status register bit (IO6). Recommend
to check the status register bit IO0 after the erase operation completes.
During the erasing process, only the read status register command and reset command can be accepted,
others are ignored.
Figure 16. AC Waveforms for Erase Operation
CLE
tCLS
tCLH
CE#
tCS
tWC
WE#
tALH
tALS
ALE
tWB
RE#
tDS
IO[7:0]
tDH
tDS
tDH
tDS
tDH
60h
70h
D0h
Block Address 1
Block Address 2
Stauts
Output
tERASE
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
31
MX30LF1G18AC
6-8. ID Read
The device contains ID codes that identify the device type and the manufacturer. The ID READ command
sequence includes one command Byte (90h), one address byte (00h). The Read ID command 90h may
provide the manufacturer ID (C2h) of one-byte and device ID (F1h) of one-byte, also Byte2, Byte3, and Byte4
ID code are followed.
The device support ONFI Parameter Page Read, by sending the ID Read (90h) command and following one
byte address (20h), the four-byte data returns the value of 4Fh-4Eh-46h-49h for the ASCII code of "O"-"N""F"-"I" to identify the ONFI parameter page.
Table 2. ID Codes Read Out by ID Read Command 90H
ID Codes
Byte0-Manufacturer
Byte1: Device ID
Byte2
1Gb, x8, 3V
C2h
F1h
80h
Byte3
Byte4
95h
02h
P/N: PM2133
REV. 1.2, May 27, 2016
32
MX30LF1G18AC
Table 3. The Definition of Byte2-Byte4 of ID Table
Terms
Description
IO7
IO6
IO5
IO4
IO3
IO2
IO1
IO0
0
0
0
1
0
1
1
0
Byte 2
Die Number
1
2
Cell Structure
SLC
# of Concurrently
Programmed page
Interleaved operations
between Multiple die
Cache Program
Byte 3
Page size (Exclude spare)
Spare area size (Per 512B)
Block size (Exclude spare)
Organization
1
2
0
0
0
Not supported
Supported
2KB
16B
128KB
x8
25ns
Sequential Read Cycle Time
20ns
Byte 4
ECC level requirement
4-bit ECC/528B
1
#Plane per CE
2
4
1Gb
Plane size
2Gb
Reserved
0
0
1
0
1
1
0
1
0
0
1
0
0
0
0
1
0
1
0
0
0
1
0
0
1
0
P/N: PM2133
REV. 1.2, May 27, 2016
33
MX30LF1G18AC
Figure 17-1. AC Waveforms for ID Read Operation
CLE
tCLS
tCS
CE#
tCHZ
WE#
tALH
tALS
tAR
ALE
tOH
RE#
tWHR
tDS
IO[7:0]
90h
tREA
tDH
00h
C2h
(note)
(note)
(note)
(note)
Note: See also Table 2. ID Codes Read Out by ID Read Command 90H.
Figure 17-2. AC Waveforms for ID Read (ONFI Identifier) Operation
CLE
tCLS
tCS
CE#
tCHZ
WE#
tALH
tALS
tAR
ALE
tOH
RE#
tWHR
tDS
IO[7:0]
90h
tDH
20h
tREA
4Fh
P/N: PM2133
4Eh
46h
49h
REV. 1.2, May 27, 2016
34
MX30LF1G18AC
6-9. Status Read
The MX30LF1G18AC provides a status register that outputs the device status by writing a command code
70h, and then the IO pins output the status at the falling edge of CE# or RE# which occurs last. Even though
when multiple flash devices are connecting in system and the R/B#pins are common-wired, the two lines of
CE# and RE# may be checked for individual devices status separately.
The status read command 70h will keep the device at the status read mode unless next valid command is
issued. The resulting information is outlined in Table 4 as below.
Table 4. Status Output
Pin
SR[0]
SR[1]
SR[2-4]
SR[5]
SR[6]
SR[7]
Status
Chip Status
Cache Program
Result
Not Used
Related Mode
Value
Page Program, Cache
Program (Page N),
Block Erase
0: Passed
1: Failed
Cache Program
(Page N-1)
0: Passed
1: Failed
0: Busy
1: Ready
0: Busy
1: Ready
0: Protected
1: Unprotected
Cache Program/Cache
Ready / Busy
Read operation, other Page
(For P/E/R Controller) Program/Block Erase/Read
are same as IO6 (Note 1)
Page Program, Block Erase,
Ready / Busy
Cache Program, Read,
Cache Read (Note 2)
Page Program, Block Erase,
Write Protect
Cache Program, Read
Notes:
1. During the actual programming operation, the SR[5] is "0" value; however, when the internal
operation is completed during the cache mode, the SR[5] returns to "1".
2. The SR[6] returns to "1" when the internal cache is available to receive new data. The SR[6] value is
consistent with the R/B#.
P/N: PM2133
REV. 1.2, May 27, 2016
35
MX30LF1G18AC
The following is an example of a HEX data bit assignment:
Figure 18. Bit Assignment (HEX Data)
Status Read: 70h
0
1
1
1
0
0
0
0
SR7
6
5
4
3
2
1 SR0
Figure 19. AC Waveforms for Status Read Operation
tCLR
CLE
tCLS
tCLH
CE#
tCS
tWP
WE#
tCHZ
tWHR
RE#
tOH
tIR
tDS tDH
IO[7:0]
tREA
Status
Output
70h
P/N: PM2133
REV. 1.2, May 27, 2016
36
MX30LF1G18AC
6-10. Block Protection Status Read
The Block Protection Status Read command (7Ah) may check the protect/un-protect status of blocks. The
status output is shown in Table 5. Block Protection Status Output and the address cycle is referred to Table 6.
Address Cycle Definition of Block.
Table 5. Block-Protection Status Output
Block-Protection Status
Block is protected, and device is
solid-protected
Block is protected, and device is
not solid-protected
Block is un-protected, and device
is solid-protected
Block is un-protected, and device
is not solid-protected
IO[7:3]
x
IO2(PT#)
0
IO1(SP#)
0
IO0(SP)
1
x
0
1
0
x
1
0
1
x
1
1
0
Note: SP stands for Solid-protected. Once the SP bit sets as 1, the rest of the protection bits (BPx bits,
Invert bit, Complementary bit) cannot be changed during the current power cycle.
Table 6. Address Cycle Definition of Block
Address Cycle
IO7
IO6
IO5
IO4
IO3
IO2
IO1
IO0
Block Address 1
A19
A18
L
L
L
L
L
L
Block Address 2
A27
A26
A25
A24
A23
A22
A21
A20
P/N: PM2133
REV. 1.2, May 27, 2016
37
MX30LF1G18AC
Figure 20. AC Waveforms for Block Protection Status Read
CLE
CE#
tWC
WE#
tWHR
ALE
WP#
RE#
IO[7:0]
7Ah
Block
address 1
Status
Output
Block
address 2
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
38
MX30LF1G18AC
6-11. Reset
The reset command FFh resets the read/program/erase operation and clear the status register to be E0h (when
WP# is high). The reset command during the program/erase operation will result in the content of the selected
locations(perform programming/erasing) might be partially programmed/erased.
If the Flash memory has already been set to reset stage with reset command, the additional new reset
command is invalid.
Figure 21. AC waveforms for Reset Operation
CLE
CE#
WE#
ALE
RE#
tWB
IO[7:0]
FFh
tRST
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
39
MX30LF1G18AC
6-12. Parameter Page Read (ONFI)
The NAND Flash device support ONFI Parameter Page Read and the parameter can be read out by sending
the command of ECh and giving the address 00h. The NAND device information may refer to the table of
parameter page(ONFI), there are three copies of 256-byte data and additional redundant parameter pages.
Once sending the ECh command, the NAND device will remain in the Parameter Page Read mode until next
valid command is sent.
The Random Data Out command set (05h-E0h) can be used to change the parameter location for the specific
parameter data random read out.
The Status Read command (70h) can be used to check the completion with a following read command (00h)
to enable the data out.
Figure 22. AC waveforms for Parameter Page Read (ONFI) Operation
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tWB
tR
IO[7:0]
ECh
Parameter 0
Dout 0
00h
Parameter 0
Dout 1
Parameter 0
Dout 255
Parameter 1
Dout 0
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
40
MX30LF1G18AC
Figure 23. AC Waveforms for Parameter Page Read (ONFI) Random Operation (For 05h-E0h)
tCLR
CLE
CE#
WE#
tWHR
tAR
ALE
tRC
RE#
tRR
tWB
tR
IO[7:0]
ECh
tREA
Parameter 0
Dout 0
00h
Parameter 0
Dout 1
05h
R/B#
1st Address
Cycle
2nd Address
Cycle
E0h
Parameter m
Dout n
Parameter m
Dout n+1
Repeat if needed
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
41
MX30LF1G18AC
Table 7. Parameter Page (ONFI)
Byte#
Revision Information and Features Block
Description
Data
0-3
Parameter Page Signature
4Fh, 4Eh, 46h, 49h
4-5
Revision Number
02h, 00h
6-7
Features Supported
10h, 00h
8-9
Optional Commands Supported
37h, 00h
00h
10-31
Reserved
Manufacturer Information Block
Description
Data
Byte#
32-43
44-63
64
65-66
67-79
Byte#
Device Manufacturer (12 ASCII characters)
Device Model
(20 ASCII Characters)
MX30LF1G18AC
JEDEC Manufacturer ID
Date Code
Reserved
4Dh,41h,43h,52h,4Fh,4Eh,49h,58h,
20h,20h,20h,20h
4Dh,58h,33h,30h,4Ch,46h,31h,47h,
31h,38h,41h,43h,20h,20h,20h,20h,
20h,20h,20h,20h,
C2h
00h, 00h
00h
Memory Organization Block
Description
80-83
Number of Data Bytes per Page
84-85
86-89
90-91
92-95
96-99
100
101
102
103-104
105-106
107
108-109
110
111
112
113
114
115-127
Number of Spare Bytes per Page
Number of Data Bytes per Partial Page
Number of Spare Bytes per Partial Page
Number of Pages per Block
Number of Blocks per Logical Unit
Number of Logical Units (LUNs)
Number of Address Cycles
Number of Bits per Cell
Bad Blocks Maximum per LUN
Block endurance
Guarantee Valid Blocks at Beginning of Target
Block endurance for guaranteed valid blocks
Number of Programs per Page
Partrial Programming Attributes
Number of Bits ECC Correctability
Number of Interleaved Address Bits
Interleaved Operation Attributes
Reserved
P/N: PM2133
Data
204800h,08h,00h,00h
byte
64-byte 40h,00h
512-byte 00h,02h,00h,00h
16-byte 10h,00h
40h,00h,00h,00h
00h,04h,00h,00h
01h
22h
01h
14h,00h
01h, 05h
01h
01h, 03h
04h
00h
04h
00h
00h
00h
REV. 1.2, May 27, 2016
42
MX30LF1G18AC
Electrical Parameters Block
Description
Byte#
Data
128
I/O Pin Capacitance
0Ah
129-130
Timing Mode Support
3Fh,00h
131-132
Program Cache Timing Mode Support
3Fh,00h
133-134
tPROG Maximum Page Program Time (uS)
600us
135-136
tBERS(tERASE) Maximum Block Erase Time (uS)
3,500us ACh,0Dh
137-138
tR Maximum Page Read Time (uS)
25us
19h,00h
139-140
tCCS Minimum Change Column Setup Time (ns)
60ns
3Ch,00h
141-163
Reserved
Byte#
164-165
166-253
254-255
Byte#
256-511
512-767
768+
58h,02h
00h
Vendor Blocks
Description
Data
Redundant Parameter Pages
Description
Data
Vendor Specific Revision Number
Vendor Specific
Integrity CRC
00h
00h
Set at Test (Note)
Value of Bytes 0-255
Value of Bytes 0-255
Additional Redundant Parameter Pages
Note: The Integrity CRC (Cycling Redundancy Check) field is used to verify that the contents of the
parameters page were transferred correctly to the host. Please refer to ONFI 1.0 specifications for
details.
The CRC shall be calculated using the following 16-bit generator polynomial:
G(X) = X16 + X15 +X2 + 1
P/N: PM2133
REV. 1.2, May 27, 2016
43
MX30LF1G18AC
6-13. Unique ID Read (ONFI)
The unique ID is 32-byte and with 16 copies for back-up purpose. After writing the Unique ID read command
(EDh) and following the one address byte (00h), the host may read out the unique ID data. The host need to
XOR the 1st 16-byte unique data and the 2nd 16-byte complement data to get the result, if the result is FFh, the
unique ID data is correct; otherwise, host need to repeat the XOR with the next copy of Unique ID data.
Once sending the EDh command, the NAND device will remain in the Unique ID read mode until next valid
command is sent.
To change the data output location, it is recommended to use the Random Data Out command set (05h-E0h).
The Status Read command (70h) can be used to check the completion. To continue the read operation, a
following read command (00h) to re-enable the data out is necessary.
Figure 24. AC waveforms for Unique ID Read Operation
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tWB
tR
IO[7:0]
EDh
Unique ID 0
Dout 0
00h
Unique ID 0
Dout 1
Unique ID 0
Dout 31
Unique ID 1
Dout 0
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
44
MX30LF1G18AC
Figure 25. AC waveforms for Unique ID Read Operation (For 05h-E0h)
tCLR
CLE
CE#
WE#
tWHR
tAR
ALE
tRC
RE#
tRR
tWB
tR
IO[7:0]
EDh
tREA
Unique ID 0
Dout 0
00h
Unique ID 0
Dout 1
05h
R/B#
1st Address
Cycle
2nd Address
Cycle
E0h
Unique ID m
Dout n
Unique ID m
Dout n+1
Repeat if needed
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
45
MX30LF1G18AC
6-14. Feature Set Operation (ONFI)
The Feature Set operation is to change the default power-on feature sets by using the Set Feature and Get
Feature command and writing the specific parameter data (P1-P4) on the specific feature addresses. The
NAND device may remain the current feature set until next power cycle since the feature set data is volatile.
However, the reset command (FFh) can not reset the current feature set.
Table 8-1. Definition of Feature Address
Feature Address
00h-8Fh, 91h-FFh,
90h
A0h
Description
Reserved
Array Operation Mode
Block Protection Operation
Table 8-2. Sub-Feature Parameter Table of Feature Address - 90h (Array Operation Mode)
Sub Feature
Parameter
Definition
P1
Normal
Array
Operation OTP Operation
Mode
OTP Protection
P2
P3
P4
IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0
Reserved (0)
Reserved (0)
0
Reserved (0)
0
Reserved (0)
Reserved (0)
Reserved (0)
0
0
1
0
1
1
Values
Notes
0000 0000b
0000 0001b
0000 0011b
0000 0000b
0000 0000b
0000 0000b
1
Note 1. The value is clear to 00h at power cycle.
Table 8-3. Sub-Feature Parameter Table of Feature Address - A0h (Block Protection Operation) (note 1)
Sub Feature
Parameter
P1
Definition
Default
Block
mode
Protection
Protection
Operation
Bit Setting
IO7 IO6 IO5 IO4 IO3
0
0
0
0
1
1
1
IO2
IO1
0
0
BP2 BP1 BP0 Invert Complementary
P2
P3
P4
IO0 Values Notes
0
SP
38h
note 2
note 3 note 4
Reserved (0)
Reserved (0)
Reserved (0)
Notes:
1. If the PT pin is not connected to high, this sub-feature address A0h command is not valid.
2. The value is returned to 38h at power cycle.
3. The value is defined in the Table 9. Definition of Protection Bits.
4. The SP stands for Solid-Protection. Once the SP bit sets as 1, the rest of protection bits cannot be
changed during the current power cycle.
P/N: PM2133
REV. 1.2, May 27, 2016
46
MX30LF1G18AC
6-14-1. Set Feature (ONFI)
The Set Feature command is to change the power-on default feature set. After sending the Set Feature
command (EFh) and following specific feature and then input the P1-P4 parameter data to change the default
power-on feature set. Once sending the EFh command, the NAND device will remain in the Set Feature
mode until next valid command is sent.
The Status Read command (70h) may check the completion of the Set Feature.
Figure 26. AC Waveforms for Set Feature (ONFI) Operation
CLE
CE#
tADL
tWC
WE#
tWB
ALE
RE#
IO[7:0]
EFh
Feature
Address
Din
Din
Din
Din
tFEAT
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
47
MX30LF1G18AC
6-14-2. Get Feature (ONFI)
The Get Feature command is to read sub-feature parameter. After sending the Get Feature command (EEh)
and following specific feature, the host may read out the P1-P4 sub- feature parameter data. Once sending
the EEh command, the NAND device will remain in the Get Feature mode until next valid command is sent.
The Status Read command (70h) can be used to check the completion. To continue the read operation, a
following read command (00h) to re-enable the data out is necessary.
Please refer to the following waveform of Get Feature Operation for details.
Figure 27. AC Waveforms for Get Feature (ONFI) Operation
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tWB
tFEAT
IO[7:0]
EEh
Feature
Address
Feature
Dout 0
Feature
Dout 1
Feature
Dout 2
Feature
Dout 3
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
48
MX30LF1G18AC
6-14-3. Secure OTP (One-Time-Programmable) Feature
There is an OTP area which has thirty full pages (30 x 2,112-byte) guarantee to be good for system
device serial number storage or other fixed code storage. The OTP area is a non-erasable and one-timeprogrammable area, which is default to “1” and allows whole page or partial page program to be “0”, once the
OTP protection mode is set, the OTP area becomes read-only and cannot be programmed again.
The OTP operation is operated by the Set Feature/ Get Feature operation to access the OTP operation mode
and OTP protection mode.
To check the NAND device is ready or busy in the OTP operation mode, either checking the R/B# or writing
the Status Read command (70h) may collect the status.
To exit the OTP operation or protect mode, it can be done by writing 00h to P1 at feature address 90h.
OTP Read/Program Operation
To enter the OTP operation mode, it is by using the Set Feature command (EFh) and followed by the feature
address (90h) and then input the 01h to P1 and 00h to P2-P4 of sub-Feature Parameter data( please refer
to Table 8-2. Sub-Feature Parameter Table of Feature Address - 90h (Array Operation Mode) and Table
8-3. Sub-Feature Parameter Table of Feature Address - A0h (Block Protection Operation) (note 1)).
After enter the OTP operation mode, the normal Read command (00h-30h) or Page program( 80h-10h)
command can be used to read the OTP area or program it. The address of OTP is located on the 02h-1Fh of
page address.
Besides the normal Read command, the Random Data Output command (05h-E0h) can be used for read
OTP data. However, the Cache Read command is not supported in the OTP area.
Besides the normal page program command, the Random Data Input command (85h) allows multi-data load
in non-sequential address. After data load is completed, a program confirm command (10h) is issued to start
the page program operation. The number of partial-page OTP program is 8 per each OTP page.
Figure 28. AC Waveforms for OTP Data Read
tCLR
CLE
CE#
WE#
tAR
ALE
tRC
RE#
tRR
tR
tWB
IO[7:0]
00h
1st Address 2nd Address
Cycle
Cycle
OTP
Page
Dout 0
30h
00h
Dout 1
Dout n
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
49
MX30LF1G18AC
Figure 29. AC Waveforms for OTP Data Read with Random Data Output
A
tCLR
CLE
CE#
WE#
tAR
ALE
tRHW
tRC
RE#
tRR
tWB
IO[7:0]
00h
1st Address
Cycle
2nd Address
Cycle
OTP
Page
00h
tR
Dout M
30h
Dout M+1
05h
R/B#
Busy
CLE
A
CE#
WE#
tWHR
ALE
RE#
tREA
IO[7:0]
05h
1st Address
Cycle
2nd Address
Cycle
E0h
Dout N
Dout N+1
R/B#
Repeat if needed
P/N: PM2133
REV. 1.2, May 27, 2016
50
MX30LF1G18AC
Figure 30. AC Waveforms for OTP Data Program
CLE
CE#
tADL
WE#
tWB
ALE
RE#
IO[7:0]
80h
1st Address 2nd Address
Cycle
Cycle
OTP Page
Din
00h
Din
70h
10h
Status
Output
tPROG
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
51
MX30LF1G18AC
Figure 31. AC Waveforms for OTP Data Program with Random Data Input
A
CLE
CE#
tADL
tWC
WE#
ALE
RE#
IO[7:0]
80h
1st Address 2nd Address
Cycle
Cycle
OTP
Page
00h
Din
Din
R/B#
A
CLE
CE#
tADL
WE#
tWB
ALE
RE#
IO[7:0]
85h
1st Address 2nd Address
Cycle
Cycle
Din
Din
70h
10h
Status
Output
tPROG
R/B#
Busy
P/N: PM2133
REV. 1.2, May 27, 2016
52
MX30LF1G18AC
OTP Protection Operation
To prevent the further OTP data to be changed, the OTP protection mode operation is necessary. To enter the
OTP protection mode, it can be done by using the Set Feature command (EFh) and followed by the feature
address (90h) and then input the 03h to P1 and 00h to P2-P4 of sub-Feature Parameter data (please refer
to the Table 8-2. Sub-Feature Parameter Table of Feature Address - 90h (Array Operation Mode) and
Table 8-3. Sub-Feature Parameter Table of Feature Address - A0h (Block Protection Operation) (note
1)). And then the normal page program command (80h-10h) with the address 00h before the 10h command is
required.
The OTP Protection mode is operated by the whole OTP area instead of individual OTP page. Once the OTP
protection mode is set, the OTP area cannot be programmed or unprotected again.
Figure 32. AC Waveforms for OTP Protection Operation
CLE
tCLS
tCLH
CE#
tCS
tWC
WE#
tALS
tALH
tWB
tALH
ALE
RE#
tDS
IO[7:0]
tDH
-
80h
1st Address
Cycle
Note
2nd Address
Cycle
-
00h
00h
10h
70h
Status
Output
Dummy data
input
tPROG
R/B#
Note: This address cycle can be any value since the OTP protection protects the entire OTP area
instead of individual OTP page.
P/N: PM2133
REV. 1.2, May 27, 2016
53
MX30LF1G18AC
6-14-4. Block Protection
The block protect operation can protect the whole chip or selected blocks from erasing or programming. Through
the PT pin at power-on stage, it decides the block protection operation is enabled or disabled. At power-on, if the
PT pin is connected to high, the block protection operation is enabled, all the blocks are default to be protected from
programming/erasing even the WP# is disabled. If the PT pin is low, block protection operation is disabled. Please
refer to the Figure 33. PT Pin and Block Protection Mode Operation.
When program or erase attempt at a protected block is happened, the R/B# keeps low for the time of tPBSY, and the
Status Read command (70h) may get the 60h result.
There are Temporary Protection/un-Protection and Solid Protection features as below description.
Temporary Protection/un-Protection
At power-on, if the PT pin is connected to high, all the blocks are default to be protected for the BPx protection
bits are all “1”. The Set feature command with feature address A0h followed by the destined protection bits data is
necessary to un-protect those selected blocks before those selected blocks to be updated. The WP# pin needs to
connect to high before writing the Set Feature command for the block protection operation. After the selected blocks
are un-protected, those un-protected blocks can be protected again by Block Protection procedure if required.
Solid Protection
The “solid-protection” feature can be set by writing the Set Feature command with address A0h and the “SP” solidprotection bit as “1”, after that, the selected block is solid-protected and cannot be up-protected until next power
cycle.
Table 9. Definition of Protection Bits
BP2
0
0
0
0
1
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
BP1
0
0
1
1
0
0
1
1
0
1
1
0
0
1
0
1
1
0
0
1
0
1
1
0
0
1
BP0
0
1
0
1
0
1
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
Invert
x
0
0
0
0
0
0
x
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
P/N: PM2133
Complementary
x
0
0
0
0
0
0
x
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
Protection Area
all unlocked
upper 1/64 locked
upper 1/32 locked
upper 1/16 locked
upper 1/8 locked
upper 1/4 locked
upper 1/2 locked
all locked (default)
lower 1/64 locked
lower 1/32 locked
lower 1/16 locked
lower 1/8 locked
lower 1/4 locked
lower 1/2 locked
lower 63/64 locked
lower 31/32 locked
lower 15/16 locked
lower 7/8 locked
lower 3/4 locked
block 0
upper 63/64 locked
upper 31/32 locked
upper 15/16 locked
upper 7/8 locked
upper 3/4 locked
block0
REV. 1.2, May 27, 2016
54
MX30LF1G18AC
Figure 33. PT Pin and Block Protection Mode Operation
Power On
PT pin = low
PT pin = high
WP# Protection Mode
Block Protection Mode (PT)
1. WP# pin = low to protect whole chip
2. Block Protection mode disable
1. Blcok Protection mode enable with BPx bit = 1
2. Whole Blocks are protected after power on
Temporary Protection/
Un-Proteciton (By CMD)
1. Set Feature command (EFh) sets BPx bit,
Invert bit and complementary bit value
Block Protection Area (By CMD)
SP bit = 1
Solid Protection Mode
1. Set Feature command with SP bit = 1 fixes
current block protecion/un-protection status
2. Only next Power On cycle can disable
Solid Protection mode
P/N: PM2133
REV. 1.2, May 27, 2016
55
MX30LF1G18AC
7. PARAMETERS
7-1. ABSOLUTE MAXIMUM RATINGS
Temperature under Bias
-50°C to +125°C
Storage temperature
-65°C to +150°C
All input voltages with respect to ground (Note 2)
-0.6V to 4.6V
VCC supply voltage with respect to ground (Note 2)
-0.6V to 4.6V
ESD protection
>2000V
Notes:
1. The reliability of device may be impaired by exposing to extreme maximum rating conditions for
long
range of time.
2. Permanent damage may be caused by the stresses higher than the "Absolute Maximum Ratings"
listed.
3. During voltage transitions, all pins may overshoot Vss to -2.0V and Vcc to +2.0V for periods up
to 20ns, as shown in Figure 34. Maximum Negative Overshoot Waveform and Figure 35.
Maximum Positive Overshoot Waveform.
Figure 34. Maximum Negative Overshoot Waveform Figure 35. Maximum Positive Overshoot Waveform
20ns
20ns
20ns
Vss
Vcc + 2.0V
Vss-2.0V
Vcc
20ns
20ns
P/N: PM2133
20ns
REV. 1.2, May 27, 2016
56
MX30LF1G18AC
Table 10. Operating Range
VCC
Tolerance
+3.3V
2.7 - 3.6V
Temperature
-40°C to +85°C
Table 11. DC Characteristics
Symbol
Parameter
Test Conditions
Min.
Typical
Max.
Unit Notes
VIL
Input low level
-0.3
0.2VCC
V
VIH
Input high level
0.8VCC
VCC + 0.3
V
0.2
V
VOL
VOH
ISB1
ISB2
ICC0
ICC1
ICC2
ICC3
IOL= 2.1mA, VCC=
VCC Min.
IOH= -400uA, VCC=
Output high voltage
VCC-0.2
VCC Min.
CE# = VCC -0.2V,
VCC standby current (CMOS)
WP# = 0/VCC
CE# = VIH Min.,
VCC standby current (TTL)
WP# = 0/VCC
Power on current (Including
POR current)
VCC active current
tRC Min., CE# = VIL,
(Sequential Read)
IOUT= 0mA
VCC active current
(Program)
Output low voltage
VCC active current (Erase)
V
10
50
uA
1
mA
50
mA
15
30
mA
15
30
mA
15
30
mA
ILI
Input leakage current
VIN= 0 to VCC Max.
+/- 10
uA
ILO
Output leakage current
VOUT= 0 to VCC
Max.
+/- 10
uA
ILO
Output current of R/B# pin
(R/B#)
VOL=0.4V
8
P/N: PM2133
10
mA
REV. 1.2, May 27, 2016
57
MX30LF1G18AC
Table 12. Capacitance
TA = +25°C, F = 1 MHz
Symbol
Parameter
CIN
COUT
Typ.
Max.
Units
Conditions
Input capacitance
10
pF
VIN = 0 V
Output capacitance
10
pF
VOUT = 0 V
Table 13. AC Testing Conditions
Testing Conditions
Value
Unit
0 to VCC
V
1TTL+CL(50)
pF
5
VCC/2
VCC/2
ns
V
V
Input pulse level
Output load capacitance
Input rise and fall time
Input timing measurement reference levels
Output timing measurement reference levels
Table 14. Program and Erase Characteristics
Symbol
tPROG
tCBSY (Program)
tRCBSY (Read)
tDBSY
tFEAT
tOBSY
tPBSY
NOP
tERASE (Block)
Parameter
Page programming time
Dummy busy time for cache program
Dummy busy time for cache read
The busy time for two-plane program/erase operation
The busy time for Set Feature/ Get Feature
The busy time for OTP program at OTP protection mode
The busy time for program/erase at protected blocks
Number of partial program cycles in same page
Block erase time
P/N: PM2133
Min. Typ. Max. Unit Note
300
5
3.5
0.5
1
600
us
600
us
25
us
1
us
1
us
30
us
3
us
4 cycles
3.5
ms
REV. 1.2, May 27, 2016
58
MX30LF1G18AC
Table 15. AC Characteristics
Symbol
Parameter
Min. Typical
Max.
Unit
Note
tCLS
tCLH
tCS
tCH
tWP
tALS
CLE setup time
CLE hold time
CE# setup time
CE# hold time
Write pulse width
ALE setup time
10
5
15
5
10
10
ns
ns
ns
ns
ns
ns
1
1
1
1
1
1
tALH
ALE hold time
5
ns
1
tDS
Data setup time
7
ns
1
tDH
Data hold time
5
ns
1
tWC
Write cycle time
20
ns
1, 2
tWH
WE# high hold time
7
ns
1
tADL
70
ns
1
tWW
tRR
Last address latched to data loading time during
program operations
WP# transition to WE# high
Ready to RE# falling edge
100
20
ns
ns
1
1
tRP
Read pulse width
10
ns
1
tRC
Read cycle time
20
ns
1
tREA
RE# access time (serial data access)
16
ns
1
tCEA
CE# access time
25
ns
1
tRLOH
RE#-low to data hold time (EDO)
5
ns
tOH
Data output hold time
15
ns
1
tRHZ
RE#-high to output-high impedance
60
ns
1
tCHZ
CE#-high to output-high impedance
50
ns
1
tCOH
CE# high to output hold time
15
ns
tREH
RE# high hold time
7
ns
1
tIR
Output high impedance to RE# falling edge
0
ns
1
tRHW
RE# high to WE# low
60
ns
1
tWHR
WE# high to RE# low
60
ns
1
tR
The data transfering from array to buffer
25
us
1
tWB
WE# high to busy
100
ns
1
tCLR
CLE low to RE# low
10
ns
1
tAR
ALE low to RE# low
10
ns
1
tRST
Device reset time (Idle/ Read/ Program/ Erase)
us
1
5/5/10/500
Note 1. ONFI Mode 5 compliant
P/N: PM2133
REV. 1.2, May 27, 2016
59
MX30LF1G18AC
8. OPERATION MODES: LOGIC AND COMMAND TABLES
Address input, command input and data input/output are managed by the CLE, ALE, CE#, WE#, RE# and
WP# signals, as shown in Table 16. Logic Table below.
Program, Erase, Read and Reset are four major operations modes controlled by command sets, please refer
to Table 17. HEX Command Table.
Table 16. Logic Table
Mode
CE#
RE#
Address Input (Read Mode)
L
Address Input (Write Mode)
WE#
CLE
ALE
WP#
H
L
H
X
L
H
L
H
H
Command Input (Read Mode)
L
H
H
L
X
Command Input (Write Mode)
L
H
H
L
H
Data Input
L
H
L
L
H
Data Output
L
H
L
L
X
During Read (Busy)
X
H
H
L
L
X
During Programming (Busy)
X
X
X
X
X
H
During Erasing (Busy)
X
X
X
X
X
H
Program/Erase Inhibit
X
X
X
X
X
L
Stand-by
H
X
X
X
X
0V/VCC
Notes:
1. H = VIH; L = VIL;
X = VIH or VIL
2. WP# should be biased to CMOS high or CMOS low for stand-by.
P/N: PM2133
REV. 1.2, May 27, 2016
60
MX30LF1G18AC
Table 17. HEX Command Table
Read Mode
Random Data Input
Random Data Output
Cache Read Random
Cache Read Sequential
Cache Read End
ID Read
Parameter Page Read (ONFI)
Unique ID Read (ONFI)
Set Feature (ONFI)
Get Feature (ONFI)
Reset
Page Program
Cache Program
Block Erase
Status Read
Block Protection Status Read
First Cycle
Second Cycle
00H
85H
05H
00H
31H
3FH
90H
ECH
EDH
EFH
EEH
FFH
80H
80H
60H
70H
7AH
30H
E0H
31H
10H
15H
D0H
-
Acceptable While Busy
V
V
Caution: None of the undefined command inputs can be accepted except for the command set in the
above table.
P/N: PM2133
REV. 1.2, May 27, 2016
61
MX30LF1G18AC
8-1. R/B#: Termination for The Ready/Busy# Pin (R/B#)
The R/B# is an open-drain output pin and a pull-up resistor is necessary to add on the R/B# pin. The R/B#
outputs the ready/busy status of read/program/ erase operation of the device. When the R/B# is at low, the
device is busy for read or program or erase operation. When the R/B# is at high, the read/program/erase
operation is finished.
Rp Value Guidence
The rise time of the R/B# signal depends on the combination of Rp and capacitive loading of the R/B# circuit.
It is approximately two times constants (Tc) between the 10% and 90% points on the R/B# waveform.
TC = R × C
Where R = Rp (Resistance of pull-up resistor), and C = CL (Total capacitive load)
The fall time of the R/B# signal majorly depends on the output impedance of the R/B# signal and the total
load capacitance.
Rp (Min.) =
Vcc (Max.) - VOL (Max.)
IOL+ΣIL
Notes:
1. Considering of the variation of device-by-device, the above data is for reference to decide the
resistor value.
2. Rp maximum value depends on the maximum permissible limit of tr.
3. IL is the total sum of the input currents of all devices tied to the R/B pin.
P/N: PM2133
REV. 1.2, May 27, 2016
62
MX30LF1G18AC
Figure 36. R/B# Pin Timing Information
@ Vcc = 3.3 V, Ta = 25°C, CL=100pF
Tc
800
800ns
600
400
400ns
200
2k
4k
6k
8k
Rp (ohm)
@ Vcc = 3.3 V, Ta = 25°C, CL=100pF
1.6
ibusy 1mA
0.83
0.4mA
0.55
0.41
2k
4k
6k
8k
Rp (ohm)
VCC
VCC
Device
Ready State
Rp
CL
R/B#
~90%
VCC
~90%
VOH
VOH
VOL
VOL
~10%
VSS
tf
P/N: PM2133
Busy State
~10%
tr
REV. 1.2, May 27, 2016
63
MX30LF1G18AC
8-2. Power On/Off Sequence
After the Chip reaches the power on level (Vth = Vcc min.), the internal power on reset sequence will be
triggered. During the internal power on reset period, no any external command is accepted. There are two
ways to identify the termination of the internal power on reset sequence. Please refer to Figure 37. Power
On/Off Sequence.
•
R/B# pin
•
Wait 1 ms
During the power on and power off sequence, it is recommended to keep the WP# = Low for internal data
protection.
Figure 37. Power On/Off Sequence
VCC (Min.)
Vcc
WP#
CE#
WE#
1 ms (Max.)
10us (Max.)
R/B#
P/N: PM2133
REV. 1.2, May 27, 2016
64
MX30LF1G18AC
8-2-1. WP# Signal
WP# going Low can cause program and erase operations automatically reset.
The enabling & disabling of the both operations are as below:
Figure 38-1. Enable Programming of WP# Signal
WE#
IO[7:0]
WP#
Figure 38-2. Disable Programming of WP# Signal
80h
10h
tWW
WE#
IO[7:0]
80h
10h
tWW
WP#
Figure 38-3. Enable Erasing of WP# Signal
WE#
IO[7:0]
WP#
Figure 38-4. Disable Erasing of WP# Signal
60h
D0h
tWW
WE#
IO[7:0]
60h
D0h
tWW
WP#
P/N: PM2133
REV. 1.2, May 27, 2016
65
MX30LF1G18AC
9. SOFTWARE ALGORITHM
9-1. Invalid Blocks (Bad Blocks)
The bad blocks are included in the device while it gets shipped. During the time of using the device, the
additional bad blocks might be increasing; therefore, it is recommended to check the bad block marks
and avoid using the bad blocks. Furthermore, please read out the bad block information before any erase
operation since it may be cleared by any erase operation.
Figure 39. Bad Blocks
Bad Block
Bad Block
While the device is shipped, the value of all data bytes of the good blocks are FFh. The 1st bytes of the
1st and 2nd page in the spare area for bad block will be 00h. The erase operation at the bad blocks is not
recommended.
After the device is installed in the system, the bad block checking is recommended. Figure 40. Bad Block
Test Flow shows the brief test flow by the system software managing the bad blocks while the bad blocks
were found. When a block gets damaged, it should not be used any more.
Due to the blocks are isolated from bit-line by the selected gate, the performance of good blocks will not be
impacted by bad ones.
Table 18. Valid Blocks
Density
Valid (Good)
Block Number
1Gb
Min.
Typ.
1004
P/N: PM2133
Max.
Unit
1024
Block
Remark
Block 0 is guaranteed to be
good at least 1K P/E cycle
(with ECC).
REV. 1.2, May 27, 2016
66
MX30LF1G18AC
9-2. Bad Block Test Flow
Although the initial bad blocks are marked by the flash vendor, they could be inadvertently erased and
destroyed by a user that does not pay attention to them. To prevent this from occurring, it is necessary to
always know where any bad blocks are located. Continually checking for bad block markers during normal
use would be very time consuming, so it is highly recommended to initially locate all bad blocks and build a
bad block table and reference it during normal NAND flash use. This will prevent having the initial bad block
markers erased by an unexpected program or erase operation. Failure to keep track of bad blocks can be
fatal for the application. For example, if boot code is programmed into a bad block, a boot up failure may
occur. Figure 40. Bad Block Test Flow shows the recommended flow for creating a bad block table.
Figure 40. Bad Block Test Flow
Start
Block No. = 0
Yes
(Note1)
Read 00h
Check
Create (or Update)
Bad Block Table
No
Block No. = Block No. + 1
Block No. = 1023
No
Yes
End
Note 1: Read 00h check is at the 1st byte of the 1st and 2nd pages of the block spare area.
9-3. Failure Phenomena for Read/Program/Erase Operations
The device may fail during a Read, Program or Erase operation. The following possible failure modes should
be considered when implementing a highly reliable system:
Table 19. Failure Modes
Failure Mode
Detection and Countermeasure
Sequence
Erase Failure
Status Read after Erase
Block Replacement
Programming Failure
Read Failure
Status Read after Program
Read Failure
Block Replacement
ECC
P/N: PM2133
REV. 1.2, May 27, 2016
67
MX30LF1G18AC
9-4. Program
It is feasible to reprogram the data into another page (Page B) when an error occurred in Page A by loading
from an external buffer. Then create a bad block table or by using another appropriate scheme to prevent
further system accesses to Page A.
Figure 41. Failure Modes
Program error occurs in Page A
Buffer
Memory
Block
Another good block
Page B
Figure 42. Program Flow Chart
Start
Command 80h
Program
Command
Flow
Set Address
Write Data
Write 10h
Read Status Register
No
SR[6] = 1 ?
(or R/B# = 1 ?)
Yes
* Program Error
No
SR[0] = 0 ?
Yes
Program Completed
9-5. Erase
To prevent future accesses to this bad block, it is feasible to create a table within the system or by using
another appropriate scheme when an error occurs in an Erase operation.
P/N: PM2133
REV. 1.2, May 27, 2016
68
MX30LF1G18AC
Figure 43. Erase Flow Chart
Start
Command 60h
Set Block Address
Command D0h
Read Status Register
No
SR[6] = 1 ?
(or R/B# = 1 ?)
Yes
No
SR[0] = 0 ?
* Erase Error
Yes
Erase Completed
*
The failed blocks will be identified and given errors
in status register bits for attempts on erasing them.
Figure 44. Read Flow Chart
Start
Command 00h
Set Address
Command 30h
Read Status Register
SR[6] = 1 ?
(or R/B# = 1 ?)
No
Yes
Read Data Out
ECC Generation
ECC handling
by the host controller
Verify ECC
No
Reclaim the Error
Yes
Page Read Completed
P/N: PM2133
REV. 1.2, May 27, 2016
69
MX30LF1G18AC
10. PACKAGE INFORMATION
P/N: PM2133
REV. 1.2, May 27, 2016
70
MX30LF1G18AC
Title: Package Outline for 63-VFBGA (9x11x1.0mm, Ball-pitch: 0.8mm, Ball-diameter: 0.45mm)
P/N: PM2133
REV. 1.2, May 27, 2016
71
MX30LF1G18AC
11. REVISION HISTORY
Rev. No.
Descriptions Page
Date
0.01
P42
P46
P57
SEP/04/2014
1. Corrected the value of byte#6-9 of ONFI parameter page
2. Revised the IO3 of feature address 90h from "x" to "reserved (0)"
3. Revised the typical spec of tCBSY from 3us to 5us and tRCBSY
from 2us to 3.5us
0.02
1. Revised title of "Advanced Information" to "Preliminary"
ALL
DEC/30/2014
2. Corrected tALS timing waveform as ALE high till WE# high
P25,53
3. Added Figure 33 PT Pin and Block Protection Mode Operation
P55
4. ICC1/ICC2 (typical) are improved from 20mA to 15mA
P57
5. Revised the bad block mark from non-FFh to 00h,
also revised the page of bad block mark from 1st or 2nd page
to 1st and 2nd page
P66,67
1.0
1. Removed "Preliminary" title
ALL
FEB/02/2015
1.1
1. Added negative overshoot/positive overshoot waveforms
P56
JUN/30/2015
1.2
1. Added the tRST=5us for the device reset time from idle
P59
MAY/27/2016
2. Modification of the power-on/off sequence: supplement the
CE# signal, supplement the WE# single waveform with WE#=0
without toggle during the power-on period.
P64
3. Modified wording of "at least 1K P/E(with ECC) "on block#0
P66
P/N: PM2133
REV. 1.2, May 27, 2016
72
MX30LF1G18AC
Except for customized products which have been expressly identified in the applicable agreement, Macronix's products
are designed, developed, and/or manufactured for ordinary business, industrial, personal, and/or household applications only, and not for use in any applications which may, directly or indirectly, cause death, personal injury, or severe
property damages. In the event Macronix products are used in contradicted to their target usage above, the buyer shall
take any and all actions to ensure said Macronix's product qualified for its actual use in accordance with the applicable
laws and regulations; and Macronix as well as it’s suppliers and/or distributors shall be released from any and all liability arisen therefrom.
Copyright© Macronix International Co., Ltd. 2015-2016. All rights reserved, including the trademarks and tradename
thereof, such as Macronix, MXIC, MXIC Logo, MX Logo, Integrated Solutions Provider, NBit, Nbit, NBiit, Macronix NBit,
eLiteFlash, HybridNVM, HybridFlash, XtraROM, Phines, KH Logo, BE-SONOS, KSMC, Kingtech, MXSMIO, Macronix
vEE, Macronix MAP, Rich Audio, Rich Book, Rich TV, and FitCAM. The names and brands of third party referred thereto (if
any) are for identification purposes only.
For the contact and order information, please visit Macronix’s Web site at: http://www.macronix.com
MACRONIX INTERNATIONAL CO., LTD.
http://www.macronix.com
MACRONIX INTERNATIONAL CO., LTD. reserves the right to change product and specifications without notice.
P/N: PM2133
REV. 1.2, May 27, 2016
73
工商网监
湘ICP备2023018690号
