MX35LF1GE4AB
MX35LF2GE4AB
3V, 1Gb/2G-bit Serial NAND Flash Memory
MX35LFxGE4AB
REV. 1.7, April 23, 2019
P/N: PM2128
1
MX35LF1GE4AB
MX35LF2GE4AB
Contents
1. FEATURES..........................................................................................................................................5
2. GENERAL DESCRIPTIONS................................................................................................................6
Figure 1. Logic Diagram......................................................................................................................... 6
3. ORDERING INFORMATION................................................................................................................7
4. BALL ASSIGNMENT AND DESCRIPTIONS......................................................................................8
Figure 2. 16-SOP (300mil)..................................................................................................................... 8
5. PIN DESCRIPTIONS...........................................................................................................................8
Figure 3. 8-WSON (8x6mm) (1Gb only)................................................................................................ 8
6. DEVICE OPERATION..........................................................................................................................9
Figure 4. Serial Mode Supported........................................................................................................... 9
7. ADDRESS MAPPING........................................................................................................................10
8. COMMAND DESCRIPTION...............................................................................................................11
Table 1. Command Set..........................................................................................................................11
8-1. WRITE Operations................................................................................................................12
8-1-1. Write Enable ............................................................................................................................. 12
Figure 5. Write Enable (WREN) Sequence ......................................................................................... 12
8-1-2. Write Disable (04h)................................................................................................................... 12
Figure 6. Write Disable (WRDI) Sequence ........................................................................................ 12
8-2. Feature Operations...............................................................................................................13
8-2-1. GET Feature (0Fh) and SET Feature (1Fh)............................................................................. 13
Table 2-1. Feature Settings (For 2Gb)................................................................................................. 13
Table 2-2. Feature Settings (For 1Gb)................................................................................................. 13
Figure 7. GET FEATURE (0Fh) Timing................................................................................................ 14
Figure 8. SET FEATURE (1Fh) Timing................................................................................................ 14
8-3. READ Operations..................................................................................................................15
8-3-1. PAGE READ (13h)..................................................................................................................... 15
Table 3. Wrap Address bit Table (Only for 1Gb)................................................................................... 15
8-3-2. QE bit......................................................................................................................................... 15
Figure 9. PAGE READ (13h) Timing x1............................................................................................... 16
Figure 10. RANDOM DATA READ (03h or 0Bh) Timing...................................................................... 17
Figure 11. READ FROM CACHE x 2................................................................................................... 18
Figure 12. READ FROM CACHE x 4................................................................................................... 19
REV. 1.7, April 23, 2019
P/N: PM2128
2
MX35LF1GE4AB
MX35LF2GE4AB
8-3-3. Page Read Cache Sequential (31h) / Page Read Cache End (3Fh) - For 1G Only....................... 20
Figure 13. Page Read Cache Sequential (31h)................................................................................... 20
Figure 14. Page Read Cache End (3Fh).............................................................................................. 21
8-3-4. READ ID (9Fh)........................................................................................................................... 22
Table 4. READ ID Table....................................................................................................................... 22
Figure 15. READ ID (9Fh) Timing........................................................................................................ 22
8-4. Parameter Page.....................................................................................................................23
Table 5. Parameter Page Data Structure............................................................................................. 24
8-5. UniqueID Page......................................................................................................................25
8-6. Internal ECC Status Read (For 1Gb only)...........................................................................26
Table 6-1. The ECCSR (Internal ECC Status Register) Bits................................................................ 26
Table 6-2. The Definition of Internal ECC Status................................................................................. 26
Figure 16. The Page Structure and Internal ECC Segments............................................................... 26
Figure 17. The Sequence of Internal ECC Status Read...................................................................... 27
8-7. Program Operations.............................................................................................................28
8-7-1. PAGE PROGRAM...................................................................................................................... 28
Figure 18. PROGRAM LOAD (02h) Timing.......................................................................................... 28
Figure 19. PROGRAM LOAD RANDOM DATA (84h) Timing............................................................... 29
8-7-2. QUAD IO PAGE PROGRAM...................................................................................................... 30
Figure 20. PROGRAM LOAD X4 (32h) Timing.................................................................................... 30
Figure 21. QUAD IO PROGRAM RANDOM INPUT (34h) Timing....................................................... 31
Figure 22. PROGRAM EXECUTE (10h) Timing.................................................................................. 32
9. BLOCK OPERATIONS......................................................................................................................33
9-1. Block Erase (D8h).................................................................................................................33
Figure 23. Block Erase (BE) Sequence .............................................................................................. 33
10. Feature Register.............................................................................................................................34
10-1. Block Protection Feature.....................................................................................................34
Table 7-1. Definition of Protection Bits (BPx) (For 2Gb)....................................................................... 35
Table 7-2. Definition of Protection Bits (For 1Gb)................................................................................. 35
10-2. Secure OTP (One-Time-Programmable) Feature...............................................................36
Table 8. Secure OTP States................................................................................................................. 36
10-3. Status Register.....................................................................................................................37
Table 9. Status Register Bit Descriptions............................................................................................. 37
REV. 1.7, April 23, 2019
P/N: PM2128
3
MX35LF1GE4AB
MX35LF2GE4AB
11. SOFTWARE ALGORITHM...............................................................................................................38
11-1. Invalid Blocks (Bad Blocks) ................................................................................................38
Figure 24. Bad Blocks.......................................................................................................................... 38
Table 10. Valid Blocks.......................................................................................................................... 38
11-2. Bad Block Test Flow.............................................................................................................39
Figure 25. Bad Block Test Flow............................................................................................................ 39
11-3. Failure Phenomena for Read/Program/Erase Operations................................................39
Table 11. Failure Modes....................................................................................................................... 39
11-3-1. Internal ECC Enabled/Disabled ............................................................................................ 40
Table 12. The Distribution of ECC Segment and Spare Area.............................................................. 40
12. DEVICE POWER-UP.......................................................................................................................41
12-1. Power-up...............................................................................................................................41
Figure 26. Power On Sequence .......................................................................................................... 41
13. PARAMETERS.................................................................................................................................42
13-1. ABSOLUTE MAXIMUM RATINGS........................................................................................42
Figure 27. Maximum Negative Overshoot Waveform.......................................................................... 42
Table 13. AC Testing Conditions.......................................................................................................... 42
Table 14. Capacitance.......................................................................................................................... 42
Table 15. Operating Range.................................................................................................................. 42
Figure 28. Maximum Positive Overshoot Waveform............................................................................ 42
Table 16. DC Characteristics ............................................................................................................... 43
Table 17. General Timing Characteristics............................................................................................ 43
Table 18. PROGRAM/READ/ERASE Characteristics.......................................................................... 43
Figure 29. WP# Setup Timing and Hold Timing during SET FEATURE when BPRWD=1................... 44
Figure 30. Serial Input Timing.............................................................................................................. 44
Figure 31. Serial Output Timing........................................................................................................... 44
Figure 32. Hold Timing......................................................................................................................... 45
14-1. 8-WSON (8x6mm), E.P. 3.4x4.3mm, Recommended for new design................................46
14. PACKAGE INFORMATION..............................................................................................................46
14-2. 16-SOP (300mil)....................................................................................................................47
15. REVISION HISTORY .......................................................................................................................48
REV. 1.7, April 23, 2019
P/N: PM2128
4
MX35LF1GE4AB
MX35LF2GE4AB
3V, 1Gb/2Gb Serial NAND Flash Memory
1. FEATURES
• 1Gb/2Gb
SLC NAND Flash
• BP bits for block group protection
• Low Power Dissipation
- Max 30mA
Active current (Read/Program/Erase)
• Sleep Mode
- 50uA (Max) standby current
• High Reliability
- Program / Erase Endurance: Typical 100K cycles
(with internal 4-bit ECC per (512+16) Byte
- Data Retention: 10 years
• Wide Temperature Operating Range
-40°C to +85°C
• Package:
1) 8-WSON (8x6mm) for 1Gb
2)16-SOP (300mil) for 2Gb
All packaged devices are RoHS Compliant and
Halogen-free.
- Bus: x4
- Page size: (2048+64) byte
- Block size: (128K+4K) byte
• Fast Read Access
- Supports Random data read out by x1 x2 &
x4 modes, (1-1-1,1-1-2, 1-1-4)Note 2
- Latency of array to register: 25usNote1
- Frequency: 104MHz
• Page Program Operation
- Page program time: 300us (typ)Note1
• Block Erase Operation
- Block erase time: 1ms (typ.)
• Single Voltage Operation:
- VCC: 2.7 to 3.6V
Note 1. Please refer to the tRD_ECC and
tPROG_ECC specifications if internal ECC
function is turned on.
Note 2. Which indicates the number of I/O for
command, address and data.
REV. 1.7, April 23, 2019
P/N: PM2128
5
MX35LF1GE4AB
MX35LF2GE4AB
2. GENERAL DESCRIPTIONS
The MX35LFxGE4AB is a 1Gb/2Gb SLC NAND Flash memory device with Serial interface.
The memory array of this device adopted the same cell architecture as the parallel NAND, however
implementing the industry standard serial interface.
An internal 4-bit ECC logic is implemented in the chip, which is enabled by default. The internal ECC can be
disabled or enabled again by command. When the internal 4-bit ECC logic is disabled, the host side needs
to handle the 4-bit ECC by host micro controller.
Figure 1. Logic Diagram
SI/SIO0
CS#
SCLK#
1Gb
2Gb
SO/SIO1
WP#/SIO2
ECC
Logic
HOLD#/SIO3
REV. 1.7, April 23, 2019
P/N: PM2128
6
MX35LF1GE4AB
MX35LF2GE4AB
3. ORDERING INFORMATION
Part Name Description
Macronix NAND Flash devices are available in different configurations and densities. Verify valid part
numbers by using Macronix’s product search at http://www.Macronix.com. Contact Macronix sales for
devices not found.
MX 35 L F 2G E4A B - M
I
XX
RESERVE
OPERATING TEMPERATURE:
I: Industrial (-40°C to 85°C)
PACKAGE TYPE:
Z4: 8-WSON (8x6mm, E.P.= 3.4x4.3mm)
M: 16-SOP (300mil)
Package: RoHS Compliant & Halogen-free
GENERATION (Tech. Code): B
OPTION CODE:
E4A = Quad I/O (x4), Internal ECC default enabled, Mode A
DENSITY:
1G= 1Gb bit
2G= 2Gb bit
CLASSIFICATION:
F = SLC + Large Block
VOLTAGE:
L = 2.7V to 3.6V
TYPE:
35 = Serial NAND Flash
BRAND: MX
Please contact Macronix regional sales for the latest product selection and available form factors.
Density
Organization
VCC Range
Package
Temperature
Grade
MX35LF2GE4AB-MI
2Gb
x4
3V
16-SOP
Industrial

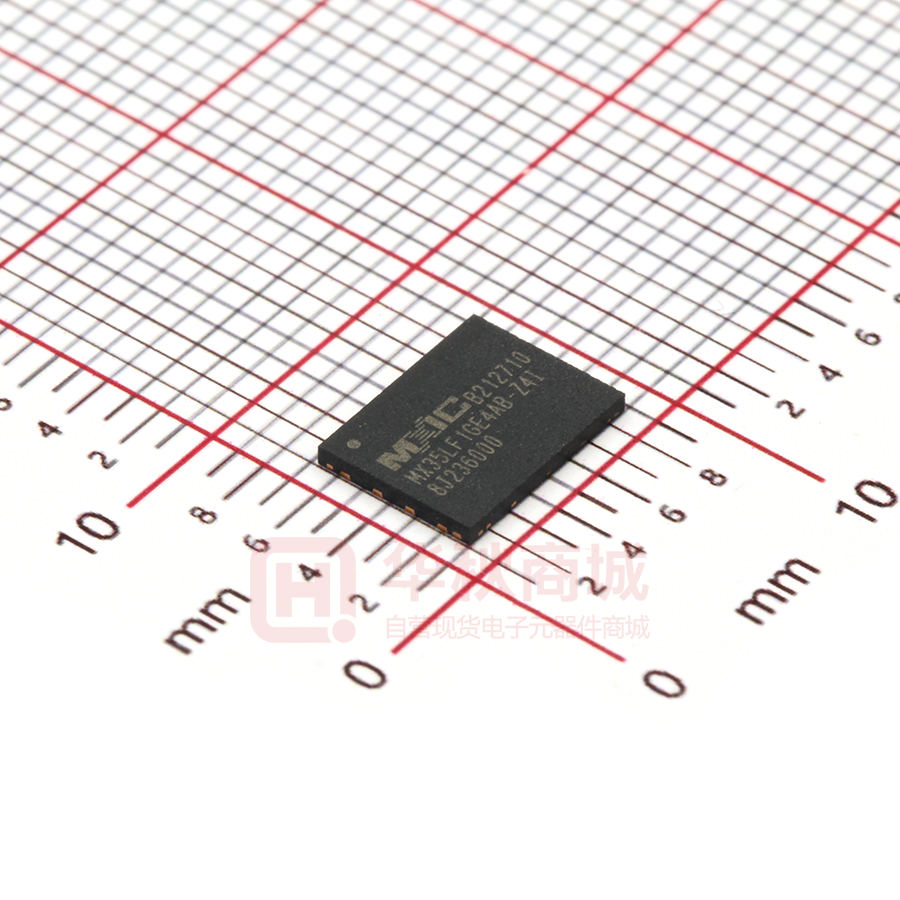

MX35LF1GE4AB-Z4I
1Gb
x4
3V
8-WSON
(E.P.=3.4x4.3mm)
Industrial
Part Number
REV. 1.7, April 23, 2019
P/N: PM2128
7
MX35LF1GE4AB
MX35LF2GE4AB
4. BALL ASSIGNMENT AND DESCRIPTIONS
Figure 3. 8-WSON (8x6mm) (1Gb only)
Figure 2. 16-SOP (300mil)
HOLD#/ SIO3
VCC
DNU
NC
NC
NC
CS#
SO/SIO1
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
SCLK
SI/SIO0
DNU
NC
NC
NC
GND
WP#/SIO2
CS#
SO/SIO1
WP#/SIO2
GND
1
2
3
4
8
7
6
5
VCC
HOLD#/SIO3
SCLK
SI/SIO0
5. PIN DESCRIPTIONS
SYMBOL
CS#
SI/SIO0
SO/SIO1
SCLK
WP#/SIO2
HOLD#/SIO3
VCC
GND
NC
DNU
DESCRIPTION
Chip Select
Serial Data Input (for 1 x I/O)/ Serial Data Input
& Output (for 2xI/O or 4xI/O read mode)
Serial Data Output (for 1 x I/O)/ Serial Data Input
& Output (for 2xI/O or 4xI/O read mode)
Clock Input
Write protection: connect to GND or Serial Data
Input & Output (for 4xI/O read mode)
Hold or Serial Data Input & Output (for 4xI/O
read mode)
+ 3V Power Supply
Ground
No Connection
Do not use
REV. 1.7, April 23, 2019
P/N: PM2128
8
MX35LF1GE4AB
MX35LF2GE4AB
6. DEVICE OPERATION
1. Before a command is issued, status register should be checked via get features operations to ensure
device is ready for the intended operation.
2. When incorrect command is inputted to this device, this device becomes standby mode and keeps the
standby mode until next CS# falling edge. In standby mode, SO pin of this device should be High-Z.
3. When correct command is inputted to this device, this device becomes active mode and keeps the
active mode until next CS# rising edge.
4. Input data is latched on the rising edge of Serial Clock (SCLK) and data shifts out on the falling edge of
SCLK. The difference of Serial mode 0 and mode 3 is shown as "Figure 4. Serial Mode Supported".
5. During the progress of Write Status Register, Program, Erase operation, to access the memory array is
neglected and not affect the current operation of Write Status Register, Program, Erase.
Figure 4. Serial Mode Supported
CPOL
CPHA
shift in
(Serial mode 0)
0
0
SCLK
(Serial mode 3)
1
1
SCLK
SI
shift out
MSB
SO
MSB
REV. 1.7, April 23, 2019
P/N: PM2128
9
MX35LF1GE4AB
MX35LF2GE4AB
Macronix Confidential
7. ADDRESS MAPPING
block# 2047Note1
Byte# 2111
Page# 63
block# 0
Block address
Page# 0
Note2
2Gb: RA[16:6]
1Gb: RA[15:6]
Page address
RA[5:0]
Byte# 0
Byte address
CA[11:0]
Note 1: 2047 for 2Gb, 1023 for 1Gb
Note 2: RA[6] is for plane select, for 2Gb
REV. 1.7, April 23, 2019
P/N: PM2128
10
MX35LF1GE4AB
MX35LF2GE4AB
8. COMMAND DESCRIPTION
Table 1. Command Set
Read/Write Array Commands
Command
Type
Command
Code
Address Bytes
Dummy Bytes
Data Bytes
Actions
Command
Type
Command
Code
Address Bytes
Dummy Bytes
Data Bytes
Command
Type
Command
Code
Address Bytes
Dummy Bytes
Data Bytes
SET FEATURE PAGE READ
READ FROM
CACHE
READ FROM
CACHE x2
0Fh
1Fh
13h
03h, 0Bh
3Bh
1
0
1
1
0
1
3
0
0
Get features
Set features
Array read
2
1
1 to 2112
Output cache data
on SO
2
1
1 to 2112
Output cache data on
SI and SO
READ FROM
PAGE
PAGE
READ ID
CACHE x4 Read Cache Read Cache
Sequential
End
(Note1)
(Note1)
6Bh
31h
3Fh
2
1
1 to 2112
0
0
1 to 2112
The next
page data is
transferred to
buffer
Output cache
data on SI, SO,
WP#, HOLD#
Actions
Actions
GET
FEATURE
PROGRAM PROGRAM
LOAD
LOAD
RANDOM
DATA
02h
84h
2
2
0
0
1 to 2112
1 to 2112
Load program
Load program
data with
data without
cache reset
cache reset
first
9Fh
Internal
ECC
Status
Read (Note2)
BLOCK
ERASE
PROGRAM
EXECUTE
7Ch
D8h
10h
0
0
0
3
3
0
1
1
0
0
1 to 2112
2
1
0
0
The last
Enter
page data is
Read
Internal ECC
block/page
Block erase
transferred to device ID Status Output
address, no
buffer
data, execute
WRITE
ENABLE
WRITE
DISABLE
PROGRAM PROGRAM
LOAD x4
LOAD
RANDOM
DATA x4
06h
04h
32h
0
0
0
0
0
0
2
0
1 to 2112
34h
2
0
1 to 2112
Program Load
Program Load
random data
operation with
operation with
X4 data input
X4 data input
RESET
FFh
0
0
0
Reset the
device
Notes:
1. The 31h & 3Fh command are only for 1Gb.
2.The 7Ch command is only for 1Gb. For the internal ECC status, which may also check by the
Get feature command operation.
REV. 1.7, April 23, 2019
P/N: PM2128
11
MX35LF1GE4AB
MX35LF2GE4AB
8-1. WRITE Operations
8-1-1. Write Enable
The Write Enable (WREN, 06h) instruction is for setting Write Enable Latch (WEL) bit. For those instructions
like Page Program, Secure OTP program, Block Erase, which are intended to change the device content
WEL bit should be set every time after the WREN instruction setting the WEL bit.
The sequence of issuing WREN instruction is: CS# goes low→sending WREN instruction code→ CS# goes
high.
Figure 5. Write Enable (WREN) Sequence
CS#
Mode 3
0
1
2
3
4
5
6
7
SCLK
Mode 0
Command
SI
06h
High-Z
SO
8-1-2. Write Disable (04h)
The Write Disable (WRDI, 04h) instruction is to reset Write Enable Latch (WEL) bit.
The sequence of issuing WRDI instruction is: CS# goes low→sending WRDI instruction code→CS# goes
high. It disables the following operations:
• Block Erase
• Secure OTP program
• Page program
Figure 6. Write Disable (WRDI) Sequence
CS#
Mode 3
0
1
2
3
4
5
6
7
SCLK
Mode 0
Command
SI
04h
High-Z
SO
REV. 1.7, April 23, 2019
P/N: PM2128
12
MX35LF1GE4AB
MX35LF2GE4AB
8-2. Feature Operations
8-2-1. GET Feature (0Fh) and SET Feature (1Fh)
By issuing a one byte address into the feature address, the device may then decide if it's a feature read or
feature modification. (0Fh) is for the "GET FEATURE"; (1Fh) is for the "SET FEATURE".
The RESET command (FFh) will not clear the previous feature setting, the feature setting data bits remain
until the power is being cycled or modified by the settings in the table below. After a RESET command
(FFh) is issued, the Status register OIP bit0 will go high. This bit can be polled to determine when the Reset
operation is complete, as it will return to the default value (0) after the reset operation is finished. Issuing the
RESET command (FFh) has no effect on the Block Protection and Configuration registers.
The Block Protection and Configuration registers (except Secure OTP Protect bit of 1Gb) will return to their
default state after a power cycle, and can also be changed using the Set Feature command. Issuing the Get
Feature command to read the selected register value will not affect register content.
Table 2-1. Feature Settings (For 2Gb)
Register
Address
bit7
Configuration
B0h
Status
C0h
Secure
OTP
Protect
Reserved
Block
Protection
A0h
BPRWD1
bit6
Secure
OTP
Enable
Reserved
Reserved
Data Bits
bit4
bit3
bit5
bit2
bit1
bit0
Reserved
ECC
enabled
Reserved
Reserved
Reserved
QE
ECC_S1
ECC_S0
P_Fail
E_Fail
WEL
OIP
BP2
BP1
BP0
Reserved
Reserved Reserved
Note 1: If BPRWD is enabled and WP# is LOW, then the block protection register cannot be changed.
Table 2-2. Feature Settings (For 1Gb)
Register
Address
Secure
OTP
B0h
Status
C0h
Secure
Secure
OTP
OTP
Reserved
Protect
Enable
Reserved Reserved ECC_S1
Block
Protection
A0h
BPRWD1
bit7
bit6
Reserved
bit5
BP2
Data Bits
bit4
bit3
ECC
enabled
bit2
Reserved Reserved
bit1
bit0
Reserved
QE
ECC_S0
P_Fail
E_Fail
WEL
OIP
BP1
BP0
Invert
Complementary
SP2
Note 1: If BPRWD is enabled and WP# is LOW, then the block protection register cannot be changed.
Note 2: SP bit is for Solid-protection. Once the SP bit sets as 1, the rest of the protection bits (BPx bits,
Invert bits, complementary bits) cannot be changed during the current power cycle.
REV. 1.7, April 23, 2019
P/N: PM2128
13
MX35LF1GE4AB
MX35LF2GE4AB
Figure 7. GET FEATURE (0Fh) Timing
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
2
1
0
16
17
18
19
20
21
22
23
2
1
0
SCLK
Command
Address
7
(0Fh)
SI
6
5
4
MSB
Data
SO
High-Z
7
6
5
4
3
MSB
Don’t Care
Figure 8. SET FEATURE (1Fh) Timing
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SCLK
Command
SI
(1Fh)
Data
Address
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
MSB
MSB
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
14
MX35LF1GE4AB
MX35LF2GE4AB
8-3. READ Operations
The device supports "Power-on Read" function, after power up, the device will automatically load the data of
the 1st page of 1st block from array to cache. The host micro-controller may directly read the 1st page of 1st
block data from the cache buffer. The data is also under the internal ECC protection.
8-3-1. PAGE READ (13h)
The page read operation transfers data from array to cache by issuing the page read (13h)command followed
by the 24-bit address (including the dummy/block/page address).
The device will have a period of time (tRD) being busy after the CS# goes high. The 0Fh (GET FEATURE)
may be used to poll the operation status.
After read operation is completed, the RANDOM DATA READ (03H or 0Bh), Read from cache (x2) (3Bh), and
Read from cache (x4) (6Bh) may be issued to fetch the data.
Wrap Read Operation (Only for 1Gb)
For 1Gb, there are four wrap address bits which define the four wrap length as below table. After the Read
from cache command (03h, 0Bh, 3Bh, 6Bh), setting the wrap address bits, and followed by the 12-bit column
address to define the starting address. The starting address for wrap read only can be 0 - 2112. The data will
be output from the starting address, once it reaches the end of the boundary of wrap length, the data will be
wrap around the beginning starting wrap address until CS# goes high.
Table 3. Wrap Address bit Table (Only for 1Gb)
Wrap [1]
0
0
1
1
Wrap [0]
0
1
0
1
Wrap Length (byte)
2112
2048
64
16
8-3-2. QE bit
The Quad Enable (QE) bit, volatile bit, while it is "0" (factory default), it performs non-Quad and WP#, HOLD#
are enabled. While QE is "1", it performs Quad I/O mode and WP#, HOLD# are disabled. In another word, if
the system goes into four I/O mode (QE=1), the feature of Hardware Protection Mode(HPM) and HOLD will
be disabled. Upon power cycle, the QE bit will go into the factory default setting "0".
REV. 1.7, April 23, 2019
P/N: PM2128
15
MX35LF1GE4AB
MX35LF2GE4AB
Figure 9. PAGE READ (13h) Timing x1
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
13
12
11
10
9
8
7
6
14
15
1
0
SCLK
24-bit Address
Command
SI
23
(13h)
22
21
20
19
18
17
16
15
14
High-Z
SO
A
B
CS#
23
24
25
26
27
28
29
30
0
31
1
2
3
4
5
6
7
8
9
10
11
12
13
SCLK
24-bit Address
SI
8
7
6
5
4
3
t CS
2
1
Status register address (C0h)
GET FEATURES
(0Fh)
0
7
6
5
4
3
2
MSB
Plane select for 2Gb
SO
High-Z
B
CS#
13
14
15
2
1
0
16
17
18
19
20
21
22
23
SCLK
SI
Status register data out
SO
07
MSB
60
5
4
3
2
Status register data out
1
0
7
6
5
4
3
2
1
0
MSB
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
16
MX35LF1GE4AB
MX35LF2GE4AB
Figure 10. RANDOM DATA READ (03h or 0Bh) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SCLK
3 Dummy bits
Command
(03 or 0Bh)
SI
15
Wrap[1:0]
for 1Gb
High-Z
SO
14
13
12-Bit Address
12
11
10
9
8
7
6
1 Dummy byte
5
4
3
2
1
7
0
6
MSB
Plane select
for 2Gb
A
CS#
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
16919...
16927
SCLK
1 Dummy byte
SI
0
7
6
5
4
3
2
1
0
Data OUT 1
SO
High-Z
7
6
5
4
3
MSB
Data OUT 2112
2
1
0
7
6
5
4
3
2
1
0
MSB
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
17
MX35LF1GE4AB
MX35LF2GE4AB
Figure 11. READ FROM CACHE x 2
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SCLK
3 Dummy bits
Command
SI
(3Bh)
15
Wrap[1:0]
for 1Gb
High-Z
SO
14
13
1 Dummy byte
12-Bit Address
12
11
10
9
8
7
6
5
4
3
2
1
0
6
7
MSB
Plane select
for 2Gb
A
CS#
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
8479
8471...
SCLK
SI switches from input to output
1 Dummy byte
SI
SO
0
7
6
5
High-Z
4
3
2
1
0
6
4
2
0
6
4
2
0
6
4
2
0
6
4
2
0
7
5
3
1
7
5
3
1
7
5
3
1
7
5
3
1
Data OUT 2
Data OUT 1
Data OUT 2111
Data OUT 2112
REV. 1.7, April 23, 2019
P/N: PM2128
18
MX35LF1GE4AB
MX35LF2GE4AB
Figure 12. READ FROM CACHE x 4
A
CS#
0
1
2
3
5
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SCLK
3 Dummy bits
Command
SI/
SIO0
15
(6Bh)
SO/
SIO1
High-Z
WP#/
SIO2
High-Z
HOLD#/
SIO3
High-Z
14
Wrap[1:0]
for 1Gb
13
1 Dummy byte
12-Bit Address
12
11
10
9
8
38
39
7
6
5
4
3
2
1
0
7
6
MSB
Plane select
for 2Gb
A
CS#
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
SCLK
SI/
0
SIO0
SI switches from input to output
1 Dummy byte
7
6
5
4
3
2
1
0
4
0
4
0
4
0
4
0
4
SO/
SIO1
High-Z
5
1
5
1
5
1
5
1
5
WP#/
SIO2
High-Z
6
2
6
2
6
2
6
2
6
HOLD#/
SIO3
High-Z
7
3
7
3
7
3
7
3
7
Byte 1
Byte 2
Byte 3
Byte 4
REV. 1.7, April 23, 2019
P/N: PM2128
19
MX35LF1GE4AB
MX35LF2GE4AB
8-3-3. Page Read Cache Sequential (31h) / Page Read Cache End (3Fh) - For 1G Only
The page read cache sequential operation is for throughput enhancement by using the internal cache buffer.
It allows the consecutive pages to be read-out without giving next page address, which reduces the latency
time from tRD to tRCBSY between pages or blocks. While the data is read out on one page, the data of next
page can be read into the cache buffer.
After writing the 13h command and giving the 24-bit address, the device will have a period of time (tRD)
being busy after the CS# goes high. The 0Fh (GET FEATURE) may be used to poll the operation status.
After the status of successfully completed, following the cache read sequential (31h) command being sent
to NAND device; the NAND device will be at a busy time of tRCBSY for the next page data transferring to
cache. And then following the cache read command (03h/0Bh/3Bh/6Bh) may get the prior page data output
from cache at the same time.
To confirm the last page to be read-out during the cache read sequential operation, a 3Fh command is
needed to replace the 31h command prior to the last data-out.
The PAGE READ CACHE SEQUENTIAL command is also valid for the consecutive page cross block.
Figure 13. Page Read Cache Sequential (31h)
A
CS#
1
0
2
3
4
5
6
0
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
0
SCLK
Command
SI
t CS
Status register address (C0h)
GET FEATURES
(0Fh)
(31h)
7
6
5
4
3
2
MSB
SO
High-Z
A
CS#
13
14
15
1
0
16
17
18
19
20
21
22
23
SCLK
SI
2
Status register data out
SO
0
7
MSB
6
0
5
4
3
2
Status register data out
1
0
7
6
5
4
3
2
1
0
MSB
REV. 1.7, April 23, 2019
P/N: PM2128
20
MX35LF1GE4AB
MX35LF2GE4AB
Figure 14. Page Read Cache End (3Fh)
A
CS#
1
0
2
3
4
5
6
0
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
0
SCLK
Command
SI
t CS
Status register address (C0h)
GET FEATURES
(0Fh)
(3Fh)
7
6
5
4
3
2
MSB
SO
High-Z
A
CS#
13
14
15
1
0
16
17
18
19
20
21
22
23
SCLK
SI
2
Status register data out
SO
0
7
MSB
6
0
5
4
3
2
Status register data out
1
0
7
6
5
4
3
2
1
0
MSB
REV. 1.7, April 23, 2019
P/N: PM2128
21
MX35LF1GE4AB
MX35LF2GE4AB
Figure 15. Page Read Cache Flow
Start
Page Read (13h)
Page Read Cache
Sequential (31h)
No
Read from Cache
(03h/0Bh/3Bh/6Bh)
Last Page
to Read Out?
Yes
Page Read Cache
End (3Fh)
Read from Cache
(03h/0Bh/3Bh/6Bh)
End
REV. 1.7, April 23, 2019
P/N: PM2128
22
MX35LF1GE4AB
MX35LF2GE4AB
8-3-4. READ ID (9Fh)
The READ ID command is shown as the table below.
Table 4. READ ID Table
Byte
Description
I/O7
I/O6
I/O5
I/O4
I/O3
I/O2
I/O1
I/O0
Value
Byte 0
Manufacturer ID (Macronix)
1
1
0
0
0
0
1
0
C2h
Byte 1
Device ID (Serial NAND)
0
0
0
1
0
0
1
0
12h (1Gb)
0
0
1
0
0
0
1
0
22h (2Gb)
Figure 16. READ ID (9Fh) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
1
15
16
17
18
19
20
21
22
23
24
25
SCLK
1 Dummy byte
Command
SI
7
(9Fh)
6
5
4
3
0
Device
Identification
Manufacturer Identification (C2h)
High-Z
SO
7
6
5
4
3
2
1
0
7
6
MSB
A
CS#
23
24
25
26
27
28
29
30
31
SCLK
SI
Device Identification
SO
7
6
5
4
3
2
1
0
MSB
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
23
MX35LF1GE4AB
MX35LF2GE4AB
8-4. Parameter Page
The parameter page is accessed by the following command flows:
Issue 1Fh (SET FEATURE) command with Secure OTP enable and ECC disabled (B0h for address & 40h for
data) → Issue 13h (PAGE READ) with 01h address, issue 0Fh (GET FEATURE) with C0h feature address
to poll the status of read completion. → Issue 03h (READ FROM CACHE) with address A[11:0]=000h and
read data → Issue 1Fh (SET FEATURE) with feature address B0h to disable Secure OTP feature (data byte
= 10h or 00h) [exit parameter page read].
REV. 1.7, April 23, 2019
P/N: PM2128
24
MX35LF1GE4AB
MX35LF2GE4AB
Table 5. Parameter Page Data Structure
Byte
0–3
4–5
6–7
8–9
10–31
32–43
44–63
64
65–66
67–79
80–83
84–85
86–89
90–91
92–95
96–99
100
101
102
Description
Parameter page signature
Revision number
Features supported (N/A)
Optional commands supported
Value
4Fh, 4Eh, 46h, 49h
00h, 00h
00h, 00h
06h, 00h
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
Reserved
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h
4Dh,41h,43h,52h,4Fh,4Eh,49h,58h,20h,
Device manufacturer
20h,20h,20h
4Dh, 58h, 33h, 35h, 4Ch, 46h, 31h, 47h,
MX35LF1GE4AB 45h, 34h, 41h, 42h, 20h, 20h, 20h, 20h,
20h, 20h, 20h, 20h
Device model
4Dh, 58h, 33h, 35h, 4Ch, 46h, 32h, 47h,
MX35LF2GE4AB 45h, 34h, 41h, 42h, 20h, 20h, 20h, 20h,
20h, 20h, 20h, 20h
Manufacturer ID
C2h
Date code
00h, 00h
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
Reserved
00h, 00h, 00h, 00h, 00h
Number of data bytes per page
00h, 08h, 00h, 00h
Number of spare bytes per page
40h, 00h
Number of data bytes per partial page
00h, 02h, 00h, 00h
Number of spare bytes per partial page
10h, 00h
Number of pages per block
40h, 00h, 00h, 00h
1Gb
00h, 04h, 00h, 00h
Number of blocks per unit
2Gb
Number of logical units
Number of address cycles (N/A)
Number of bits per cell
1Gb
2Gb
103–104 Bad blocks maximum per unit
105–106
107
108–109
110
111
112
113
114
00h, 08h, 00h, 00h
01h
00h
01h
Block endurance
Guaranteed valid blocks at beginning of target
Block endurance for guaranteed valid blocks
Number of programs per page
Partial programming attributes
Number of ECC bits
Number of interleaved address bits (N/A)
Interleaved operation attributes (N/A)
115–127 Reserved
128
I/O pin capacitance
129–130 Timing mode support (N/A)
14h, 00h
28h, 00h
01h, 05h
01h
00h, 00h
04h
00h
00h
00h
00h
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h
0Ah
00h, 00h
REV. 1.7, April 23, 2019
P/N: PM2128
25
MX35LF1GE4AB
MX35LF2GE4AB
Byte
131–132
133–134
135–136
137–138
139–140
Description
Program cache timing (N/A)
tPROG maximum page program time
BE maximum block erase time
tRD_ECC maximum page read time
tCCS minimum (N/A)
141–163
Reserved
164–165
Vendor-specific revision number
Value
600us
3500us
70us
00h, 00h
58h, 02h
ACh, 0Dh
46h, 00h
00h, 00h
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h
Vendor specific
00h, 00h
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h,
00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h
254–255
Integrity CRC
Set at test (Note 2)
256–511
512–767
768+
Value of bytes 0–255
Value of bytes 0–255
Additional redundant parameter pages
166–253
Notes:
1. h = hexadecimal.
2. The Integrity CRC (Cycling Redundancy Check) field is used to verify that the contents of the
parameters page were transferred correctly to the host. Please refer to ONFI 1.0 specifications for details.
The CRC shall be calculated using the following 16-bit generator polynomial:
G(X) = X16 + X15 +X2 + 1
8-5. UniqueID Page
The UniqueID page is accessed by the following command flows:
Issue 1Fh (SET FEATURE) command with Secure OTP enable and ECC disabled (B0h for address & 40h for
data) → Issue 13h (PAGE READ) with 00h address, issue 0Fh (GET FEATURE) with C0h feature address to
poll the status of read completion → Issue 03h (READ FROM CACHE) with address A[11:0]=000h and read
data → Issue 1Fh (SET FEATURE) with feature address B0h to disable Secure OTP function (data byte =10h
or 00h) [exit unique ID read]
UniqueID data: 16x32byte of UniqueID data. On each 32byte, the first 16byte and following 16byte should be
XOR to be FFh.
REV. 1.7, April 23, 2019
P/N: PM2128
26
MX35LF1GE4AB
MX35LF2GE4AB
8-6. Internal ECC Status Read (For 1Gb only)
Besides the Get Feature( with feature address of C0h) may collect the internal ECC status; the 7Ch
command may read out more status of internal ECC, such as 1-bit error, 2-bit error, 3-bit error, or 4-bit error
by ECCSR[3:0] which Get Feature (with C0h address) cannot distinguish it. Please refer to the "Table 6-1.
The ECCSR (Internal ECC Status Register) Bits" & "Table 6-2. The Definition of Internal ECC Status"
about the ECCSR definition. The ECC Status Register reports the highest bit error correction among the
four segments of a page. For example, if Segment 1 had a 1-bit error corrected, Segment 2 had no bit error,
Segment 3 had a 2-bit error corrected, and Segment 4 had no bit error, then the ECC register would report
that a 2-bit error was corrected. The register is updated after the completion of the Page Read Command (13h)
The Reset Command (FFh) will clear the register to 00h.
Table 6-1. The ECCSR (Internal ECC Status Register) Bits
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Reserved
Reserved
Reserved
Reserved
ECCSR[3]
ECCSR[2]
ECCSR[1]
ECCSR[0]
Table 6-2. The Definition of Internal ECC Status
ECCSR[3:0]
ECC Status
0000
No bit error
0001
1-bit error corrected
0010
2-bit error corrected
0011
3-bit error corrected
0100
4-bit error corrected
1111
Uncorrectable
Each Page has four 528-Byte ECC segments and each 528-Byte segment consists of 512 Bytes from the
Data Area and its associated 16 Bytes from the Spare Area.
Figure 17. The Page Structure and Internal ECC Segments
2112-Byte Page
Segment 1
512 Bytes
Segment 2
512 Bytes
Segment 3
512 Bytes
Segment 4
512 Bytes
Segment 1 Segment 2
16 Bytes
16 Bytes
2048-Byte
Data Area
Segment 3
16 Bytes
Segment 4
16 Bytes
64-Byte
Spare Area
Operation sequence: Command (7Ch)→Dummy Byte (xxh) →Read ECC Status Register
REV. 1.7, April 23, 2019
P/N: PM2128
27
MX35LF1GE4AB
MX35LF2GE4AB
Figure 18. The Sequence of Internal ECC Status Read
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
1
0
16
17
18
7
6
5
19
20
21
22
23
2
1
0
SCLK
Command
SI
1 dummy byte
7
(7Ch)
6
5
4
3
ECC Status
SO
High-Z
4
3
REV. 1.7, April 23, 2019
P/N: PM2128
28
MX35LF1GE4AB
MX35LF2GE4AB
8-7. Program Operations
8-7-1. PAGE PROGRAM
With following operation sequences, the PAGE PROGRAM operation programs the page from byte 1 to byte
2112.
WRITE ENABLE (06h) → PROGRAM LOAD (02h) → PROGRAM LOAD RANDOM DATA (84h) if needed →
PROGRAM EXECUTE (10h) → GET FEATUR from command to read status (0Fh).
WEL bit is set with the WRITE ENABLE (06h) issued. The program operation will be ignored if 06h command
not issued. In a single page, four partial page programs are allowed. Exceeded bytes (Page address is
larger than 2112) for "PROGRAM LOAD" or "PROGRAM LOAD RANDOM DATA", the exceeding bytes will
be ignored. When CS goes high, the "PROGRAM LOAD" or "PROGRAM LOAD RANDOM DATA" operation"
terminates. Please note the figure below for PROGRAM LOAD.
After PROGRAM LOAD is done, the programming of data should be as following steps: issue 10h (PROGRAM
EXECUTE) with 1byte command code, 24 bits address → code programming to memory and busy for
tPROG → Program complete.
During programming, status to be polled by the status register.
Operation shows in the Figure below.
Figure 19. PROGRAM LOAD (02h) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
0
7
25
SCLK
3 Dummy bits
Command
SI
15
(02h)
14
12-Bit Address
13
12
11
10
9
8
7
6
5
Data byte 1
4
3
2
1
6
MSB
Plane select
for 2Gb
A
CS#
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
16912…
16919
SCLK
Data byte 1
SI
7
6
5
4
3
Data byte 2
2
1
0
7
6
5
4
3
Data byte 2112
2
1
0
7
6
5
4
3
2
1
0
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
29
MX35LF1GE4AB
MX35LF2GE4AB
Figure 20. PROGRAM LOAD RANDOM DATA (84h) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
SCLK
3 Dummy bits
Command
(84h)
SI
15
14
Data byte 1
12-Bit Address
13
12
11
10
9
8
37
38
39
7
6
5
4
3
2
1
0
7
6
MSB
Plane select
for 2Gb
A
CS#
23
24
25
26
27
28
29
30
31
32
33
34
35
36
16912…
16919
SCLK
Data byte 1
SI
7
6
5
4
3
Data byte 2112
Data byte 2
2
1
0
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
30
MX35LF1GE4AB
MX35LF2GE4AB
8-7-2. QUAD IO PAGE PROGRAM
QUAD IO PAGE PROGRAM conducts the 2Kbyte program with 4 I/O mode. The steps are: WRITE
ENABLE (06h) → PROGRAM LOAD X4 (32h) → PROGRAM LOAD RANDOM DATA (34h) if needed →
PROGRAM EXECUTE (10h) → Poll status by issuing GET FEATURE (0Fh).
Figure 21. PROGRAM LOAD X4 (32h) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
20
21
22
23
24
25
26
27
28
29
30
31
SCLK
3 Dummy bits
Command
SI
SIO0
12-Bit Address
4
0
4
0
4
0
4
0
5
1
5
1
5
1
5
1
WP#
SIO2
6
2
6
2
6
2
6
2
HOLD#
SIO3
7
3
7
3
7
3
7
3
(32h)
15
14
13
11
Byte 2
Byte 1
12
3
2
1
0
MSB
Plane select
for 2Gb
SO
SIO1
A
CS#
31 32
33
34
35
36
37
38
39
40
41
42
43
SCLK
44
45
46
47
Byte 1111 Byte 1112
SI
SIO0
Byte 11
Byte 12
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
SO
SIO1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
WP#
SIO2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
HOLD#
SIO3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
31
MX35LF1GE4AB
MX35LF2GE4AB
Figure 22. QUAD IO PROGRAM RANDOM INPUT (34h) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
20
21
22
23
24
25
26
27
28
29
30
31
SCLK
3 Dummy bits
Command
SI
SIO0
(34h)
15
14
12-Bit Address
13
11
12
3
2
1
MSB
Plane select
for 2Gb
SO
SIO1
Byte 2
Byte 1
0
4
0
4
0
4
0
4
0
5
1
5
1
5
1
5
1
WP#
SIO2
6
2
6
2
6
2
6
2
HOLD#
SIO3
7
3
7
3
7
3
7
3
A
CS#
31
32
33
34
35
36
37
38
39
40
41
42
43
SCLK
44
45
46
47
Byte 1111 Byte 1112
SI
SIO0
Byte 11
Byte 12
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
4
0
SO
SIO1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
5
1
WP#
SIO2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
6
2
HOLD#
SIO3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
7
3
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
32
MX35LF1GE4AB
MX35LF2GE4AB
Figure 23. PROGRAM EXECUTE (10h) Timing
A
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
7
6
SCLK
24-Bit Address
Command
(10h)
SI
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
High-Z
SO
B
A
CS#
23
24
25
26
27
28
29
30
0
31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SCLK
24-Bit Address
SI
7
6
5
4
3
Status register address (C0h)
Get Feature
2
1
0
(0Fh)
7
Plane select
for 2Gb
High-Z
SO
6
5
4
3
2
1
0
MSB
B
CS#
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
0
SCLK
Status register
Address
SI
2
1
0
Status register data out
SO
High-Z
7
6
5
4
3
2
1
Status register data out
0
7
MSB
6
5
4
3
2
MSB
Don’t Care
REV. 1.7, April 23, 2019
P/N: PM2128
33
MX35LF1GE4AB
MX35LF2GE4AB
9. BLOCK OPERATIONS
9-1. Block Erase (D8h)
The Block Erase (D8h) instruction is for erasing the data of the chosen block to be "1". The instruction is used
for a block of 128K-byte erase operation. A Write Enable (WREN) instruction be executed to set the Write
Enable Latch (WEL) bit before sending the Block Erase (D8h). Any address of the block is a valid address
for Block Erase (D8h) instruction. The CS# must go high exactly at the byte boundary (the least significant bit
of address byte been latched-in); otherwise, the instruction will be rejected and not executed. Finally, a Get
Feature(0Fh) instruction to check the status is necessary.
The sequence of issuing Block Erase instruction is: CS# goes low→ sending Block Erase instruction code→
24-bit address on SI→CS# goes high.
The self-timed Block Erase Cycle time (tBE) is initiated as soon as Chip Select (CS#) goes high. The Get
Feature (0Fh) instruction with Address (C0h) may check the status of the operation during the Block Erase
cycle is in progress (please refer to the Get Feature waveform and table of Feature Setting). The OIP bit is
"1" during the tBE timing, and is cleared to "0" when Block Erase Cycle is completed, and the Write Enable
Latch (WEL) bit is cleared.
Figure 24. Block Erase (BE) Sequence
CS#
Mode 3
0
1
2
3
4
5
6
7
8
9
29 30 31
SCK
Mode 0
SI
Command
24-Bit Address(Note)
D8h
A23 A22
A2 A1 A0
MSB
Note: The 24-bit Address includes: 17-bit row address and 7-bit dummy (for 2Gb), or 16-bit row address
and 8-bit dummy (for 1Gb).
REV. 1.7, April 23, 2019
P/N: PM2128
34
MX35LF1GE4AB
MX35LF2GE4AB
10. Feature Register
Feature register defines various register's definitions (Block Protection, Secure OTP, Status register). The
definition of each register is defined in "Table 7-1. Definition of Protection Bits (BPx) (For 2Gb)" and
"Table 7-2. Definition of Protection Bits (For 1Gb)":
10-1. Block Protection Feature
The Block Protection feature includes three block protection bits (BPx), Block Protection Register Write
Disable (BPRWD). For 1Gb, there are three more feature bits, including Inverse bit (INVERT), complement
bit (CMPLEMENTARY) and Solid Protection Bit (SP).
Soft Protection Mode (SPM)
The SPM uses the BPx bits, INVERT, and COMPLEMENTARY bits to allow part of memory to be protected
as read only. The protected area definition is shown as "Table 7-1. Definition of Protection Bits (BPx)
(For 2Gb)" and "Table 7-2. Definition of Protection Bits (For 1Gb)", the protected areas are more flexible
which may protect various area by setting value of BP0-BP3 bits. These are volatile bits and can be modified
by set feature command.
Note: INVERT, and COMPLEMENTARY bits are for 1Gb only.
After power-up, the chip is in protection state, that is, the feature bits BPx is 1, all other bits (BPRWD,
INVERT, COMPLEMENTARY and SP) are 0. The Set feature instruction (1Fh) with feature address (A0h)
may change the value of the block protection bits and un-protect whole chip or a certain area for further
program/erase operation. For example, after the power-on, the whole chip is protected from program/erase
operation, the top 1/64 area may be un-protected by using the Set feature instruction (1Fh) with the feature
address (A0h) to change the values of BP2 and BP1 from "1" to "0" as "Table 7-1. Definition of Protection
Bits (BPx) (For 2Gb)" and "Table 7-2. Definition of Protection Bits (For 1Gb)" of "Block protection
register bits".
Hardware Protection Mode (HPM) & Solid Protection Mode (SDPM)
Under the Hardware Protection mode and Solid Protection Mode, the (BPx, INVERT, COMPLEMENTART)
bits can not be changed.
Hardware Protection Mode: The device enters HPM if BPRWD bits is set to 1 and WP#/SIO2 is driven to 0.
Note 1: The 1Gb HPM also requires SP bit to be 0 state (SP bit is for 1Gb only).
Note 2: The Quad mode is not supported in HPM.
Solid Protection Mode: If SP bit is set to 1, the device enters SDPM (Only for 1Gb). After that, the
selected block is solid protected and can not be un-protected until next power cycle.
REV. 1.7, April 23, 2019
P/N: PM2128
35
MX35LF1GE4AB
MX35LF2GE4AB
Table 7-1. Definition of Protection Bits (BPx) (For 2Gb)
Block Protection Register Bits
Protected Area
BP2
BP1
BP0
0
0
0
None - all unprotected
0
0
1
Top 1/64 protected
0
1
0
Top 1/32 protected
0
1
1
Top 1/16 protected
1
0
0
Top 1/8 protected
1
0
1
Top 1/4 protected
1
1
0
Top 1/2 protected
1
1
1
All protected (default)
Note: Block #0 is at bottom portion.
Table 7-2. Definition of Protection Bits (For 1Gb)
BP2
BP1
BP0
Invert
Complementary
0
0
0
0
1
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
0
0
0
1
1
1
0
0
1
1
0
0
1
1
0
1
1
0
0
1
0
1
1
0
0
1
0
1
1
0
0
1
0
1
0
1
0
1
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
x
0
0
0
0
0
0
x
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
x
0
0
0
0
0
0
x
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
Protection Area
all unlocked
upper 1/64 locked
upper 1/32 locked
upper 1/16 locked
upper 1/8 locked
upper 1/4 locked
upper 1/2 locked
all locked (default)
lower 1/64 locked
lower 1/32 locked
lower 1/16 locked
lower 1/8 locked
lower 1/4 locked
lower 1/2 locked
lower 63/64 locked
lower 31/32 locked
lower 15/16 locked
lower 7/8 locked
lower 3/4 locked
block 0
upper 63/64 locked
upper 31/32 locked
upper 15/16 locked
upper 7/8 locked
upper 3/4 locked
block0
Note: Block #0 is at lower portion.
REV. 1.7, April 23, 2019
P/N: PM2128
36
MX35LF1GE4AB
MX35LF2GE4AB
10-2. Secure OTP (One-Time-Programmable) Feature
There is an Secure OTP area which has 30 full pages (30 x 2112-byte) from page 02h to page 1Fh guarantee
to be good for system device serial number storage or other fixed code storage. The Secure OTP area is a
non-erasable and one-time-programmable area, which is default to “1” and allows partial page program to be
“0”, once the Secure OTP protection mode is set, the Secure OTP area becomes read-only and cannot be
programmed again.
The Secure OTP operation is operated by the Set Feature instruction with feature address (B0h) to access
the Secure OTP operation mode and Secure OTP protection mode.
To check the NAND device is ready or busy in the Secure OTP operation mode, the status register bit 0 (OIP
bit) may report the status by Get Feature command operation.
To exit the Secure OTP operation or protect mode, it can be done by writing "0" to both Bit7 (Secure OTP
protect bit) and bit6 (Secure OTP enable bit) for returning to the normal operation.
Secure OTP Read
1. Issuing the Set Feature instruction (1Fh)
2. Sending the Feature address (B0h) and set the "Secure OTP Enabled Bit" as "1".
3. Issuing normal Page Read command (13h)
Secure OTP Program (if the "Secure OTP Protection Bit" is "0") for
1.
2.
3.
4.
Issuing the Set Feature instruction (1Fh)
Sending the Feature address (B0h) and set the "Secure OTP Enabled Bit" as "1".
Issuing Page Program command (02h)
Issuing program execute command (10h)
Secure OTP Protection
1. Issuing the Set Feature instruction (1Fh)
2. Sending the Feature address (B0h) and set both the "Secure OTP Protection Bit" and "Secure OTP
Enabled Bit" as "1".
3. Issuing program execute command (10h)
Table 8. Secure OTP States
Secure OTP Protection BitNote1
Secure OTP
Enabled Bit
0
0
Normal operation
0
1
Access the Secure OTP for reading or programming
1
0
Not applicable
1
1
Secure OTP Protection by using the Program Execution
command (10h)Note2
State
Note 1. Secure OTP protection bit is non-volatile for 1G; whereas, which is volatile for 2G.
Note 2. Once the "Secure OTP Protection Bit" and "Secure OTP Enabled Bit" are set as "1", the secure
OTP becomes read only.
REV. 1.7, April 23, 2019
P/N: PM2128
37
MX35LF1GE4AB
MX35LF2GE4AB
10-3. Status Register
The MX35LFxGE4AB provides a status register that outputs the device status by writing a Get Feature
command (0Fh) with the feature address (C0h), and then the IO pins output the status.
The Get Feature (0Fh) command with the feature address(C0h) will keep the device at the status read mode
unless next valid command is issued. The resulting information is outlined in the table below.
Table 9. Status Register Bit Descriptions
SR Bit
Bit Name
SR[0] (OIP)
Operation in
progress
SR[1] (WEL)
Write enable latch
SR[2]
(ERS_Fail)
Erase fail
SR[3]
(PGM_Fail)
Program fail
Description
The bit value indicates whether the device is busy in operations of read/
program execute/ erase/ reset command.
1: Busy, 0: Ready
The bit value indicates whether the device is set to internal write enable latch.
When WEL bit sets to 1, which means the internal write enable latch is set, and
then the device can accept program/ erase/write status register instruction.
1: write enable, 0: not write enable
The bit value will be cleared (as "0") by issuing Write Disable command(04h).
The bit value shows the status of erase failure or if host erase any invalid
address or protected area (including protected blocks or protected Secure OTP
area).
0: Passed, 1: Failed
The bit value will be cleared (as "0") by RESET command or at the beginning of
the block erase command operation.
The bit value shows the status of program failure or if host program any invalid
address or protected area (including protected blocks or protected Secure OTP
area).
0: Passed, 1: Failed
The bit value will be cleared (as "0") by RESET command or during the
program execute command operation.
The bit shows the status of ECC as below:
00b = 0 bit error
01b = 1 to 4 bits error corrected.
10b = More than 4-bit error not corrected.
SR[5:4]
(ECC_S1,
ECC_S0)
SR[6]
ECC Status
(CRBSY)
Cache
Status Bit
SR[7]
Reserved
11b = Reserved
The value of ECC_Sx (S1:S0) bits will be clear as "00b" by Reset command or
at the start of the Read operation. After a valid Read operation completion, the
bit will be updated to reflect the ECC status of the current valid Read operation.
The ECC_Sx (S1:S0) value reflects the ECC status of the content of the page 0
of block 0 after a power-on reset.
If the internal ECC is disabled by the Set feature command, the ECC_
Sx(S1:S0) are invalid.
The bit value indicates whether the internal cache is busy in Page Read Cache
Sequential command.
1: Busy- internal cache is busy on data transfer
0: Ready- device is ready for cache data out
Note: SR[6] is reserved for 2Gb.
REV. 1.7, April 23, 2019
P/N: PM2128
38
MX35LF1GE4AB
MX35LF2GE4AB
11. SOFTWARE ALGORITHM
11-1. Invalid Blocks (Bad Blocks)
The bad blocks are included in the device while it gets shipped. During the time of using the device, the
additional bad blocks might be increasing; therefore, it is necessary to check the bad block marks and avoid
using the bad blocks. Furthermore, please read out the bad block information before any erase operation
since the bad block marks may be cleared by any erase operation.
Figure 25. Bad Blocks
Bad Block
Bad Block
While the device is shipped, the value of all data bytes of the good blocks are FFh. The 1st byte of the
1st and 2nd page in the spare area for bad block will be 00h. The erase operation at the bad blocks is not
recommended.
After the device is installed in the system, the bad block checking is recommended. "Figure 23. Bad Block
Test Flow" shows the brief test flow by the system software managing the bad blocks while the bad blocks
were found. When a block gets damaged, it should not be used any more.
Due to the blocks are isolated from bit-line by the selected gate, the performance of good blocks will not be
impacted by bad ones.
Table 10. Valid Blocks
Density
Min.
Typ.
Max.
Unit
Valid (Good)
1Gb
1004
1024
Block
Block Number
2Gb
2008
2048
Block
Remark
Block 0 is guaranteed to be good
(with ECC).
REV. 1.7, April 23, 2019
P/N: PM2128
39
MX35LF1GE4AB
MX35LF2GE4AB
11-2. Bad Block Test Flow
Although the initial bad blocks are marked by the flash vendor, they could be inadvertently erased and
destroyed by a user that does not pay attention to them. To prevent this from occurring, it is necessary to
always know where any bad blocks are located. Continually checking for bad block markers during normal
use would be very time consuming, so it is highly recommended to initially locate all bad blocks and build a
bad block table and reference it during normal NAND flash use. This will prevent having the initial bad block
markers erased by an unexpected program or erase operation. Failure to keep track of bad blocks can be
fatal for the application. For example, if boot code is programmed into a bad block, a boot up failure may
occur. "Figure 23. Bad Block Test Flow" shows the recommended flow for creating a bad block table.
Figure 26. Bad Block Test Flow
Start
Block No. = 0
Yes
(Note1)
Read 00h
Check
Create (or Update)
Bad Block Table
No
Block No. = Block No. + 1
(Note2)
Block No. = 1023
No
Yes
End
Note 1: Read 00h check is at the 1st byte of the 1st and 2nd pages of the block spare area.
Note 2: The Block No. = 1023 for 1Gb, 2047 for 2Gb.
11-3. Failure Phenomena for Read/Program/Erase Operations
The device may fail during a Read, Program or Erase operation. The following possible failure modes should
be considered when implementing a highly reliable system:
Table 11. Failure Modes
Failure Mode
Detection and Countermeasure
Sequence
Erase Failure
Status Read after Erase
Block Replacement
Programming Failure
Status Read after Program
Block Replacement
Read Failure (Note)
Read Failure
ECC
Note: If the internal ECC is enabled, the internal ECC will handle the Read failure.
REV. 1.7, April 23, 2019
P/N: PM2128
40
MX35LF1GE4AB
MX35LF2GE4AB
11-3-1. Internal ECC Enabled/Disabled
The internal ECC logic may detect 5-bit error and correct 4-bit error. The default state of the internal ECC is
enabled. To enable/disable the internal ECC, it is operated by the Set Feature operation to enable internal
ECC or disable the internal ECC, and then check the internal ECC state by Get Feature operation.
The internal ECC is enabled by using Set Feature command (1Fh) and followed by feature address (B0h)
and then set Bit4( ECC enabled) as "1". To disable the internal ECC can be done by using the Set Feature
command (1Fh) and followed by the feature address (B0h) and then set Bit4( ECC enabled) as "0".
When the internal ECC is enabled, after the data transfer time (tRD_ECC) is completed, a Status Read
operation is required to check any uncorrectable read error happened. Please refer to "Table 9. Status
Register Bit Descriptions".
The constraint of the internal ECC enabled operation:
• The ECC protection coverage: please refer to "Table 12. The Distribution of ECC Segment and Spare
Area". Only the grey areas are under internal ECC protection when the internal ECC is enabled.
• The number of partial-page program is not 4 in an ECC segment, the user need to program the main
area (512B)+Metadata1(12B) at one program time, so the ECC parity code can be calculated properly
and stored in the additional hidden spare area.
Table 12. The Distribution of ECC Segment and Spare Area
Area
Main
Area
(0)
Main
Area
(1)
Main
Area
(2)
Main
Area
(3)
Spare(0)
R1
M2
Spare(1)
M1
R1
M2
Spare(2)
M1
R1
M2
Spare(3)
M1
R1
M2
M1
Addr.
000h 200h 400h 600h 800h 802h 804h 810h 812h 814h 820h 822h 824h 830h 832h 834h
(Start)
Addr.
1FFh 3FFh 5FFh 7FFh 801h 803h 80Fh 811h 813h 81Fh 821h 823h 82Fh 831h 833h 83Fh
(End)
Size 512(B) 512(B) 512(B) 512(B) 2(B) 2(B) 12(B) 2(B) 2(B) 12(B) 2(B) 2(B) 12(B) 2(B) 2(B) 12(B)
Notes:
R1: Reserved
M2: Metadata 2
M1: Metadata 1
Grey area: Under ECC protection
REV. 1.7, April 23, 2019
P/N: PM2128
41
MX35LF1GE4AB
MX35LF2GE4AB
12. DEVICE POWER-UP
12-1. Power-up
After the Chip reaches the power on level, the internal power on reset sequence will be triggered. During the
internal power on reset period, no any external command is accepted. The device can be fully accessible
when VCC reaches the power-on level and wait 1ms.
During the power on and power off sequence, it is necessary to keep the WP# = Low for internal data
protection.
Figure 27. Power On Sequence
Vcc
Chip Selection is Not Allowed
Vcc=2.5V
1ms
Device is fully accessible
Time
REV. 1.7, April 23, 2019
P/N: PM2128
42
MX35LF1GE4AB
MX35LF2GE4AB
13. PARAMETERS
13-1. ABSOLUTE MAXIMUM RATINGS
Temperature under Bias
-50°C to +125°C
Storage temperature
-65°C to +150°C
All input voltages with respect to ground (Note 2)
-0.6V to 4.6V
VCC supply voltage with respect to ground (Note 2)
-0.6V to 4.6V
ESD protection
>2000V
Notes:
1. The reliability of device may be impaired by exposing to extreme maximum rating conditions for long
range of time.
2. Permanent damage may be caused by the stresses higher than the "Absolute Maximum Ratings"
listed.
3. During voltage transitions, all pins may overshoot Vss to -2.0V and Vcc to +2.0V for periods up
to 20ns, please refer to "Figure 25. Maximum Negative Overshoot Waveform" and "Figure 26.
Maximum Positive Overshoot Waveform".
Figure 28. Maximum Negative Overshoot Waveform
20ns
Figure 29. Maximum Positive Overshoot Waveform
20ns
20ns
Vss
Vcc + 2.0V
Vss-2.0V
Vcc
20ns
20ns
20ns
Table 13. AC Testing Conditions
Testing Conditions
Value
Unit
0 to VCC
V
Output load capacitance
1TTL+CL(30)
pF
Input rising & falling time
5
ns
Input timing measurement reference levels
VCC/2
V
Output timing measurement reference levels
VCC/2
V
Input pulse level
Table 14. Capacitance
TA = +25°C, F = 1 MHz
Symbol
Parameter
CIN
Input capacitance
COUT
Output capacitance
Min.
Typ.
Max.
Units
Conditions
8
pF
VOUT = 0V
6
pF
VIN = 0V
Note: CIN/COUT=10pF/10pF for 2Gb
Table 15. Operating Range
Temperature
VCC
Tolerance
-40°C to + 85°C
+3.3V
2.7 - 3.6V
REV. 1.7, April 23, 2019
P/N: PM2128
43
MX35LF1GE4AB
MX35LF2GE4AB
Table 16. DC Characteristics
Symbol
Max.
Unit
ILI
Input leakage current
Parameter
Min.
Typical
+/- 10
uA
VIN= 0 to VCC Max.
Test Conditions
ILO
Output leakage current
+/- 10
uA
VOUT= 0 to VCC Max.
ISB
VCC standby current (CMOS)
ICC1
ICC2
VCC active current (Sequential Read)
VCC active current (Program)
ICC3
VCC active current (Erase)
VIL
Input low level
-0.3
VIH
Input high level
0.8VCC
VCC + 0.3
V
VOL
Outout low voltage
0.2
V
IOL= -1mA
VOH
Outout high voltage
V
IOH= -20uA
15
50
uA
VIN=VCC or GND, CS#=VCC
20Note
30
mA
f=104MHz
20Note
30
mA
30
mA
0.2VCC
V
15
VCC-0.2
Note: ICC1/ICC2 typical value is 15mA for 1Gb.
Table 17. General Timing Characteristics
Symbol
Parameter
fC
tCHHH
tCHHL
tCS
tCHSH
tSLCH
tSHCH
tCHSL
tDIS
tHC
tHD
tHDDAT
tHO
tHZ
tLZ
tSUDAT
tV
tWH
tWL
tWPH
tWPS
Clock Frequency
HOLD# high hold time relative to SCLK
HOLD# low hold time relative to SCLK
Command diselect time
Chip select# hold time
Chip select# setup time
Chip select# non-active setup time
Chip select# non-active hold time
Output disable time
Hold# non-active setup time relative to SCLK
Hold# setup time relative to SCLK
Data input hold time
Output hold time
Hold to output High-Z
Hold to output low-Z
Data input setup time
Clock LOW to output Valid
Clock HIGH time
Clock LOW time
WP# hold time
WP# setup time
Min.
Max.
Unit
5
5
100
4
4
4
4
5
5
3.5
1
3.5
4
4
100
20
104
-
MHz
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
20
15
15
8
-
Table 18. PROGRAM/READ/ERASE Characteristics
Symbol
Parameter
tRD
Data transfer time from NAND Flash array to data register.
tRCBSY (For 1Gb)
Dummy busy time for data read sequential
tRD_ECC
Data transfer time from NAND Flash array to data register with
internal ECC enabled
Device reset time (Read/ Program/ Erase)
Page programming time
Page programming time under internal ECC enabled
Block Erase Time
Number of partial-page programming operation supported
tRST
tPROG
tPROG_ECC
tERS
NOPNote
Note:
Min.
Typ.
Max.
Unit
3.5
25
us
45
70
us
300
320
1
-
5/10/500
600
600
3.5
4
us
us
us
ms
cycle
-
25
us
When internal ECC is enabled, the partial program cycle is limited to be one for each ECC unit, and do not
exceed the four partial program cycles per page.
REV. 1.7, April 23, 2019
P/N: PM2128
44
MX35LF1GE4AB
MX35LF2GE4AB
Figure 30. WP# Setup Timing and Hold Timing during SET FEATURE when BPRWD=1
WP#
tWPH
tWPS
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
1
0
SCLK
Data In
FEATURE ADDRESS (A0h)
SI
1Fh
7
6
5
4
3
2
1
0
MSB
7
6
5
4
3
MSB
High-Z
SO
Figure 31. Serial Input Timing
tCS
CS#
tCHSL
tCHSH
tSLCH
tSHCH
SCLK
tSUDAT
tCFT
tCRT
tHDDAT
LSB
MSB
SI
High-Z
SO
Figure 32. Serial Output Timing
CS#
tWH
SCLK
tV
tHO
tWL
tV
tHO
LSB
SO
SI
tDIS
ADDR.LSB IN
REV. 1.7, April 23, 2019
P/N: PM2128
45
MX35LF1GE4AB
MX35LF2GE4AB
Figure 33. Hold Timing
CS#
tHD
tHC
tCHHL
SCLK
tCHHH
tHZ
tLZ
SO
HOLD#
Note: SI is "don't care" during HOLD operation.
REV. 1.7, April 23, 2019
P/N: PM2128
46
MX35LF1GE4AB
MX35LF2GE4AB
14. PACKAGE INFORMATION
14-1. 8-WSON (8x6mm), E.P. 3.4x4.3mm, Recommended for new design
REV. 1.7, April 23, 2019
P/N: PM2128
47
MX35LF1GE4AB
MX35LF2GE4AB
14-2. 16-SOP (300mil)
REV. 1.7, April 23, 2019
P/N: PM2128
48
MX35LF1GE4AB
MX35LF2GE4AB
15. REVISION HISTORY
Rev. No. Descriptions
Page Date
1. Initial Released
All
JUN/26/2014
0.00
0.01
1. Removed 16-SOP package for 1Gb
P5, 7
JUL/09/2014
2. Typo correction for Table 11. The Distribution of ECC Segment P36
and Spare Area
3. Modified Figure 2. 63-ball VFBGA.
P8
0.02
1. Corrected typo on Part Number
P7
NOV/24/2014
2. Revised the QE bit description - only POR (power-on reset)
P15
will trigger the QE bit returning to default mode
3. Corrected typo on Unique ID address range from 0x00h/0x01h P21
to 00h/01h
0.03
1. Revised the 4Gb Reset command will block the
P14
JAN/09/2015
Set feature command
2. Revised the clock rate of 4Gb READ ID as 80MHz max.
P20,40
3. Revised the OTP program/ OTP protection flow of 4Gb
P32
by adding to set BPx bits value as NOT all "1" first.
0.04
ALL
MAR/27/2015
1. Separated the 4Gb from the original datasheet
2. Changed title from "Advanced Information" to "Preliminary".
ALL
3. Revised the bad block mark from non-FFh to 00h, and
P33/34
non-FFFFh to 0000h; also revised the page of bad block mark
from 1st or 2nd page to 1st and 2nd page
4. Revised the note for DC Table (ICC1/ICC2, Typ.)
P38
5. Supplement footnotes for Table 6-1, 6-2 & Table 7
P30/31
1.0
1. Removed title from 1Gb as production specification
ALL
MAY/08/2015
2. Modified wording of "function" as "feature"
P13,20
3. Added new command 7Ch function
P11,23,24
4. Re-arranged the paragraph of feature register and parameter page P20-22
5. Corrected wording for Table 9. Status Register Bit Descriptions P34
1.1
1. Removed "Preliminary" title for 2Gb
ALL
JUL/01/2015
2. Specified read-out mode description
P5
3. Corrected the R2 of spare as under internal ECC protection
P37
4. Added overshoot/undershoot waveforms
P39
5. Added note mark for NOP
P40
6. Recovered the timing spec of Input rising & falling
P39
1.2 1. Added new package for 8-WSON (8x6mm) with E.P.= 3.4x4.3mm P7/44
AUG/19/2015
2. Added Program/Erase endurance cycle and data rention specs P5
1.3
1. Corrected the table of "Table 18. PROGRAM/READ/ERASE
P40
AUG/22/2016
Characteristics", the typical value was typographical error with
minimum value; the maximum value of tRST was typographical
error with minimum as well.
2. Tighten the "y" value of 14-1 8-WSON outline from 0.08mm (max.) P43
to 0.05mm (max.)
1.4
1. Modified terms of spare area: merged "R2" into "M1".
P37
MAR/06/2017
2. Tighten parameter timing of tCHSH/tSLCH/tSHCH/tCHSL
P40
from 5ns to 4ns.
3. Added a product statement for Ordering Information
P7
REV. 1.7, April 23, 2019
P/N: PM2128
49
MX35LF1GE4AB
MX35LF2GE4AB
Rev. No. Descriptions
Page Date
1.5
1. Re-wording the reset command effect on the feature setting
2. Renaming the register of address B0h from "Secure OTP" to
"Configuration"
3. Supplement of Secure OTP protect bit of 2G is volatile.
P13
P13
1.6
Removing Z2I package
P7, 44
1.7
Adding new feature of "Page Read Cache Sequential" for 1Gb
P11,20,38,44 APR/23/2019
JUN/07/2017
P34
JAN/09/2019
REV. 1.7, April 23, 2019
P/N: PM2128
50
MX35LF1GE4AB
MX35LF2GE4AB
Except for customized products which have been expressly identified in the applicable agreement, Macronix's products are designed, developed, and/or manufactured for ordinary business, industrial, personal, and/or household applications only, and not for use in any applications which may, directly or indirectly, cause death, personal injury, or
severe property damages. In the event Macronix products are used in contradicted to their target usage above, the
buyer shall take any and all actions to ensure said Macronix's product qualified for its actual use in accordance with
the applicable laws and regulations; and Macronix as well as it’s suppliers and/or distributors shall be released from
any and all liability arisen therefrom.
Copyright© Macronix International Co., Ltd. 2014 -2019. All rights reserved, including the trademarks and tradename
thereof, such as Macronix, MXIC, MXIC Logo, MX Logo, Integrated Solutions Provider, Nbit, Macronix NBit, HybridNVM, HybridFlash, HybridXFlash, XtraROM, KH Logo, BE-SONOS, KSMC, Kingtech, MXSMIO, Macronix vEE, RichBook, Rich TV, OctaRAM, OctaBus, OctaFlash, FitCAM, ArmorFlash. The names and brands of third party referred
thereto (if any) are for identification purposes only.
For the contact and order information, please visit Macronix’s Web site at: http://www.macronix.com
MACRONIX INTERNATIONAL CO., LTD.
http://www.macronix.com
MACRONIX INTERNATIONAL CO., LTD. reserves the right to change product and specifications without notice.
REV. 1.7, April 23, 2019
P/N: PM2128
51
工商网监
湘ICP备2023018690号
