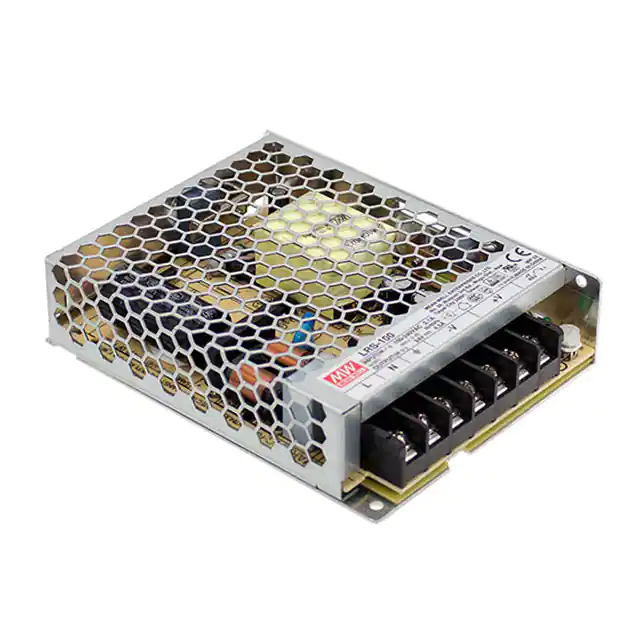

LRS-100-48

100W Single Output Switching Power Supply LRS-100 series User’s Manual IS 13252(Part 1):2010/ IEC 60950-1:2005 THOMAS SAMUEL THOMAS SAMUEL   R-41179035 Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 AS/NZS62368-1 GB4943.1 UL62368-1 TP TC004 IEC62368-1 ■  ‧ ‧ ‧ ‧ ‧ ‧  ‧ ‧ ‧ ‧ ‧Ⅲ ‧ ‧℃ ‧ ‧  ■  ‧ ‧ ‧
 ‧
  ‧
 ■    ■      ℃℃      ■          File Name:LRS-100-SPEC 2022-02-18 LRS-100 100W Single Output Switching Power Supply series SPECIFICATION MODEL OUTPUT INPUT LRS-100-3.3 LRS-100-5 LRS-100-12 LRS-100-15 LRS-100-24 LRS-100-36 LRS-100-48 DC VOLTAGE 3.3V 5V 12V 15V 24V 36V 48V RATED CURRENT 20A 18A 8.5A 7A 4.5A 2.8A 2.3A CURRENT RANGE 0 ~ 20A 0 ~ 18A 0 ~ 8.5A 0 ~ 7A 0 ~ 4.5A 0 ~ 2.8A 0 ~ 2.3A RATED POWER 66W 90W 102W 105W 108W 100.8W 110.4W RIPPLE & NOISE (max.) Note.2 100mVp-p 100mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p VOLTAGE ADJ. RANGE 4.5 ~ 5.5V 10.2 ~ 13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V VOLTAGE TOLERANCE Note.3 ±3.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% LINE REGULATION Note.4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION Note.5 ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% 2.97 ~ 3.6V SETUP, RISE TIME 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 55ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 84.5% AC CURRENT (Typ.) 1.9A/115VAC INRUSH CURRENT (Typ.) COLD START 50A/230VAC LEAKAGE CURRENT
