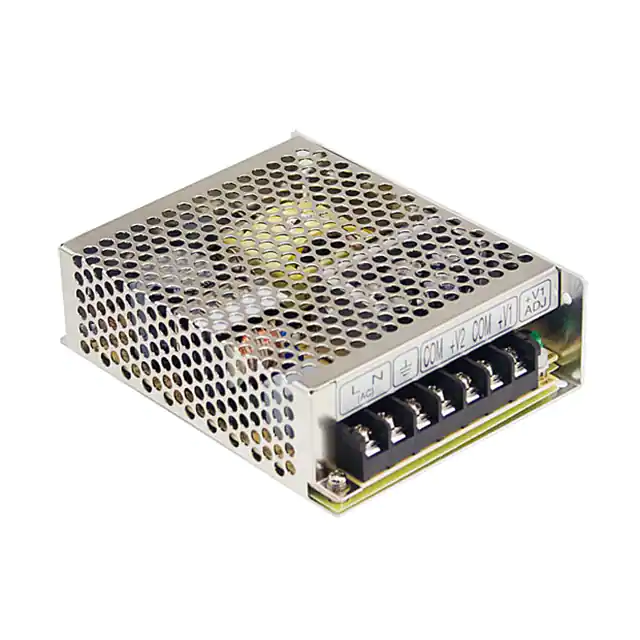

RS-75-12

RS-75 75W Single Output Switching Power Supply ■ ‧ ‧ ‧ ‧ ‧ ‧℃ ‧ ‧℃ ‧ ‧ ‧ ‧ ■    www. tuv.com ID 2000000000 AS/NZS62368-1 MODEL INPUT User’s Manual Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION OUTPUT series UL62368-1 BS EN/EN62368-1 IEC62368-1 TPTC004 RS-75-3.3 RS-75-5 RS-75-12 RS-75-15 RS-75-24 RS-75-48 DC VOLTAGE 3.3V 5V 12V 15V 24V 48V RATED CURRENT 15A 12A 6A 5A 3.2A 1.6A CURRENT RANGE 0 ~ 15A 0 ~ 12A 0 ~ 6A 0 ~ 5A 0 ~ 3.2A 0 ~ 1.6A RATED POWER 49.5W 60W 72W 75W 76.8W 76.8W RIPPLE & NOISE (max.) Note.2 80mVp-p 80mVp-p 120mVp-p 120mVp-p 120mVp-p 200mVp-p VOLTAGE ADJ. RANGE 3V ~ 3.6V VOLTAGE TOLERANCE Note.3 ±3.0% 4.75 ~ 5.5V ±2.0% 10.8 ~ 13.2V ±1.0% 13.5 ~ 16.5V ±1.0% 22 ~ 27.6V ±1.0% 42 ~ 54V ±1.0% LINE REGULATION Note.4 ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION Note.5 ±2.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% 88.5% 89.5% 27.6 ~ 32.4V 55.2 ~ 64.8V SETUP, RISE TIME 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 60ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 75% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2A/115VAC 1.2A/230VAC COLD START 40A/230VAC LEAKAGE CURRENT 1200ms, 30ms/115VAC at full load 14ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 79% 84.5% 86%
