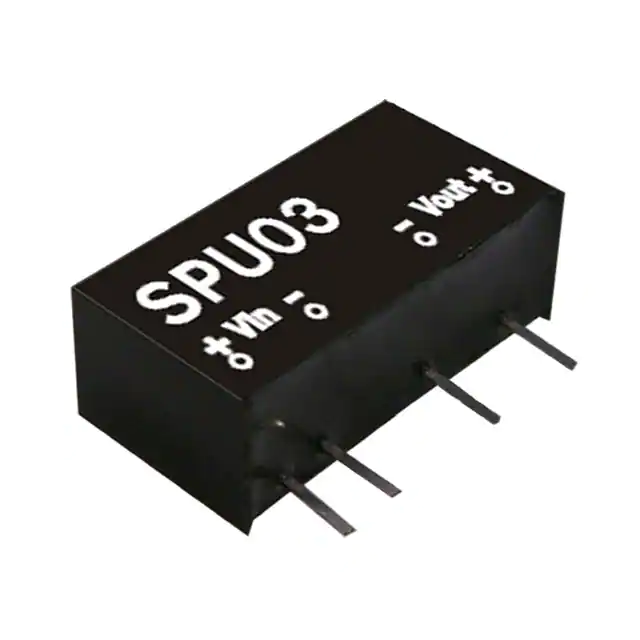

SPU03L-05

SPU03 3W DC-DC Unregulated Single Output Converter series ■  ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ■    SPECIFICATION ORDER NO. OUTPUT SPU03L-05 DC OUTPUT VOLTAGE 5V CURRENT RANGE 60 ~ 600mA EFFICIENCY (Typ.) 82% RATED POWER 3W SPU03L-12 SPU03M-12 SPU03N-12 12V 83% 85% SPU03M-15 SPU03N-15 15V 25 ~ 250mA 83% SPU03L-15 20 ~ 200mA 86% 86% 86% 86% 88% RIPPLE & NOISE (max.) Note.2 50mVp-p LINE REGULATION Note.3 ±1.2% for 1% input variation Note.4 ±8.0% LOAD REGULATION VOLTAGE ACCURACY ±2.0% SWITCHING FREQUENCY 60KHz min. VOLTAGE RANGE NORMAL VOLTAGE 4.5 ~ 5.5V 5V Full load 740mA No load 60mA INPUT CURRENT 10.8 ~ 13.2V 21.6 ~ 26.4V 12V 24V 305mA 155mA 715mA 300mA 150mA 705mA 300mA 145mA 25mA 15mA 65mA 25mA 15mA 65mA 30mA 15mA Capacitor type PROTECTION Fuse recommended Momentary Protection type : Broken OVERLOAD Momentary SHORT CIRCUIT WORKING TEMP. Protection type : Broken -40 ~ +90℃ (Refer to "Derating Curve") WORKING HUMIDITY 20% ~ 90% RH non-condensing ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMC ISOLATION CAPACITANCE -40 ~ +105℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011 approved I/P-O/P:3KVDC I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH 80pF max. EMC EMISSION EMC IMMUNITY MTBF DIMENSION Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 WEIGHT 2.9g 700khrs min. MIL-HDBK-217F(25℃) 19.6*7.5*10.2mm or 0.77"*0.30"*0.40" inch (L*W*H) Derating Curve Pin Configuration Mechanical Specification Unit: mm (inch) 10.20 (0.40) 19.6 (0.77) 3.81 (0.15) FRONT VIEW 5.08 (0.20) 0.5 (0.02) 7.5 (0.3) 10.8 ~ 13.2V 21.6 ~ 26.4V 4.5 ~ 5.5V 5V 12V 24V FILTER PROTECTION OTHERS 10.8 ~ 13.2V 21.6 ~ 26.4V 4.5 ~ 5.5V 5V 12V 24V Pin No. Output 1 +Vin 2 5 -Vin -Vout 7 +Vout 100 LOAD (%) INPUT Others 50 5V 1 2 2.54 (0.10) NOTE SPU03M-05 SPU03N-05 5 7 1.2 (0.05) BOTTOM VIEW NOTE:Pin size tolerance 0.50×0.30mm±0.05mm -40 0 50 75 85 100 Ta (℃) ℃    ※：https://www.meanwell.com/serviceDisclaimer.aspx File Name: SPU03-SPEC 2022-05-24 SPU03 3W DC-DC Unregulated Single Output Converter series Packing Standard Tube Packing MPQ Per Tube (PCS) One Box G.W. Max. Q’TY/ Carton(PCS) One Carton G.W. 25 100g 4000 16.8Kg Unit : mm 4.2 15 11 9.1 520 Product Tube Plugs Tube pattern H L W CARTON L600 x W230 x H220 Installation Manual Please refer to : http://www.meanwell.com/manual.html File Name: SPU03-SPEC 2022-05-24
