MLX75305KXD-ABA-000-SP

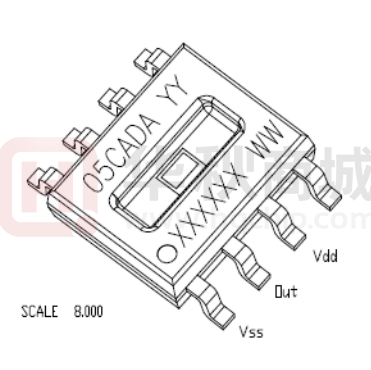

MLX75305 Light-to-Voltage SensorEyeC 1. Features and Benefits  Converts light intensity to voltage  High linearity  Low temperature dependency  Supply voltage range 3V to 5.5V  Open drain output voltage output  Automotive Cavity SO8 package  Designed for automotive applications  Solder reflow 260degC, MSL3  Automotive qualified AEC-Q100 Grade 1  Operating temperature -40 up to 125degC  RoHS compliant lead-free   3 - Vdd VDD 2. Application Examples  3. Functional Diagram General  Ambient Light Sensor  LCD Backlight Sensor  LED Power Monitoring Automotive  Automatic light dimming of instrument panels and displays  Electrochrome Dimming  Headlights on/off control Printers/Copiers  Paper feed detection  Paper size and orientation detection  Toner cartridge presence detection REVISION 9 - OCTOBER 17, 2016 [390107530501] Ee Vref 2 - OUT 1 - Vss Figure 1 4. General Description The Melexis SensorEyeC series are CMOS integrated optical sensor ICs including photodiode, transimpedance amplifier and output transistor on one chip. These sensors are designed for high-volume automotive and non-automotive applications. The MLX75305 Light-to-Voltage SensorEyeC converts ambient or LED light intensity into an output voltage. The MLX75305 block diagram is shown above and contains following blocks: a photodiode, a transimpedance amplifier to convert and amplify the photocurrent of the photodiode and an open drain output buffer stage. MLX75305 Datasheet 5. Ordering Information Product Temperature Package Option Code Packing Form MLX75305 K (-40°C to 125°C) XD AAA-000 RE MLX75305 K (-40°C to 125°C) XD ABA-000 RE Legend: Temperature Code: K for Temperature Range -40°C to 125°C Package Code: XD for SOIC-8 package Option Code: AAA-xxx: Responsivity Gain10 ABA-xxx: Responsivity Gain1 Packing Form: RE for Reel Ordering Example: MLX75305EXD-AAA-000-RE Table 1 REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 2 of 12 MLX75305 Datasheet Contents 1. Features and Benefits ............................................................................................................................ 1 2. Application Examples............................................................................................................................. 1 3. Functional Diagram ............................................................................................................................... 1 4. General Description ............................................................................................................................... 1 5. Ordering Information ............................................................................................................................ 2 6. Pin Definitions and Descriptions ............................................................................................................ 4 7. Absolute Maximum Ratings ................................................................................................................... 4 8. General Electrical Specifications ............................................................................................................ 5 9. Spectral Responsivity and Linear Optical Response Curve ..................................................................... 7 10. Timing diagrams .................................................................................................................................. 8 11. Applications Information ..................................................................................................................... 8 12. SO8 Open Cavity Package Information ................................................................................................ 9 13. Standard Information ........................................................................................................................ 11 14. ESD Precautions................................................................................................................................. 11 15. Disclaimer .......................................................................................................................................... 11 16. Contact .............................................................................................................................................. 12 REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 3 of 12 MLX75305 Datasheet 6. Pin Definitions and Descriptions Pin # Name Description Type 1 Vss Ground connection Ground 2 OUT Analog output Open drain output 3 Vdd Power supply Supply 4 N.C. Not connected Floating 5..8 N.C. Not connected Floating Table 2 7. Absolute Maximum Ratings Valid for all MLX75305 versions. All voltages are referenced to Vss. Symbol Rating Value Unit Vdd Supply Voltage, VDD (over voltage) -0.3 to 7 V Vout DC Output Voltage -0.3 to Vdd+0.3 V Iout DC Output Current, per Pin ±20 mA TStg Storage Temperature Range, TS -40 to 125 °C VESD-HBM ESD Sensitivity (Human Body Model according to CDF-AEC-Q100) 4 kV VESD-MM ESD Sensitivity (Machine Model according to CDF-AEC-Q100) 200 V Table 3 Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute maximumrated conditions for extended periods may affect device reliability. REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 4 of 12 MLX75305 Datasheet 8. General Electrical Specifications All voltages are referenced to Vss. Symbol Parameter Conditions Vdd Supply Voltage Idd Static Power Supply Current At Vdd=5.5V, unloaded output Vdark Dark level (a), (c) Ee=0 Min Typ 3 Tamb=-40 .. 85˚C Tamb=85 .. 125˚C 4 4 Max Unit Tes t1 5.5 V V 2 mA V 160 210 mV mV V V Re10 Responsivity Gain 10 (option code A) (a), Vout range = 50mV..4.5V, 25˚C -15% 70 +15% mV/(µW/ 2 cm ) V Re1 Responsivity Gain 1 (option code B) (a), Vout range = 50mV..4.5V, 25˚C -15% 7 +15% mV/(µW/ 2 cm ) V NLAO RMS Non Linearity (a), in the 10..90% Output Range +/-2 % V TC Temperature Coefficient (b), Ee=46µW/cm² %/C %/C X X nm X -0.16 0.06 For visual light: For NIR (λ=850nm): λ0.3 Spectral Bandwidth Tamb=25˚C Emax Absolute Maximum Irradiance Vdd=5V, λ=850nm, Tamb=25˚C Spd Area of photodiode VOH Maximum Output voltage high (a), Ee=15*EVout...Emax tVdd_rise Vdd rise time tsetup Electrical setup-time 1 500 1000 2 50*E Vout µW/cm 0.36 mm 4.95 V V 10..90% of Vdd 4 µs V (a), Vout within Vdd/2 +/- 5% 70 µs V 4.9 140 2 X D The column Test indicates if the specific parameter is tested in production. Following symbols are used: V: the specific parameter is tested in production X: the specific parameter is verified in characterization, but is not tested in production (e.g. timings and capacitances) D: the specific parameter is guaranteed by design and is not tested as such in production REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 5 of 12 MLX75305 Datasheet ton Turn-on time (a), Vout > VOH_min 6 50 µs toff Turn-off time (a), Vout > VOH_min 6 50 µs V tr Rise time (a), Vout > VOH_min 10 22 µs V tf Fall time (a), Vout > VOH_min 10 22 µs V TA Operating Temperature Range Temperature Code K -40 125 °C V Table 4 (a) Vdd=5V, RL=10kOhm, CL=50pF, λ= 850nm (b) Vdd=5V, RL=10kOhm, CL=50pF (c) The dark level is ratio metric with the Vdd power supply voltage REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 6 of 12 MLX75305 Datasheet 9. Spectral Responsivity and Linear Optical Response Curve Relative Spectral Response 1.2 Relative Spectral Response 1 0.8 0.6 0.4 0.2 0 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 Wave Length [nm] Figure 2 Figure 3 REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 7 of 12 MLX75305 Datasheet 10. Timing diagrams E Vdd Unstable Vdd Stable Vdd Ee>1mW/cm² Vdd t t VOUT VOUT tsetup ton toff 0.9VOUT 1.05VOUT 0.95VOUT VOUT=0.5Vdd 0.5VOUT 0.1VOUT t t Definition of the electrical setup-time tf tr Definition of the rise and fall times Figure 4 11. Applications Information A typical connection diagram is shown in the figure below. A load resistor RL is needed to get the voltage level out. The load capacitance CL is typically formed by the input capacitance of the component that is connected to the sensor output, the wiring capacitance and the output capacitance of the sensor itself. Vdd Ee 3 MLX75305 1 2 OUT RL CL Figure 5 Decoupling capacitors between Vdd and Vss (1uF in parallel with 100nF) are highly recommended in all configurations. Recommendation: every change in the application should be agreed by both parties. REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 8 of 12 MLX75305 Datasheet 12. SO8 Open Cavity Package Information SO8 open cavity package, MSL3, 260˚C soldering profile. Dimensions and marking for MLX75305EXD-AAA-000-RE and MLX75305KXD-AAA-000-RE (gain 10) Figure 6 REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 9 of 12 MLX75305 Datasheet Dimensions and marking for MLX75305EXD-ABA-000-RE and MLX75305KXD-ABA-000-RE (gain 1) Figure 7 REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 10 of 12 MLX75305 Datasheet 13. Standard Information Our products are classified and qualified regarding soldering technology, solderability and moisture sensitivity level according to standards in place in Semiconductor industry. For further details about test method references and for compliance verification of selected soldering method for product integration, Melexis recommends reviewing on our web site the General Guidelines soldering recommendation. For all soldering technologies deviating from the one mentioned in above document (regarding peak temperature, temperature gradient, temperature profile etc), additional classification and qualification tests have to be agreed upon with Melexis. For package technology embedding trim and form post-delivery capability, Melexis recommends to consult the dedicated trim&form recommendation application note: lead trimming and forming recommendations Melexis is contributing to global environmental conservation by promoting lead free solutions. For more information on qualifications of RoHS compliant products (RoHS = European directive on the Restriction Of the use of certain Hazardous Substances) please visit the quality page on our website: http://www.melexis.com/en/quality-environment 14. ESD Precautions Electronic semiconductor products are sensitive to Electro Static Discharge (ESD). Always observe Electro Static Discharge control procedures whenever handling semiconductor products. 15. Disclaimer The information furnished by Melexis herein is believed to be correct and accurate. Melexis disclaims (i) any and all liability in connection with or arising out of the furnishing, performance or use of the technical data or use of the product as described herein, (ii) any and all liability, including without limitation, special, consequential or incidental damages, and (iii) any and all warranties, express, statutory, implied, or by description, including warranties of fitness for particular purpose, non-infringement and merchantability. No obligation or liability shall arise or flow out of Melexis’ rendering of technical or other services. The information contained herein is provided "as is” and Melexis reserves the right to change specifications and/or any other information contained herein at any time and without notice. Therefore, before placing orders and/or prior to designing this product into a system, users or any third party should obtain the latest version of the relevant information to verify that the information being relied upon is current. This document supersedes and replaces all prior information regarding the product(s) as described herein and/or previous versions of this document. Users or any third party must further determine the suitability of the Melexis’ product(s) described herein for its application, including the level of reliability required and determine whether it is fit for a particular purpose. The information contained herein is proprietary and/or confidential information of Melexis. The information contained herein or any use thereof does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other intellectual property rights, whether with regard to such information itself or anything described by such information. This document as well as the product(s) described herein may be subject to export control regulations. Please be aware that export might require a prior authorization from competent authorities. REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 11 of 12 MLX75305 Datasheet The product(s) as described herein is/are intended for use in normal commercial applications. Unless otherwise agreed upon in writing, the product(s) described herein are not designed, authorized or warranted to be suitable in applications requiring extended temperature range, unusual environmental requirements. High reliability applications, such as medical life-support or life-sustaining equipment are specifically not recommended by Melexis. The product(s) may not be used for the following applications subject to export control regulations: the development, production, processing, operation, maintenance, storage, recognition or proliferation of 1) chemical, biological or nuclear weapons, or for the development, production, maintenance or storage of missiles for such weapons: 2) civil firearms, including spare parts or ammunition for such arms; 3) defense related products, or other material for military use or for law enforcement; 4) any applications that, alone or in combination with other goods, substances or organisms could cause serious harm to persons or goods and that can be used as a means of violence in an armed conflict or any similar violent situation. Products sold by Melexis are subject to the terms and conditions as specified in the Terms of Sale, which can be found at https://www.melexis.com/en/legal/terms-and-conditions. Melexis NV © - No part of this document may be reproduced without the prior written consent of Melexis. (2016) ISO/TS 16949 and ISO14001 Certified 16. Contact For the latest version of this document, go to our website at www.melexis.com. For additional information, please contact our Direct Sales team and get help for your specific needs: Europe, Africa Telephone: +32 13 67 04 95 Email : sales_europe@melexis.com Americas Telephone: +1 603 223 2362 Email : sales_usa@melexis.com Asia Email : sales_asia@melexis.com REVISION 9 - OCTOBER 17, 2016 [390107530501] Page 12 of 12
