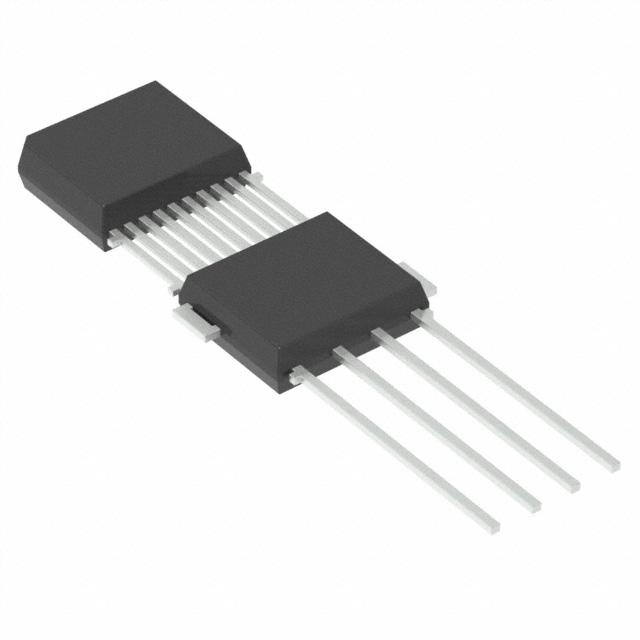

MLX90364LVS-ABB-200-RE

MLX90364AxB Triaxis® Position Sensor Assembly Features and Benefits















Absolute Rotary & Linear Position Sensor IC Robust Dual Mold Package (DMP) feat. 4 Decoupling Capacitors (ESD/EMC) Reliable NoPCB Module Integration Triaxis Hall Technology Simple Magnetic Design Programmable Transfer Characteristic (Multi-Points – Piece-Wise-Linear) Selectable Output Mode: Analog (Ratiometric) – Pulse Width Modulation (PWM) 12 bit Resolution - 10 bit Thermal Accuracy Open/Short Diagnostics On Board Diagnostics Over-Voltage Protection Under-Voltage Detection 48 bit ID Number option Automotive Temperature Range AEC-Q100 & AEC-Q200 Qualified DMP-4 RoHS Compliant Applications

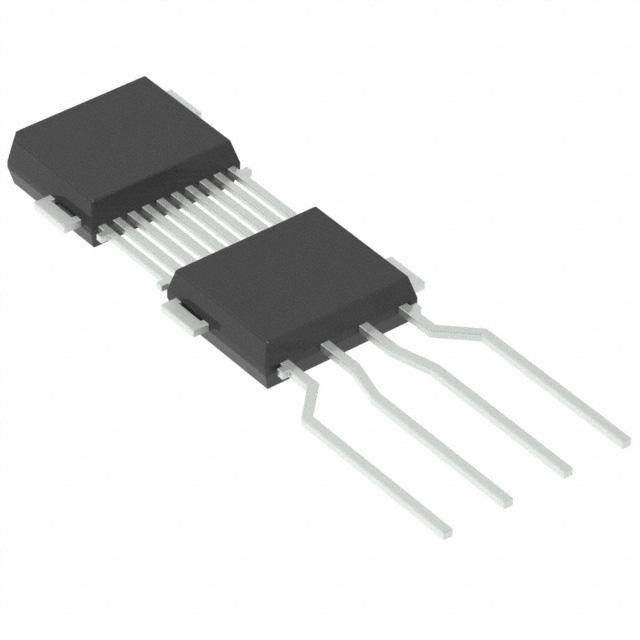

Absolute Rotary Position Sensor Absolute Linear Position Sensor EGR Valve Position Sensor Turbo Actuator Throttle Position Sensor Clutch,Shift & Fork Position Sensor Ride Height Position Sensor Float Level Sensor MLX90364AxB Rev.1.1 Page 1 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly Ordering Information Product Code Temperature Code Package Code Option code Packing form code L L L L L L L L L L L L L L L L VS VS VS VS VS VS VS VS VS VS VS VS VS VS VS VS ABB-100 ABB-100 ABB-101 ABB-103 ABB-200 ABB-200 ABB-201 ABB-203 ADB-100 ADB-100 ADB-101 ADB-103 ADB-200 ADB-200 ADB-201 ADB-203 RE TU RE RE RE TU RE RE RE TU RE RE RE TU RE RE MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 MLX90364 Legend: Temperature Code: Package Code: Option Code: Packing Form: Ordering Example: MLX90364AxB Rev.1.1 L for Temperature Range - 40°C to 150°C, VS for DMP-4 AAA-123: AAA: die version 1: IMC placement 23: Trim and form option: • 00: Standard (straight leads) see section 20.1 • 01: Trim and Form STD1 2.54 see section 20.2 • 03: Trim and Form STD2 2.54 see section 20.3 RE for Reel (face-up) TU for Tube MLX90364LVS-ADB-200-RE Page 2 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 1. Functional Diagram Figure 1 - MLX90364 Block Diagram MLX90364AxB Rev.1.1 Page 3 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 2. Description The MLX90364 Triaxis® Position Sensor Assembly is a high accuracy linear and angular position sensor which eliminates need for inclusion of a printed circuit board (PCB) within sensing modules. This device is based on a Dual Mold Package (DMP) construction, which integrates a Triaxis position sensing die together with the decoupling capacitors necessary to meet the strenuous ESD and EMC requirements. No PCB is needed. The Triaxis position sensing die is nothing but the one used for the MLX90365 in conventional surfacemount packages (SOIC-8 – single die & TSSOP-16 – dual die). The decoupling capacitors are 4 identical 100nF/X8R well suited for package integration and the target operating temperature range. Similarly to other Triaxis products, the MLX90364 is sensitive to the flux density applied orthogonally and parallel to the IC surface i.e. the 3 components of the flux density applied to the IC (i.e. BX, BY and BZ). This allows the MLX90364 with the correct magnetic circuit to decode the absolute position of any moving magnet (e.g. rotary position from 0 to 360 Degrees or linear displacement, stroke). MLX90364 reports a programmable ratiometric analog output signal compatible with any resistive potentiometer or programmable linear Hall sensor. Through programming, the MLX90364 provides also a digital PWM (Pulse Width Modulation) output characteristic. MLX90364 Triaxis® Position Sensor Assembly enables the realization of position sensor modules for which a PCB is no longer needed: this yield to an increase of the electrical, mechanical and environmental robustness of the final application. Figure 2 – NoPCB – MLX90364 makes conventional PCB redundant MLX90364AxB Rev.1.1 Page 4 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly TABLE of CONTENTS FEATURES AND BENEFITS ....................................................................................................................... 1 APPLICATIONS ............................................................................................................................................ 1 ORDERING INFORMATION......................................................................................................................... 2 1. FUNCTIONAL DIAGRAM ...................................................................................................................... 3 2. DESCRIPTION ....................................................................................................................................... 4 3. GLOSSARY OF TERMS − ABBREVIATIONS − ACRONYMS ............................................................ 7 4. PINOUT .................................................................................................................................................. 7 5. ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 7 6. DESCRIPTION ....................................................................................................................................... 8 7. MLX90364 ELECTRICAL SPECIFICATION ....................................................................................... 10 8. MLX90365 TIMING SPECIFICATION ................................................................................................. 12 9. MLX90364 PWM TIMING SPECIFICATION ....................................................................................... 12 10. MLX90364 ACCURACY SPECIFICATION ......................................................................................... 13 10.1. 10.2. 10.3. NORMAL MAGNETIC RANGE: 20 MT ≤ B < 70 MT .................................................................................... 13 EXTENDED RANGE #1 : 15 MT ≤ B < 20 MT ............................................................................................. 14 EXTENDED RANGE #2: 10 MT ≤ B < 15 MT .............................................................................................. 14 11. MLX90364 PWM ACCURACY SPECIFICATION ............................................................................... 15 12. MLX90364 MAGNETIC SPECIFICATION .......................................................................................... 16 13. MLX90364 CPU & MEMORY SPECIFICATION ................................................................................. 16 14. MLX90364 END-USER PROGRAMMABLE ITEMS ........................................................................... 17 15. DESCRIPTION OF END-USER PROGRAMMABLE ITEMS .............................................................. 18 15.1. OUTPUT MODE .......................................................................................................................................... 18 15.1.1. PWM Output Mode ............................................................................................................................... 18 15.2. OUTPUT TRANSFER CHARACTERISTIC....................................................................................................... 19 15.2.1. Enable scaling Parameter (only for LNR type 4 pts) ........................................................................... 19 15.2.2. CLOCKWISE Parameter ...................................................................................................................... 19 15.2.3. Discontinuity Point (or Zero Degree Point) ......................................................................................... 20 15.2.4. 4-Pts LNR Parameters.......................................................................................................................... 20 15.2.5. 17-Pts LNR Parameters........................................................................................................................ 21 15.2.6. CLAMPING Parameters ...................................................................................................................... 22 15.3. IDENTIFICATION ........................................................................................................................................ 22 15.4. SENSOR FRONT-END ................................................................................................................................. 22 15.4.1. MAPXYZ ............................................................................................................................................... 22 15.4.2. SMISM, k and SEL_k Parameters ........................................................................................................ 23 15.4.3. GAINMIN and GAINMAX Parameters ................................................................................................ 23 15.4.4. GAINMIN and GAINMAX Parameters ................................................................................................ 23 15.5. FILTER ...................................................................................................................................................... 23 15.5.1. Hysteresis Filter ................................................................................................................................... 23 15.5.2. FIR Filters ............................................................................................................................................ 24 15.6. PROGRAMMABLE DIAGNOSTIC SETTINGS ................................................................................................. 25 15.6.1. DIAG mode ........................................................................................................................................... 25 MLX90364AxB Rev.1.1 Page 5 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 15.6.2. DIAG Level ........................................................................................................................................... 25 15.6.3. Field Strength Diagnostic ( Feature under development ) ................................................................... 26 15.6.4. PWM Diagnostic .................................................................................................................................. 26 15.6.5. Diagnostic Features ............................................................................................................................. 26 15.7. EEPROM ENDURANCE ............................................................................................................................. 26 16. MLX90364 SELF DIAGNOSTIC .......................................................................................................... 27 17. BUILT-IN CAPACITORS AND RECOMMENDED APPLICATION DIAGRAMS ................................ 29 18. STANDARD INFORMATION REGARDING MANUFACTURABILITY OF MELEXIS PRODUCTS WITH DIFFERENT LEAD PRE-FORMING AND SOLDERING/WELDING PROCESSES ....................... 30 19. ESD PRECAUTIONS ........................................................................................................................... 30 20. PACKAGE INFORMATION ................................................................................................................. 30 20.1. 20.2. 20.3. 20.4. 20.5. DMP-4 – PACKAGE OUTLINE DIMENSIONS (POD) – STRAIGHT LEADS .................................................... 30 DMP-4 – PACKAGE OUTLINE DIMENSIONS (POD) – TRIMMED & FORMED LEADS [1] ............................. 31 DMP-4 – PACKAGE OUTLINE DIMENSIONS (POD) – TRIMMED & FORMED LEADS [2] ............................. 32 DMP-4 - PINOUT AND MARKING .............................................................................................................. 32 DMP-4 - SENSITIVE SPOT POSITIONING & SENSE DIRECTION ................................................................... 34 21. DISCLAIMER ....................................................................................................................................... 36 MLX90364AxB Rev.1.1 Page 6 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 3. Glossary of Terms − Abbreviations − Acronyms                      Gauss (G), Tesla (T): Units for the magnetic flux density − 1 mT = 10 G TC: Temperature Coefficient (in ppm/Deg.C.) NC: Not Connected PWM: Pulse Width Modulation %DC: Duty Cycle of the output signal i.e. TON /(TON + TOFF) ADC: Analog-to-Digital Converter DAC: Digital-to-Analog Converter LSB: Least Significant Bit MSB: Most Significant Bit DNL: Differential Non-Linearity INL: Integral Non-Linearity RISC: Reduced Instruction Set Computer ASP: Analog Signal Processing DSP: Digital Signal Processing CoRDiC: Coordinate Rotation Digital Computer (i.e. iterative rectangular-to-polar transform) EMC: Electro-Magnetic Compatibility ALS: Analog Low Speed AHS: Analog High Speed DLS: Digital Low Speed DHS: Digital High Speed DMP: Dual Mold Package 4. Pinout Pin # 1 VSS (Ground) 2 VDD 3 OUT 4 VSS (Ground) 5. Absolute Maximum Ratings Parameter Value Supply Voltage, VDD (overvoltage) + 24 V Reverse Voltage Protection − 12 V (breakdown at -14 V) Positive Output Voltage + 18 V (breakdown at 24 V) Output Current (IOUT) + 30 mA (in breakdown) Reverse Output Voltage − 0.3 V Reverse Output Current − 50 mA (in breakdown) Operating Ambient Temperature Range, TA − 40°C … + 150°C Storage Temperature Range, TS − 40°C … + 150°C Magnetic Flux Density ±1T Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute maximum rated conditions for extended periods may affect device reliability. MLX90364AXB Rev.1.1 Page 7 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 6. Description As described on the block diagram the three vector components of the magnetic flux density (BX, BY and BZ) applied to the IC are sensed through the sensor front-end. The respective Hall signals (VX, VY and VZ) are generated at the Hall plates and amplified. The analog signal processing is based on a fully differential analog chain featuring the classic offset cancellation technique (Hall plate 2-Phases spinning and chopper-stabilized amplifier). The conditioned analog signals are converted through an ADC (15 bits) and provided to a DSP block for further processing. The DSP stage is based on a 16 bit RISC micro-controller whose primary function is the extraction of the position from two (out of three) raw signals (after so-called front-end compensation steps) through the following function: α = ∠(V1 , k ⋅V2 ) where alfa is the magnetic angle 170degC (± 20) Saturate value used for the compensations to -40degC and Temperature < -60degC (± 20) +150degC resp. Environ n/applicable &Analog Not a diagnostic n/applicable Not a diagnostic n/applicable Not a diagnostic Hardware Diag. ( continuously checked by dedicated Logic ) Read/Write Access out of physical memory Fail-safe mode ** ** CPU reset after 120ms Diagnostic Low/High Digi HW n/a immediate Diag n/a immediate Diag Write Access to protected area (IO and RAM Words) Fail-safe mode ** ** CPU reset after 120ms Diagnostic low/high Digi HW n/a immediate Diag. n/a immediate Diag. Unauthorized Mode Entry Fail-safe mode ** ** CPU reset after 120ms Diagnostic low/high Digi HW n/a immediate Diag n/a immediate Diag (Transparent) Error Correction no effect Digi HW n/a. n/a EEPROM Error Correcting Code ( Hamming correction ) Hardware Diag. ( continuously checked by dedicated Analog circuits ) Broken VSS CPU Reset on recovery Pull down load => Diag. Low Pull up load => Diag. High Environ n/a immediate Diag. n/a immediate Diag. Broken VDD CPU Reset on recovery Pull down load => Diag. Low Pull up load => Diag. High Environ n/a immediate Diag n/a immediate Diag St-up on Hold Diagnostic low/high Environ n/a immediate Diag. n/a immediate Diag. Resistive Cable Test MLX90364AXB Rev.1.1 Page 28 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 17. Built-in Capacitors and recommended Application Diagrams Figure 12 – Recommended wiring for the MLX90364 in DMP-4 Either Vss pin can be used for grounding, but always leave 1 floating. Built-in capacitors are ceramic multilayer type X8R with value of 100nF each. The capacitors are specifically suited for high temperature applications with stable capacitance value (+/15%) up to 150 DegC. The capacitors are assembled using a gluing method instead of soldering to be more reliable towards thermal/mechanical stress. The maximum rated voltage is 25V. MLX90364AXB Rev.1.1 Page 29 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 18. Standard information regarding manufacturability of Melexis products with different lead pre-forming and soldering/welding processes For Dual Mold Package, please refer to the following document (available upon request): Application Note Hall Sensors in Dual Mold Packages – (Doc#: 390110000001) For more information on the lead free topic please see quality page at our website: http://www.melexis.com/quality.aspx 19. ESD Precautions Electronic semiconductor products are sensitive to Electro Static Discharge (ESD). Always observe Electro Static Discharge control procedures whenever handling semiconductor products. 20. Package Information 20.1. DMP-4 – Package Outline Dimensions (POD) – Straight Leads MLX90364LVS-xxx-200 MLX90364AXB Rev.1.1 Page 30 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 20.2. DMP-4 – Package Outline Dimensions (POD) – Trimmed & Formed Leads [1] MLX90364LVS-xxx-201 MLX90364AXB Rev.1.1 Page 31 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 20.3. DMP-4 – Package Outline Dimensions (POD) – Trimmed & Formed Leads [2] MLX90364LVS-xxx-203 20.4. DMP-4 - Pinout and Marking Pin # MLX90364AXB Rev.1.1 1 VSS (Ground) 2 VDD 3 OUT 4 VSS (Ground) Page 32 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 364AxBx Mxxxxx XyXz yyww Pin 4 Pin 1 MLX90364AXB Rev.1.1 Line 1: MLX project code (e.g. 364ADB2 for MLX90364LVS-ADB-2xx) Line 2: Lotnumber Line 3: Last 4 characters assembly lotnumber Line 4: 2 digit year code – 2 digit week code Page 33 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 20.5. DMP-4 - Sensitive Spot Positioning & Sense direction Magnetic center position MLX90364LVS-AxB-1xx MLX90364LVS-AxB-2xx Xc 0.57 0.23 MLX90364AXB Rev.1.1 Yc 3.69 3.67 Zc 0.495 0.495 Page 34 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly MLX90364 – Reference Angle The MLX90364 is an absolute angular position sensor but the linearity error (See section 0) does not include the error linked to the absolute reference 0 Deg (which can be fixed in the application through the discontinuity point). MLX90364AXB Rev.1.1 Page 35 of 36 Datasheet 07/09/12 MLX90364AxB Triaxis® Position Sensor Assembly 21. Disclaimer Devices sold by Melexis are covered by the warranty and patent indemnification provisions appearing in its Term of Sale. Melexis makes no warranty, express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described devices from patent infringement. Melexis reserves the right to change specifications and prices at any time and without notice. Therefore, prior to designing this product into a system, it is necessary to check with Melexis for current information. This product is intended for use in normal commercial applications. Applications requiring extended temperature range, unusual environmental requirements, or high reliability applications, such as military, medical life-support or life-sustaining equipment are specifically not recommended without additional processing by Melexis for each application. The information furnished by Melexis is believed to be correct and accurate. However, Melexis shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interrupt of business or indirect, special incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein. No obligation or liability to recipient or any third party shall arise or flow out of Melexis’ rendering of technical or other services. © 2012 Melexis N.V. All rights reserved. For the latest version of this document, go to our website at www.melexis.com Or for additional information contact Melexis Direct: Europe, Africa: Americas: Asia: Phone: +32 1367 0495 E-mail: sales_europe@melexis.com Phone: +1 248-306-5400 E-mail: sales_usa@melexis.com Phone: +32 1367 0495 E-mail: sales_asia@melexis.com ISO/TS 16949 and ISO14001 Certified MLX90364AXB Rev.1.1 Page 36 of 36 Datasheet 07/09/12
