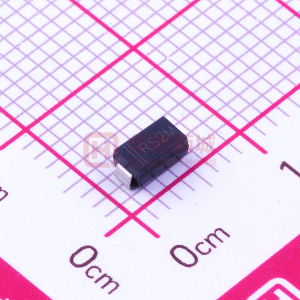

RS2M

SURFACE MOUNT FAST SWITCHING RECTIFIER RS2A THRU RS2M FEATURES • • • • • • VOLTAGE RANGE CURRENT 50 to 1000 Volts 2.0 Ampere DO-214AA(SMB) Plastic package has underwrites laboratory flammability Classification 94V-0 Low profile surface mount package Built-in strain relief Fast switching for high efficiency Glass Passivated chip junction High temperature soldering: 250℃/10 second at terminals MECHANICAL DATA • • • Case: JEDED DO-214AA molded plastic over glass passivated chip Terminals: Solder plated, Solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end Weight: 0.002ounce, 0.064 gram Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS • Ratings at 25℃ ambient temperature unless otherwise specified MAXIMUM RATINGS & THERMAL CHARACTERISTICS PARAMETELS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at TL =100℃ Peak Forward Surge Current 8.3ms single half sine wave superimposed on rated load (JEDEC method) T L=100℃ Typical Thermal Resistance (NOTE 1) Operating and Storage Temperature Range SYMBOLS VRRM VRMS VDC IF(AV) IFSM RθJA RθJL TJ,TSTG RS2A 50 35 50 RS2B 100 70 100 RS2D 200 140 200 RS2G 400 280 400 2.0 50 55 18 -55 to +150 RS2J 600 420 600 RS2K 800 560 800 RS2M 1000 700 1000 UNIT Volts Volts Volts Amps Amps ℃/W ℃ ELECTRICAL CHARACTERISTICS PARAMETELS Maximum Instantaneous Forward Voltage at 2.0A Maximum DC Reverse Current at rated DC Blocking Voltage Typical Reverse Recovery Time IF=0.5A, IR=1.0A, IRR=0.25A, Typical junction capacitance at 4.0V, 1MHz T A = 25℃ TA = 125℃ SYMBOLS VF IR Trr RS2A RS2B RS2D RS2G 1.30 5.0 200 RS2J RS2K RS2M UNIT Volts µA 150 250 500 ns pF CJ 30 Notes: 1. Thermal resistance from Junction to ambient and from junction to lead mounted on P.C.B. with 0.27×0.27″(7.0 × 7.0mm) copper pad areas. E-mail: sales@cnmic.com Web Site: www.cnmic.com SURFACE MOUNT FAST SWITCHING RECTIFIER RS2A THRU RS2M VOLTAGE RANGE CURRENT 50 to 1000 Volts 2.0 Ampere RATINGS AND CHARACTERISTIC CURVES RS2A THRU RS2M F1G.1-FORWARD CURRENT DERATING CURVE PEAK FORWARD SURGE CURRENT, AVERAGE FORWARD CURRENT AMPERES 50 TL =100℃ 8.3ms Single Half Sine-Wave (JEDEC Method) 60Hz RESISTIVE OR INDUCTIVE LOAD F1G.2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 3.0 40 AMPERES 2.0 30 20 1.0 P.C.B.MOUNTED 0.27X0.27″(7.0X7.0mm) COPPER PAD AREAS 0 50 60 70 80 90 100 110 120 130 140 150 160 10 0 1 10 100 LEAD TEMPERATURE,(℃) F1G.3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 NUMBER OF CYCLES AT 60 Hz INSTANTANEOUS FORWARD CURRENT, AMPERES 10 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES F1G.4-TYPICAL REVERSE CHARACTERISTICS 100 TJ =25℃ Pulse Width=300us 1% Duty Cycle 1.0 TJ =125℃ 10 0.1 1.0 TJ =25℃ 0.01 0.4 0.1 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0 20 40 60 80 100 INSTANTANEOUS FORWARD VOLTAGE, VOLTS F1G.5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 100 TJ =25℃ f=1MHz Vsig=50mVp-p PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) 10 1.0 10 100 REVRESE VOLTAGE, VOLTS E-mail: sales@cnmic.com Web Site: www.cnmic.com
