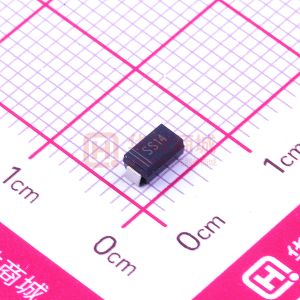

SS14

MASTER INSTRUMENT CORPORATION SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS12 THRU SS110 VOLTAGE RANGE Forward Current 20 to 100 Volts 1.0 Amperes F EATURES l Plastic package has Unerwrites Laboratory Flammability Classification 94V-0 l Metal silicon junction, majority carrier conduction l For surface mount applications l Guard ring for over voltage protection l Low power loss, high efficiency l High current capability, Low forward voltage drop l High surge capability l For use in low voltage, high frequency inventers, Free wheeling, and polarity protection applications l High temperature soldering guaranteed: 250 oC/10 seconds at terminals MECHANICAL DATA l Case: JEDED SMA (DO-214AC) molded plastic body l Terminals: Solder Plated, solderable per MIL-STD-750 Method 2026 l Polarity: Color band denotes cathode end l Weight: 0.002ounce, 0.064 gram SMA(DO-214AC) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25oC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate by 20%. SYMBOLS M aximum Repetitive Peak Reverse Voltage M aximum RMS Voltage M aximum DC Blocking Voltage M aximum Average Forward Rectified Current 0.375”(9.5mm) lead length (see Fig.1) Peak Forward Surge Current 8.3ms single half sine- wave s uperimposed on rated load (JEDEC Method) M aximum Instantaneous Forward Voltage of 1.0A (Note 1) o M aximum instantaneous Reverse Current TA=25 C at rated DC blocking voltage (Note 1) TA=125 oC SS12 20 14 20 SS13 30 21 30 SS14 40 28 40 SS15 50 35 50 1.0 SS16 60 42 60 SS18 80 56 80 SS19 90 63 90 SS110 100 70 100 UNITS Volts Volts Volts Amps Amps VRRM VRMS VDC I(AV) IFSM VF IR 30.0 0.55 0.75 0.5 0.85 Volts mA 10 28.0 88.0 -65 to +125 -65 to +150 -65 to +150 °C/W Typical thermal capacitance (Note 2) Operating and Storage Temperature Range Storage temperature range NOTES: RQJL RQJA TJ TSTG o C 1.Pulse test: 300μs pulse width, 1% duty cycle. 2.P.C.B. Mounted with 0.2*0.2”(5.0*5.0mm) copper pads. E-mail: sales@cnmic.com Web Site: www.cnmic.com 1/2 MASTER INSTRUMENT CORPORATION SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS12 THRU SS110 VOLTAGE RANGE Forward Current 20 to 100 Volts 1.0 Amperes RATING AND CHRACTERISTIC CURVES SS12 thru SS110 E-mail: sales@cnmic.com Web Site: www.cnmic.com 2/2
