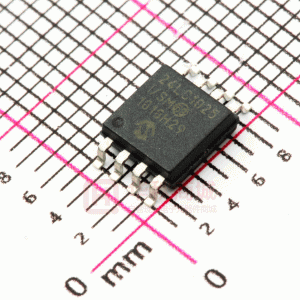

24LC1025

24AA1025/24LC1025/24FC1025 1024K I2C™ CMOS Serial EEPROM Device Selection Table: Part Number 24AA1025 24LC1025 24FC1025 † VCC Range 1.7-5.5V 2.5-5.5V 1.8-5.5V Max. Clock Frequency 400 kHz† 400 kHz* 1 MHz‡ Temp. Ranges I I, E I This device is capable of both random and sequential reads. Reads may be sequential within address boundaries 0000h to FFFFh and 10000h to 1FFFFh. Functional address lines allow up to four devices on the same data bus. This allows for up to 4 Mbits total system EEPROM memory. This device is available in the standard 8-pin PDIP, SOIC and SOIJ packages. 100 kHz for VCC < 2.5V *100 kHz for VCC < 4.5V, E-temp ‡400 kHz for VCC < 2.5V Package Type PDIP A0 A1 A2 VSS 1 2 3 4 8 7 6 5 VCC WP SCL SDA Features: • Low-Power CMOS Technology: - Read current 450 A, maximum - Standby current 5 A, maximum • 2-Wire Serial Interface, I2C™ Compatible • Cascadable up to Four Devices • Schmitt Trigger Inputs for Noise Suppression • Output Slope Control to Eliminate Ground Bounce • 100 kHz and 400 kHz Clock Compatibility • 1 MHz Clock for FC Versions • Page Write Time 3 ms, typical • Self-Timed Erase/Write Cycle • 128-Byte Page Write Buffer • Hardware Write-Protect • ESD Protection >400V • More than 1 Million Erase/Write Cycles • Data Retention >200 Years • Factory Programming Available • Packages include 8-lead PDIP, SOIJ and SOIC • Pb-Free and RoHS Compliant • Temperature Ranges: - Industrial (I): -40C to +85C - Automotive (E): -40C to +125C SOIJ/SOIC A0 A1 A2 VSS 1 2 3 4 8 7 6 5 VCC WP SCL SDA Block Diagram A0 A1 WP HV Generator I/O Control Logic Memory Control Logic XDEC EEPROM Array Page Latches I/O SCL YDEC SDA Description: The Microchip Technology Inc. 24AA1025/24LC1025/ 24FC1025 (24XX1025*) is a 128K x 8 (1024K bit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device has both byte write and page write capability of up to 128 bytes of data. VCC VSS Sense AMP R/W Control *24XX1025 is used in this document as a generic part number for the 24AA1025/24LC1025/24FC1025 devices.  2010 Microchip Technology Inc. DS21941G-page 1 24AA1025/24LC1025/24FC1025 1.0 ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings(†) VCC .............................................................................................................................................................................6.5V All inputs and outputs w.r.t. VSS ......................................................................................................... -0.6V to VCC +1.0V Storage temperature ...............................................................................................................................-65°C to +150°C Ambient temperature with power applied ................................................................................................-40°C to +125°C ESD protection on all pins  4 kV † NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability. TABLE 1-1: DC CHARACTERISTICS Industrial (I): VCC = +1.7V to 5.5V TA = -40°C to +85°C Automotive (E): VCC = +2.5V to 5.5V TA = -40°C to +125°C Min. — 0.7 VCC — 0.05 VCC Max. — — 0.3 VCC 0.2 VCC — Units — V V V V VCC 2.5V VCC < 2.5V VCC  2.5V (Note) Conditions DC CHARACTERISTICS Param. No. D1 D2 D3 D4 VIH VIL VHYS Sym. Characteristic A0, A1, SCL, SDA and WP pins: High-level input voltage Low-level input voltage Hysteresis of Schmitt Trigger inputs (SDA, SCL pins) Low-level output voltage Input leakage current Output leakage current Pin capacitance (all inputs/outputs) D5 D6 D7 D8 D9 D10 VOL ILI ILO CIN, COUT ICC Write ICCS — — — — — — — 0.40 ±1 ±1 10 450 5 5 V A A pF A mA A IOL = 3.0 mA @ VCC = 4.5V IOL = 2.1 mA @ VCC = 2.5V VIN = VSS or VCC VIN = VSS or VCC VOUT = VSS or VCC VCC = 5.0V (Note) TA = 25°C, FCLK = 1 MHz VCC = 5.5V, SCL = 400 kHz VCC = 5.5V TA = -40°C to 85°C SCL = SDA = VCC = 5.5V A0, A1, WP = VSS, A2 = VCC ICC Read Operating current Standby current Note: This parameter is periodically sampled and not 100% tested. DS21941G-page 2  2010 Microchip Technology Inc. 24AA1025/24LC1025/24FC1025 TABLE 1-2: AC CHARACTERISTICS Industrial (I): VCC = +1.7V to 5.5V TA = -40°C to +85°C Automotive (E): VCC = +2.5V to 5.5V TA = -40°C to +125°C Characteristic Clock frequency Min. — — — 4000 600 500 4700 1300 500 — — — — — 4000 600 250 4700 600 250 0 250 100 100 4000 600 250 4000 600 600 4700 1300 1300 — — — 4700 1300 500 10 + 0.1CB Max. 100 400 1000 — — — — — — 1000 300 300 300 100 — — — — — — — — — — — — — — — — — — — 3500 900 400 — — — 250 250 Units kHz Conditions 1.7V  VCC  2.5V 2.5V  VCC  5.5V (Note 5) 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) All except, 24FC1025 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) (Note 2) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) 1.7V  VCC  2.5V 2.5V  VCC  5.5V 2.5V  VCC  5.5V (Note 6) (24FC1025 only) All except, 24FC1025 (Note 1) 24FC1025 (Note 1) AC CHARACTERISTICS Param. No. 1 Sym. FCLK 2 THIGH Clock high time ns 3 TLOW Clock low time ns 4 TR SDA and SCL rise time (Note 1) SDA and SCL fall time (Note 1) ns 5 6 TF ns ns THD:STA Start condition hold time 7 TSU:STA Start condition setup time ns 8 9 THD:DAT Data input hold time TSU:DAT Data input setup time ns ns 10 TSU:STO Stop condition setup time ns 11 TSU:WP WP setup time ns 12 THD:WP WP hold time ns 13 TAA Output valid from clock (Note 2) Bus free time: Time the bus must be free before a new transmission can start Output fall time from VIH minimum to VIL maximum CB  100 pF ns 14 TBUF ns 15 TOF ns Note 1: 2: 3: 4: 5: 6: Not 100% tested. CB = total capacitance of one bus line in pF. As a transmitter, the device must provide an internal minimum delay time to bridge the undefined region (minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions. The combined TSP and VHYS specifications are due to new Schmitt Trigger inputs which provide improved noise spike suppression. This eliminates the need for a TI specification for standard operation. This parameter is not tested but established by characterization. For endurance estimates in a specific application, please consult the Total Endurance™ Model which can be obtained from Microchip’s web site at www.microchip.com. Max. clock frequency is 100 kHz for E-temp devices
