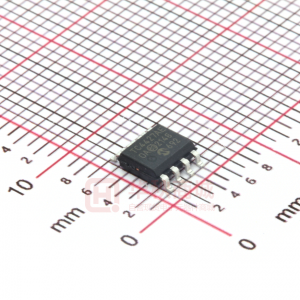

TC4427AEOA

M Features TC4426A/TC4427A/TC4428A 1.5A Dual High-Speed Power MOSFET Drivers Package Type 8-Pin PDIP/SOIC/CERDIP NC 1 IN A 2 GND 3 IN B 4 2,4 Inverting 7,5 8 NC • High Peak Output Current – 1.5A • Wide Operating Range - 4.5V to 18V • High Capacitive Load Drive Capability – 1000pF in 25nsec Typ. • Short Delay Times – 30nsec Typ. • Matched Rise, Fall and Delay Times • Low Supply Current: - With Logic "1" Input – 1mA - With Logic "0" Input – 100µA • Low Output Impedance – 7Ω • Latch-Up Protected: Will Withstand 0.5A Reverse Current • Input Will Withstand Negative Inputs Up to 5V • ESD Protected – 4kV • Pinouts Same as TC426/TC427/TC428 TC4426A 7 OUT A 6 VDD 5 OUT B NC 1 IN A 2 GND 3 IN B 4 2 7 8 NC TC4428A 7 OUT A 6 VDD 5 OUT B NC 1 IN A 2 GND 3 IN B 4 2,4 7,5 8 NC TC4427A 7 OUT A 6 VDD 5 OUT B 4 Differential 5 Applications • • • Noninverting NC = No internal connection. NOTE: SOIC pinout is identical to DIP. General Description The TC4426A/TC4427A/TC4428A are improved versions of the earlier TC426/TC427/TC428 family of buffer/drivers (with which they are pin compatible). They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against up to 4kV of electrostatic discharge. As MOSFET drivers, the TC4426A/TC4427A/ TC4428A can easily switch 1000pF gate capacitances in under 30nsec, and provide low enough impedances in both the ON and OFF states to ensure the MOSFET's intended state will not be affected, even by large transients. Device Selection Table Part Number TC4426ACOA TC4426ACPA TC4426AEOA TC4426AEPA TC4426AMJA TC4427ACOA TC4427ACPA TC4427AEOA TC4427AEPA TC4427AMJA TC4428ACOA TC4428ACPA TC4428AEOA TC4428AEPA TC4428AMJA Package 8-Pin SOIC 8-Pin PDIP 8-Pin SOIC 8-Pin PDIP 8-Pin CERDIP 8-Pin SOIC 8-Pin PDIP 8-Pin SOIC 8-Pin PDIP 8-Pin CERDIP 8-Pin SOIC 8-Pin PDIP 8-Pin SOIC 8-Pin PDIP 8-Pin CERDIP Temp. Range 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C  2002 Microchip Technology Inc. DS21423B-page 1 TC4426A/TC4427A/TC4428A Functional Block Diagram Inverting Outputs 2mA 300mV Output Noninverting Outputs Input 4.7V VDD TC4426A/TC4427A/TC4428A GND Effective Input C = 12pF NOTES: 1. TC4426A has 2 inverting drivers; TC4427A has 2 noninverting drivers. 2. TC4428A has one inverting and one noninverting driver. 3. Ground any unused driver input. DS21423B-page 2  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A 1.0 ELECTRICAL CHARACTERISTICS *Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Absolute Maximum Ratings* Supply Voltage..................................................... +22V Input Voltage, IN A or IN B ..................................(VDD + 0.3V) to (GND – 5V) Package Power Dissipation (TA ≤ 70°C) PDIP ........................................................ 730mW CERDIP ................................................... 800mW SOIC........................................................ 470mW Package Thermal Resistance CERDIP RθJ-A........................................ 150°C/W CERDIP RθJ-C ......................................... 50°C/W PDIP RθJ-A ............................................. 125°C/W PDIP RθJ-C ............................................... 42°C/W SOIC RθJ-A ............................................ 155°C/W SOIC RθJ-C .............................................. 45°C/W Operating Temperature Range C Version .........................................0°C to +70°C E Version ..................................... -40°C to +85°C M Version................................... -55°C to +125°C Storage Temperature Range ............. -65°C to +150°C TC4426A/TC4427A/TC4428A ELECTRICAL SPECIFICATIONS Electrical Characteristics: Over operating temperature range with 4.5V ≤ VDD ≤ 18V, unless otherwise noted. Symbol Input VIH VIL IIN Output VOH VOL RO High Output Voltage Low Output Voltage Output Resistance VDD – 0.025 — — — — — 0.5 — — 7 7 8 1.5 — — 0.025 9 10 11 — — V V Ω Parameter Min Typ Max Units Test Conditions Logic 1, High Input Voltage Logic 0, Low Input Voltage Input Current 2.4 — -1 -10 — — — — — 0.8 1 10 V V µA 0V ≤ VIN ≤ VDD DC Test DC Test IOUT = 10mA, VDD = 18V, TA = +25°C 0°C ≤ TA ≤ +70°C -40°C ≤ TA ≤ +85°C VDD = 18V Duty cycle ≤ 2%, t ≤ 300µsec VDD = 18V IPK IREV Note 1: Peak Output Current Latch-Up Protection Withstand Reverse Current Switching times ensured by design. A A  2002 Microchip Technology Inc. DS21423B-page 3 TC4426A/TC4427A/TC4428A Symbol Parameter Min Typ Max Units Test Conditions Switching Time (Note 1) tR Rise Time — — — — — — — — — — — — — — 25 27 29 25 27 29 30 33 35 30 33 35 1.0 0.1 35 40 40 35 40 40 35 40 45 35 40 45 2.0 0.2 nsec TA = +25°C 0°C ≤ TA ≤ +70°C -40°C ≤ TA ≤ +85°C, Figure 3-1 TA = +25°C 0°C ≤ TA ≤ +70°C -40°C ≤ TA ≤ +85°C, Figure 3-1 TA = +25°C 0°C ≤ TA ≤ +70°C -40°C ≤ TA ≤ +85°C, Figure 3-1 TA = +25°C 0°C ≤ TA ≤ +70°C -40°C ≤ TA ≤ +85°C, Figure 3-1 VIN = 3V (Both inputs) VIN = 0V (Both inputs), VDD = 18V tF Fall Time nsec tD1 Delay Time nsec tD2 Delay Time nsec Power Supply IS Note 1: Power Supply Current Switching times ensured by design. mA DS21423B-page 4  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A 2.0 PIN DESCRIPTIONS The descriptions of the pins are listed in Table 2-1. TABLE 2-1: Pin No. (8-Pin PDIP, SOIC, CERDIP) 1 2 3 4 5 6 7 8 PIN FUNCTION TABLE Symbol NC IN A GND IN B OUT B VDD OUT A NC No connect. Ground. No connect. Description  2002 Microchip Technology Inc. DS21423B-page 5 TC4426A/TC4427A/TC4428A 3.0 APPLICATIONS INFORMATION SWITCHING TIME TEST CIRCUIT +5V Input VDD = 18V 0V VDD Output 7 0V Output CL = 1000pF 4 5 +5V Input 0V VDD Input: 100kHz, square wave, tRISE = tFALL ≤ 10nsec Output 0V 10% 10% 90% tR 90% tD2 10% 10% 10% 10% tD1 tF 90% tD2 tR 90% 90% FIGURE 3-1: 4.7µF 6 Input 2 0.1µF Inverting Driver 90% 3 tD1 tF Noninverting Driver DS21423B-page 6  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A 4.0 Note: TYPICAL CHARACTERISTICS The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range. Rise Time vs. Supply Voltage 100 80 tRISE (nsec) CL = 2200pF CL = 1500pF CL CL = 470pF TA = +25°C Fall Time vs. Supply Voltage 100 80 tFALL (nsec) TA = +25°C CL = 1500pF CL CL = 470pF 60 40 20 0 5.0 CL = 100pF 60 40 20 0 5.0 L 7.5 10.0 12.5 VDD (V) 15.0 17.5 7.5 10.0 12.5 VDD (V) 15.0 17.5 Effect of Input Amplitude on Delay 110 100 90 80 70 60 50 40 30 20 1 2 Delay Time (nsec) tD1 CL = 1000pF VDD = 10V 60 55 Delay Time (nsec) 50 45 40 35 30 25 20 Propagation Delay Time vs. Supply Voltage tD1 tD2 CL = 1000pF tD2 3 4 5 VDD (V) 6 7 8 9 0 5 10 VDD (V) 15 20 Rise and Fall Times vs. Temperature 28 Delay Time (nsec) 40 Propagation Delay Time vs. Temperature 35 30 25 tD2 CL = 1000pF VDD = 18V 26 Time (nsec) CL = 1000pF VDD = 18V 24 22 20 18 16 14 -100 tRISE tFALL 20 15 -100 tD1 -50 0 50 100 150 -50 0 50 100 150 TEMPERATURE (°C) TEMPERATURE (°C)  2002 Microchip Technology Inc. DS21423B-page 7 TC4426A/TC4427A/TC4428A TYPICAL CHARACTERISTICS (CONTINUED) High-State Output Resistance 30 25 TA = 125°C TA = 125°C Low State Output Resistance 30 25 TA = 125°C RDS(ON) (Ω) RDS(ON) (Ω) 20 15 10 5 0 0 20 15 10 5 0 TA = 125°C 5 10 VDD (V) 15 20 0 5 10 VDD (V) 15 20 Supply Current vs. Frequency 60 50 ISUPPLY (mA) CL = 2200pF Supply Current vs. Capacitance Load 60 2MHz CL = 1500pF CL = 1000pF VDD = 18V CL = 100pF VDD = 18V 50 ISUPPLY (mA) 900MHz 40 30 20 10 0 0 500 1000 40 30 20 600MHz 200MHz 10 20MHz 0 1500 2000 2500 0 500 FREQUENCY (KHz) 1000 1500 CL (pF) 2000 2500 Supply Current vs. Frequency 80 70 ISUPPLY (mA) VDD = 12V CL = 2200pF Supply Current vs.Capacitance Load 80 70 ISUPPLY (mA) VDD = 12V 2MHz 60 50 40 30 20 10 0 0 500 1500 FREQUENCY (KHz) 1000 CL = 1500pF CL = 1000pF CL = 100pF 60 50 40 30 20 10 0 900MHz 600MHz 200MHz 20MHz 2000 2500 0 500 1000 1500 CL (pF) 2000 2500 DS21423B-page 8  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A TYPICAL CHARACTERISTICS (CONTINUED) Supply Current vs. Frequency 40 35 ISUPPLY (mA) 40 Supply Current vs. Capacitance Load 35 ISUPPLY (mA) VDD = 6V 2MHz VDD = 6V CL = 2200pF CL = 1500pF CL = 1000pF CL = 100pF 30 25 20 15 10 5 0 0 500 1000 1500 30 25 15 10 5 0 0 500 1000 1500 CL (pF) 900MHz 600MHz 200MHz 2 20MHz 2000 2500 2000 2500 FREQUENCY (KHz) Quiescent Supply Current vs. Temperature Quiescent Supply Current vs. Voltage IQUIESCENT (mA) IQUIESCENT (mA) 900 800 BOTH INPUTS = 1 700 600 500 400 300 200 BOTH INPUTS = 0 100 0 0 5 TA = 25°C 1100 1000 900 BOTH INPUTS = 0 800 700 600 500 400 300 200 BOTH INPUTS = 0 100 0 -100 -50 0 VDD = 18V 50 100 150 10 VDD (V) 15 20 TEMPERATURE (°C)  2002 Microchip Technology Inc. DS21423B-page 9 TC4426A/TC4427A/TC4428A 5.0 5.1 PACKAGING INFORMATION Package Dimensions Package marking data not available at this time. 8-Pin Plastic DIP PIN 1 .260 (6.60) .240 (6.10) .045 (1.14) .030 (0.76) .400 (10.16) .348 (8.84) .200 (5.08) .140 (3.56) .150 (3.81) .115 (2.92) .070 (1.78) .040 (1.02) .310 (7.87) .290 (7.37) .040 (1.02) .020 (0.51) .015 (0.38) .008 (0.20) .400 (10.16) .310 (7.87) 3° MIN. .110 (2.79) .090 (2.29) .022 (0.56) .015 (0.38) Dimensions: inches (mm) 8-Pin CDIP (Narrow) .110 (2.79) .090 (2.29) PIN 1 .300 (7.62) .230 (5.84) .055 (1.40) MAX. .400 (10.16) .370 (9.40) .200 (5.08) .160 (4.06) .200 (5.08) .125 (3.18) .020 (0.51) MIN. .320 (8.13) .290 (7.37) .040 (1.02) .020 (0.51) .015 (0.38) .008 (0.20) .400 (10.16) .320 (8.13) .065 (1.65) .020 (0.51) .045 (1.14) .016 (0.41) .150 (3.81) MIN. 3° MIN. Dimensions: inches (mm) DS21423B-page 10  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A Package Dimensions (Continued) 8-Pin SOIC PIN 1 .157 (3.99) .150 (3.81) .244 (6.20) .228 (5.79) .050 (1.27) TYP. .197 (5.00) .189 (4.80) .069 (1.75) .053 (1.35) .020 (0.51) .010 (0.25) .013 (0.33) .004 (0.10) 8° MAX. . .050 (1.27) .016 (0.40) Dimensions: inches (mm) .010 (0.25) .007 (0.18)  2002 Microchip Technology Inc. DS21423B-page 11 TC4426A/TC4427A/TC4428A NOTES: DS21423B-page 12  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A Sales and Support Data Sheets Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recommended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following: 1. 2. 3. Your local Microchip sales office The Microchip Corporate Literature Center U.S. FAX: (480) 792-7277 The Microchip Worldwide Site (www.microchip.com) Please specify which device, revision of silicon and Data Sheet (include Literature #) you are using. New Customer Notification System Register on our web site (www.microchip.com/cn) to receive the most current information on our products.  2002 Microchip Technology Inc. DS21423B-page13 TC4426A/TC4427A/TC4428A NOTES: DS21423B-page14  2002 Microchip Technology Inc. TC4426A/TC4427A/TC4428A Information contained in this publication regarding device applications and the like is intended through suggestion only and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. No representation or warranty is given and no liability is assumed by Microchip Technology Incorporated with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising from such use or otherwise. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any intellectual property rights. Trademarks The Microchip name and logo, the Microchip logo, FilterLab, KEELOQ, microID, MPLAB, PIC, PICmicro, PICMASTER, PICSTART, PRO MATE, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. dsPIC, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, microPort, Migratable Memory, MPASM, MPLIB, MPLINK, MPSIM, MXDEV, PICC, PICDEM, PICDEM.net, rfPIC, Select Mode and Total Endurance are trademarks of Microchip Technology Incorporated in the U.S.A. Serialized Quick Turn Programming (SQTP) is a service mark of Microchip Technology Incorporated in the U.S.A. All other trademarks mentioned herein are property of their respective companies. © 2002, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved. Printed on recycled paper. Microchip received QS-9000 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona in July 1999 and Mountain View, California in March 2002. The Company’s quality system processes and procedures are QS-9000 compliant for its PICmicro® 8-bit MCUs, KEELOQ® code hopping devices, Serial EEPROMs, microperipherals, non-volatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001 certified.  2002 Microchip Technology Inc. DS21423B-page 15 M WORLDWIDE SALES AND SERVICE AMERICAS Corporate Office 2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: 480-792-7627 Web Address: http://www.microchip.com ASIA/PACIFIC Australia Microchip Technology Australia Pty Ltd Suite 22, 41 Rawson Street Epping 2121, NSW Australia Tel: 61-2-9868-6733 Fax: 61-2-9868-6755 Japan Microchip Technology Japan K.K. Benex S-1 6F 3-18-20, Shinyokohama Kohoku-Ku, Yokohama-shi Kanagawa, 222-0033, Japan Tel: 81-45-471- 6166 Fax: 81-45-471-6122 Rocky Mountain 2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7966 Fax: 480-792-7456 China - Beijing Microchip Technology Consulting (Shanghai) Co., Ltd., Beijing Liaison Office Unit 915 Bei Hai Wan Tai Bldg. No. 6 Chaoyangmen Beidajie Beijing, 100027, No. China Tel: 86-10-85282100 Fax: 86-10-85282104 Korea Microchip Technology Korea 168-1, Youngbo Bldg. 3 Floor Samsung-Dong, Kangnam-Ku Seoul, Korea 135-882 Tel: 82-2-554-7200 Fax: 82-2-558-5934 Atlanta 500 Sugar Mill Road, Suite 200B Atlanta, GA 30350 Tel: 770-640-0034 Fax: 770-640-0307 Singapore Microchip Technology Singapore Pte Ltd. 200 Middle Road #07-02 Prime Centre Singapore, 188980 Tel: 65-6334-8870 Fax: 65-6334-8850 Boston 2 Lan Drive, Suite 120 Westford, MA 01886 Tel: 978-692-3848 Fax: 978-692-3821 China - Chengdu Microchip Technology Consulting (Shanghai) Co., Ltd., Chengdu Liaison Office Rm. 2401, 24th Floor, Ming Xing Financial Tower No. 88 TIDU Street Chengdu 610016, China Tel: 86-28-6766200 Fax: 86-28-6766599 Taiwan Microchip Technology Taiwan 11F-3, No. 207 Tung Hua North Road Taipei, 105, Taiwan Tel: 886-2-2717-7175 Fax: 886-2-2545-0139 Chicago 333 Pierce Road, Suite 180 Itasca, IL 60143 Tel: 630-285-0071 Fax: 630-285-0075 Dallas 4570 Westgrove Drive, Suite 160 Addison, TX 75001 Tel: 972-818-7423 Fax: 972-818-2924 China - Fuzhou Microchip Technology Consulting (Shanghai) Co., Ltd., Fuzhou Liaison Office Unit 28F, World Trade Plaza No. 71 Wusi Road Fuzhou 350001, China Tel: 86-591-7503506 Fax: 86-591-7503521 EUROPE Denmark Microchip Technology Nordic ApS Regus Business Centre Lautrup hoj 1-3 Ballerup DK-2750 Denmark Tel: 45 4420 9895 Fax: 45 4420 9910 Detroit Tri-Atria Office Building 32255 Northwestern Highway, Suite 190 Farmington Hills, MI 48334 Tel: 248-538-2250 Fax: 248-538-2260 China - Shanghai Microchip Technology Consulting (Shanghai) Co., Ltd. Room 701, Bldg. B Far East International Plaza No. 317 Xian Xia Road Shanghai, 200051 Tel: 86-21-6275-5700 Fax: 86-21-6275-5060 Kokomo 2767 S. Albright Road Kokomo, Indiana 46902 Tel: 765-864-8360 Fax: 765-864-8387 France Microchip Technology SARL Parc d’Activite du Moulin de Massy 43 Rue du Saule Trapu Batiment A - ler Etage 91300 Massy, France Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79 Los Angeles 18201 Von Karman, Suite 1090 Irvine, CA 92612 Tel: 949-263-1888 Fax: 949-263-1338 China - Shenzhen Microchip Technology Consulting (Shanghai) Co., Ltd., Shenzhen Liaison Office Rm. 1315, 13/F, Shenzhen Kerry Centre, Renminnan Lu Shenzhen 518001, China Tel: 86-755-2350361 Fax: 86-755-2366086 New York 150 Motor Parkway, Suite 202 Hauppauge, NY 11788 Tel: 631-273-5305 Fax: 631-273-5335 Germany Microchip Technology GmbH Gustav-Heinemann Ring 125 D-81739 Munich, Germany Tel: 49-89-627-144 0 Fax: 49-89-627-144-44 San Jose Microchip Technology Inc. 2107 North First Street, Suite 590 San Jose, CA 95131 Tel: 408-436-7950 Fax: 408-436-7955 Hong Kong Microchip Technology Hongkong Ltd. Unit 901-6, Tower 2, Metroplaza 223 Hing Fong Road Kwai Fong, N.T., Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431 Italy Microchip Technology SRL Centro Direzionale Colleoni Palazzo Taurus 1 V. Le Colleoni 1 20041 Agrate Brianza Milan, Italy Tel: 39-039-65791-1 Fax: 39-039-6899883 Toronto 6285 Northam Drive, Suite 108 Mississauga, Ontario L4V 1X5, Canada Tel: 905-673-0699 Fax: 905-673-6509 India Microchip Technology Inc. India Liaison Office Divyasree Chambers 1 Floor, Wing A (A3/A4) No. 11, O’Shaugnessey Road Bangalore, 560 025, India Tel: 91-80-2290061 Fax: 91-80-2290062 United Kingdom Arizona Microchip Technology Ltd. 505 Eskdale Road Winnersh Triangle Wokingham Berkshire, England RG41 5TU Tel: 44 118 921 5869 Fax: 44-118 921-5820 03/01/02 ' ! DS21423B-page 16 '  2002 Microchip Technology Inc.
