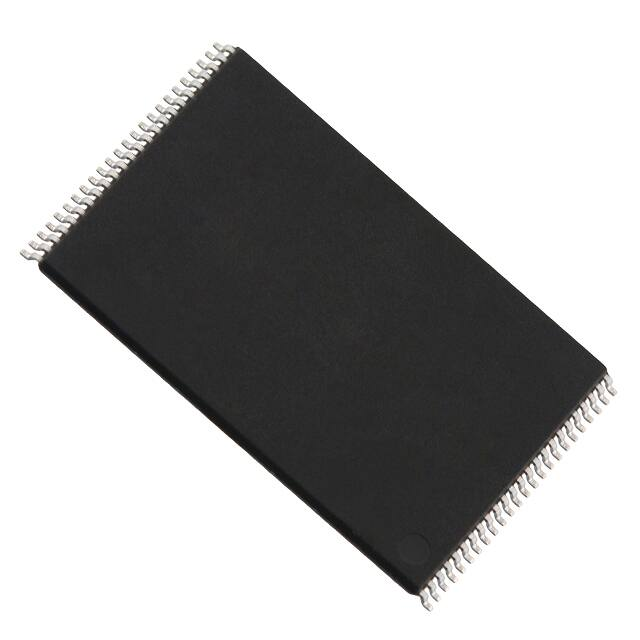

M29W320ET
M29W320EB
32 Mbit (4Mbx8 or 2Mbx16, Uniform Parameter Blocks, Boot Block)
3V supply Flash memory
Features
Supply voltage
– VCC = 2.7V to 3.6V for Program, Erase and
Read
– VPP =12V for Fast Program (optional)
Access times: 70, 90ns
Programming time
– 10μs per byte/word typical
– Double word/ Quadruple byte Program
TSOP48 (N)
12 x 20 mm
Memory Blocks
– Memory Array: 63 Main Blocks
– 8 Parameter Blocks (Top or Bottom
Location)
FBGA
TFBGA48 (ZE)
6 x 8 mm
BGA
FBGA64 (ZS)
11 x 13 mm
Erase Suspend and Resume modes
– Read and Program another Block during
Erase Suspend
Unlock Bypass Program command
– Faster Production/Batch Programming
VPP/WP pin for fast Program and Write Protect
Temporary Block Unprotection mode
Common Flash Interface
– 64 bit Security code
Extended memory Block
– Extra block used as security block or to
store additional information
Low power consumption
– Standby and Automatic Standby
100,000 Program/Erase cycles per block
Electronic signature
– Manufacturer code: 0020h
– Top Device code M29W320ET: 2256h
– Bottom Device code M29W320EB: 2257h
RoHS® packages available
May 2009
Rev 9
1/65
www.numonyx.com
