512Mb, 1Gb, 2Gb:
P30-65nm
Features
Micron Parallel NOR Flash Embedded
Memory (P30-65nm)
JS28F512P30BFx, JS28F512P30EFx, JS28F512P30TFx,
PC28F512P30BFx, PC28F512P30EFx, PC28F512P30TFx,
JS28F00AP30BFx, JS28F00AP30TFx, JS28F00AP30EFx,
PC28F00AP30BFx, PC28F00AP30TFx, PC28F00AP30EFx,
RC28F00AP30BFx, RC28F00AP30TFx, PC28F00BP30EFx
Features
• Security
– One-time programmable register: 64 OTP bits,
programmed with unique information from Micron; 2112 OTP bits available for customer programming
– Absolute write protection: V PP = V SS
– Power-transition erase/program lockout
– Individual zero-latency block locking
– Individual block lock-down
– Password access
• Software
– 25μs (TYP) program suspend
– 25μs (TYP) erase suspend
– Flash Data Integrator optimized
– Basic command set and extended function interface (EFI) command set compatible
– Common flash interface
• Density and packaging
– 56-lead TSOP package (512Mb, 1Gb)
– 64-ball Easy BGA package (512Mb, 1Gb, 2Gb)
• Quality and reliability
– JESD47 compliant
– Operating temperature: –40°C to +85°C
– Minimum 100,000 ERASE cycles per block
– 65nm process technology
• High performance
• Easy BGA package features
– 100ns initial access for 512Mb, 1Gb Easy BGA
– 105ns initial access for 2Gb Easy BGA
– 25ns 16-word asynchronous page read mode
– 52 MHz (Easy BGA) with zero WAIT states and
17ns clock-to-data output synchronous burst
read mode
– 4-, 8-, 16-, and continuous word options for burst
mode
• TSOP package features
– 110ns initial access for 512Mb, 1Gb TSOP
• Both Easy BGA and TSOP package features
– Buffered enhanced factory programming (BEFP)
at 2 MB/s (TYP) using a 512-word buffer
– 1.8V buffered programming at 1.46 MB/s (TYP)
using a 512-word buffer
• Architecture
– MLC: highest density at lowest cost
– Symmetrically blocked architecture (512Mb, 1Gb,
2Gb)
– Asymmetrically blocked architecture (512Mb,
1Gb); four 32KB parameter blocks: top or bottom
configuration
– 128KB main blocks
– Blank check to verify an erased block
• Voltage and power
– VCC (core) voltage: 1.7–2.0V
– VCCQ (I/O) voltage: 1.7–3.6V
– Standby current: 70µA (TYP) for 512Mb; 75µA
(TYP) for 1Gb
– 52 MHz continuous synchronous read current:
21mA (TYP), 24mA (MAX)
• 16-bit wide data bus
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
Products and specifications discussed herein are subject to change by Micron without notice.
512Mb, 1Gb, 2Gb:
P30-65nm
Features
Discrete and MCP Part Numbering Information
Devices are shipped from the factory with memory content bits erased to 1. For available options, such as packages or for further information, contact your Micron sales representative. Part numbers can be verified at www.micron.com. Feature and specification comparison by device type is available at www.micron.com/products. Contact the factory for devices not found.
Note: Not all part numbers listed here are available for ordering.
Table 1: Discrete Part Number Information
Part Number Category
Category Details
Package
JS = 56-lead TSOP, lead free
PC = 64-ball Easy BGA, lead-free
RC = 64-ball Easy BGA, leaded
Product Line
28F = Micron Flash memory
Density
512 = 512Mb
00A = 1Gb
00B = 2Gb
Product Family
P30 (VCC = 1.7–2.0V; VCCQ = 1.7–3.6V)
Parameter Location
B/T = Bottom/Top parameter
E = Symmetrical Blocks
Lithography
F = 65nm
Features
*
Note:
1. The last digit is assigned randomly to cover packaging media, features, or other specific configuration information. Sample part number: JS28F512P30EF*
Table 2: Standard Part Numbers
Density
Configuration
Medium
JS
PC
RC
512Mb
Bottom boot
Tray
JS28F512P30BFA
PC28F512P30BFA
–
Tape and Reel
–
PC28F512P30BFB
–
Tray
JS28F512P30TFA
PC28F512P30TFA
–
Top boot
Uniform
1Gb
Bottom boot
Top boot
Uniform
2Gb
Uniform
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Tape and Reel
–
PC28F512P30TFB
–
Tray
JS28F512P30EFA
PC28F512P30EFA
–
Tape and Reel
–
–
–
Tray
JS28F00AP30BFA
PC28F00AP30BFA
RC28F00AP30BFA
Tape and Reel
–
PC28F00AP30BFB
–
Tray
JS28F00AP30BTFA

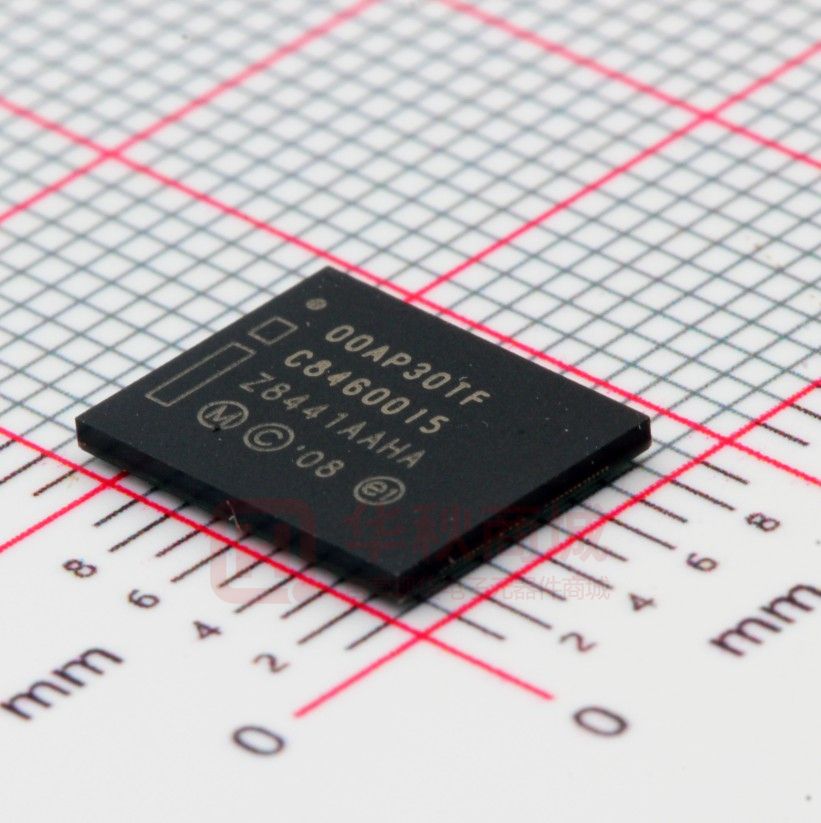

PC28F00AP30TFA
RC28F00AP30TFA
Tape and Reel
–
–
–
Tray
JS28F00AP30EFA
PC28F00AP30EFA
–
Tape and Reel
–
–
–
Tray
–
PC28F00BP30EFA
–
Tape and Reel
–
–
–
2
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Features
Contents
General Description ......................................................................................................................................... 7
Virtual Chip Enable Description ........................................................................................................................ 8
Memory Map ................................................................................................................................................... 9
Package Dimensions ....................................................................................................................................... 11
Pinouts and Ballouts ....................................................................................................................................... 13
Signal Descriptions ......................................................................................................................................... 15
Bus Operations ............................................................................................................................................... 17
Read .......................................................................................................................................................... 17
Write .......................................................................................................................................................... 17
Output Disable ........................................................................................................................................... 17
Standby ..................................................................................................................................................... 17
Reset .......................................................................................................................................................... 18
Device Command Codes ................................................................................................................................. 19
Device Command Bus Cycles .......................................................................................................................... 22
Read Operations ............................................................................................................................................. 24
Asynchronous Single Word Read ..................................................................................................................... 24
Asynchronous Page Mode Read (Easy BGA Only) ............................................................................................. 24
Synchronous Burst Mode Read (Easy BGA Only) .............................................................................................. 25
Read CFI ........................................................................................................................................................ 25
Read Device ID ............................................................................................................................................... 25
Device ID Codes ............................................................................................................................................. 26
Program Operations ....................................................................................................................................... 27
Word Programming (40h) ........................................................................................................................... 27
Buffered Programming (E8h, D0h) .............................................................................................................. 27
Buffered Enhanced Factory Programming (80h, D0h) ................................................................................... 28
Program Suspend ....................................................................................................................................... 30
Program Resume ........................................................................................................................................ 31
Program Protection .................................................................................................................................... 31
Erase Operations ............................................................................................................................................ 32
BLOCK ERASE Command ........................................................................................................................... 32
BLANK CHECK Command .......................................................................................................................... 32
ERASE SUSPEND Command ....................................................................................................................... 33
ERASE RESUME Command ........................................................................................................................ 33
Erase Protection ......................................................................................................................................... 33
Security Operations ........................................................................................................................................ 34
Block Locking ............................................................................................................................................. 34
BLOCK LOCK Command ............................................................................................................................ 34
BLOCK UNLOCK Command ....................................................................................................................... 34
BLOCK LOCK DOWN Command ................................................................................................................. 34
Block Lock Status ....................................................................................................................................... 34
Block Locking During Suspend ................................................................................................................... 35
Selectable OTP Blocks ................................................................................................................................. 36
Password Access ......................................................................................................................................... 36
Status Register ................................................................................................................................................ 37
Read Status Register ................................................................................................................................... 37
Clear Status Register ................................................................................................................................... 38
Configuration Register .................................................................................................................................... 39
Read Configuration Register ....................................................................................................................... 39
Read Mode ................................................................................................................................................. 39
Latency Count ............................................................................................................................................ 40
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
3
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Features
End of Wordline Considerations ..................................................................................................................
WAIT Signal Polarity and Functionality ........................................................................................................
WAIT Delay ................................................................................................................................................
Burst Sequence ..........................................................................................................................................
Clock Edge .................................................................................................................................................
Burst Wrap .................................................................................................................................................
Burst Length ..............................................................................................................................................
One-Time Programmable Registers .................................................................................................................
Read OTP Registers .....................................................................................................................................
Program OTP Registers ...............................................................................................................................
Lock OTP Registers .....................................................................................................................................
Common Flash Interface ................................................................................................................................
READ CFI Structure Output ........................................................................................................................
Flowcharts .....................................................................................................................................................
Power and Reset Specifications .......................................................................................................................
Power Supply Decoupling ...........................................................................................................................
Maximum Ratings and Operating Conditions ..................................................................................................
DC Electrical Specifications ............................................................................................................................
AC Test Conditions and Capacitance ...............................................................................................................
AC Read Specifications ...................................................................................................................................
AC Write Specifications ...................................................................................................................................
Program and Erase Characteristics ..................................................................................................................
Revision History .............................................................................................................................................
Rev. D – 5/17 ..............................................................................................................................................
Rev. C – 2/15 ...............................................................................................................................................
Rev. B – 12/13 .............................................................................................................................................
Rev. A – 8/13 ...............................................................................................................................................
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
4
41
42
43
43
44
44
44
45
45
46
46
48
48
62
71
72
73
74
76
78
85
91
92
92
92
92
92
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Features
List of Figures
Figure 1: Easy BGA Block Diagram ................................................................................................................... 8
Figure 2: Memory Map – 512Mb and 1Gb ......................................................................................................... 9
Figure 3: Memory Map – 2Gb ......................................................................................................................... 10
Figure 4: 56-Pin TSOP – 20mm × 14mm .......................................................................................................... 11
Figure 5: 64-Ball Easy BGA – 10mm × 8mm × 1.2mm ....................................................................................... 12
Figure 6: 56-Lead TSOP Pinout – 512Mb and 1Gb ........................................................................................... 13
Figure 7: 64-Ball Easy BGA (Top View – Balls Down) – 512Mb, 1Gb, and 2Gb .................................................... 14
Figure 8: Example V PP Supply Connections .................................................................................................... 31
Figure 9: Block Locking State Diagram ........................................................................................................... 35
Figure 10: First Access Latency Count ............................................................................................................ 40
Figure 11: Example Latency Count Setting Using Code 3 ................................................................................. 41
Figure 12: End of Wordline Timing Diagram ................................................................................................... 41
Figure 13: OTP Register Map .......................................................................................................................... 46
Figure 14: Word Program Procedure ............................................................................................................... 62
Figure 15: Buffer Program Procedure .............................................................................................................. 63
Figure 16: Buffered Enhanced Factory Programming (BEFP) Procedure ........................................................... 64
Figure 17: Block Erase Procedure ................................................................................................................... 65
Figure 18: Program Suspend/Resume Procedure ............................................................................................ 66
Figure 19: Erase Suspend/Resume Procedure ................................................................................................. 67
Figure 20: Block Lock Operations Procedure ................................................................................................... 68
Figure 21: OTP Register Programming Procedure ............................................................................................ 69
Figure 22: Status Register Procedure .............................................................................................................. 70
Figure 23: Reset Operation Waveforms ........................................................................................................... 72
Figure 24: AC Input/Output Reference Timing ................................................................................................ 76
Figure 25: Transient Equivalent Load Circuit .................................................................................................. 76
Figure 26: Clock Input AC Waveform .............................................................................................................. 76
Figure 27: Asynchronous Single-Word Read (ADV# LOW) ................................................................................ 80
Figure 28: Asynchronous Single-Word Read (ADV# Latch) ............................................................................... 80
Figure 29: Asynchronous Page Mode Read ...................................................................................................... 81
Figure 30: Synchronous Single-Word Array or Nonarray Read .......................................................................... 82
Figure 31: Continuous Burst Read with Output Delay ..................................................................................... 83
Figure 32: Synchronous Burst Mode 4-Word Read ........................................................................................... 84
Figure 33: Write to Write Timing .................................................................................................................... 87
Figure 34: Asynchronous Read to Write Timing ............................................................................................... 87
Figure 35: Write to Asynchronous Read Timing ............................................................................................... 88
Figure 36: Synchronous Read to Write Timing ................................................................................................ 89
Figure 37: Write to Synchronous Read Timing ................................................................................................ 90
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
5
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Features
List of Tables
Table 1: Discrete Part Number Information ...................................................................................................... 2
Table 2: Standard Part Numbers ....................................................................................................................... 2
Table 3: Virtual Chip Enable Truth Table for Easy BGA Packages ........................................................................ 8
Table 4: TSOP and Easy BGA Signal Descriptions ............................................................................................ 15
Table 5: Bus Operations ................................................................................................................................. 17
Table 6: Command Codes and Definitions ...................................................................................................... 19
Table 7: Command Bus Cycles ....................................................................................................................... 22
Table 8: Device ID Information ...................................................................................................................... 25
Table 9: Device ID Codes ............................................................................................................................... 26
Table 10: BEFP Requirements ........................................................................................................................ 29
Table 11: BEFP Considerations ...................................................................................................................... 29
Table 12: Status Register Description .............................................................................................................. 37
Table 13: Read Configuration Register ............................................................................................................ 39
Table 14: End of Wordline Data and WAIT State Comparison ........................................................................... 42
Table 15: WAIT Functionality Table ................................................................................................................ 42
Table 16: Burst Sequence Word Ordering ........................................................................................................ 43
Table 17: Example of CFI Output (x16 device) as a Function of Device and Mode ............................................. 48
Table 18: CFI Database: Addresses and Sections ............................................................................................. 49
Table 19: CFI ID String ................................................................................................................................... 49
Table 20: System Interface Information .......................................................................................................... 50
Table 21: Device Geometry ............................................................................................................................ 51
Table 22: Block Region Map Information ........................................................................................................ 51
Table 23: Primary Vendor-Specific Extended Query ........................................................................................ 52
Table 24: Optional Features Field ................................................................................................................... 54
Table 25: One Time Programmable (OTP) Space Information .......................................................................... 54
Table 26: Burst Read Information ................................................................................................................... 55
Table 27: Partition and Block Erase Region Information .................................................................................. 56
Table 28: Partition Region 1 Information: Top and Bottom Offset/Address ....................................................... 57
Table 29: Partition Region 1 Information ........................................................................................................ 57
Table 30: Partition Region 1: Partition and Erase Block Map Information ......................................................... 60
Table 31: CFI Link Information – 2Gb ............................................................................................................. 61
Table 32: Power and Reset .............................................................................................................................. 71
Table 33: Maximum Ratings ........................................................................................................................... 73
Table 34: Operating Conditions ...................................................................................................................... 73
Table 35: DC Current Characteristics .............................................................................................................. 74
Table 36: DC Voltage Characteristics .............................................................................................................. 75
Table 37: Test Configuration: Worst-Case Speed Condition .............................................................................. 76
Table 38: Capacitance .................................................................................................................................... 77
Table 39: AC Read Specifications .................................................................................................................... 78
Table 40: AC Write Specifications ................................................................................................................... 85
Table 41: Program and Erase Specifications .................................................................................................... 91
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
6
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
General Description
General Description
The Micron Parallel NOR Flash memory is the latest generation of Flash memory devices. Benefits include more density in less space, high-speed interface device, and support for code and data storage. Features include high-performance synchronous-burst
read mode, fast asynchronous access times, low power, flexible security options, and
three industry-standard package choices. The product family is manufactured using Micron 65nm process technology.
The NOR Flash device provides high performance at low voltage on a 16-bit data bus.
Individually erasable memory blocks are sized for optimum code and data storage.
Upon initial power up or return from reset, the device defaults to asynchronous pagemode read. Configuring the read configuration register enables synchronous burstmode reads. In synchronous burst mode, output data is synchronized with a user-supplied clock signal. A WAIT signal provides easy CPU-to-flash memory synchronization.
In addition to the enhanced architecture and interface, the device incorporates technology that enables fast factory PROGRAM and ERASE operations. Designed for low-voltage systems, the devIce supports READ operations with V CC at the low voltages, and
ERASE and PROGRAM operations with V PP at the low voltages or V PPH. Buffered enhanced factory programming (BEFP) provides the fastest Flash array programming performance with V PP at V PPH, which increases factory throughput. With V PP at low voltages, V CC and V PP can be tied together for a simple, ultra low-power design. In addition to
voltage flexibility, a dedicated V PP connection provides complete data protection when
VPP ≤ V PPLK.
A command user interface is the interface between the system processor and all internal operations of the device. The device automatically executes the algorithms and timings necessary for block erase and program. A status register indicates ERASE or PROGRAM completion and any errors that may have occurred.
An industry-standard command sequence invokes program and erase automation.
Each ERASE operation erases one block. The erase suspend feature enables system software to pause an ERASE cycle to read or program data in another block. Program suspend enables system software to pause programming to read other locations. Data is
programmed in word increments (16 bits).
The protection register enables unique device identification that can be used to increase system security. The individual block lock feature provides zero-latency block
locking and unlocking. The device includes enhanced protection via password access;
this new feature supports write and/or read access protection of user-defined blocks. In
addition, the device also provides the full-device OTP security feature.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
7
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Virtual Chip Enable Description
Virtual Chip Enable Description
The 2Gb device employs a virtual chip enable feature, which combines two 1Gb die
with a common chip enable, CE# for Easy BGA packages. The maximum address bit is
then used to select between the die pair with CE# asserted. When CE# is asserted and
the maximum address bit is LOW, the lower parameter die is selected; when CE# is asserted and the maximum address bit is HIGH, the upper parameter die is selected.
Table 3: Virtual Chip Enable Truth Table for Easy BGA Packages
Die Selected
CE#
A[MAX]
Lower parameter die
L
L
Upper parameter die
L
H
Figure 1: Easy BGA Block Diagram
Easy BGA (Dual Die) Top/Bottom
Parameter Configuration
CE#
Top Parameter Die
WP#
RST#
OE#
VCC
WE#
VPP
VCCQ
CLK
ADV#
Bottom Parameter Die
VSS
DQ[15:0]
A[MAX:1]
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
WAIT
8
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Memory Map
Memory Map
Figure 2: Memory Map – 512Mb and 1Gb
A[25:1] 512Mb and A[26:1] 1Gb
3FF0000 - 3FFFFFF
64 KWord Block 1026
3FF0000 - 3FFFFFF
64 KWord Block 1023
1FF0000 - 1FFFFFF
64 KWord Block 514
1FF0000 - 1FFFFFF
64 KWord Block 511
FF0000 - FFFFFF
64 KWord Block 258
FF0000 - FFFFFF
64 KWord Block 255
020000 - 02FFFF
64 KWord Block 5
1Gb
512Mb
1Gb
512Mb
010000 - 01FFFF
64 KWord Block 4
00C000 - 00FFFF
16 KWord Block 3
030000 - 03FFFF
64 KWord Block 3
008000 - 00BFFF
16 KWord Block 2
020000 - 02FFFF
64 KWord Block 2
004000 - 007FFF
16 KWord Block 1
010000 - 01FFFF
64 KWord Block 1
000000 - 003FFF
16 KWord Block 0
000000 - 00FFFF
64 KWord Block 0
Bottom Boot 512Mb and 1Gb, World-Wide x16 Mode
Symetrically Blocked 512Mb and 1Gb, World-Wide x16 Mode
1FFC000 - 1FFFFFF
16 KWord Block 514
3FFC000 - 3FFFFFF
16 KWord Block 1026
1FF8000 - 1FFBFFF
16 KWord Block 513
3FF8000 - 3FFBFFF
16 KWord Block 1025
1FF4000 - 1FF7FFF
16 KWord Block 512
3FF4000 - 3FF7FFF
16 KWord Block 1024
1FF0000 - 1FF3FFF
16 KWord Block 511
3FF0000 - 3FF3FFF
16 KWord Block 1023
1FE0000 - 1FEFFFF
64 KWord Block 510
3FE0000 - 3FEFFFF
64 KWord Block 1022
512Mb
1Gb
010000 - 01FFFF
64 KWord Block 1
010000 - 01FFFF
64 KWord Block 1
000000 - 00FFFF
64 KWord Block 0
000000 - 00FFFF
64 KWord Block 0
Top Boot 512Mb, World Wide x16 Mode
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Top Boot 1Gb, World Wide x16 Mode
9
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Memory Map
Figure 3: Memory Map – 2Gb
A[27:1] 2Gb (1Gb/1Gb)
7FF0000 - 7FFFFFF
64 KWord Block 2047
4011000 - 401FFFF
64 KWord Block 1025
4000000 - 400FFFF
64 KWord Block 1024
3FF0000 - 3FFFFFF
64 KWord Block 1023
1FF0000 - 1FFFFFF
64 KWord Block 511
2Gb
FF0000 - FFFFFF
64 KWord Block 255
1Gb
512Mb
020000 - 02FFFF
64 KWord Block 2
010000 - 01FFFF
64 KWord Block 1
000000 - 00FFFF
64 KWord Block 0
World-Wide x16 Mode
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
10
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Package Dimensions
Package Dimensions
Figure 4: 56-Pin TSOP – 20mm × 14mm
20 ±0.2
18.4 ±0.2
0.995 ±0.03
Pin #1 index
See notes 2
See note 2
0.5 TYP
14.00 ±0.2
0.22 ±0.05
See note 2
See note 2
0.25 ±0.1
0.15 ±0.05
0.10
3°
+2°
-3°
See Detail A
1.20 MAX
Seating
plane
0.05 MIN
0.60 ±0.10
Detail A
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1. All dimensions are in millimeters. Drawing not to scale.
2. One dimple on package denotes pin 1; if two dimples, then the larger dimple denotes
pin 1. Pin 1 will always be in the upper left corner of the package, in reference to the
product mark.
3. For the lead width value of 0.22 ±0.05, there is also a legacy value of 0.15 ±0.05.
11
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Package Dimensions
Figure 5: 64-Ball Easy BGA – 10mm × 8mm × 1.2mm
0.78 TYP
0.25 MIN
Seating
plane
0.1
1.00 TYP
64X Ø0.43 ±0.1
1.5 ±0.1
8
7
6
5
4
3
2
Ball A1 ID
Ball A1 ID
1
0.5 ±0.1
A
B
C
D
8 ±0.1
E
F
1.00 TYP
G
H
10 ±0.1
1.20 MAX
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1. All dimensions are in millimeters. Drawing not to scale.
2. The 512Mb device does not contain the A1 ID ball located on the back side of the device.
12
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Pinouts and Ballouts
Pinouts and Ballouts
Figure 6: 56-Lead TSOP Pinout – 512Mb and 1Gb
A 16
A 15
A 14
A 13
A 12
A 11
A 10
A9
A 23
A 22
A 21
VSS
RFU
WE #
WP #
A 20
A 19
A 18
A8
A7
A6
A5
A4
A3
A2
A24
A25
A26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
56-Lead TSOP Pinout
14mm x 20mm
Top View
1.
2.
3.
4.
5.
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
WAIT
A17
DQ 15
DQ 7
DQ 14
DQ 6
DQ 13
DQ 5
DQ 12
DQ 4
ADV #
CLK
RST#
VPP
DQ 11
DQ 3
DQ 10
DQ 2
VCCQ
DQ 9
DQ 1
DQ 8
DQ 0
VCC
OE#
VSS
CE#
A1
A1 is the least significant address bit.
ADV# must be tied to VSS or driven to LOW throughout the asynchronous read mode.
A25 is valid for 512Mb densities and above; otherwise, it is a no connect (NC).
A26 is valid for 1Gb densities and above; otherwise, it is a no connect (NC).
One dimple on package denotes Pin 1 which will always be in the upper left corner of
the package, in reference to the product mark.
13
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Pinouts and Ballouts
Figure 7: 64-Ball Easy BGA (Top View – Balls Down) – 512Mb, 1Gb, and 2Gb
1
2
3
4
5
6
7
8
A1
A6
A8
VPP
A13
VCC
A18
A22
A2
VSS
A9
CE#
A14
A25
A19
A26
A3
A7
A10
A12
A15
WP#
A20
A21
A4
A5
A11
RST#
VCCQ
VCCQ
A16
A17
DQ8
DQ1
DQ9
DQ3
DQ4
CLK
DQ15
RFU
RFU
DQ0 DQ10 DQ11 DQ12 ADV# WAIT
OE#
A23
RFU
DQ2
VCCQ
DQ5
DQ6
DQ14
WE#
A27
VSS
VCC
VSS
DQ13
VSS
DQ7
A24
A
B
C
D
E
F
G
H
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1.
2.
3.
4.
5.
A1 is the least significant address bit.
A25 is valid for 512Mb densities and above; otherwise, it is a no connect (NC).
A26 is valid for 1Gb densities and above; otherwise, it is a no connect (NC).
A27 is valid for 2Gb densities and above; otherwise, it is a no connect (NC).
One dimple on package denotes Pin 1 which will always be in the upper left corner of
the package, in reference to the product mark.
14
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Signal Descriptions
Signal Descriptions
Table 4: TSOP and Easy BGA Signal Descriptions
Symbol
Type
Name and Function
A[MAX:1]
Input
Address inputs: Device address inputs.
Note: Unused active address pins should not be left floating; tie them to VCCQ or VSS according to specific design requirements.
ADV#
Input
Address valid: Active LOW input. During synchronous READ operations, addresses are
latched on the rising edge of ADV#, or on the next valid CLK edge with ADV# LOW, whichever occurs first. In asynchronous mode, the address is latched when ADV# goes HIGH or
continuously flows through if ADV# is held LOW.
Note: Designs not using ADV# must tie it to VSS to allow addresses to flow through.
CE#
Input
Chip enable: Active LOW input. CE# LOW selects the associated die. When asserted, internal control logic, input buffers, decoders, and sense amplifiers are active. When de-asserted, the associated die is deselected, power is reduced to standby levels, data and wait
outputs are placed in High-Z.
Note: CE# must be driven HIGH when device is not in use.
CLK
Input
Clock: Synchronizes the device with the system bus frequency in synchronous-read mode.
During synchronous READs, addresses are latched on the rising edge of ADV#, or on the
next valid CLK edge with ADV# LOW, whichever occurs first.
Note: Designs not using CLK for synchronous read mode must tie it to VCCQ or VSS.
OE#
Input
Output enable: Active LOW input. OE# LOW enables the device’s output data buffers
during READ cycles. OE# HIGH places the data outputs and WAIT in High-Z.
RST#
Input
Reset: Active LOW input. RST# resets internal automation and inhibits WRITE operations.
This provides data protection during power transitions. RST# HIGH enables normal operation. Exit from reset places the device in asynchronous read array mode.
WP#
Input
Write protect: Active LOW input. WP# LOW enables the lock-down mechanism. Blocks in
lock-down cannot be unlocked with the Unlock command. WP# HIGH overrides the lockdown function enabling blocks to be erased or programmed using software commands.
Note: Designs not using WP# for protection could tie it to VCCQ or VSS without additional
capacitor.
WE#
Input
Write enable: Active LOW input. WE# controls writes to the device. Address and data are
latched on the rising edge of WE# or CE#, whichever occurs first.
VPP
Power/Input Erase and program power: A valid voltage on this pin allows erasing or programming.
Memory contents cannot be altered when VPP ≤ VPPLK. Block erase and program at invalid
VPP voltages should not be attempted.
Set VPP = VPPL for in-system PROGRAM and ERASE operations. To accommodate resistor or
diode drops from the system supply, the VIH level of VPP can be as low as VPPL,min . VPP must
remain above VPPL,min to perform in-system modification. VPP may be 0V during READ operations.
VPP can be connected to 9V for a cumulative total not to exceed 80 hours. Extended use of
this pin at 9V may reduce block cycling capability.
DQ[15:0]
Input/Output Data input/output: Inputs data and commands during WRITE cycles; outputs data during
memory, status register, protection register, and read configuration register reads. Data
balls float when the CE# or OE# are de-asserted. Data is internally latched during writes.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
15
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Signal Descriptions
Table 4: TSOP and Easy BGA Signal Descriptions (Continued)
Symbol
Type
WAIT
Output
Name and Function
Wait: Indicates data valid in synchronous array or non-array burst reads. Read configuration register bit 10 (RCR.10, WT) determines its polarity when asserted. This signal's active
output is VOL or VOH when CE# and OE# are VIL. WAIT is High-Z if CE# or OE# is VIH.
• In synchronous array or non-array read modes, this signal indicates invalid data when asserted and valid data when de-asserted.
• In asynchronous page mode, and all write modes, this signal is de-asserted.
VCC
Power
Device core power supply: Core (logic) source voltage. Writes to the array are inhibited
when VCC ≤ VLKO. Operations at invalid VCC voltages should not be attempted.
VCCQ
Power
Output power supply: Output-driver source voltage.
Ground: Connect to system ground. Do not float any VSS connection.
VSS
Power
RFU
—
Reserved for future use: Reserved by Micron for future device functionality and enhancement. These should be treated in the same way as a DU signal.
DU
—
Do not use: Do not connect to any other signal, or power supply; must be left floating.
NC
—
No connect: No internal connection; can be driven or floated.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
16
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Bus Operations
Bus Operations
CE# LOW and RST# HIGH enable READ operations. The device internally decodes upper address inputs to determine the accessed block. ADV# LOW opens the internal address latches. OE# LOW activates the outputs and gates selected data onto the I/O bus.
Bus cycles to/from the device conform to standard microprocessor bus operations. Bus
operations and the logic levels that must be applied to the device control signal inputs
are shown here.
Table 5: Bus Operations
Bus Operation
READ
RST#
CLK
ADV#
CE#
OE#
WE#
WAIT
DQ[15:0]
Notes
H
X
L
L
L
H
De-asserted
Output
-
Asynchronous
H
Running
L
L
L
H
Driven
Output
-
WRITE
Synchronous
H
X
L
L
H
L
High-Z
Input
1
OUTPUT DISABLE
H
X
X
L
H
H
High-Z
High-Z
2
STANDBY
H
X
X
H
X
X
High-Z
High-Z
2
RESET
L
X
X
X
X
X
High-Z
High-Z
2, 3
1. Refer to the Device Command Bus Cycles for valid DQ[15:0] during a WRITE operation.
2. X = "Don’t Care" (H or L).
3. RST# must be at VSS ±0.2V to meet the maximum specified power-down current.
Notes:
Read
To perform a READ operation, RST# and WE# must be de-asserted while CE# and OE#
are asserted. CE# is the device-select control. When asserted, it enables the device. OE#
is the data-output control. When asserted, the addressed flash memory data is driven
onto the I/O bus.
Write
To perform a WRITE operation, both CE# and WE# are asserted while RST# and OE# are
de-asserted. During a WRITE operation, address and data are latched on the rising edge
of WE# or CE#, whichever occurs first. The Command Bus Cycles table shows the bus
cycle sequence for each of the supported device commands, while the Command Codes
and Definitions table describes each command.
Note: WRITE operations with invalid V CC and/or V PP voltages can produce spurious results and should not be attempted.
Output Disable
When OE# is de-asserted, device outputs DQ[15:0] are disabled and placed in High-Z
state, WAIT is also placed in High-Z.
Standby
When CE# is de-asserted the device is deselected and placed in standby, substantially
reducing power consumption. In standby, the data outputs are placed in High-Z, independent of the level placed on OE#. Standby current (ICCS) is the average current meas-
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
17
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Bus Operations
ured over any 5ms time interval, 5μs after CE# is de-asserted. During standby, average
current is measured over the same time interval 5μs after CE# is de-asserted.
When the device is deselected (while CE# is de-asserted) during a PROGRAM or ERASE
operation, it continues to consume active power until the PROGRAM or ERASE operation is completed.
Reset
As with any automated device, it is important to assert RST# when the system is reset.
When the system comes out of reset, the system processor attempts to read from the
device if it is the system boot device. If a CPU reset occurs with no device reset, improper CPU initialization may occur because the device may be providing status information rather than array data. Micron devices enable proper CPU initialization following a
system reset through the use of the RST# input. RST# should be controlled by the same
low-true reset signal that resets the system CPU.
After initial power-up or reset, the device defaults to asynchronous read array mode,
and the status register is set to 0x80. Asserting RST# de-energizes all internal circuits,
and places the output drivers in High-Z. When RST# is asserted, the device shuts down
the operation in progress, a process which takes a minimum amount of time to complete. When RST# has been de-asserted, the device is reset to asynchronous read array
state.
When device returns from a reset (RST# de-asserted), a minimum wait is required before the initial read access outputs valid data. Also, a minimum delay is required after a
reset before a write cycle can be initiated. After this wake-up interval passes, normal operation is restored.
Note: If RST# is asserted during a PROGRAM or ERASE operation, the operation is terminated and the memory contents at the aborted location (for a program) or block (for
an erase) are no longer valid, because the data may have been only partially written or
erased.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
18
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device Command Codes
Device Command Codes
The system CPU provides control of all in-system READ, WRITE, and ERASE operations
of the device via the system bus. The device manages all block-erase and word-program
algorithms.
Device commands are written to the CUI to control all device operations. The CUI does
not occupy an addressable memory location; it is the mechanism through which the
device is controlled.
Note: For a dual device, all setup commands should be re-issued to the device when a
different die is selected.
Table 6: Command Codes and Definitions
Mode
Device Mode
Code
Description
Read
Read array
0xFF
Places the device in read array mode. Array data is output on DQ[15:0].
Read status register
0x70
Places the device in read status register mode. The device enters this
mode after a PROGRAM or ERASE command is issued. Status register
data is output on DQ[7:0].
Read device ID
or read configuration register
0x90
Places device in read device identifier mode. Subsequent reads output
manufacturer/device codes, configuration register data, block lock status, or protection register data on DQ[15:0].
Read CFI
0x98
Places the device in read CFI mode. Subsequent reads output CFI information on DQ[7:0].
Clear status register
0x50
The device sets status register error bits. The clear status register command is used to clear the SR error bits.
Word program setup
0x40
First cycle of a 2-cycle programming command; prepares the CUI for a
WRITE operation. On the next write cycle, the address and data are
latched and the device executes the programming algorithm at the addressed location. During PROGRAM operations, the device responds
only to READ STATUS REGISTER and PROGRAM SUSPEND commands.
CE# or OE# must be toggled to update the status register in asynchronous read. CE# or ADV# must be toggled to update the status register
data for synchronous non-array reads. The READ ARRAY command
must be issued to read array data after programming has finished.
Buffered program
0xE8
This command loads a variable number of words up to the buffer size
of 512 words onto the program buffer.
Buffered program
confirm
0xD0
The CONFIRM command is issued after the data streaming for writing
into the buffer is completed. The device then performs the buffered
program algorithm, writing the data from the buffer to the memory
array.
BEFP setup
0x80
First cycle of a two-cycle command; initiates buffered enhanced factory
program mode (BEFP). The CUI then waits for the BEFP CONFIRM command, 0xD0, that initiates the BEFP algorithm. All other commands are
ignored when BEFP mode begins.
BEFP confirm
0xD0
If the previous command was BEFP SETUP (0x80), the CUI latches the
address and data, and prepares the device for BEFP mode.
Write
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
19
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device Command Codes
Table 6: Command Codes and Definitions (Continued)
Mode
Device Mode
Code
Description
Erase
Block erase setup
0x20
First cycle of a two-cycle command; prepares the CUI for a BLOCK
ERASE operation. The device performs the erase algorithm on the
block addressed by the ERASE CONFIRM command. If the next command is not the ERASE CONFIRM (0xD0) command, the CUI sets status
register bits SR4 and SR5, and places the device in read status register
mode.
Block erase confirm
0xD0
If the first command was BLOCK ERASE SETUP (0x20), the CUI latches
the address and data, and the device erases the addressed block. During BLOCK ERASE operations, the device responds only to READ STATUS
REGISTER and ERASE SUSPEND commands. CE# or OE# must be toggled
to update the status register in asynchronous read. CE# or ADV# must
be toggled to update the status register data for synchronous non-array reads.
Program or erase
suspend
0xB0
This command issued to any device address initiates a suspend of the
currently-executing program or BLOCK ERASE operation. The status
register indicates successful suspend operation by setting either SR2
(program suspended) or SR6 (erase suspended), along with SR7 (ready).
The device remains in the suspend mode regardless of control signal
states (except for RST# asserted).
Suspend resume
0xD0
This command issued to any device address resumes the suspended
PROGRAM or BLOCK ERASE operation.
Block lock setup
0x60
First cycle of a two-cycle command; prepares the CUI for block lock configuration changes. If the next command is not BLOCK LOCK (0x01),
BLOCK UNLOCK (0xD0), or BLOCK LOCK DOWN (0x2F), the CUI sets status register bits SR5 and SR4, indicating a command sequence error.
Block lock
0x01
If the previous command was BLOCK LOCK SETUP (0x60), the addressed
block is locked.
Block unlock
0xD0
If the previous command was BLOCK LOCK SETUP (0x60), the addressed
block is unlocked. If the addressed block is in a lock down state, the operation has no effect.
Block lock down
0x2F
If the previous command was BLOCK LOCK SETUP (0x60), the addressed
block is locked down.
OTP register or lock
register program setup
0xC0
First cycle of a two-cycle command; prepares the device for a OTP REGISTER or LOCK REGISTER PROGRAM operation. The second cycle latches
the register address and data, and starts the programming algorithm
to program data the OTP array.
Read configuration
register setup
0x60
First cycle of a two-cycle command; prepares the CUI for device read
configuration. If the SET READ CONFIGURATION REGISTER command
(0x03) is not the next command, the CUI sets status register bits SR4
and SR5, indicating a command sequence error.
Read configuration
register
0x03
If the previous command was READ CONFIGURATION REGISTER SETUP
(0x60), the CUI latches the address and writes A[16:1] to the read configuration register for Easy BGA and TSOP, A[15:0] for QUAD+. Following a CONFIGURE READ CONFIGURATION REGISTER command, subsequent READ operations access array data.
Suspend
Protection
Configuration
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
20
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device Command Codes
Table 6: Command Codes and Definitions (Continued)
Mode
Device Mode
Code
Description
Blank Check
Block blank check
0xBC
First cycle of a two-cycle command; initiates the BLANK CHECK operation on a main block.
Block blank check
confirm
0xD0
Second cycle of blank check command sequence; it latches the block
address and executes blank check on the main array block.
Extended function
interface
0xEB
First cycle of a multiple-cycle command; initiate operation using extended function interface. The second cycle is a Sub-Op-Code, the data
written on third cycle is one less than the word count; the allowable
value on this cycle are 0–511. The subsequent cycles load data words into the program buffer at a specified address until word count is achieved.
EFI
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
21
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device Command Bus Cycles
Device Command Bus Cycles
Device operations are initiated by writing specific device commands to the command
user interface (CUI). Several commands are used to modify array data including WORD
PROGRAM and BLOCK ERASE commands. Writing either command to the CUI initiates
a sequence of internally timed functions that culminate in the completion of the requested task. However, the operation can be aborted by either asserting RST# or by issuing an appropriate suspend command.
Table 7: Command Bus Cycles
Bus
Second Bus Cycle
Cycles
Op
Addr1
Data2
Op
Addr1
Data2
READ ARRAY
1
WRITE
DnA
0xFF
–
–
–
READ DEVICE IDENTIFIER
≥2
WRITE
DnA
0x90
READ
DBA + IA
ID
READ CFI
≥2
WRITE
DnA
0x98
READ
DBA + CFI-A
CFI-D
READ STATUS REGISTER
2
WRITE
DnA
0x70
READ
DnA
SRD
CLEAR STATUS REGISTER
1
WRITE
DnA
0x50
–
–
–
WORD PROGRAM
Mode
Command
Read
Program
First Bus Cycle
2
WRITE
WA
0x40
WRITE
WA
WD
PROGRAM3
>2
WRITE
WA
0xE8
WRITE
WA
N-1
BUFFERED ENHANCED
FACTORY PROGRAM
(BEFP)4
>2
WRITE
WA
0x80
WRITE
WA
0xD0
BUFFERED
Erase
BLOCK ERASE
2
WRITE
BA
0x20
WRITE
BA
0xD0
Suspend
PROGRAM/ERASE SUSPEND
1
WRITE
DnA
0xB0
–
–
–
PROGRAM/ERASE RESUME
1
WRITE
DnA
0xD0
–
–
–
BLOCK LOCK
2
WRITE
BA
0x60
WRITE
BA
0x01
BLOCK UNLOCK
2
WRITE
BA
0x60
WRITE
BA
0xD0
BLOCK LOCK DOWN
2
WRITE
BA
0x60
WRITE
BA
0x2F
PROGRAM OTP REGISTER
2
WRITE
PRA
0xC0
WRITE
OTP-RA
OTP-D
Protection
PROGRAM LOCK REGISTER
2
WRITE
LRA
0xC0
WRITE
LRA
LRD
Configuration
CONFIGURE READ
CONFIGURATION REGISTER
2
WRITE
RCD
0x60
WRITE
RCD
0x03
Blank Check
BLOCK BLANK CHECK
2
WRITE
BA
0xBC
WRITE
BA
D0
EFI
EXTENDED FUNCTION
INTERFACE 5
>2
WRITE
WA
0xEB
Write
WA
Sub-Op code
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1. First command cycle address should be the same as the operation’s target address. DBA
= Device base address (needed for dual die 512Mb device); DnA = Address within the device; IA = Identification code address offset; CFI-A = Read CFI address offset; WA = Word
address of memory location to be written; BA = Address within the block; OTP-RA = Protection register address; LRA = Lock register address; RCD = Read configuration register
data on A[16:1] for Easy BGA and TSOP, A[15:0] for QUAD+ package.
2. ID = Identifier data; CFI-D = CFI data on DQ[15:0]; SRD = Status register data; WD = Word
data; N = Word count of data to be loaded into the write buffer; OTP-D = Protection
register data; LRD = Lock register data.
22
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device Command Bus Cycles
3. The second cycle of the BUFFERED PROGRAM command is the word count of the data to
be loaded into the write buffer. This is followed by up to 512 words of data. Then the
CONFIRM command (0xD0) is issued, triggering the array programming operation.
4. The CONFIRM command (0xD0) is followed by the buffer data.
5. The second cycle is a Sub-Op-Code, the data written on third cycle is N-1; 1≤ N ≤ 512.
The subsequent cycles load data words into the program buffer at a specified address
until word count is achieved, after the data words are loaded, the final cycle is the confirm cycle 0xD0).
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
23
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Read Operations
Read Operations
The device supports two read modes: asynchronous page mode and synchronous burst
mode. Asynchronous page mode is the default read mode after device power-up or a reset. Under asynchronous page mode, the device can also perform single word read. The
read configuration register must be configured to enable synchronous burst reads of the
array.
The device can be in any of four read states: read array, read identifier, read status, or
read CFI. Upon power-up, or after a reset, the device defaults to read array. To change
the read state, the appropriate READ command must be written to the device.
Asynchronous Single Word Read
To perform an asynchronous single word read, an address is driven onto the address
bus, and CE# is asserted.
Note: To perform an asynchronous single word read for a TSOP package, ADV# must be
LOW throughout the READ cycle. For an Easy BGA package, ADV# can be driven HIGH
to latch the address or be held LOW throughout the READ cycle.
WE# and RST# must already have been de-asserted. WAIT is set to a de-asserted state
during single word mode, as determined by bit 10 of the read configuration register.
CLK is not used for asynchronous single word reads, and is ignored. If asynchronous
reads are to be performed only, CLK should be tied to a valid V IH or V SS level, WAIT can
be floated, and ADV# must be tied to ground. After OE# is asserted, the data is driven
onto DQ[15:0] after an initial access time tAVQV or tGLQV delay.
Asynchronous Page Mode Read (Easy BGA Only)
Note: Asynchronous Page Mode Read is supported only in the main array.
Following a device power-up or reset, asynchronous page mode is the default read
mode and the device is set to read array. However, to perform array reads after any other
device operation (WRITE operation), the READ ARRAY command must be issued in order to read from the array.
Asynchronous page mode reads can only be performed when read configuration register bit RCR15 is set.
To perform an asynchronous page-mode read, an address is driven onto the address
bus, and CE# and ADV# are asserted. WE# and RST# must already have been de-asserted. WAIT is de-asserted during asynchronous page mode. ADV# can be driven HIGH to
latch the address, or it must be held LOW throughout the READ cycle. CLK is not used
for asynchronous page mode reads, and is ignored. If only asynchronous reads are to be
performed, CLK should be tied to a valid V IH or V SS level, WAIT signal can be floated,
and ADV# must be tied to ground. Array data is driven onto DQ[15:0] after an initial access time tAVQV delay.
In asynchronous page mode, 16 data words are “sensed” simultaneously from the array
and loaded into an internal page buffer. The buffer word corresponding to the initial
address on the address bus is driven onto DQ[15:0] after the initial access delay. The
lowest four address bits determine which word of the 16-word page is output from the
data buffer at any given time.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
24
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Synchronous Burst Mode Read (Easy BGA Only)
Synchronous Burst Mode Read (Easy BGA Only)
Read configuration register bits RCR[15:0] must be set before synchronous burst operation can be performed. Synchronous burst mode can be performed for both array and
non-array reads such as read ID, read status, or read query.
To perform a synchronous burst read, an initial address is driven onto the address bus,
and CE# and ADV# are asserted. WE# and RST# must already have been de-asserted.
ADV# is asserted, and then de-asserted to latch the address. Alternately, ADV# can remain asserted throughout the burst access, in which case the address is latched on the
next valid CLK edge while ADV# is asserted.
During synchronous array and non-array read modes, the first word is output from the
data buffer on the next valid CLK edge after the initial access latency delay. Subsequent
data is output on valid CLK edges following a minimum delay. However, for a synchronous non-array read, the same word of data will be output on successive clock edges
until the burst length requirements are satisfied. Refer to the timing diagrams for more
detailed information.
Read CFI
The READ CFI command instructs the device to output CFI data when read. See Common Flash Interface for details on issuing the READ CFI command, and for details on
addresses and offsets within the CFI database.
Read Device ID
The READ DEVICE IDENTIFIER command instructs the device to output manufacturer
code, device identifier code, block lock status, protection register data, or configuration
register data.
Table 8: Device ID Information
Item
Address
Data
Manufacturer code
0x00
0x89
Device ID code
0x01
ID (see the Device ID Codes table )
Block lock configuration
Block is unlocked
Block is locked
Block is not locked down
Block is locked down
Block base address + 0x02
Read configuration register
General purpose register
0x05
RCR contents
Device base address + 0x07
Lock register 0
Lock bit
DQ0 = 0b0
DQ0 = 0b1
DQ1 = 0b0
DQ1 = 0b1
0x80
General purpose register data
PR-LK0 data
64-bit factory-programmed OTP register
0x81–0x84
Factory OTP register data
64-bit user-programmable OTP register
0x85–0x88
User OTP register data
Lock register 1
128-bit user-programmable protection registers
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
0x89
PR-LK1 OTP register lock data
0x8A–0x109
25
OTP register data
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Device ID Codes
Device ID Codes
Table 9: Device ID Codes
Device Identifier Codes
ID Code Type
Device code
Device
Density
–T
(Top Parameter)
–B
(Bottom Parameter)
512Mb
8960
8961
8999
1Gb
8962
8963
899A
Note:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
–E/F
(Symmetrical Blocks)
1. The 2Gb devices do not have a unique device ID associated with them. Each die within
the stack can be identified by device ID codes.
26
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Program Operations
Program Operations
Successful programming requires the addressed block to be unlocked. If the block is
locked down, WP# must be de-asserted and the block must be unlocked before attempting to program the block. Attempting to program a locked block causes a program
error (SR4 and SR1 set) and termination of the operation. See Security Modes for details
on locking and unlocking blocks.
Word Programming (40h)
Word programming operations are initiated by writing the WORD PROGRAM SETUP
command to the device (see the Command Codes and Definitions table). This is followed by a second write to the device with the address and data to be programmed. The
device outputs status register data when read (see the Word Program Flowchart). V PP
must be above V PPLK, and within the specified V PPL MIN/MAX values.
During programming, the device executes a sequence of internally-timed events that
program the desired data bits at the addressed location, and verifies that the bits are
sufficiently programmed. Programming the array changes 1s to 0s. Memory array bits
that are 0s can be changed to 1s only by erasing the block (see Erase Operations).
The status register can be examined for programming progress and errors by reading at
any address. The device remains in the read status register state until another command is written to the device.
SR7 indicates the programming status while the sequence executes. Commands that
can be issued to the device during programming are PROGRAM SUSPEND, READ STATUS REGISTER, READ DEVICE IDENTIFIER, READ CFI, and READ ARRAY (this returns
unknown data).
When programming has finished, SR4 (when set) indicates a programming failure. If
SR3 is set, the device could not perform the WORD PROGRAMMING operation because
VPP was outside of its acceptable limits. If SR1 is set, the WORD PROGRAMMING operation attempted to program a locked block, causing the operation to abort.
Before issuing a new command, the status register contents should be examined and
then cleared using the CLEAR STATUS REGISTER command. Any valid command can
follow, when word programming has completed.
Buffered Programming (E8h, D0h)
The device features a 512-word buffer to enable optimum programming performance.
For buffered programming, data is first written to an on-chip write buffer. Then the buffer data is programmed into the array in buffer-size increments. This can improve system programming performance significantly over non-buffered programming.
When the BUFFERED PROGRAMMING SETUP command is issued, status register information is updated and reflects the availability of the buffer. SR7 indicates buffer
availability: if set, the buffer is available; if cleared, the buffer is not available.
Note: The device default state is to output SR data after the BUFFERED PROGRAMMING SETUP command. CE# and OE# LOW drive device to update status register. It is
not allowed to issue 70h to read SR data after E8h command; otherwise, 70h would be
counted as word count.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
27
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Program Operations
On the next write, a word count is written to the device at the buffer address. This tells
the device how many data words will be written to the buffer, up to the maximum size
of the buffer.
On the next write, a device start address is given along with the first data to be written to
the flash memory array. Subsequent writes provide additional device addresses and data. All data addresses must lie within the start address plus the word count. Optimum
programming performance and lower power usage are obtained by aligning the starting
address at the beginning of a 512-word boundary (A[9:1] = 0x00 for Easy BGA and TSOP,
A[8:0] for QUAD+ package; see Part Numbering Information). The maximum buffer size
would be 256-word if the misaligned address range is crossing a 512-word boundary
during programming.
After the last data is written to the buffer, the BUFFERED PROGRAMMING CONFIRM
command must be issued to the original block address. The device begins to program
buffer contents to the array. If a command other than the BUFFERED PROGRAMMING
CONFIRM command is written to the device, a command sequence error occurs and
SR[7,5,4] are set. If an error occurs while writing to the array, the device stops programming, and SR[7,4] are set, indicating a programming failure.
When buffered programming has completed, additional buffer writes can be initiated
by issuing another BUFFERED PROGRAMMING SETUP command and repeating the
buffered program sequence. Buffered programming may be performed with V PP = V PPL
or V PPH (see Operating Conditions for limitations when operating the device with V PP =
VPPH).
If an attempt is made to program past an erase-block boundary using the BUFFERED
PROGRAM command, the device aborts the operation. This generates a command sequence error, and SR[5,4] are set.
If buffered programming is attempted while V PP is at or below V PPLK, SR[4,3] are set. If
any errors are detected that have set status register bits, the status register should be
cleared using the CLEAR STATUS REGISTER command.
Buffered Enhanced Factory Programming (80h, D0h)
Buffered enhanced factory programming (BEFP) speeds up multilevel cell (MLC) programming. The enhanced programming algorithm used in BEFP eliminates traditional
programming elements that drive up overhead in device programmer systems.
BEFP consists of three phases: setup, program/verify, and exit (see the BEFP Flowchart).
It uses a write buffer to spread MLC program performance across 512 data words. Verification occurs in the same phase as programming to accurately program the cell to the
correct bit state.
A single two-cycle command sequence programs the entire block of data. This enhancement eliminates three write cycles per buffer: two commands and the word count
for each set of 512 data words. Host programmer bus cycles fill the device write buffer
followed by a status check. SR0 indicates when data from the buffer has been programmed into sequential array locations.
Following the buffer-to-flash array programming sequence, the device increments internal addressing to automatically select the next 512-word array boundary. This aspect
of BEFP saves host programming equipment the address bus setup overhead.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
28
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Program Operations
With adequate continuity testing, programming equipment can rely on the device’s internal verification to ensure that the device has programmed properly. This eliminates
the external post-program verification and its associated overhead.
Table 10: BEFP Requirements
Parameter/Issue
Requirement
Notes
Case temperature
TC = 30°C ±10°C
VCC
Nominal VCC
VPP
Driven to VPPH
Setup and confirm
Target block must be unlocked before issuing the BEFP Setup and Confirm commands.
Programming
The first-word address (WA0) of the block to be programmed must be held constant
from the setup phase through all data streaming into the target block, until transition
to the exit phase is desired.
Buffer alignment
WA0 must align with the start of an array buffer boundary.
1
1. Word buffer boundaries in the array are determined by the lowest 9 address bits (0x000
through 0x1FF). The alignment start point is 0x000.
Note:
Table 11: BEFP Considerations
Parameter/Issue
Requirement
Notes
Cycling
For optimum performance, cycling must be limited below 50 ERASE cycles per block.
Programming blocks BEFP programs one block at a time; all buffer data must fall within a single block.
Suspend
1
2
BEFP cannot be suspended.
Programming the ar- Programming to the array can occur only when the buffer is full.
ray
3
1. Some degradation in performance may occur if this limit is exceeded, but the internal
algorithm continues to work properly.
2. If the internal address counter increments beyond the block's maximum address, addressing wraps around to the beginning of the block.
3. If the number of words is less than 512, remaining locations must be filled with 0xFFFF.
Notes:
BEFP Setup Phase: After receiving the BEFP SETUP and CONFIRM command sequence, SR7 (ready) is cleared, indicating that the device is busy with BEFP algorithm
startup. A delay before checking SR7 is required to allow the device enough time to perform all of its setups and checks (block lock status, V PP level, etc.). If an error is detected,
SR4 is set and BEFP operation terminates. If the block was found to be locked, SR1 is
also set. SR3 is set if the error occurred due to an incorrect V PP level.
Note: Reading from the device after the BEFP SETUP and CONFIRM command sequence outputs status register data. Do not issue the READ STATUS REGISTER command; it will be interpreted as data to be loaded into the buffer.
BEFP Program/Verify Phase: After the BEFP setup phase has completed, the host programming system must check SR[7,0] to determine the availability of the write buffer
for data streaming. SR7 cleared indicates the device is busy and the BEFP program/verify phase is activated. SR0 indicates the write buffer is available.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
29
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Program Operations
Two basic sequences repeat in this phase: loading of the write buffer, followed by buffer
data programming to the array. For BEFP, the count value for buffer loading is always
the maximum buffer size of 512 words. During the buffer-loading sequence, data is stored to sequential buffer locations starting at address 0x00. Programming of the buffer
contents to the array starts as soon as the buffer is full. If the number of words is less
than 512, the remaining buffer locations must be filled with 0xFFFF.
Note: The buffer must be completely filled for programming to occur. Supplying an address outside of the current block's range during a buffer-fill sequence causes the algorithm to exit immediately. Any data previously loaded into the buffer during the fill cycle is not programmed into the array.
The starting address for data entry must be buffer size aligned; if not, the BEFP algorithm will be aborted, the program fails, and the (SR4) flag will be set.
Data words from the write buffer are directed to sequential memory locations in the array; programming continues from where the previous buffer sequence ended. The host
programming system must poll SR0 to determine when the buffer program sequence
completes. SR0 cleared indicates that all buffer data has been transferred to the array;
SR0 set indicates that the buffer is not available yet for the next fill cycle. The host system may check full status for errors at any time, but it is only necessary on a block basis
after BEFP exit. After the buffer fill cycle, no WRITE cycles should be issued to the device until SR0 = 0 and the device is ready for the next buffer fill.
Note: Any spurious writes are ignored after a BUFFER FILL operation and when internal
program is proceeding.
The host programming system continues the BEFP algorithm by providing the next
group of data words to be written to the buffer. Alternatively, it can terminate this phase
by changing the block address to one outside of the current block’s range.
The program/verify phase concludes when the programmer writes to a different block
address; data supplied must be 0xFFFF. Upon program/verify phase completion, the device enters the BEFP exit phase.
Program Suspend
Issuing the PROGRAM SUSPEND command while programming suspends the programming operation. This allows data to be accessed from the device other than the
one being programmed. The PROGRAM SUSPEND command can be issued to any device address. A PROGRAM operation can be suspended to perform reads only. Additionally, a PROGRAM operation that is running during an erase suspend can be suspended
to perform a READ operation.
When a programming operation is executing, issuing the PROGRAM SUSPEND command requests the device to suspend the programming algorithm at predetermined
points. The device continues to output status register data after the PROGRAM SUSPEND command is issued. Programming is suspended when SR[7,2] are set.
To read data from the device, the READ ARRAY command must be issued. READ ARRAY,
READ STATUS REGISTER, READ DEVICE IDENTIFIER, READ CFI, and PROGRAM RESUME valid commands during a program suspend.
During a program suspend, de-asserting CE# places the device in standby, reducing active current. V PP must remain at its programming level, and WP# must remain unchanged while in program suspend. If RST# is asserted, the device is reset.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
30
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Program Operations
Program Resume
The RESUME command instructs the device to continue programming, and automatically clears SR[7,2]. This command can be written to any address. If error bits are set,
the status register should be cleared before issuing the next command. RST# must remain de-asserted.
Program Protection
When V PP = V IL, absolute hardware write protection is provided for all device blocks. If
VPP is at or below V PPLK, programming operations halt and SR3 is set, indicating a V PPlevel error. Block lock registers are not affected by the voltage level on V PP; they may still
be programmed and read, even if V PP is less than V PPLK.
Figure 8: Example VPP Supply Connections
VCC
VCC
VPP
< 10K Ω
VPP
-Factory programming with VPP = VPPH
-Complete with program/erase
protection when VPP < VPPLK
VCC
VCC
VPP = VPPH
VPP
VCC
VCC
PROT#
VPP
-Low voltage programming only
-Logic control of device protection
VCC
VCC
VPP
-Low voltage programming only
-Low voltage and factory programming
-Full device protection unavailable
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
31
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Erase Operations
Erase Operations
BLOCK ERASE Command
ERASE operations are performed on a block basis. An entire block is erased each time a
BLOCK ERASE command sequence is issued, and only one block is erased at a time.
When a block is erased, each bit within that block reads as a logical 1.
A BLOCK ERASE operation is initiated by writing the BLOCK ERASE SETUP command
to the address of the block to be erased, followed by the BLOCK ERASE CONFIRM command. If the device is placed in standby (CE# de-asserted) during a BLOCK ERASE operation, the device completes the operation before entering standby. The V PP value must
be above V PPLK and the block must be unlocked.
During a BLOCK ERASE operation, the device executes a sequence of internally-timed
events that conditions, erases, and verifies all bits within the block. Erasing the array
changes the value in each cell from a 1 to a 0. Memory block array cells that with a value
of 1 can be changed to 0 only by programming the block.
The status register can be examined for block erase progress and errors by reading any
address. The device remains in the read status register state until another command is
written. SR0 indicates whether the addressed block is erasing. SR7 is set upon erase
completion.
SR7 indicates block erase status while the sequence executes. When the BLOCK ERASE
operation has completed, SR5 = 1 (set) indicates an erase failure. SR3 = 1 indicates that
the device could not perform the BLOCK ERASE operation because V PP was outside of
its acceptable limits. SR1 = 1 indicates that the BLOCK ERASE operation attempted to
erase a locked block, causing the operation to abort.
Before issuing a new command, the status register contents should be examined and
then cleared using the CLEAR STATUS REGISTER command. Any valid command can
follow after the BLOCK ERASE operation has completed.
The BLOCK ERASE operation is aborted by performing a reset or powering down the
device. In either case, data integrity cannot be ensured, and it is recommended to erase
again the blocks aborted.
BLANK CHECK Command
The BLANK CHECK operation determines whether a specified main block is blank; that
is, completely erased. Other than a BLANK CHECK operation, only a BLOCK ERASE operation can ensure a block is completely erased. BLANK CHECK is especially useful
when a BLOCK ERASE operation is interrupted by a power loss event.
A BLANK CHECK operation can apply to only one block at a time. The only operation
allowed simultaneously is a READ STATUS REGISTER operation. SUSPEND and RESUME operations and a BLANK CHECK operation are mutually exclusive.
A BLANK CHECK operation is initiated by writing the BLANK CHECK SETUP command
to the block address, followed by the CHECK CONFIRM command. When a successful
command sequence is entered, the device automatically enters the read status state.
The device then reads the entire specified block and determines whether any bit in the
block is programmed or over-erased.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
32
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Erase Operations
BLANK CHECK operation progress and errors are determined by reading the status register at any address within the block being accessed. SR7 = 0 is a BLANK CHECK busy
status. SR7 = 1 is a BLANK CHECK operation complete status. The status register should
be checked for any errors and then cleared. If the BLANK CHECK operation fails, meaning the block is not completely erased, SR5 = 1. CE# or OE# toggle (during polling) updates the status register.
The READ STATUS REGISTER command must always be followed by a CLEAR STATUS
REGISTER command. The device remains in status register mode until another command is written to the device. Any command can follow once the BLANK CHECK command is complete.
ERASE SUSPEND Command
The ERASE SUSPEND command suspends a BLOCK ERASE operation that is in progress, enabling access to data in memory locations other than the one being erased. The
ERASE SUSPEND command can be issued to any device address. A BLOCK ERASE operation can be suspended to perform a WORD or BUFFER PROGRAM operation, or a
READ operation within any block except the block that is erase suspended.
When a BLOCK ERASE operation is executing, issuing the ERASE SUSPEND command
requests the device to suspend the erase algorithm at predetermined points. The device
continues to output status register data after the ERASE SUSPEND command is issued.
Block erase is suspended when SR[7,6] are set.
To read data from the device (other than an erase-suspended block), the READ ARRAY
command must be issued. During erase suspend, a PROGRAM command can be issued
to any block other than the erase-suspended block. Block erase cannot resume until
program operations initiated during erase suspend complete. READ ARRAY, READ STATUS REGISTER, READ DEVICE IDENTIFIER, READ CFI, and ERASE RESUME are valid
commands during erase suspend. Additionally, CLEAR STATUS REGISTER, PROGRAM,
PROGRAM SUSPEND, BLOCK LOCK, BLOCK UNLOCK, and BLOCK LOCK DOWN are
valid commands during an ERASE SUSPEND operation.
During an erase suspend, de-asserting CE# places the device in standby, reducing active
current. V PP must remain at a valid level, and WP# must remain unchanged while in
erase suspend. If RST# is asserted, the device is reset.
ERASE RESUME Command
The ERASE RESUME command instructs the device to continue erasing, and automatically clears SR[7,6]. This command can be written to any address. If status register error
bits are set, the status register should be cleared before issuing the next instruction.
RST# must remain de-asserted.
Erase Protection
When V PP = V IL, absolute hardware erase protection is provided for all device blocks. If
VPP is at or below V PPLK, ERASE operations halt and SR3 is set indicating a V PP-level error.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
33
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Security Operations
Security Operations
Block Locking
Individual instant block locking is used to protect user code and/or data within the
flash memory array. All blocks power-up in a locked state to protect array data from being altered during power transitions. Any block can be locked or unlocked with no latency. Locked blocks cannot be programmed or erased; they can only be read.
Software-controlled security is implemented using the BLOCK LOCK and BLOCK UNLOCK commands. Hardware-controlled security can be implemented using the BLOCK
LOCK DOWN command along with asserting WP#. Also, V PP data security can be used
to inhibit PROGRAM and ERASE operations.
BLOCK LOCK Command
To lock a block, issue the BLOCK LOCK SETUP command, followed by the BLOCK LOCK
command issued to the desired block’s address. If the SET READ CONFIGURATION
REGISTER command is issued after the BLOCK LOCK SETUP command, the device
configures the RCR instead.
BLOCK LOCK and UNLOCK operations are not affected by the voltage level on V PP. The
block lock bits may be modified and/or read even if V PP is at or below V PPLK.
BLOCK UNLOCK Command
The BLOCK UNLOCK command is used to unlock blocks. Unlocked blocks can be read,
programmed, and erased. Unlocked blocks return to a locked state when the device is
reset or powered down. If a block is in a lock-down state, WP# must be de-asserted before it can be unlocked.
BLOCK LOCK DOWN Command
A locked or unlocked block can be locked-down by writing the BLOCK LOCK DOWN
command sequence. Blocks in a lock-down state cannot be programmed or erased;
they can only be read. However, unlike locked blocks, their locked state cannot be
changed by software commands alone. A locked-down block can only be unlocked by
issuing the BLOCK UNLOCK command with WP# de-asserted. To return an unlocked
block to locked-down state, a BLOCK LOCK DOWN command must be issued prior to
changing WP# to V IL. Locked-down blocks revert to the locked state upon reset or power
up the device.
Block Lock Status
The READ DEVICE IDENTIFIER command is used to determine a block’s lock status.
DQ[1:0] display the addressed block’s lock status; DQ0 is the addressed block’s lock bit,
while DQ1 is the addressed block’s lock-down bit.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
34
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Security Operations
Figure 9: Block Locking State Diagram
[000]
D0h
01h
Program/Erase Allowed
WP# = VIL = 0
[001]
2Fh
2Fh
WP# toggle
D0h, 01h, or 2Fh
[010]
(Virtual lock-down)
[110]
D0h
Program/Erase Allowed
WP# = VIH = 1
01h/2Fh
(Power-up/
Reset default)
[011]
Program/Erase Prevented
WP# = VIL = 0
(Locked down)
WP# toggle
[111]
(Lock down
disabled,
WP# = VIH)
2Fh
2Fh
[100]
D0h
01h
[101]
Program/Erase Prevented
WP# = VIH = 1
(Power-up/
Reset default)
1. D0h = UNLOCK command; 01h = LOCK command; 60h (not shown) LOCK SETUP command; 2Fh = LOCK DOWN command.
Note:
Block Locking During Suspend
Block lock and unlock changes can be performed during an erase suspend. To change
block locking during an ERASE operation, first issue the ERASE SUSPEND command.
Monitor the status register until SR7 and SR6 are set, indicating the device is suspended
and ready to accept another command.
Next, write the desired lock command sequence to a block, which changes the lock
state of that block. After completing BLOCK LOCK or BLOCK UNLOCK operations, resume the ERASE operation using the ERASE RESUME command.
Note:
A BLOCK LOCK SETUP command followed by any command other than BLOCK
LOCK, BLOCK UNLOCK, or BLOCK LOCK DOWN produces a command sequence error and set SR4 and SR5. If a command sequence error occurs during
an erase suspend, SR4 and SR5 remains set, even after the erase operation is resumed. Unless the Status Register is cleared using the CLEAR STATUS REGISTER
command before resuming the ERASE operation, possible erase errors may be
masked by the command sequence error.
If a block is locked or locked-down during an erase suspend of the same block,
the lock status bits change immediately. However, the ERASE operation completes when it is resumed. BLOCK LOCK operations cannot occur during a program suspend.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
35
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Security Operations
Selectable OTP Blocks
The OTP security feature on the device is backward-compatible to the earlier generation devices. Contact your local Micron representative for details about its implementation.
Password Access
The password access is a security enhancement offered on the device. This feature protects information stored in array blocks by preventing content alteration or reads until a
valid 64-bit password is received. The password access may be combined with nonvolatile protection and/or volatile protection to create a multi-tiered solution.
Contact your Micron sales office for further details concerning password access.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
36
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Status Register
Status Register
Read Status Register
To read the status register, issue the READ STATUS REGISTER command at any address.
Status register information is available at the address that the READ STATUS REGISTER,
WORD PROGRAM, or BLOCK ERASE command is issued to. Status register data is automatically made available following a word program, block erase, or block lock command sequence. Reads from the device after any of these command sequences will output the devices status until another valid command is written (e.g. READ ARRAY command).
The status register is read using single asynchronous mode or synchronous burst mode
reads. Status register data is output on DQ[7:0], while 0x00 is output on DQ[15:8]. In
asynchronous mode, the falling edge of OE# or CE# (whichever occurs first) updates
and latches the status register contents. However, when reading the status register in
synchronous burst mode, CE# or ADV# must be toggled to update status data.
The device write status bit (SR7) provides the overall status of the device. SR[6:1]
present status and error information about the PROGRAM, ERASE, SUSPEND, V PP, and
BLOCK LOCK operations.
Note: Reading the status register is a nonarray READ operation. When the operation occurs in asynchronous page mode, only the first data is valid and all subsequent data are
undefined. When the operation occurs in synchronous burst mode, the same data word
requested will be output on successive clock edges until the burst length requirements
are satisfied.
Table 12: Status Register Description
Notes apply to entire table
Bits Name
Bit Settings
Description
7
Device write status
(DWS)
0 = Busy
1 = Ready
Status bit: Indicates whether a PROGRAM or
ERASE command cycle is in progress.
6
Erase Suspend Status
(ESS)
0 = Not in effect
1 = In effect
Status bit: Indicates whether an ERASE operation
has been or is going to be suspended.
Erase/Blank check status
(ES)
Program status (PS)
00 = PROGRAM/ERASE successful
01 = PROGRAM error
10 = ERASE/BLANK CHECK error
11 = Command sequence error
Status/Error bit: Indicates whether an ERASE/
BLANK CHECK or PROGRAM operation was successful. When an error is returned, the operation is
aborted.
3
VPP status (VPPS)
0 = Within limits
1 = Exceeded limits (VPP ≤ VPPLK)
Status bit: Indicates whether a PROGRAM/ERASE
operation is within acceptable voltage range limits.
2
Program suspend status
(PSS)
0 = Not in effect
1 = In effect
Status bit: Indicates whether a PROGRAM operation has been or is going to be suspended.
1
Block lock status (BLS)
0 = Not locked
1 = Locked (operation aborted)
Status bit: Indicates whether a block is locked
when a PROGRAM or ERASE operation is initiated.
0
BEFP status (BWS)
0 = BEFP complete
1 = BEFP in progress
Status bit: Indicates whether BEFP data has completed loading into the buffer.
5:4
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1. Default value = 0x80.
37
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Status Register
2. Always clear the status register prior to resuming ERASE operations. This eliminates status register ambiguity when issuing commands during ERASE SUSPEND. If a command
sequence error occurs during an ERASE SUSPEND, the status register contains the command sequence error status (SR[7,5,4] set). When the ERASE operation resumes and finishes, possible errors during the operation cannot be detected via the status register because it contains the previous error status.
3. When bits 5:4 indicate a PROGRAM/ERASE operation error, either a CLEAR STATUS REGISTER 50h) or a RESET command must be issued with a 15µs delay.
Clear Status Register
The CLEAR STATUS REGISTER command clears the status register. It functions independently of V PP. The device sets and clears SR[7,6,2], but it sets bits SR[5:3,1] without
clearing them. The status register should be cleared before starting a command sequence to avoid any ambiguity. A device reset also clears the status register.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
38
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Configuration Register
Read Configuration Register
The read configuration register (RCR) is a 16-bit read/write register used to select bus
read mode (synchronous or asynchronous) and to configure device synchronous burst
read characteristics. To modify RCR settings, use the CONFIGURE READ CONFIGURATION REGISTER command. RCR contents can be examined using the READ DEVICE
IDENTIFIER command and then reading from offset 0x05. On power-up or exit from reset, the RCR defaults to asynchronous mode. RCR bits are described in more detail below.
Note: Reading the configuration register is a nonarray READ operation. When the operation occurs in asynchronous page mode, only the first data is valid, and all subsequent
data are undefined. When the operation occurs in synchronous burst mode, the same
word of data requested will be output on successive clock edges until the burst length
requirements are satisfied.
Table 13: Read Configuration Register
Bits
15
Name
Settings/Description
Read mode (RM)
0 = Synchronous burst mode read
1 = Asynchronous page mode read (default)
14:11 Latency count
(LC[3:0])
0000 = Code 0 (reserved)
0001 = Code 1 (reserved)
0010 = Code 2 (reserved)
0011 = Code 3
0100 = Code 4
0101 = Code 5
0110 = Code 6
0111 = Code 7
1000 = Code 8
1001 = Code 9
1010 = Code 10
1011 = Code11
1100 = Code 12
1101 = Code 13
1110 = Code 14
1111 = Code 15 (default)
10
WAIT polarity (WP)
0 = WAIT signal is active LOW (default)
1 = WAIT signal is active HIGH
9
Reserved (R)
Default 0, Nonchangeable
8
WAIT delay (WD)
0 = WAIT de-asserted with valid data
1 = WAIT de-asserted one data cycle before valid data (default)
7
Burst sequence (BS)
Default 0, Nonchangeable
6
Clock edge (CE)
0 = Falling edge
1 = Rising edge (default)
Reserved (R)
Default 0, Nonchangeable
Burst wrap (BW)
0 = Wrap; Burst accesses wrap within burst length set by BL[2:0]
1 = No Wrap; Burst accesses do not wrap within burst length (default)
5:4
3
2:0
Burst length (BL[2:0]) 001 = 4-word burst
010 = 8-word burst
011 = 16-word burst
111 = Continuous burst (default)
(Other bit settings are reserved)
Read Mode
The read mode (RM) bit selects synchronous burst mode or asynchronous page mode
operation for the device. When the RM bit is set, asynchronous page mode is selected
(default). When RM is cleared, synchronous burst mode is selected.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
39
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Latency Count
The latency count (LC) bits tell the device how many clock cycles must elapse from the
rising edge of ADV# (or from the first valid clock edge after ADV# is asserted) until the
first valid data word is driven to DQ[15:0]. The input clock frequency is used to determine this value. The First Access Latency Count figure shows the data output latency for
different LC settings.
Figure 10: First Access Latency Count
CLK [C]
Address [A]
Valid
Address
ADV# [V]
Code
0 (Reserved
Valid
Output
DQ[15:0] [D/Q]
Code 1
(Reserved )
DQ[15:0] [D/Q]
Code
DQ[15:0] [D/Q]
DQ[15:0] [D/Q]
DQ[15:0] [D/Q]
DQ[15:0] [D/Q]
DQ[15:0] [D/Q]
Note:
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
Valid
Output
2
(Reserved )
DQ[15:0] [D/Q]
)
Valid
Output
Code
3
Code
4
Code
5
Code
6
Code
7
Valid
Output
1. First Access Latency Count Calculation:
• 1 / CLK frequency = CLK period (ns)
• n x (CLK period) ≥ tAVQV (ns) – tCHQV (ns)
• Latency Count = n
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
40
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Figure 11: Example Latency Count Setting Using Code 3
0
1
2
3
tData
4
CLK
CE#
ADV#
Address
A[MAX:1]
Code 3
High-Z
D[15:0]
Data
R103
End of Wordline Considerations
End of wordline (EOWL) wait states can result when the starting address of the burst operation is not aligned to a 16-word boundary; that is, A[4:1] of the start address does not
equal 0x0. The figure below illustrates the end of wordline wait state(s) that occur after
the first 16-word boundary is reached. The number of data words and wait states is
summarized in the table below.
Figure 12: End of Wordline Timing Diagram
Latency Count
CLK
A[MAX:1]
Address
DQ[15:0]
Data
Data
Data
ADV#
OE#
EOWL
WAIT#
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
41
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Table 14: End of Wordline Data and WAIT State Comparison
130nm
65nm
Latency Count
Data Words
WAIT States
Data Words
WAIT States
1
Not Supported
Not Supported
Not Supported
Not Supported
2
4
0 to 1
Not Supported
Not Supported
3
4
0 to 2
Not Supported
Not Supported
4
4
0 to 3
Not Supported
Not Supported
5
4
0 to 4
16
0 to 4
6
4
0 to 5
16
0 to 5
7
4
0 to 6
16
0 to 6
8
Not Supported
Not Supported
16
0 to 7
9
16
0 to 8
10
16
0 to 9
11
16
0 to 10
12
16
0 to 11
13
16
0 to 12
14
16
0 to 13
15
16
0 to 14
WAIT Signal Polarity and Functionality
The WAIT polarity (WP) bit, RCR10 determines the asserted level (V OH or V OL) of WAIT.
When WP is set, WAIT is asserted HIGH (default). When WP is cleared, WAIT is asserted
LOW. The WAIT signal changes state on valid clock edges during active bus cycles (CE#
asserted, OE# asserted, RST# de-asserted).
The WAIT signal indicates data valid when the device is operating in synchronous mode
(RCR15 = 0). The WAIT signal is only de-asserted when data is valid on the bus. When
the device is operating in synchronous nonarray read mode, such as read status, read
ID, or read CFI, the WAIT signal is also de-asserted when data is valid on the bus. WAIT
behavior during synchronous nonarray reads at the end of wordline works correctly only on the first data access. When the device is operating in asynchronous page mode,
asynchronous single word read mode, and all write operations, WAIT is set to a de-asserted state as determined by RCR10.
Table 15: WAIT Functionality Table
Condition
WAIT
Notes
CE# = 1, OE# = X or CE# = 0, OE# = 1
High-Z
1
CE# = 0, OE# = 0
Active
1
Synchronous Array Reads
Active
1
Synchronous Nonarray Reads
Active
1
De-asserted
1
All Asynchronous Reads
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
42
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Table 15: WAIT Functionality Table (Continued)
Condition
WAIT
Notes
All Writes
High-Z
1, 2
1. Active means that WAIT is asserted until data becomes valid, then deasserts.
2. When OE# = VIH during writes, WAIT = High-Z.
Notes:
WAIT Delay
The WAIT delay (WD) bit controls the WAIT assertion delay behavior during synchronous burst reads. WAIT can be asserted either during or one data cycle before valid data
is output on DQ[15:0]. When WD is set, WAIT is de-asserted one data cycle before valid
data (default). When WD is cleared, WAIT is de-asserted during valid data.
Burst Sequence
The burst sequence (BS) bit selects linear burst sequence (default). Only linear burst sequence is supported. The synchronous burst sequence for all burst lengths, as well as
the effect of the burst wrap (BW) setting are shown below.
Table 16: Burst Sequence Word Ordering
Burst Addressing Sequence (DEC)
Start
Address
(DEC)
Burst
Wrap
(RCR3)
4-Word Burst
(BL[2:0] = 0b001)
8-Word Burst
(BL[2:0] = 0b010)
16-Word Burst
(BL[2:0] = 0b011)
Continuous Burst
(BL[2:0] = 0b111)
0
0
0-1-2-3
0-1-2-3-4-5-6-7
0-1-2-3-4…14-15
0-1-2-3-4-5-6-…
1
0
1-2-3-0
1-2-3-4-5-6-7-0
1-2-3-4-5…15-0
1-2-3-4-5-6-7-…
2
0
2-3-0-1
2-3-4-5-6-7-0-1
2-3-4-5-6…15-0-1
2-3-4-5-6-7-8-…
3
0
3-0-1-2
3-4-5-6-7-0-1-2
3-4-5-6-7…15-0-1-2
3-4-5-6-7-8-9-…
4
0
4-5-6-7-0-1-2-3
4-5-6-7-8…15-0-1-2-3
4-5-6-7-8-9-10…
5
0
5-6-7-0-1-2-3-4
5-6-7-8-9…15-0-1-2-3-4
5-6-7-8-9-10-11…
6
0
6-7-0-1-2-3-4-5
6-7-8-9-10…15-0-1-2-3-4-5
6-7-8-9-10-11-12-…
7
0
7-0-1-2-3-4-5-6
7-8-9-10…15-0-1-2-3-4-5-6
7-8-9-10-11-12-13…
⋮
⋮
⋮
⋮
⋮
14
0
14-15-0-1-2…12-13
14-15-16-17-18-19-20-…
15
0
15-0-1-2-3…13-14
15-16-17-18-19-20-21-…
⋮
⋮
⋮
⋮
⋮
⋮
⋮
0
1
0-1-2-3
0-1-2-3-4-5-6-7
0-1-2-3-4…14-15
0-1-2-3-4-5-6-…
1
1
1-2-3-4
1-2-3-4-5-6-7-8
1-2-3-4-5…15-16
1-2-3-4-5-6-7-…
2
1
2-3-4-5
2-3-4-5-6-7-8-9
2-3-4-5-6…16-17
2-3-4-5-6-7-8-…
3
1
3-4-5-6
3-4-5-6-7-8-9-10
3-4-5-6-7…17-18
3-4-5-6-7-8-9-…
4
1
4-5-6-7-8-9-10-11
4-5-6-7-8…18-19
4-5-6-7-8-9-10…
5
1
5-6-7-8-9-10-11-12
5-6-7-8-9…19-20
5-6-7-8-9-10-11…
6
1
6-7-8-9-10-11-12-13
6-7-8-9-10…20-21
6-7-8-9-10-11-12-…
7
1
7-8-9-10-11-12-13-14
7-8-9-10-11…21-22
7-8-9-10-11-12-13…
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
43
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Configuration Register
Table 16: Burst Sequence Word Ordering (Continued)
Burst Addressing Sequence (DEC)
Start
Address
(DEC)
Burst
Wrap
(RCR3)
4-Word Burst
(BL[2:0] = 0b001)
8-Word Burst
(BL[2:0] = 0b010)
16-Word Burst
(BL[2:0] = 0b011)
Continuous Burst
(BL[2:0] = 0b111)
⋮
⋮
⋮
⋮
⋮
⋮
14
1
14-15-16-17-18…28-29
14-15-16-17-18-19-20-…
15
1
15-16-17-18-19…29-30
15-16-17-18-19-20-21-…
Clock Edge
The clock edge (CE) bit selects either a rising (default) or falling clock edge for CLK. This
clock edge is used at the start of a burst cycle to output synchronous data and to
assert/de-assert WAIT.
Burst Wrap
The burst wrap (BW) bit determines whether 4-word, 8-word, or 16-word burst length
accesses wrap within the selected word length boundaries or cross word length boundaries. When BW is set, burst wrapping does not occur (default). When BW is cleared,
burst wrapping occurs.
When performing synchronous burst reads with BW set (no wrap), an output delay may
occur when the burst sequence crosses its first device row (16-word) boundary. If the
burst sequence’s start address is 4-word aligned, then no delay occurs. If the start address is at the end of a 4-word boundary, the worst-case output delay is one clock cycle
less than the first access latency count. This delay can take place only once and doesn’t
occur if the burst sequence does not cross a device row boundary. WAIT informs the
system of this delay when it occurs.
Burst Length
The burst length bits (BL[2:0]) select the linear burst length for all synchronous burst
reads of the flash memory array. The burst lengths are 4-word, 8-word, 16-word, or continuous.
Continuous burst accesses are linear only and do not wrap within any word length
boundaries. When a burst cycle begins, the device outputs synchronous burst data until
it reaches the end of the “burstable” address space.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
44
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
One-Time Programmable Registers
One-Time Programmable Registers
Read OTP Registers
The device contains 17 OTP registers that can be used to implement system security
measures and/or device identification. Each OTP register can be individually locked.
The first 128-bit OTP register is comprised of two 64-bit (8-word) segments. The lower
64-bit segment is preprogrammed at the Micron factory with a unique 64-bit number.
The upper 64-bit segment, as well as the other sixteen 128-bit OTP registers, are blank.
Users can program them as needed. Once programmed, users can also lock the OTP
register(s) to prevent additional bit programming (see the OTP Register Map figure below).
The OTP registers contain OTP bits; when programmed, PR bits cannot be erased. Each
OTP register can be accessed multiple times to program individual bits, as long as the
register remains unlocked.
Each OTP register has an associated lock register bit. When a lock register bit is programmed, the associated OTP register can only be read; it can no longer be programmed. Additionally, because the lock register bits themselves are OTP, when programmed, they cannot be erased. Therefore, when an OTP register is locked, it cannot be unlocked.
The OTP registers can be read from an OTP-RA address. To read the OTP register, a
READ DEVICE IDENTIFIER command is issued at an OTP-RA address to place the device in the read device identifier state. Next, a READ operation is performed using the
address offset corresponding to the register to be read. The Device Identifier Information table shows the address offsets of the OTP registers and lock registers. PR data is
read 16 bits at a time.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
45
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
One-Time Programmable Registers
Figure 13: OTP Register Map
0x109
128-bit OTP
Register 16
User Programmable
0x102
0x91
128-bit OTP
Register 1
User Programmable
0x8A
Lock Register 1
0x89
0x88
128-bit OTP
Register 0
0x85
0x84
15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
0
3
2
1
0
64-bit Segment
User Programmable
64-bit Segment
Factory Programed
0x81
Lock Register 0
0x80
15 14 13 12 11 10 9
8
7
6
5
4
Program OTP Registers
To program an OTP register, a PROGRAM OTP REGISTER command is issued at the parameter’s base address plus the offset of the desired OTP register location. Next, the desired OTP register data is written to the same OTP register address.
The device programs the 64-bit and 128-bit user-programmable OTP register data 16
bits at a time. Issuing the PROGRAM OTP REGISTER command outside of the OTP register’s address space causes a program error (SR4 set). Attempting to program a locked
OTP register causes a program error (SR4 set) and a lock error (SR1 set).
Lock OTP Registers
Each OTP register can be locked by programming its respective lock bit in the lock register. The corresponding bit in the lock register is programmed by issuing the PROGRAM
LOCK REGISTER command, followed by the desired lock register data. The physical addresses of the lock registers are 0x80 for register 0 and 0x89 for register 1; these addresses are used when programming the lock registers.
Bit 0 of lock register 0 is programmed during the manufacturing process, locking the
lower-half segment of the first 128-bit OTP register. Bit 1 of lock register 0, which corresponds to the upper-half segment of the first 128-bit OTP register, can be programmed
by the user . When programming bit 1 of lock register 0, all other bits need to be left as 1
such that the data programmed is 0xFFFD.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
46
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
One-Time Programmable Registers
Lock register 1 controls the the upper sixteen 128-bit OTP registers. Each bit of lock register 1 corresponds to a specific 128-bit OTP register. Programming a bit in lock register
1 locks the corresponding 128-bit OTP register; e.g., programming LR1.0 locks the corresponding OTP register 1.
Note: Once locked, the OTP registers cannot be unlocked.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
47
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Common Flash Interface
The CFI is part of an overall specification for multiple command-set and control-interface descriptions. System software can parse the CFI database structure to obtain information about the device, such as block size, density, bus width, and electrical specifications. The system software determines which command set to use to properly perform a
WRITE command, a BLOCK ERASE or READ command, and to otherwise control the
device. Information in the CFI database can be viewed by issuing the READ CFI command.
READ CFI Structure Output
The READ CFI command obtains CFI database structure information and always outputs it on the lower byte, DQ[7:0], for a word-wide (x16) device. This CFI-compliant device always outputs 00h data on the upper byte (DQ[15:8]).
The numerical offset value is the address relative to the maximum bus width the device
supports. For this device family, the starting address is a 10h, which is a word address
for x16 devices. For example, at this starting address of 10h, a READ CFI command outputs an ASCII Q in the lower byte and 00h in the higher byte as shown here.
In all the CFI tables shown here, address and data are represented in hexadecimal notation. In addition, because the upper byte of word-wide devices is always 00h, as shown
in the example here, the leading 00 has been dropped and only the lower byte value is
shown. Following is a table showing the CFI output for a x16 device, beginning at address 10h and a table showing an overview of the CFI database sections with their addresses.
Table 17: Example of CFI Output (x16 device) as a Function of Device and Mode
Device
Hex
Offset
Hex
Code
ASCII Value
(DQ[15:8])
ASCII Value
(DQ[7:0])
Address
00010:
51
00
Q
00011:
52
00
R
00012:
59
00
Y
Primary vendor ID
00013:
P_IDLO
00
00014:
P_IDHI
00
00015:
PLO
00
00016:
PHI
00
00017:
A_IDLO
00
00018:
A_IDHI
00
:
:
:
:
:
:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
48
Primary vendor table address
Alternate vendor ID
:
:
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 18: CFI Database: Addresses and Sections
Address
00001:Fh
Section Name
Description
Reserved
Reserved for vendor-specific information
00010h
CFI ID string
Flash device command set ID (identification) and vendor data offset
0001Bh
System interface information
Flash device timing and voltage
00027h
Device geometry definition
Flash device layout
P
Primary Micron-specific extended query Vendor-defined informaton specific to the primary vendor
algorithm (offset 15 defines P which points to the primary
Micron-specific extended query table.)
Table 19: CFI ID String
Hex
Offset
Length
10h
3
13h
15h
17h
19h
2
2
2
2
Address
Hex
Code
ASCII Value
(DQ[7:0])
10:
- -51
Q
11:
- -52
R
12:
- -59
Y
Primary vendor command set and control
interface ID code. 16-bit ID code for vendor-specified algorithms.
13:
- -01
Primary vendor ID number
14:
- -00
Extended query table primary algorithm
address.
15:
- -0A
16:
- -01
Primary vendor table address, primary algorithm
Alternate vendor command set and control
interface ID code. 0000h means no second
vendor-specified algorithm exists.
17:
- -00
Alternate vendor ID number
18:
- -00
19:
- -00
1A:
- -00
Description
Query unique ASCII string “QRY”
Secondary algorithm extended query table
address. 0000h means none exists.
Note:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Primary vendor table address, secondary algorithm
1. The CFI ID string provides verification that the device supports the CFI specification. It
also indicates the specification version and supported vendor-specific command sets.
49
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 20: System Interface Information
Hex
Offset
Length
Description
Address
Hex
Code
ASCII Value
(DQ[7:0])
1Bh
1
VCC logic supply minimum program/erase voltage.
bits 0 - 3 BCD 100 mV
bits 4 - 7 BCD volts
1Bh
- -17
1.7V
1Ch
1
VCC logic supply maximum program/erase voltage.
bits 0 - 3 BCD 100 mV
bits 4 - 7 BCD volts
1Ch
- -20
2.0V
1Dh
1
VPP [programming] supply minimum program/
erase voltage.
bits 0 - 3 BCD 100 mV
bits 4 - 7 hex volts
1Dh
- -85
8.5V
1Eh
1
VPP [programming] supply maximum program/
erase voltage.
bits 0 - 3 BCD 100 mV
bits 4 - 7 hex volts
1Eh
- -95
9.5V
1Fh
1
“n” such that typical single word program timeout = 2n μs.
1Fh
- -09
512µs
20h
1
“n” such that typical full buffer write timeout =
2n μs.
20h
- -0A
1024µs
21h
1
“n” such that typical block erase timeout = 2n ms.
21h
- -0A
1s
22h
- -00
NA
2n
22h
1
“n” such that typical full chip erase timeout =
ms.
23h
1
“n” such that maximum word program timeout =
2n times typical.
23h
- -01
1024µs
24h
1
“n” such that maximum buffer write timeout =
2n times typical.
24h
- -02
4096µs
25h
1
“n” such that maximum block erase timeout = 2n
times typical.
25h
- -02
4s
26h
1
“n” such that maximum chip erase timeout = 2n
times typical.
26h
- -00
NA
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
50
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 21: Device Geometry
Hex
Offset
Length
27h
1
n such that device size in bytes = 2n.
27:
28h
2
Flash device interface code assignment: n such that n + 1
specifies the bit field that represents the flash device width
capabilities as described here:
bit 0: ×8
bit 1: ×16
bit 2: ×32
bit 3: ×64
bits 4 - 7: –
bits 8 - 15: –
28:
- -01
29:
- -00
n such that maximum number of bytes in write buffer = 2n.
2Ah
- -0A
2Bh
- -00
2Ah
2
Description
Address
Hex
Code
ASCII Value
(DQ[7:0])
See Note 1
x16
1024
2Ch
1
Number of erase block regions (x) within the device:
1) x = 0 means no erase blocking; the device erases in bulk.
2) x specifies the number of device regions with one or more
contiguous, same-size erase blocks.
3) Symmetrically blocked partitions have one blocking region.
2Ch
See Note 1
2Dh
4
Erase block region 1 information:
bits 0 - 15 = y, y + 1 = number of identical-size erase blocks.
bits 16 - 31 = z, region erase block(s) size are z × 256 bytes.
2D:
2E:
2F:
30:
See Note 1
31h
4
Erase block region 2 information:
bits 0 - 15 = y, y + 1 = number of identical-size erase blocks.
bits 16 - 31 = z, region erase block(s) size are z × 256 bytes.
31:
32:
33:
34:
See Note 1
35h
4
Reserved for future erase block region information.
35:
36:
37:
38:
See Note 1
Note:
1. See Block Region Map Information table.
Table 22: Block Region Map Information
512Mb
1Gb
2Gb
Address
Top
Bottom
Symmetrical
Top
Bottom
Symmetrical
Symmetrical
27:
--1A
--1A
--1A
--1B
--1B
--1B
--1B
28:
--01
--01
--01
--01
--01
--01
--01
29:
--00
--00
--00
--00
--00
--00
--00
2A:
--0A
--0A
--0A
--0A
--0A
--0A
--0A
2B:
--00
--00
--00
--00
--00
--00
--00
2C:
--02
--02
--01
--02
--02
--01
--01
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
51
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 22: Block Region Map Information (Continued)
512Mb
1Gb
2Gb
Address
Top
Bottom
Symmetrical
Top
Bottom
Symmetrical
Symmetrical
2D:
--FE
--03
--FF
--FE
--03
--FF
--FF
2E:
--01
--00
--01
--03
--00
--03
--03
2F:
--00
--80
--00
--00
--80
--00
--00
30:
--02
--00
--02
--02
--00
--02
--02
31:
--03
--FE
--00
--03
--FE
--00
--00
32:
--00
--01
--00
--00
--03
--00
--00
33:
--80
--00
--00
--80
--00
--00
34:
--00
--02
--00
--00
--02
--00
35:~38:
--00
--00
--00
--00
--00
--00
Table 23: Primary Vendor-Specific Extended Query
Hex Offset
P = 10Ah
Length
Description
Hex Code
10A:
- -50
P
10B:
- -52
R
10C:
- -49
I
(P+0)h
(P+1)h
(P+2)h
3
(P+3)h
1
Major version number, ASCII
10D:
- -31
1
(P+4)h
1
Minor version number, ASCII
10E:
- -35
5
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Primary extended query table, unique ASCII
string: PRI
ASCII Value
(DQ[7:0])
Address
52
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 23: Primary Vendor-Specific Extended Query (Continued)
Hex Offset
P = 10Ah
(P+5)h
(P+6)h
(P+7)h
(P+8)h
Length
Description
Address
Hex Code
ASCII Value
(DQ[7:0])
4
Optional feature and command support (1 = yes;
0 = no)
Bits 11 - 29 are reserved; undefined bits are 0
If bit 31 = 1, then another 31-bit field of optional
features follows at the end of the bit 30 field.
10F:
- -E6
–
110:
- -01
–
111:
- -00
–
112:
See Note 1
–
Bit 0: Chip erase supported.
bit 0 = 0
No
Bit 1: Suspend erase supported.
bit 1 = 1
Yes
Bit 2: Suspend program supported.
bit 2 = 1
Yes
Bit 3: Legacy lock/unlock supported.
bit 3 = 0
No
Bit 4: Queued erase supported.
bit 4 = 0
No
Bit 5: Instant individual block locking supported.
bit 5 = 1
Yes
Bit 6: OTP bits supported.
bit 6 = 1
Yes
Bit 7: Page mode read supported.
bit 7 = 1
Yes
Bit 8: Synchronous read supported.
bit 8 = 1
Yes
Bit 9: Simultaneous operations supported.
bit 9 = 0
No
Bit 10: Extended Flash array block supported.
bit 10 = 0
No
Bit 11: Permanent block locking of up to full
main array supported.
bit 11 = 0
Yes
Bit 12: Permanent block locking of up to partial
main array supported.
bit 12 = 0
No
bit 30
See Note 1
Bit 30: CFI links to follow:
Bit 31: Another optional features field to follow.
(P+9)h
1
Supported functions after SUSPEND: READ ARRAY, STATUS, QUERY. Other supported options include:
Bits 1 - 7: Reserved; undefined bits are 0.
bit 31
113:
Bit 0: Program supported after ERASE SUSPEND.
(P+A)h
(P+B)h
2
Block Status Register mask:
Bits 2 - 15 are reserved; undefined bits are 0.
bit 0 = 1
114:
1
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Yes
- -03
115:
–
- -00
–
–
Bit 0: Block lock-bit status register active.
bit 0 = 1
Yes
Bit 1: Block lock-down bit status active.
bit 1 = 1
Yes
Bit 4: EFA block lock-bit status register active.
bit 4 = 0
No
Bit 5: EFA block lock-bit status active.
(P+C)h
- -01
bit 5 = 0
VCC logic supply highest performance program/
erase voltage.
bits 0 - 3 BCD 100 mV
bits 4 - 7 hex value in volts
53
116:
No
- -18
1.8V
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 23: Primary Vendor-Specific Extended Query (Continued)
Hex Offset
P = 10Ah
Length
(P+D)h
1
Description
Address
Hex Code
ASCII Value
(DQ[7:0])
117:
- -90
9.0V
VPP optimum program/erase voltage.
bits 0 - 3 BCD 100mV
bits 4 - 7 hex value in volts
1. See Optional Features Fields table.
Note:
Table 24: Optional Features Field
Discrete
2Gb
Address
Bottom
Top
Bottom
Top
–
–
die 1 (B)
die 2 (T)
die 1 (T)
die 2 (B)
112:
--00
--00
40:
--00
--40
--00
Table 25: One Time Programmable (OTP) Space Information
Hex Offset
P = 10Ah
Length
(P+E)h
1
(P+F)h
(P+10)h
(P+11)h
(P+12)h
4
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Description
Number of OTP block fields in JEDEC ID space.
00h indicates that 256 OTP fields are available.
OTP Field 1: OTP Description:
This field describes user-available OTP bytes.
Some are preprogrammed with device-unique serial numbers. Others are user-programmable.
Bits 0-15 point to the OTP Lock byte (the first
byte).
The following bytes are factory preprogrammed
and user-programmable:
Bits 0 - 7 = Lock/bytes JEDEC plane physical low
address.
Bits 8 - 15 = Lock/bytes JEDEC plane physical high
address.
Bits 16 - 23 = n where 2n equals factory preprogrammed bytes.
Bits 24 - 31 = n where 2n equals user-programmable bytes.
54
Address
Hex
Code
ASCII Value
(DQ[7:0])
118:
- -02
2
119:
- -80
80h
11A:
- -00
00h
1B:
- -03
8 byte
11C:
- -03
8 byte
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 25: One Time Programmable (OTP) Space Information (Continued)
Hex Offset
P = 10Ah
Length
Description
Address
Hex
Code
ASCII Value
(DQ[7:0])
10
Protection field 2: protection description
Bits 0 - 31 point to the protection register physical lock word address in the JEDEC plane.
The bytes that follow are factory or user-progammable.
11D:
- -89
89h
11E:
- -00
00h
11F:
- -00
00h
120:
- -00
00h
(P+17)h
(P+18)h
(P+19)h
Bits 32 - 39 = n where n equals factory programmed groups (low byte).
Bits 40 - 47 = n where n equals factory programmed groups (high byte).
Bits 48 - 55 = n where 2n equals factory programmed bytes/groups.
121:
- -00
0
122:
- -00
0
123:
- -00
0
(P+1A)h
(P+1B)h
(P+1C)h
Bits 56 - 63 = n where n equals user programmed
groups (low byte).
Bits 64 - 71 = n where n equals user programmed
groups (high byte).
Bits 72 - 79 = n where 2n equals user programmable bytes/groups.
124:
- -10
16
125:
- -00
0
126:
- -04
16
(P+13)h
(P+14)h
(P+15)h
(P+16)h
Table 26: Burst Read Information
Hex Offset
P = 10Ah
Length
Description
Address
Hex
Code
ASCII Value
(DQ[7:0])
1
Page Mode Read capability:
Bits 7 - 0 = n where 2n hex value represents the
number of read-page bytes. See offset 28h for
device word width to determine page-mode data
output width. 00h indicates no read page buffer.
127:
- -05
32 byte
1
Number of synchronous mode read configuration
fields that follow. 00h indicates no burst capability.
128:
- -04
(P+1D)h
(P+1E)h
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
55
4
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 26: Burst Read Information (Continued)
Hex Offset
P = 10Ah
Length
Description
Address
Hex
Code
1
Synchronous mode read capability configuration
1:
Bits 3 - 7 = Reserved.
Bits 0 - 2 = n where 2n+1 hex value represents the
maximum number of continuous synchronous
reads when the device is configured for its maximum word width.
A value of 07h indicates that the device is capable of continuous linear bursts that will output
data until the internal burst counter reaches the
end of the device’s burstable address space.
This fields’s 3-bit value can be written directly to
the Read Configuration Register bits 0 - 2 if the
device is configured for its maximum word width.
See offset 28h for word width to determine the
burst data output width.
129:
- -01
1
Synchronous mode read capability configuration
2.
12A:
- -02
8
1
Synchronous mode read capability configuration
3.
12B:
- -03
16
1
Synchronous mode read capability configuration
4.
12C:
- -07
Continued
(P+1F)h
(P+20)h
(P+21)h
(P+22)
ASCII Value
(DQ[7:0])
4
Table 27: Partition and Block Erase Region Information
Hex Offset
P = 10Ah
Bottom
Top
(P+23)h
(P+23)h
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Description
Optional Flash features and commands
Number of device hardware-partition regions
within the device:
x = 0: a single hardware partition device (no
fields follow).
x specifies the number of device partition regions
containing one or more contiguous erase block
regions
56
Address
Length
Bottom
Top
1
12D:
12D:
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 28: Partition Region 1 Information: Top and Bottom Offset/Address
Hex Offset
P = 10Ah
Description
Optional Flash features and commands
Bottom
Top
(P+24)h
(P+25)h
(P+24)h
(P+25)h
(P+26)h
(P+27)h
Address
Length
Bottom
Top
Data size of this Partition Region information field
(number of addressable locations, including this
field.
2
12E:
12E:
12F:
12F:
(P+26)h
(P+27)h
Number of identical partitions within the partition
region.
2
130:
130:
131:
131:
(P+28)h
(P+28)h
Number of program or erase operations allowed in a
partition:
Bits 0 - 3 = Number of simultaneous program operations.
Bits 4 - 7 = Number of simultaneous erase operations.
1
132:
132:
(P+29)h
(P+29)h
Simultaneous program or erase operations allowed
in other partitions while a partition in this region is
in program mode:
Bits 0 - 3 = Number of simultaneous program operations.
Bits 4 - 7 = Number of simultaneous erase operations.
1
133:
133:
(P+2A)h
(P+2A)h
Simultaneous program or erase operations allowed
in other partitions while a partition in this region is
in erase mode:
Bits 0 - 3 = Number of simultaneous program operations.
Bits 4 - 7 = Number of simultaneous erase operations.
1
134:
134:
(P+2B)h
(P+2B)h
Types of erase block regions in this partition region:
x = 0: No erase blocking; the partition region erases
in bulk.
x = Number of erase block regions with contiguous,
same-size erase blocks.
Symmetrically blocked partitions have one blocking
region.
Partition size = (Type 1 blocks) x (Type 1 block sizes) +
(Type 2 blocks) x (Type 2 block sizes) +...+ (Type n
blocks) x (Type n block sizes).
1
135:
135:
Table 29: Partition Region 1 Information
Hex Offset
P = 10Ah
Bottom/Top
(P+2C)h
(P+2D)h
(P+2E)h
(P+2F)h
Description
Optional Flash features and commands
Partition region 1 erase block type 1 information:
Bits 0-15 = y, y+1 = Number of identical-sized erase blocks in a
partition.
Bits 16-31 = z, where region erase block(s) size is z × 256 bytes.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
57
Length
Address
Bottom/Top
4
136:
137:
138:
139:
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 29: Partition Region 1 Information (Continued)
Hex Offset
P = 10Ah
Bottom/Top
Description
Optional Flash features and commands
Length
Address
Bottom/Top
13A:
(P+30)h
(P+31)h
Partition 1 (erase block type 1):
Minimum block erase cycles × 1000
2
(P+32)h
Partition 1 (erase block type 1) bits per cell; internal ECC:
Bits 0 - 3 = bits per cell in erase region
Bit 4 = reserved for “internal ECC used” (1 = yes, 0 = no)
Bit 5 - 7 = reserved for future use
1
13C:
(P+33)h
Partition 1 (erase block type 1) page mode and synchronous
mode capabilities:
Bits 0 = page-mode host reads permitted (1 = yes, 0 = no)
Bit 1 = synchronous host reads permitted (1 = yes, 0 = no)
Bit 2 = synchronous host writes permitted (1 = yes, 0 = no)
Bit 3 - 7 = reserved for future use
1
13D:
(P+34)h
(P+35)h
(P+36)h
(P+37)h
(P+38)h
(P+39)h
Partition 1 (erase block type 1) programming region information:
Bits 0 - 7 = x, 2x: programming region aligned size (bytes)
Bit 8-14 = reserved for future use
Bit 15 = legacy flash operation; ignore 0:7
Bit 16 - 23 = y: control mode valid size (bytes)
Bit 24 - 31 = reserved for future use
Bit 32 - 39 = z: control mode invalid size (bytes)
Bit 40 - 46 = reserved for future use
Bit 47 = legacy flash operation (ignore 23:16 and 39:32)
6
13E:
(P+3A)h
(P+3B)h
(P+3C)h
(P+3D)h
Partition 1 erase block type 2 information:
Bits 0-15 = y, y+1 = Number of identical-size erase blocks in a partition.
Bits 16 - 31 = z, where region erase block(s) size is z × 256 bytes.
(bottom parameter device only)
4
(P+3E)h
(P+3F)h
Partition 1 (erase block type 2)
Minimum block erase cycles × 1000
2
148:
(P+40)h
Partition 1 (erase block type 2) bits per cell, internal EDAC:
Bits 0 - 3 = bits per cell in erase region
Bit 4 = reserved for “internal ECC used” (1 = yes, 0 = no)
Bits 5 - 7 = reserved for future use
1
14A:
(P+41)h
Partition 1 (erase block type 2) page mode and synchronous
mode capabilities:
Bit 0 = page-mode host reads permitted (1 = yes, 0 = no)
Bit 1 = synchronous host reads permitted (1 = yes, 0 = no)
Bit 2 = synchronous host writes permitted (1 = yes, 0 = no)
Bits 3-7 = reserved for future use
1
14B:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
13B:
13F:
140:
141:
142:
143:
144:
145:
146:
147:
149:
58
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 29: Partition Region 1 Information (Continued)
Hex Offset
P = 10Ah
Bottom/Top
(P+42)h
(P+43)h
(P+44)h
(P+45)h
(P+46)h
(P+47)h
Description
Optional Flash features and commands
Partition 1 (erase block type 2) programming region information:
Bits 0 - 7 = x, 2nx = Programming region aligned size (bytes)
Bits 8 - 14 = reserved for future use
Bit 15 = legacy flash operation (ignore 0:7)
Bits 16 - 23 = y = Control mode valid size in bytes Bits 24 - 31 =
reserved
Bits 32 - 39 = z = Control mode invalid size in bytes
Bits 40 - 46 = reserved
Bit 47 = legacy flash operation (ignore 23:16 and 39:32)
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
59
Length
Address
Bottom/Top
6
14C:
14D:
14E:
14F:
150:
151:
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 30: Partition Region 1: Partition and Erase Block Map Information
Add.
512Mb
1Gb
2Gb
Top
Bottom
Symm.
Top
Bottom
Symm.
Symm.
Upper Die
Symm.
Lower Die
12D:
--01
--01
--01
--01
--01
--01
--01
--01
12E:
--24
--24
--14
--24
--24
--14
--14
--14
12F:
--00
--00
--00
--00
--00
--00
--00
--00
130:
--01
--01
--01
--01
--01
--01
--01
--01
131:
--00
--00
--00
--00
--00
--00
--00
--00
132:
--11
--11
--11
--11
--11
--11
--11
--11
133:
--00
--00
--00
--00
--00
--00
--00
--00
134:
--00
--00
--00
--00
--00
--00
--00
--00
135:
--02
--02
--01
--02
--02
--01
--01
--01
136:
--FE
--03
--FF
--FE
--03
--FF
--FF
--FF
137:
--01
--00
--01
--03
--00
--03
--03
--03
138:
--00
--80
--00
--00
--80
--00
--00
--00
139:
--02
--00
--02
--02
--00
--02
--02
--02
13A:
--64
--64
--64
--64
--64
--64
--64
--64
13B:
--00
--00
--00
--00
--00
--00
--00
--00
13C:
--02
--02
--02
--02
--02
--02
--02
--02
13D*:
--03
--03
--03
--03
--03
--03
--03
--03
13E:
--00
--00
--00
--00
--00
--00
--00
--00
13F:
--80
--80
--80
--80
--80
--80
--80
--80
140:
--00
--00
--00
--00
--00
--00
--00
--00
141:
--00
--00
--00
--00
--00
--00
--00
--00
142:
--00
--00
--00
--00
--00
--00
--00
--00
143:
--80
--80
--80
--80
--80
--80
--80
--80
144:
--03
--FE
--FF
--03
--FE
--FF
--FF
--10
145:
--00
--01
--FF
--00
--03
--FF
--FF
--C8
146:
--80
--00
--FF
--80
--00
--FF
--FF
--00
147:
--00
--02
--FF
--00
--02
--FF
--FF
--00
148:
--64
--64
--FF
--64
--64
--FF
--FF
--10
149:
--00
--00
--FF
--00
--00
--FF
--FF
--FF
14A:
--02
--02
--FF
--02
--02
--FF
--FF
--FF
14B:
--03
--03
--FF
--03
--03
--FF
--FF
--FF
14C:
--00
--00
--FF
--00
--00
--FF
--FF
--FF
14D:
--80
--80
--FF
--80
--80
--FF
--FF
--FF
14E:
--00
--00
--FF
--00
--00
--FF
--FF
--FF
14F:
--00
--00
--FF
--00
--00
--FF
--FF
--FF
150:
--00
--00
--FF
--00
--00
--FF
--FF
--FF
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
60
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Common Flash Interface
Table 30: Partition Region 1: Partition and Erase Block Map Information (Continued)
Add.
151:
512Mb
1Gb
2Gb
Top
Bottom
Symm.
Top
Bottom
Symm.
Symm.
Upper Die
--80
--80
--FF
--80
--80
--FF
--FF
Symm.
Lower Die
--FF
Table 31: CFI Link Information – 2Gb
Length
Description
Address
4
CFI Link field bit definitions:
Bits 0 - 9 = Address offset (within 32Mb segment of referenced CFI table)
Bits 10 - 27 = nth 32Mb segment of referenced CFI table
Bits 28 - 30 = Memory Type
Bit 31 = Another CFI link field immediately follows
144:
145:
146:
147
1
CFI Link field quantity subfield definitions:
Bits 0 - 3 = Quantity field (n such that n+1 equals quantity)
Bit 4 = Table and die relative location
Bit 5 = Link field and table relative location
Bits 6 - 7 = Reserved
148:
Note:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
ASCII Value
(DQ[7:0])
See Note 1
1. See "Partition Region 1: Partition and Erase Block Map Information" table.
61
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Flowcharts
Figure 14: Word Program Procedure
Start
Command Cycle
- Issue PROGRAM command
- Address = location to program
- Data = 0x40
Data Cycle
- Address = location to program
- Data = data to program
Check Ready Status
- READ STATUS REGISTER command not required
- Perform READ operation
- Read ready status on signal D7
No
No
D7 = 1?
No
Suspend?
Yes
Yes
Program suspend
(See Suspend/Resume
Flowchart
Errors?
Yes
Read Status Register
- Toggle CE# or OE# to update status register
- See Status Register Flowchart
Error-handler
user-defined routine
Progam
complete
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
62
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 15: Buffer Program Procedure
Start
X=X+1
Write buffer data,
start address
Device
supports buffer
writes?
No
Use single word
programming
Write buffer data,
(at block address)
within buffer range
X=0
No
Yes
X=N
Set timeout or
loop counter
No
Abort
bufferred program
?
Yes
Yes
Get next
target address
Write confirm D0h
(at block address)
Issue WRITE-to-BUFFER
command E8h
(at block address)
Read status register
(at block address)
CE# and OE# LOW
updates status register
SR7?
1 = Ready
0 = Busy
Read status register
SR7 = Valid
(at block address )
Write to another
block address
No
0
Suspend
program
Yes
Buffered program
aborted
Suspend
program loop
1
No
Device
ready? SR7 = 0/1
0 = No
Timeout
or count expired?
Full status
check (if desired)
Yes
Another
buffered
programming
?
1 = Yes
Write word count (N-1)
N = 0 corresponds to
count = 1
(at block address)
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Yes
No
Program
complete
1. Word count values on DQ0:DQ15 are loaded into the count register. Count ranges for
this device are N = 0000h to 01FFh.
2. Device outputs the status register when read.
3. Write buffer contents will be programmed at the device start or destination address.
4. Align the start address on a write buffer boundary for maximum programming performance; that is, A[9:1] of the start address = 0).
5. Device aborts the BUFFERED PROGRAM command if the current address is outside the
original block address.
6. Status register indicates an improper command sequence if the BUFFERED PROGRAM
command is aborted. Follow this with a CLEAR STATUS REGISTER command.
7. Device defaults to SR output data after BUFFERED PROGRAMMING SETUP command
(E8h) is issued . CE# or OE# must be toggled to update the status register . Don’t issue
the READ SR command (70h); it is interpreted by the device as buffer word count.
8. Full status check can be done after erase and write sequences complete. Write FFh after
the last operation to reset the device to read array mode.
63
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 16: Buffered Enhanced Factory Programming (BEFP) Procedure
Setup Phase
Program and Verify Phase
Start
Read status
register
Issue BEFP SETUP
Data = 0x80
Buffer ready?
Exit Phase
Read status
register
No (SR0 = 1)
Yes (SR0 = 0)
Issue BEFP CONFIRM
Data = 00D0h
Buffer full?
Read status
register
No (SR7 = 0)
Yes (SR7 = 1)
Full status
register check
for errors
Write data
word to buffer
BEFP setup
delay
BEFP exited?
No
Finish
Yes
Read status
register
BEFP setup
done?
Yes (SR7 = 0)
No (SR0 = 1)
Program
done?
No (SR7 = 1)
SR error-handler
user-defined
Yes (SR0 = 0)
Yes
Exit
Program
more data
?
No
Write 0xFFFF
outside block
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
64
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 17: Block Erase Procedure
Start
Command Cycle
- Issue ERASE command
- Address = block to be erased
- Data = 0x20
Confirm Cycle
- Issue CONFIRM command
- Address = block to be erased
- Data = erase confirm (0xD0)
Check Ready Status
- READ STATUS REGISTER
command not required
- Perform READ operation
- Read ready status on SR7
No
No
SR7 = 1?
No
Suspend?
Yes
Erase Suspend
See Suspend/
Resume Flowchart
Errors?
Yes
Yes
Read Status Register
- Toggle CE# or OE#
to update status register
- See Status Register Flowchart
Error Handler
user-defined
routine
End
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
65
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 18: Program Suspend/Resume Procedure
Start
Read
SR2 =
1 = Suspended
0 = Completed
Status
Write 70h
Any Address
Read
Program Suspend
Program
Completed
1
Array
Write FFh
Any Address
Write B0h
Any Address
Read Status Register
Initiate Read cycle to
update the status register
(Address = Block to suspend)
SR7 =
1 = Ready
0 = Busy
0
Read Array Data
from a block other than
from the one being
programmed
Done
Reading
0
Program
1
Yes
Resume
No
Read
Array
Write D0h
Any Address
Write FFh
Program
Resumed
Read Array
Data
Read
Status
Write 70h
Any Address
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
66
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 19: Erase Suspend/Resume Procedure
SR6 =
1 = Suspended
0 = Completed
Start
Read
Status
Erase
Completed
1
Write 70h
Any Address
Read
Program
Read/Program?
(FFh/40h)
Read Array Data from
Program Loop: to a
a block other than the
block other than the
No
one being erased
one being erased
Erase Suspend
Write B0h
Any Address
Address = X
Read Status Register
Toggle CE#/OE# to
update the
status register
SR7 =
1 = Ready
0 = Busy
0
Done?
Yes
Erase
Resume
0
Read
1
Array
Write D0h
Any Address
Write FFh
Erase 1
Resumed
Read Array
Data
Read
Status
Write 70h
Any Address
Note:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1. The tERS/SUSP timing between the initial BLOCK ERASE or ERASE RESUME command and
a subsequent ERASE SUSPEND command should be followed.
67
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 20: Block Lock Operations Procedure
Start
Lock
Setup
Write 60h
Block Address
Lock Confirm
Write 01h, D0h, 2Fh
Block Address
Read ID Plane
Write 90h
Optional
Read Block
Lock Status
No
Locking
Change?
Read
Yes
Array
Write FFh
Any Address
Lock Change
Complete
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
68
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 21: OTP Register Programming Procedure
Start
OTP Program Setup
- Write 0xC0
- OTP Address
Confirm Data
- Write OTP Address and Data
Check Ready Status
- READ STATUS REGISTER
command not required
- Perform READ operation
- Read ready status on SR7
SR7 = 1?
No
Yes
Read Status Register
- Toggle CE# or OE#
to update status register
- See Status Register Flowchart
End
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
69
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Flowcharts
Figure 22: Status Register Procedure
Start
Command Cycle
- Issue STATUS REGISTER command
- Address = any device address
- Data = 0x70
Data Cycle
- Read Status Register SR[7:0]
SR7 = 1
No
Set/Reset
by device
Yes
SR6 = 1
Yes
Erase Suspend
See Suspend/
Resume Flowchart
Yes
Program Suspend
See Suspend/
Resume Flowchart
No
SR2 = 1
No
SR5 = 1
Yes
No
SR4 = 1
Error
Command
sequence
Yes
Error
Erase failure
- Set by device
- Reset by user
- See Clear Status
Register Command
No
SR4 = 1
Yes
Error
Program failure
Yes
Error
VPEN/VPP <
VPENLK/VPPLK
Yes
Error
Block locked
No
SR3 = 1
No
SR1 = 1
No
End
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
70
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Power and Reset Specifications
Power and Reset Specifications
Power supply sequencing is not required if V PP is connected to V CC or V CCQ. Otherwise
VCC and V CCQ should attain their minimum operating voltage before applying V PP during power up. V CC should attain V SS during power down. Device inputs should not be
driven before supply voltage = V CC,min.
Power supply transitions should only occur when RST# is LOW. This protects the device
from accidental programming or erasure during power transitions.
Asserting RST# during a system reset is important with automated program/erase devices because systems typically expect to read from the device when coming out of reset.
If a CPU reset occurs without a device reset, proper CPU initialization may not occur.
This is because the device may be providing status information, instead of array data as
expected. Connect RST# to the same active LOW reset signal used for CPU initialization.
Because the device is disabled when RST# is asserted, it ignores its control inputs during power-up/down. Invalid bus conditions are masked, providing a level of memory
protection.
Table 32: Power and Reset
Parameter
Symbol
Min
Max
Unit
Notes
RST# pulse width LOW
tPLPH
100
–
ns
1, 2, 3, 4
RST# LOW to device reset during erase
tPLPH
–
25
us
1, 3, 4, 7
–
25
1, 3, 4, 7
300
–
1, 4, 5, 6
RST# LOW to device reset during program
tVCCPH
VCC Power valid to RST# de-assertion (HIGH)
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
1.
2.
3.
4.
5.
These specifications are valid for all device versions (packages and speeds).
The device may reset if tPLPH is < tPLPH MIN, but this is not guaranteed.
Not applicable if RST# is tied to VCC.
Sampled, but not 100% tested.
When RST# is tied to the VCC supply, device will not be ready until tVCCPH after VCC ≥
VCC,min.
6. When RST# is tied to the VCCQ supply, device will not be ready until tVCCPH after VCC ≥
VCC,min.
7. Reset completes within tPLPH if RST# is asserted while no ERASE or PROGRAM operation
is executing.
71
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Power and Reset Specifications
Figure 23: Reset Operation Waveforms
tPLPH
(A) Reset during
read mode
RST#
tPHQV
VIH
VIL
Abort
complete
tPLRH
(B) Reset during
program or block erase
P1 ≤ P2
RST#
VIH
VIL
tPLRH
(C) Reset during
program or block erase
P1 ≥ P2
RST#
tPHQV
VIH
Abort
complete
tPHQV
VIL
tVCCPH
(D) VCC power-up to
RST# HIGH
VCC
VCC
0V
Power Supply Decoupling
The device requires careful power supply de-coupling. Three basic power supply current considerations are 1) standby current levels, 2) active current levels, and 3) transient peaks produced when CE# and OE# are asserted and de-asserted.
When the device is accessed, internal conditions change. Circuits within the device enable charge pumps, and internal logic states change at high speed. These internal activities produce transient signals. Transient current magnitudes depend on the device outputs’ capacitive and inductive loading. Two-line control and correct de-coupling capacitor selection suppress transient voltage peaks.
Because the devices draw their power from V CC, V PP, and V CCQ, each power connection
should have a 0.1µF and a 0.01µF ceramic capacitor to ground. High-frequency, inherently low-inductance capacitors should be placed as close as possible to package leads.
Additionally, for every eight devices used in the system, a 4.7µF electrolytic capacitor
should be placed between power and ground close to the devices. The bulk capacitor is
meant to overcome voltage droop caused by PCB trace inductance.
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
72
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
Maximum Ratings and Operating Conditions
Maximum Ratings and Operating Conditions
Stresses greater than those listed can cause permanent damage to the device. This is
stress rating only, and functional operation of the device at these or any other conditions above those indicated is not guaranteed.
Table 33: Maximum Ratings
Parameter
Maximum Rating
Temperature under bias
–40°C to + 85 °C
Storage temperature
–65°C to + 125 °C
Notes
Voltage on any signal (except VCC, VPP, and VCCQ)
–2V to +5.6V
1
VPP voltage
–2V to +11.5V
1, 2
VCC voltage
–2V to +4V
1
VCCQ voltage
–2V to +5.6V
1
100mA
3
Output short circuit current
Notes:
1. Voltages shown are specified with respect to VSS. During infrequent nonperiodic transitions, the level may undershoot to –2V for periods less than 20ns or overshoot to VCC +
2V or VCCQ + 2V or VPP + 2V for periods less than 20ns.
2. Program/erase voltage is typically 1.7–2.0V. 9.0V can be applied for 80 hours maximum
total, to any blocks for 1000 cycles maximum. 9.0V program/erase voltage may reduce
block cycling capability.
3. Output is shorted for no more than one second, and more than one output is not shorted at one time.
Table 34: Operating Conditions
Symbol
Parameter
Min
Max
Unit
Notes
TA
Operating temperature
–40
+85
°C
1
VCC
VCC supply voltage
1.7
2.0
V
VCCQ
I/O supply voltage
CMOS inputs
1.7
3.6
TTL inputs
2.4
3.6
VPPL
VPP voltage supply (logic level)
0.9
3.6
VPPH
Buffered enhanced factory programming VPP
8.5
9.5
tPPH
Maximum VPP hours
VPP = VPPH
–
80
Hours
VPP = VPPL
100,000
–
Cycles
VPP = VPPH
–
1000
BLOCK
Array blocks
ERASE cycles
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
2
1. TA = ambient temperature.
2. In typical operation, VPP program voltage is VPPL.
73
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
DC Electrical Specifications
DC Electrical Specifications
Table 35: DC Current Characteristics
CMOS Inputs
(VCCQ =
1.7–3.6V)
Parameter
Max
Typ
–
±1
–
±2
–
±2
–
±4
–
±1
–
±10
–
±2
–
±20
70
225
70
225
75
240
75
240
150
480
150
480
26
31
26
31
Page mode read
f = 13 MHz (17 CLK)
12
16
12
16
Synchronous burst
f = 52 MHz, LC = 4
19
22
19
22
mA 8-word read
16
18
16
18
mA 16-word read
21
24
21
14
mA Continuous
read
35
50
35
50
mA VPP = VPPL,
program/erase in progress
1, 3, 5
35
50
35
50
VPP = VPPH,
program/erase in progress
1, 3, 5
ICCWS,
ICCES
70
225
70
225
µA
CE# = VCCQ, suspend in progress
1, 3, 4
75
240
75
240
IPPS
0.2
5
0.2
5
µA
VPP = VPPL, in standby mode
1, 3, 7
1Gb
0.2
5
0.2
5
2Gb
0.4
10
0.4
10
IPPWS,
IPPES
0.2
5
0.2
5
µA
VPP = VPPL,
suspend in progress
1, 3, 7
VPP read
IPPR
2
15
2
15
µA
VPP = VPPL
VPP program current
IPPW
0.05
0.1
0.05
0.1
mA VPP = VPPL, program in progress
0.05
0.1
0.05
0.1
VPP = VPPH, program in progress
Input load current
Symbol Typ
TTL Inputs
(VCCQ =
2.4–3.6V)
512Mb
1Gb
ILI
2Gb
Output leakage
current
DQ[15:0], WAIT
VCC standby, power-down
512Mb
1Gb
ILO
2Gb
512Mb
1Gb
ICCS,
ICCD
2Gb
Average Asynchronous
VCC read single-word
current f = 5 MHz (1 CLK)
VCC program current,
VCC erase current
VCC program
suspend current,
VCC erase
suspend current
512Mb
VPP standby current
512Mb
1Gb
2Gb
VPP program suspend current,
VPP erase suspend current
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
ICCR
ICCW,
ICCE
74
Max
Unit Test Conditions
Notes
µA
VCC = VCC,max,
VCCQ = VCCQ,max,
VIN = VCCQ or VSS
1, 6
µA
VCC = VCC,max,
VCCQ = VCCQ,max,
VIN = VCCQ or VSS
µA
VCC = VCC,max,
VCCQ = VCCQ,max,
CE# = VCCQ,
RST# = VCCQ (for ICCS),
RST# = VSS (for ICCD),
WP# = VIH
1, 2
mA 16-word read VCC = VCC,max,
CE# = VIL,
OE# = VIH,
mA 16-word read Inputs:
VIL or VIH
1
1, 3
3
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
DC Electrical Specifications
Table 35: DC Current Characteristics (Continued)
CMOS Inputs
(VCCQ =
1.7–3.6V)
Parameter
Symbol Typ
VPP erase current
IPPE
VPP blank check
IPPBC
Notes:
Max
TTL Inputs
(VCCQ =
2.4–3.6V)
Typ
Max
Unit Test Conditions
0.05
0.1
0.05
0.1
mA VPP = VPPL, erase in progress
0.05
0.1
0.05
0.1
VPP = VPPH, erase in progress
0.05
0.1
0.05
0.1
mA VPP = VPPL
0.05
0.1
0.05
0.1
VPP = VPPH
Notes
3
3
1. All currents are RMS unless noted. Typical values at TYP VCC, TC = +25°C.
2. ICCS is the average current measured over any 5ms time interval 5µs after CE# is de-asserted.
3. Sampled, not 100% tested.
4. ICCES is specified with the device deselected. If device is read while in erase suspend, current is ICCES plus ICCR.
5. ICCW, ICCE measured over TYP or MAX times specified in Program and Erase Characteristics.
6. if VIN > VCC, the input load current increases to 10µA MAX.
7. IPPS, IPPWS, and IPPES will increase to 200µA when VPP/WP# is at VPPH.
Table 36: DC Voltage Characteristics
CMOS Inputs
(VCCQ = 1.7–3.6V)
Parameter
TTL Inputs1
(VCCQ = 2.4–3.6V)
Symbol
Min
Max
Min
Max
Input low voltage
VIL
–0.5
0.4
–0.5
0.6
V
Input high voltage
VIH
VCCQ - 0.4
VCCQ + 0.5
2
VCCQ + 0.5
V
Output low voltage
VOL
–
0.2
–
0.2
V
VCC = VCC,min,
VCCQ = VCCQ,min,
IOL = 100µA
Output high voltage
VOH
VCCQ - 0.2
–
VCCQ - 0.2
–
V
VCC = VCC,min,
VCCQ = VCCQ,min,
IOH = –100µA
VPP lock out voltage
VPPLK
–
0.4
–
0.4
V
Notes:
09005aef845667b3
p30_65nm_MLC_512Mb-1gb_2gb.pdf - Rev. D 5/17 EN
Unit Test Conditions
Notes
2
3
1. Synchronous read mode is not supported with TTL inputs.
2. VIL can undershoot to –1.0V for durations of 2ns or less and VIH can overshoot to VCCQ +
1.0V for durations of 2ns or less.
3. VPP ≤ VPPLK inhibits ERASE and PROGRAM operations. Do not use VPPL and VPPH outside
their valid ranges.
75
Micron Technology, Inc. reserves the right to change products or specifications without notice.
© 2013 Micron Technology, Inc. All rights reserved.
512Mb, 1Gb, 2Gb:
P30-65nm
AC Test Conditions and Capacitance
AC Test Conditions and Capacitance
Figure 24: AC Input/Output Reference Timing
VCCQ
Input VCCQ/2
Test points
VCCQ/2 output
0V
Note:
1. AC test inputs are driven at VCCQ for logic 1 and at 0V for logic 0. Input/output timing
begins/ends at VCCQ/2. Input rise and fall times (10% to 90%)
工商网监
湘ICP备2023018690号
