ERA-50SM+

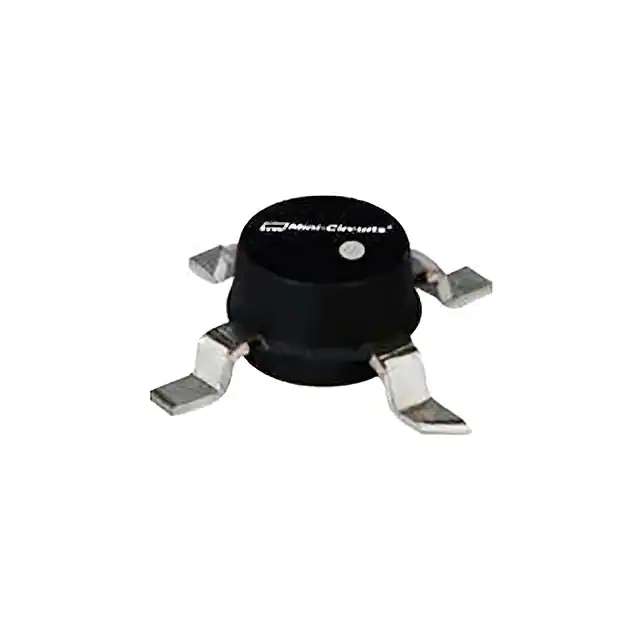

Surface Mount Monolithic Amplifier DC-2 GHz Product Features • DC-2 GHz • Single Voltage Supply • Internally Matched to 50 Ohms • Unconditionally Stable • Low Performance Variation Over Temperature • Transient Protected • Aqueous washable • Protected By US Patent 6,943,629 Generic photo used for illustration purposes only ERA-50SM+ CASE STYLE: WW107 Typical Applications +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications • Cellular/ PCS/ 3G Base Station • CATV, Cable Modem & DBS • Fixed Wireless & WLAN • Microwave Radio & Test Equipment General Description ERA-50SM+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot. It is enclosed in an Micro-X package. ERA-50SM+ uses Darlington configuration and is fabricated using InGaP HBT technology. Expected MTTF is 450 years at 85°C case temperature. simplified schematic and pin description RF-OUT and DC-IN 3 RF-OUT and DC-IN RF IN GND 4 GND 2 1 RF IN GROUND Function Pin Number Description RF IN 1 RF input pin. This pin requires the use of an external DC blocking capacitor chosen for the frequency of operation. RF-OUT and DC-IN 3 RF output and bias pin. DC voltage is present on this pin; therefore a DC blocking capacitor is necessary for proper operation. An RF choke is needed to feed DC bias without loss of RF signal due to the bias connection, as shown in “Recommended Application Circuit”. GND 2,4 Connections to ground. Use via holes as shown in “Suggested Layout for PCB Design” to reduce ground path inductance for best performance. Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com REV. Q ECO-009719 ERA-50SM+ 210915 Page 1 of 4 ERA-50SM+ Monolithic InGaP HBT MMIC Amplifier Electrical Specifications at 25°C and 60mA, unless noted Parameter Min. Frequency Range* Typ. DC f=0.1 GHz f=1 GHz f=1.5 GHz f=2 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=2 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=1.5 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=2 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=2 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=0.1 GHz f=1 GHz f=1.5 GHz f=2 GHz f=1 GHz Gain Magnitude of Gain Variation versus Temperature (values are negative) Input Return Loss Output Return Loss Reverse Isolation Output Power @ 1 dB compression Saturated Output Power (at 3dB compression) Output IP3 Noise Figure Group Delay Recommended Device Operating Current Device Operating Voltage Device Voltage Variation vs. Temperature at 60mA Device Voltage Variation vs. Current at 25°C Thermal Resistance, junction-to-case1 19.5 18 — 16 — — — — 20.7 19.4 18.3 17.6 .0015 .0024 .0028 .0033 35 24 24 27 21 19 23 17.6 17.2 17.1 15.9 19 18 17.5 16.5 34 33 31 3.3 3.3 3.4 3.4 120 60 4.4 -3.2 3.8 177 20 — 16 — — 30 29 27 — — — — 4.2 Max. Units 2 GHz 22.5 21 20 19 .003 .005 .006 .007 dB Cpk ≥ 1.5 dB/°C dB dB — — — — — dB dBm ≥ 1.33 dBm — — — 4.3 4.3 4.4 — 4.6 dBm ≥ 1.33 dB ≥ 1.33 psec mA V mV/°C mV/mA °C/W ≥ 1.5 *Guaranteed specification DC-2 GHz. Low frequency cut off determined by external coupling capacitors. Absolute Maximum Ratings Parameter Ratings Operating Temperature* -45°C to 85°C Storage Temperature -65°C to 150°C Operating Current 85mA Power Dissipation 451mW Input Power 13dBm Note: Permanent damage may occur if any of these limits are exceeded. These ratings are not intended for continuous normal operation. 1 Case is defined as ground leads. *Based on typical case temperature rise 5°C above ambient. Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 2 of 4 ERA-50SM+ Monolithic InGaP HBT MMIC Amplifier Product Marking 3 50 4 2 index over pin 1 1 Markings in addition to model number designation may appear for internal quality control purposes. Additional Detailed Technical Information Additional information is available on our web site. To access this information enter the model number on our web site home page. Performance data, graphs, s-parameter data set (.zip file) Case Style: WW107 Plastic micro-x, .085 body diameter, lead finish: Matte-Tin Tape & Reel: F4 7” Reels with 20, 50, 100, 200, 500, 1K devices Suggested Layout for PCB Design: PL-075 Evaluation Board: TB-408-50+ Environmental Ratings: ENV08T2 Recommended Application Circuit R BIAS R bias (R equired) V cc C bypas s C block IN 4 Ibias R F C (Optional) 3 Vd 1 2 OUT C block Test Board includes case, connectors, and components (in bold) soldered to PCB Vcc “1%” Res. Values (ohms) for Optimum Biasing 7 8 9 10 11 12 13 14 15 16 17 18 19 20 40.2 53.6 68.1 82.5 97.6 113 127 143 158 174 191 205 221 237 Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 3 of 4 ERA-50SM+ Monolithic InGaP HBT MMIC Amplifier ESD Rating Human Body Model (HBM): Class 1B (500 v to < 1000 v) in accordance with ANSI/ESD STM 5.1 - 2001 Machine Model (MM): Class M1 (< 100 v) in accordance with ANSI/ESD STM 5.2 - 1999 MSL Rating Moisture Sensitivity: MSL1 in accordance with IPC/JEDECJ-STD-020C No. Test Required Condition Standard Quantity 1 Visual Inspection Low Power Microscope Magnification 40x MIP-IN-0003 (MCT spec) 45 units 2 Electrical Test Room Temperature SCD (MCL spec) 45 units 3 SAM Analysis Less than 10% growth in term of delamination J-Std-020C (Jedec Standard) 45 units 4 Moisture Sensitivity Level 1 Bake at 125°C for 24 hours Soak at 85°C/85%RH for 168 hours Reflow 3 cycles at 260°C peak J-Std-020C (Jedec Standard) 45 units MSL Test Flow Chart Start Visual Inspection Electrical Test SAM Analysis Reflow 3 cycles, 260°C Soak 85°C/85RH 168 hours Bake at 125°C, 24 hours Visual Inspection Electrical Test SAM Analysis Stop Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 4 of 4
