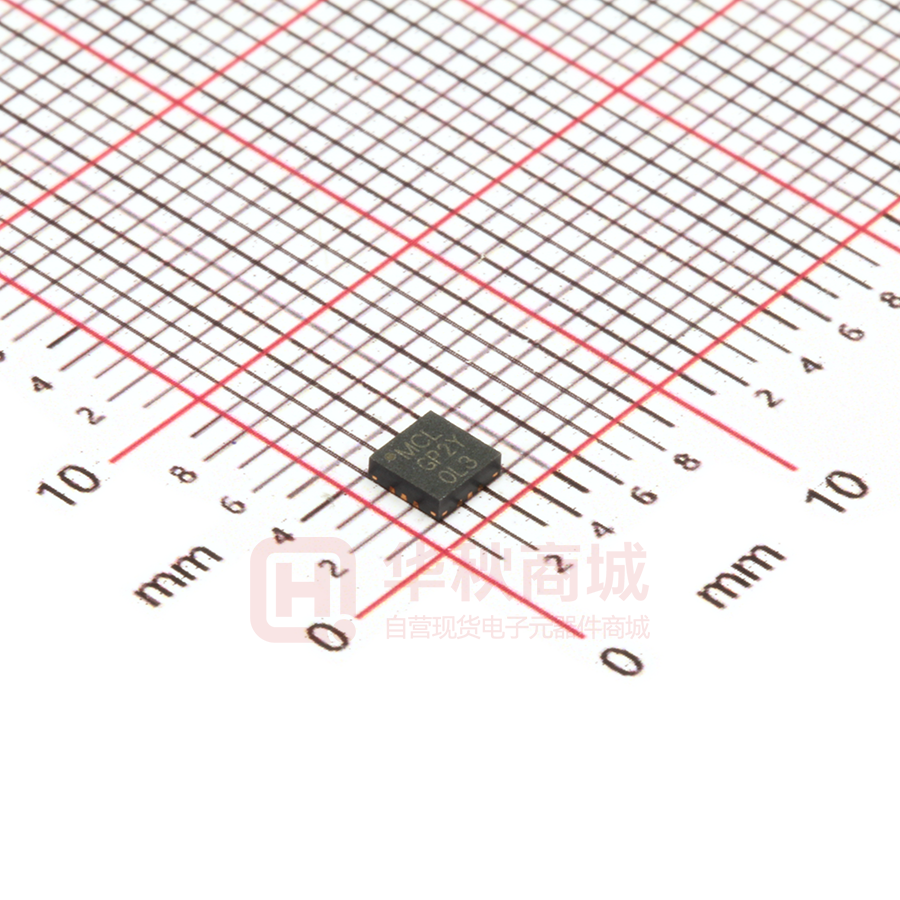

GP2Y1+

MMIC Surface Power Splitter/Combiner 2 Way-0° 50Ω 1550 to 4400 MHz Maximum Ratings Operating Temperature Storage Temperature Features -65°C to 150°C 1.5W max. Internal Dissipation CASE STYLE: DQ1225 • wide bandwidth, 1550 to 4400 MHz • excellent isolation, 20 dB typ. • excellent amplitude unbalance, 0.04 dB typ. • good phase unbalance, 0.6 deg. typ. • small size, 0.118”x0.118”x0.035” • high ESD level • aqueous washable -40°C to 85°C Power Input (as a splitter) 0.75W max. Permanent damage may occur if any of these limits are exceeded. Applications Pad Connections SUM PORT PORT 1 PORT 2 GROUND GP2Y1+ • WCDMA • radar • instrumentation • WiMax 2 7 9 1,3,4,5,6,8,10,11,12, paddle Product Marking • DCS • navigation • Korea PCS FREQ. RANGE (MHz) ISOLATION (dB) fL-fU Typ. Min. 1550-4400 20 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications and Reel Available Tape cost at no extra Reel Size Devices/Reel 7” 20, 50, 100, 200, 500, 1000, 2000 Electrical Specifications INSERTION LOSS* (dB) ABOVE 3.0 dB 12 PHASE UNBALANCE (Degrees) AMPLITUDE UNBALANCE (dB) VSWR (:1) Typ. Typ. Max. Max. Max. Port S Ports 1,2 1.0 1.9 6.0 0.3 1.4 1.4 * De-embedded from demo board loss. M C L G P 2 Y Y Y WW Typical Performance Data Frequency (MHz) Outline Drawing Total Loss (dB) 1 S-1 PCB Land Pattern Suggested Layout, Tolerance to be within ±.002 D .008 0.20 E .057 1.45 F .057 1.45 G .009 0.23 K .020 0.51 L .127 3.23 M .127 3.23 N .049 1.24 P .010 0.25 Q .020 0.51 R .049 1.24 H ----- VSWR S VSWR 1 VSWR 2 0.01 0.01 0.00 0.02 0.02 16.20 35.04 24.68 21.93 22.75 0.33 0.41 0.47 0.54 0.57 1.73 1.07 1.16 1.31 1.30 1.30 1.31 1.15 1.15 1.14 1.15 1.17 1.19 1.16 1.17 2490.00 2670.00 2940.00 3120.00 3300.00 3.64 3.66 3.62 3.63 3.64 3.65 3.70 3.70 3.77 3.78 0.02 0.01 0.00 0.00 0.01 24.97 29.75 33.00 25.78 21.67 0.59 0.51 0.45 0.45 0.49 1.23 1.13 1.10 1.21 1.36 1.12 1.08 1.09 1.17 1.24 1.15 1.10 1.08 1.15 1.24 3490.00 3680.00 3870.00 4240.00 4430.00 3.85 3.88 3.93 3.97 3.98 4.05 4.07 4.12 4.11 4.13 0.03 0.04 0.07 0.05 0.01 18.91 17.04 15.77 14.38 14.09 0.64 0.71 0.85 1.01 0.95 1.51 1.63 1.71 1.77 1.77 1.31 1.38 1.44 1.66 1.83 1.33 1.40 1.51 1.71 1.83 1. Total Loss = Insertion Loss + 3dB splitter loss. J .016 0.41 wt grams 0.02 GP2Y1+ TOTAL LOSS 4.5 Demo Board MCL P/N: TB-453-GP2Y1+ Suggested PCB Layout (PL-282) S-1 4.3 S-2 4.1 3.9 3.7 3.5 1500 2000 2500 3000 GP2Y1+ ISOLATION 50 ISOLATION (dB) C .035 0.89 Phase Unbalance (deg.) 4.45 4.44 3.84 3.83 3.74 3.74 3.70 3.72 3.67 3.69 TOTAL LOSS (dB) B .118 3.00 Isolation (dB) 1470.00 1690.00 1870.00 2140.00 2320.00 Outline Dimensions ( inch mm ) A .118 3.00 S-2 Amplitude Unbalance (dB) 3500 4000 4500 40 30 20 10 1500 2000 FREQUENCY (MHz) 2500 3000 3500 4000 4500 FREQUENCY (MHz) GP2Y1+ VSWR 2.0 VSWR 1.8 #S-VSWR #1-VSWR #2-VSWR electrical schematic 1.6 1.4 1.2 1.0 1500 2000 2500 3000 3500 4000 4500 FREQUENCY (MHz) ESD Rating Human Body Model (HBM): Class 1A (250 to < 500V) in accordance with ANSI/ESD STM 5.1 - 2001 Machine Model (MM): Class M2 (100V to < 250V) in accordance with ANSI/ESD STM 5.2 - 1999 Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Rev. C M151107 GP2Y1+ ED-13012A/2 RS/CP/AM 150723
