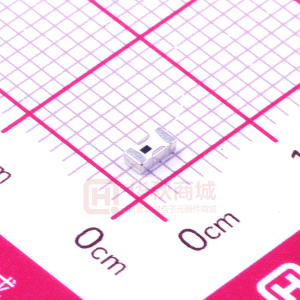

HFCN-1200

Ceramic High Pass Filter 1340 to 4600 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input* -55°C to 100°C -55°C to 100°C 7W max. at 25°C ! NEW HFCN-1200 Features • • • • • • low cost small size 7 sections temperature stable dc block in/out, breakdown voltage, 1kV typ. excellent power handling, 7W CASE STYLE: FV1206 Model HFCN-1200 HFCN-1200D Price $1.99 $2.49 Qty. (10-49) (10-49) *Passband rating, derate linearly to 3W at 100°C ambient. Applications Pin Connections RF IN RF OUT GROUND **RF IN & RF OUT can be interchanged 1** 3** 2,4 • sub-harmonic rejection and dc blocking • transmitters/receivers • lab use High Pass Filter Electrical Specifications1 (TAMB=25°C) MODEL NO. STOP BAND (MHz) Min. (loss>40 dB) HFCN-1200 780 (loss>20 dB) 940 Outline Drawing fco, MHz Nom. (loss 3 dB) Typ. 1180 PASSBAND (MHz) (loss
