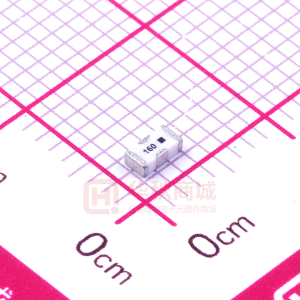

HFCN-1600

Ceramic High Pass Filter 1950 to 5000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input* -55°C to 100°C -55°C to 100°C 7W max. at 25°C ! NEW HFCN-1600 Features • • • • • low cost small size 7 sections temperature stable excellent power handling, 7W CASE STYLE: FV1206 Model HFCN-1600 HFCN-1600D Price $1.99 $2.49 Qty. (10-49) (10-49) *Passband rating, derate linearly to 3W at 100°C ambient. Applications Pin Connections RF IN RF OUT GROUND ** RF IN & RF OUT can be interchanged 1** 3** 2,4 • sub-harmonic rejection • transmitters/receivers • lab use High Pass Filter Electrical Specifications1 (TAMB=25°C) MODEL NO. STOP BAND (MHz) Min. (loss>40 dB) HFCN-1600 1090 (loss>20 dB) 1290 fco, MHz Nom. (loss 3 dB) Typ. 1600 PASSBAND (MHz) (loss20 >20 >20 5.70 1.95 1.36 1.36 1.03 1.63 2.10 2.61 3.54 4.55 5.59 Outline Dimensions ( inch ) mm A .126 3.20 H .087 2.21 B .063 1.60 J .024 0.61 C .037 0.94 K .122 3.10 D .020 0.51 L .024 0.61 E .032 0.81 M .087 2.21 F .009 0.23 N .012 0.30 G .169 4.29 P wt .071 grams 1.80 .020 Demo Board MCL P/N: TB-270 Suggested PCB Layout (PL-137) HFCN-1600 INSERTION LOSS 100 90 INSERTION LOSS (dB) 80 70 HFCN-1600 VSWR 10000 1000 VSWR 60 50 40 30 20 10 0 0 1000 2000 3000 4000 5000 6000 7000 8000 FREQUENCY (MHz) 100 10 1 0 1000 2000 3000 4000 5000 6000 7000 8000 FREQUENCY (MHz) Mini-Circuits ® INTERNET http://www.minicircuits.com P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 Distribution Centers NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010 Mini-Circuits ISO 9001 & ISO 14001 Certified NO. OF SECTIONS 7 REV. C M96263 EDR-6437/3 HFCN-1600 RVN/AD/CP 050113
