Ceramic
Low Pass Filter
DC to 6700 MHz
Maximum Ratings
Operating Temperature Storage Temperature RF Power Input* -55°C to 100°C -55°C to 100°C 9W max. at 25°C
! NEW

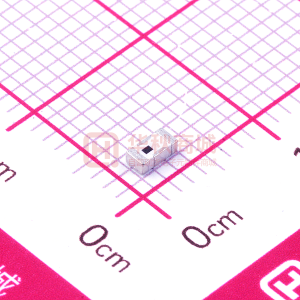

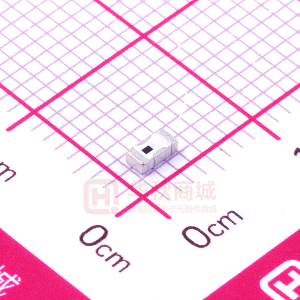

LFCN-6700
Features
• • • • • excellent power handling, 9W small size 7 sections temperature stable patent pending
CASE STYLE: FV1206 Model LFCN-6700 LFCN-6700D Price $1.99 $2.49 Qty. (10-49) (10-49)
DC Current Input to Output 0.5A max. at 25°C
*Passband rating, derate linearly to 3W at 100°C ambient.
Applications
• harmonic rejection • transmitters/receivers • lab use
Pin Connections
RF IN RF OUT GROUND
**RF IN & RF OUT can be interchanged
1** 3** 2,4
Low Pass Filter Electrical Specifications1 (TAMB=25°C)
MODEL NO. PASSBAND (MHz)
(loss < 1 dB) Max. LFCN-6700 DC-6700
Outline Drawing
fco, MHz Nom.
(loss 3 dB) Typ. 7600
STOP BAND (MHz) (loss, dB)
f 20 Min. 9300 30 Typ. 9500-12000 fr 20 Typ. 18000
VSWR (:1)
Stopband Typ. 20 Passband Typ. 1.3
NO. OF SECTIONS
7
1. For Applications requiring DC voltage to be applied to the Input or output, use LFCN-6700D (DC Resistance to ground is 100 Mohms min.)
typical frequency response
ATTENUATION (dB)
40dB 20dB
schematic
RF IN RF OUT
3dB 1dB f co f 20 FREQUENCY fR 20 dB
Typical Performance Data at 25°C
Frequency (MHz)
50.00 500.00 1000.00 3500.00 5000.00 6700.00 7600.00 8000.00 9000.00 10000.00 12000.00 15000.00 17000.00 18000.00 19890.00
Insertion Loss (dB)
0.03 0.08 0.15 0.25 0.47 0.79 3.12 7.62 26.00 55.95 34.91 26.32 23.79 21.88 22.46
VSWR (:1)
1.01 1.02 1.01 1.05 1.16 1.32 3.22 7.34 21.20 44.55 108.58 22.58 18.90 40.41 2.30
Outline Dimensions ( inch ) mm
A .126 3.20 J .024 0.61 B .063 1.60 K .122 3.10 C .039 0.99 L .024 0.61 D .020 0.51 M .087 2.21 E .032 0.81 N .012 0.30 F .009 0.23 G .169 4.29 H .087 2.21 P wt. .071 grams 1.80 .020
Demo Board MCL P/N: TB-270 Suggested PCB Layout (PL-137)
70 60
INSERTION LOSS (dB)
LFCN-6700 INSERTION LOSS 1000
LFCN-6700 VSWR
50 100
VSWR
40 30 20 10 0 0 2500 5000 7500 10000 12500 15000 17500 20000 FREQUENCY (MHz)
10
1 0 2500 5000 7500 10000 12500 15000 17500 20000 FREQUENCY (MHz)
designers kit available
Kit No.
K2-LFCN
No. of Units in Kit
60
Description
5 of each: LFCN-800,-900,-1000,-1200,-1325,-1700, -2000,-2250,-2400,-5000,-6000,-6700
Price $ per Kit
119.95
Mini-Circuits
®
INTERNET http://www.minicircuits.com P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits ISO 9001 & ISO 14001 Certified
REV. C M96263 LFCN-6700 EDR-6491/3 AD/RS/CP 050113
