SBTC-2-10L+

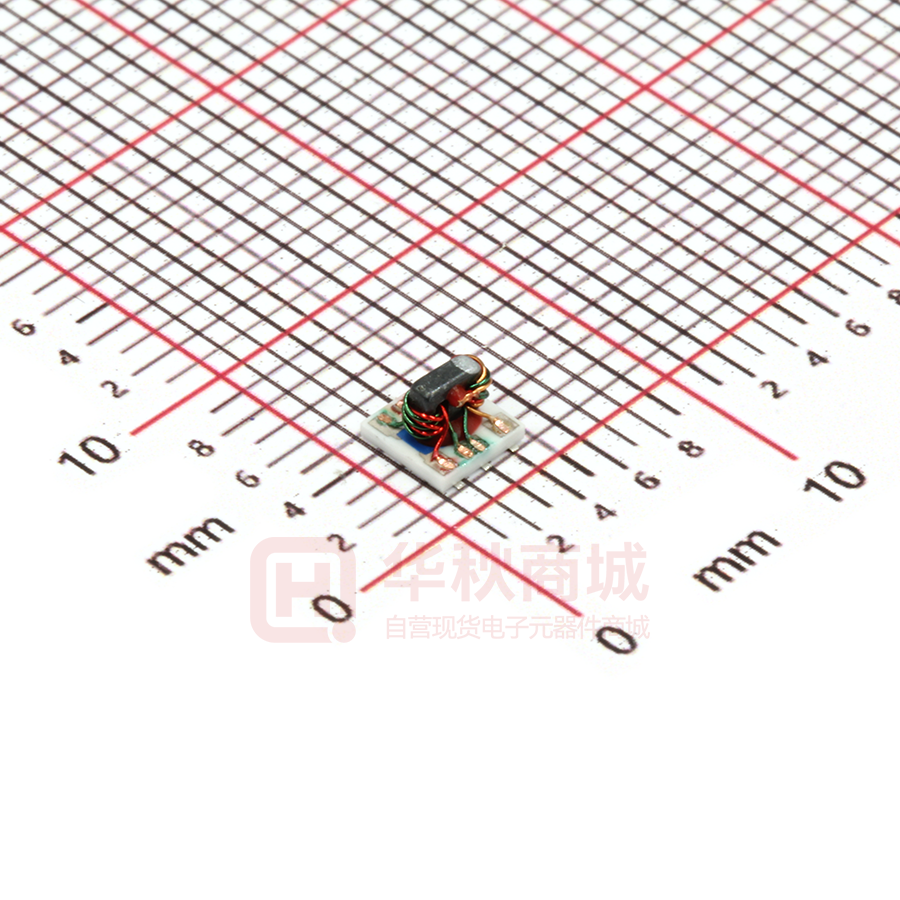

Surface Mount Power Splitter/Combiner 2 Way-0° 50Ω SBTC-2-10L+ 5 to 1000 MHz For Model without Leads see SBTC-2-10+ Features • low insertion loss, 0.3 dB typ. • excellent amplitude unbalance, 0.1 dB typ. • very good phase unbalance, 1.0 deg. typ. • temperature stable LTCC base • small size • low cost • aqueous washable • protected by US patent 6,963,255 Generic photo used for illustration purposes only CASE STYLE: AT1029 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Applications • UHF/VHF receivers/transmitters • cellular e and Reel Available Tapra cost at no ext Devices/Reel 20, 50, 100, 200, 500 1000, 2000 Reel Size 7” 13” Electrical Specifications Parameter Frequency (MHz) Frequency Range Min. Typ. 5 Insertion Loss Above 3.0 dB Isolation Phase Unbalance Amplitude Unbalance Unit 1000 MHz 5 - 50 — 0.3 0.7 50 - 500 — 0.3 0.8 500 - 1000 — 0.5 1.4 5 - 50 20 29 — 50 - 500 18 25 — 500 - 1000 16 21 — 5 - 50 — — 3 50 - 500 — — 3 500 - 1000 — — 5 5 - 50 — — 0.6 50 - 500 — — 0.5 500 - 1000 — — 0.5 Maximum Ratings Parameter Max. dB dB Degree dB Pin Connections Function Ratings Pin Number Operating Temperature -40°C to 85°C SUM PORT 6 Storage Temperature -55°C to 100°C PORT 1 3 0.5W max. PORT 2 Power Input (as a splitter) Internal Dissipation 0.125W max 4 GROUND Permanent damage may occur if any of these limits are exceeded. 1,2 NOT USED 5 Electrical Schematic Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com REV. F M151107 SBTC-2-10L+ ED-9915D/2 WZ/TD/CP/AM 191107 Page 1 of 2 SBTC-2-10L+ Demo Board MCL P/N: TB-274 Suggested PCB Layout (PL-152) Outline Drawing PCB Land Pattern Suggested Layout, Tolerance to be within±.002 Outline Dimensions ( inch mm ) A .166 4.22 B .150 3.81 C .155 3.94 D .050 1.27 E .037 0.94 F .025 0.64 G .012 0.30 H .060 1.52 J .184 4.67 K .030 0.76 L wt .004 grams 0.10 0.10 Typical Performance Data Frequency (MHz) Total Loss1 (dB) S-1 Amplitude Unbalance (dB) Isolation (dB) Phase Unbalance (deg.) VSWR S VSWR 1 VSWR 2 S-2 5.00 7.00 10.00 50.00 70.00 3.25 3.12 0.13 3.24 3.11 0.13 3.26 3.13 0.13 3.26 3.15 0.12 3.28 3.16 0.12 30.21 31.41 32.34 31.93 31.37 0.41 1.03 1.17 1.14 0.32 1.02 1.16 1.12 0.13 1.02 1.15 1.12 0.06 1.02 1.14 1.11 0.07 1.03 1.14 1.11 100.00 200.00 300.00 400.00 500.00 3.29 3.18 0.11 3.34 3.24 0.10 3.38 3.30 0.08 3.39 3.34 0.05 3.45 3.44 0.02 30.43 28.05 26.00 24.32 23.24 0.12 1.03 1.13 1.10 0.20 1.05 1.12 1.10 0.24 1.06 1.11 1.09 0.26 1.07 1.09 1.08 0.28 1.08 1.07 1.07 600.00 700.00 800.00 900.00 1000.00 3.48 3.50 0.02 3.45 3.52 0.07 3.47 3.59 0.12 3.49 3.67 0.18 3.52 3.76 0.24 21.78 21.08 20.74 20.62 20.71 0.28 1.10 1.05 1.06 0.21 1.10 1.02 1.05 0.09 1.09 1.03 1.06 0.06 1.08 1.06 1.08 0.27 1.06 1.10 1.11 1. Total Loss = Insertion Loss + 3dB splitter loss. TOTAL LOSS 3.8 S-1(dB) 20 10 0 0 100 200 300 400 500 600 700 FREQUENCY (MHz) 800 900 1000 VSWR ISOLATION (dB) TOTAL LOSS (dB) 3.2 #S-VSWR 1.20 30 3.4 VSWR 1.25 S-2(dB) 3.6 3.0 ISOLATION 40 #1-VSWR #2-VSWR 1.15 1.10 1.05 1.00 0 100 200 300 400 500 600 700 800 900 1000 0 100 200 300 400 500 600 700 800 900 1000 FREQUENCY (MHz) FREQUENCY (MHz) Additional Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are Notes entitled to the rights and benefits therein. For a full stated statement the Standard Termsare and the exclusive rights and remedies visit Mini-Circuits’ website at A. Performance and quality attributescontained and conditions not expressly in thisof specification document intended to be excluded and do not formthereunder, a part of thisplease specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. www.minicircuits.com/MCLStore/terms.jsp C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com Page 2 of 2 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Mini-Circuits: SBTC-2-10L+
