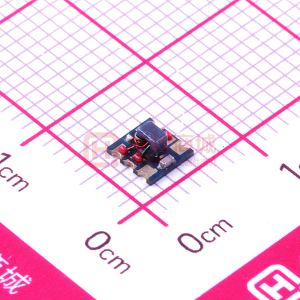

SBTC-2-25_25L

Surface Mount, Micro-Miniature Power Splitter/Combiners 2 Way-0° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dissipation -40°C to 85°C -55°C to 100°C 1W max. 0.125W max. NEW! SBTC-2-25 SBTC-2-25L 1000 to 2500 MHz Features • • • • • • • • wide band frequency, 1000-2500 MHz excellent amplitude unbalance, 0.2 dB typ. small size, 0.166"x0.150"x0.155" temperature stable, BLUE CELL™ base solder plated leads for excellent solderability small size low cost patent pending No Leads CASE STYLE:AT790 PRICE: $3.49 ea. QTY (25) $2.69 ea. QTY (1000) Leads CASE STYLE:AT1029 PRICE: $3.64 ea. QTY (25) $2.84 ea. QTY (1000) Pin Connections SUM PORT PORT 1 PORT 2 GROUND 6 3 4 1,2 Applications • PCN/PCS • DECT • PHS NOT USED 5 Outline Drawing AT790 FREQ. RANGE (MHz) fL-fU 1000-2500 1400-1800 1800-2000 Splitter Electrical Specifications ISOLATION (dB) INSERTION LOSS (dB) ABOVE 3.0 dB PHASE UNBALANCE (Degrees) Max. 14 8 8 AMPLITUDE UNBALANCE (dB) Max. 1.2 0.7 0.8 Typ. Min. 20 18 19 14 14 16 Typ. Max. 1.4 0.9 1.0 2.5 1.7 1.7 AT1029 Typical Performance Data Frequency (MHz) 1000.00 1100.00 1200.00 1300.00 1400.00 Insertion Loss (dB) (dB) S-1 S-2 4.10 4.07 4.05 4.01 3.98 3.96 3.93 3.90 3.88 3.86 3.84 3.83 3.84 3.88 4.08 3.83 3.85 3.90 3.93 3.96 4.00 4.03 4.06 4.09 4.12 4.16 4.21 4.26 4.34 4.63 Amplitude Unbalance (dB) 0.28 0.21 0.15 0.08 0.04 0.05 0.10 0.16 0.21 0.27 0.32 0.37 0.42 0.46 0.55 Isolation (dB) 22.47 21.47 20.62 19.92 19.49 19.21 19.18 19.29 19.68 20.37 21.53 23.36 26.19 28.88 21.85 Phase Unbalance (deg.) 2.79 2.54 2.39 2.34 2.36 2.47 2.66 2.92 3.28 3.70 4.23 4.87 5.57 6.36 8.22 VSWR S 1.72 1.66 1.61 1.56 1.51 1.47 1.42 1.37 1.32 1.26 1.20 1.13 1.06 1.09 1.39 VSWR 1 1.68 1.59 1.51 1.45 1.39 1.33 1.28 1.24 1.21 1.19 1.18 1.18 1.18 1.18 1.15 VSWR 2 1.57 1.51 1.46 1.41 1.36 1.32 1.27 1.23 1.18 1.14 1.10 1.08 1.10 1.15 1.30 AT790 & AT1029 1500.00 1600.00 1700.00 1800.00 1900.00 2000.00 2100.00 2200.00 2300.00 2500.00 Outline Dimensions ( inch) mm AT790 A B C D E F G H J K .150 .150 .150 .050 .030 .025 .028 .050 .160 .030 3.81 3.81 3.81 1.27 0.76 0.64 0.71 1.27 4.06 0.76 wt. grams .10 AT1029 A B C D E F G H J K L wt. .166 .150 .155 .050 .037 .025 .012 .060 .184 .030 .004 grams 4.22 3.81 3.94 1.27 0.94 0.64 0.30 1.52 4.67 0.76 0.10 .10 INSERTION LOSS (dB) ISOLATION (dB) Reflow Solder Assembly Silver-bearing solder (Sn/Pb/Ag 62/36/2%) is recommended; however, tin-lead eutectic (Sn/Pb 63/37%) may be used. For temperature profiles, see Application Note AN-40-004 Demo Board MCL P/N: TB-274 Suggested PCB Layout (PL-152) SBTC-2-25L at RF level -10 dBm INSERTION LOSS 5.0 4.8 4.6 4.4 4.2 4.0 3.8 3.6 3.4 3.2 S-1(dB) S-2(dB) 3.0 1000 1300 1600 1900 2200 2500 FREQUENCY (M H z) SBTC-2-25L VSWR #1-VSWR #2-VSWR at RF level -10 dBm 40 35 30 25 20 15 10 1000 SBTC-2-25L ISOLATION 1300 1600 1900 2200 2500 FREQUENCY (M H z) at RF level -10 dBm 2.0 1.9 1.8 1.7 VSWR 1.6 1.5 1.4 1.3 1.2 1.1 1.0 1000 1300 #S-VSWR 1600 1900 2200 2500 FREQUENCY (MHz) Mini-Circuits ® INTERNET http://www.minicircuits.com P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 REV. C M89618 SBTC-2-25 ED-9533/1 SBTC-2-25L ED-10035A/3 WZ/TD/CP 040212 Distribution Centers NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010 ISO 9001 CERTIFIED
