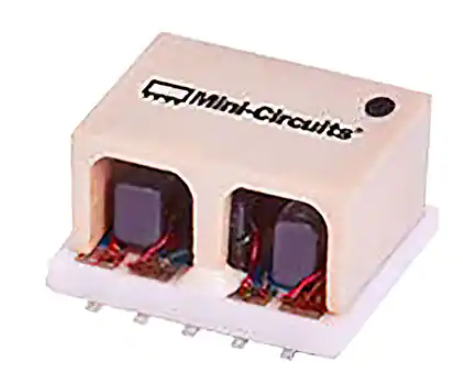

SURFACE MOUNT Power Splitter/Combiner 4 Way-0° 50Ω SCA-4-10+ 5 to 1000 MHz FEATURES y Wideband, 5-1000 MHz y High isolation, 25 dB typ. y Good matching VSWR, 1.20 typ. y Excellent amplitude unbalance, 0.3 dB typ. Generic photo used for illustration purposes only CASE STYLE: DZ943 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications APPLICATIONS y Cellular y UHF/VHF receivers/transmitters ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Frequency Range Min. Typ. 5 Insertion Loss, above 6.0 dB Isolation Amplitude Unbalance 5-400 0.7 1.3 0.8 1.5 500-1000 1.2 2.5 5-400 18 30 400-500 17 25 500-1000 15 20 Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dissipation dB dB 5 400-500 6 500-1000 11 5-400 0.8 400-500 0.7 500-1000 0.9 MAXIMUM RATINGS Parameter Unit MHz 400-500 5-400 Phase Unbalance Max. 1000 Degree dB ELECTRICAL SCHEMATIC Ratings -40°C to 85°C -55°C to 100°C Port 1 Port S Port 2 Port 3 Port 4 0.5W max. 0.375W max. Permanent damage may occur if any of these limits are exceeded. www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com REV. G ECO-010710 ED-10669A/1 SCA-4-10+ WZ/TD/CP/AM 211117 PAGE 1 OF 3 SURFACE MOUNT Power Splitter/Combiner PIN CONNECTIONS OUTLINE DRAWING SUM PORT 3 PORT 1 6 PORT 2 7 PORT 3 9 PORT 4 10 GROUND SCA-4-10+ 1,2,4,5,8 PRODUCT MARKING: N/A PC B L and Patter n DEMO BOARD MCL P/N: TB-238 SUGGESTED PCB LAYOUT (PL-124) Suggested L ayout, T olerance to be within ±.002 OUTLINE DIMENSIONS (Inches mm ) A .30 7.62 B .250 6.35 C .190 4.83 D .266 6.76 E .050 1.27 H .029 0.74 J .004 0.10 K .085 2.16 L .296 7.52 M .030 0.76 F .050 1.27 G .012 0.30 wt grams 0.5 TAPE & REEL INFORMATION: F34 www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com PAGE 2 OF 3 SURFACE MOUNT Power Splitter/Combiner SCA-4-10+ TYPICAL PERFORMANCE DATA Total Loss (dB) Isolation (dB) 1 Frequency (MHz) S-1 S-2 S-3 S-4 Amplitude Unbalance (dB) 1-2 1-3 2-3 Phase Unbalance (deg.) VSWR (:1) S 1 2 3 4 5.00 6.45 6.24 6.42 6.64 0.40 26.19 34.01 33.81 1.29 1.07 1.37 1.31 1.32 1.38 10.00 6.47 6.29 6.45 6.63 0.34 31.60 39.09 38.86 0.13 1.04 1.27 1.22 1.25 1.30 100.00 6.50 6.29 6.43 6.66 0.37 30.63 37.97 37.92 0.15 1.06 1.25 1.21 1.24 1.28 150.00 6.52 6.35 6.51 6.66 0.31 29.01 37.05 36.89 0.44 1.08 1.24 1.20 1.22 1.26 200.00 6.57 6.39 6.53 6.71 0.32 29.49 41.86 41.97 0.24 1.09 1.25 1.21 1.23 1.26 300.00 6.65 6.48 6.61 6.79 0.31 26.87 42.07 40.69 0.32 1.13 1.23 1.21 1.21 1.23 400.00 6.71 6.53 6.66 6.84 0.31 25.00 42.50 38.88 0.55 1.20 1.21 1.20 1.20 1.20 500.00 6.77 6.61 6.73 6.89 0.29 22.58 37.45 35.25 0.71 1.22 1.19 1.20 1.19 1.18 600.00 6.95 6.76 6.88 7.06 0.30 20.22 32.04 30.58 0.90 1.27 1.14 1.16 1.15 1.12 700.00 7.15 6.93 7.04 7.24 0.32 18.85 29.45 28.38 1.14 1.36 1.08 1.13 1.12 1.06 800.00 7.23 6.99 7.09 7.30 0.31 18.09 28.08 27.25 1.36 1.41 1.06 1.15 1.12 1.03 850.00 7.52 7.28 7.37 7.57 0.29 17.68 27.02 26.38 1.88 1.54 1.07 1.17 1.14 1.06 900.00 7.35 7.11 7.17 7.39 0.29 17.46 26.36 25.85 1.56 1.57 1.11 1.19 1.16 1.09 950.00 7.52 7.27 7.35 7.52 0.26 17.66 26.27 25.91 1.88 1.60 1.13 1.24 1.20 1.13 1000.00 7.83 7.57 7.60 7.85 0.29 17.65 25.13 24.92 2.65 1.74 1.20 1.29 1.25 1.19 1. Total Loss = Insertion Loss + 6.0 dB splitter loss. SCA-4-10+ TOTAL LOSS S-1(dB) 7.6 60 S-3(dB) 1-2(dB) 50 ISOLATION (dB) TOTAL LOSS (dB) 8.0 SCA-4-10+ ISOLATION 7.2 6.8 6.4 2-3(dB) 3-4(dB) 40 30 20 10 6.0 5 204 403 602 FREQUENCY (MHz) 801 0 1000 5 403 602 FREQUENCY (MHz) 801 1000 SCA-4-10+ VSWR 2.0 #S-VSWR 1.8 VSWR 204 #1-VSWR #3-VSWR 1.6 1.4 1.2 1.0 5 204 403 602 FREQUENCY (MHz) 801 1000 NOTES A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the standard. Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com PAGE 3 OF 3
