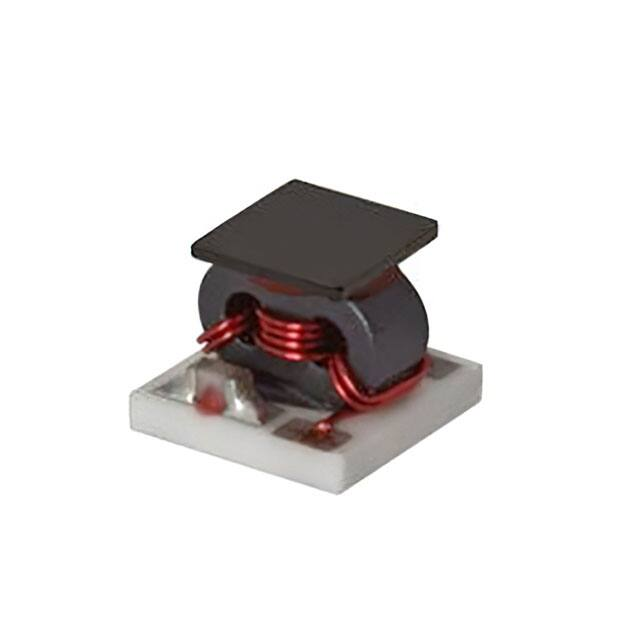

TCCH-80+

® Very Wideband top hat RF Choke 50Ω TCCH-80+ 50 to 8200 MHz Maximum Ratings Operating Temperature Storage Temperature -40°C to 85°C -55°C to 100°C DC Current 300 mA Permanent damage may occur if any of these limits are exceeded. Pad Terminations RF-IN & DC 1 DC 3 NOT USED 2,4 Features • very broadband • miniature size, 0.15"x0.15" • low parasitic capacitance 0.1 pf typ. • effective parallel resistance, Rch 500 ohm typ. • usable up to 10GHz • aqueous washable • protected by U.S. Patent 7,012,485 • low DC resistance, 0.1Ω CASE STYLE: GU1604 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications Applications • biasing amplifiers • biasing of laser diodes • biasing of active antennas Electrical Specifications @ 25°C Outline Drawing FREQ. RANGE (MHz) 50-8200 INSERTION LOSS* (dB) VSWR* (:1) Typ. Max. Typ. Max. 0.5 1.1 1.1 DC CURRENT (mA) 1.7 INDUCTANCE (µH) Typ. at Max. 0mA 200 4 50mA 100mA 200mA 1.3 0.9 0.5 * tested with circuit shown below, Zo=50 ohms Typical Performance Data FREQUENCY (MHz) INSERTION LOSS (dB) with current PCB Land Pattern Notes: 1. Open style, Ceramic Base. 2. Termination Finish: Palladium Silver. 3. Must be isolated from external conductors on mounting surface. Suggested solder mask area is .025 x .025 At Mini-Circuits option via may be removed. 4. Top-Hat total thickness: .013 inches MAX. Suggested Layout, Tolerance to be within ±.002 Outline Dimensions ( inch mm ) A .150 3.81 B .150 3.81 C .150 3.81 D .100 2.54 G .028 0.71 H .050 1.27 J .160 4.06 K .030 0.76 E .030 0.76 F .025 0.64 wt grams 0.10 Demo Board MCL P/N: TB-272 Suggested PCB Layout (PL-147) 0mA 30 50 100 200 300 400 500 600 700 800 900 1000 3000 5000 8000 10000 50mA VSWR (:1) with current 200mA 100mA 0mA 0.58 0.73 0.83 0.93 0.51 0.63 0.70 0.83 0.51 0.61 0.71 0.71 0.42 0.50 0.57 0.63 0.39 0.44 0.47 0.49 0.39 0.41 0.43 0.46 0.35 0.37 0.38 0.42 0.35 0.37 0.36 0.40 0.37 0.37 0.39 0.38 0.38 0.37 0.37 0.38 0.41 0.39 0.40 0.40 0.40 0.39 0.41 0.41 0.41 0.41 0.40 0.44 0.57 0.55 0.54 0.77 0.47 0.36 0.18 0.03 0.63 0.44 0.06 0.15 50mA 100mA 200mA 1.20 1.31 1.45 1.16 1.23 1.31 1.12 1.16 1.20 1.10 1.12 1.15 1.12 1.13 1.14 1.09 1.09 1.10 1.08 1.08 1.07 1.08 1.08 1.08 1.07 1.07 1.07 1.09 1.09 1.09 1.11 1.11 1.11 1.12 1.12 1.11 1.12 1.12 1.12 1.16 1.17 1.16 1.49 1.57 1.63 1.61 1.54 1.41 1.56 1.37 1.25 1.17 1.16 1.14 1.12 1.12 1.12 1.11 1.12 1.11 1.14 1.26 1.57 1.56 Electrical Schematic T E S T C IR C UIT * R F IN & DC 1 R F OUT Zo Zo 3 DC DUT Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com REV. E M151107 ED-11032/4 TCCH-80+ DJ/TD/AM 151020 TCCH-80+ Performance Charts TCCH-80+ INSERTION LOSS vs. TEMPERATURE 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 0 mA 100 mA 0 2000 4000 50 mA 200 mA 6000 INSERTION LOSS (dB) INSERTION LOSS (dB) TCCH-80+ INSERTION LOSS vs. CURRENT 8000 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 10000 -55°C 0 2000 4000 100°C 6000 8000 10000 FREQUENCY (MHz) FREQUENCY (MHz) TCCH-80+ VSWR vs. TEMPERATURE TCCH-80+ VSWR vs. CURRENT 3.0 3.0 0 mA 100 mA -55°C 50 mA 200 mA 25°C 100°C 2.5 VSWR 2.5 VSWR 25°C 2.0 2.0 1.5 1.5 1.0 1.0 0 2000 4000 6000 8000 10000 0 2000 4000 6000 8000 FREQUENCY (MHz) FREQUENCY (MHz) Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Mini-Circuits ® www.minicircuits.com P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com 10000
