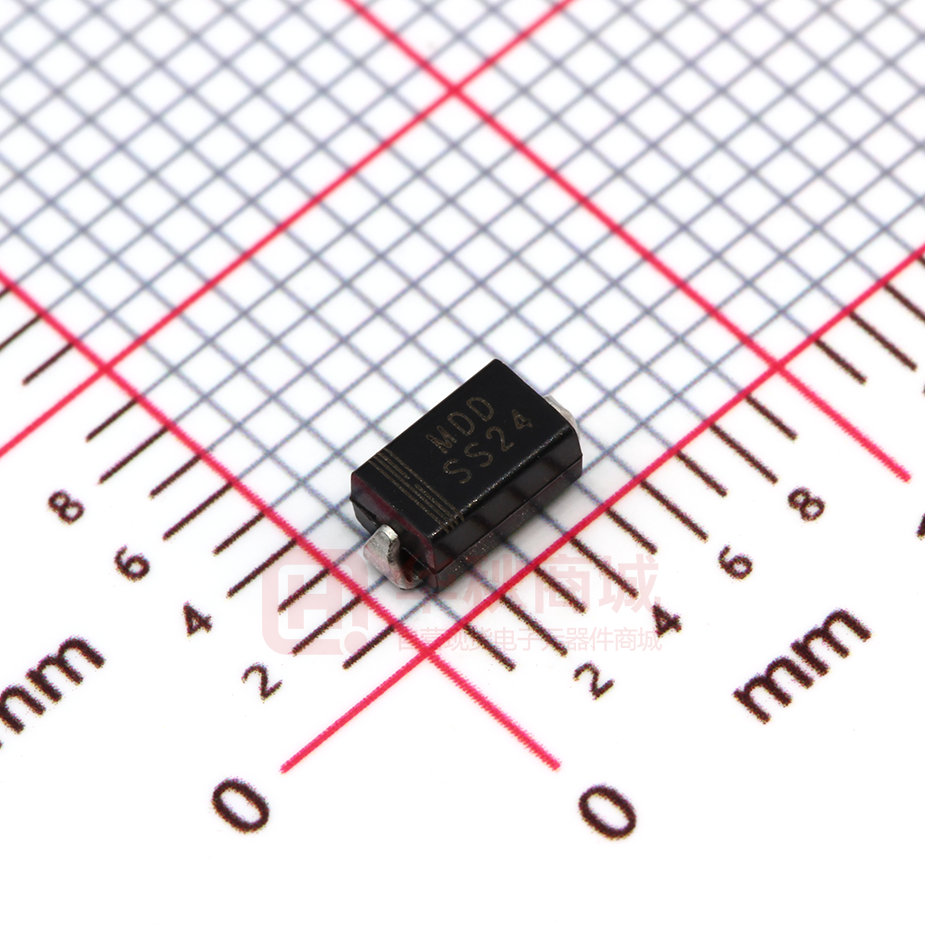

SS24

SS22 THRU SS2200 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts FEATURES DO-214AC/SMA The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Metal silicon junction,majority carrier conduction Low power loss,high efficiency Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals 0.110(2.80) 0.100(2.54) 0.067 (1.70) 0.051 (1.30) Forward Current - 2.0 Amperes 0.181(4.60) 0.157(3.99) 0.012(0.305) 0.006(0.152) 0.096(2.42) 0.078(1.98) MECHANICAL DATA 0.060(1.52) 0.030(0.76) Case: JEDEC DO-214AC molded plastic body Terminals: leads solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.070 grams 0.008(0.203)MAX. 0.222(5.66) 0.194(4.93) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS22 SS23 VRRM VRMS VDC 20 14 20 30 21 30 SS24 SS25 SS26 SS28 SS210 SS2150SS2200 UNITS 40 28 40 50 35 50 60 42 60 80 56 80 100 70 100 150 105 150 200 140 200 VOLTS VOLTS VOLTS I(AV) 2.0 Amps IFSM 50.0 Amps VF 0.55 IR CJ RθJA TJ, TSTG 0.70 0.85 0.5 10.0 5.0 180 220 75.0 -65 to +125 -65 to +150 -65 to +150 0.95 0.2 2.0 Volts mA pF C/W C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas ２０１４－０３　０１版 ｈｔｔｐ：／／ｗｗｗ．ｍｉｃｒｏｄｉｏｄｅ．ｃｏｍ FIG. 1- FORWARD CURRENT DERATING CURVE 2.0 1.6 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 0.8 SS22-SS26 SS28-SS2200 0.4 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES SS22 THRU SS2200 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 50 40 30 20 10 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 50 INSTANTANEOUS FORWARD CURRENT,AMPERES TJ=25 C 10.0 1 SS22-SS24 SS25-SS26 SS28-SS2150 SS2200 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 100 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0.2 0.4 0.6 0.8 1.0 1.2 1.4 20 40 60 80 100 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 0 PERCENT OF PEAK REVERSE VOLTAGE,% 0 2000 1000 TJ=25 C 100 SS22-SS24 SS25-SS2200 TRANSIENT THERMAL IMPEDANCE, C/W 0.01 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS ２０１４－０３　０１版 100 t,PULSE DURATION,sec. ｈｔｔｐ：／／ｗｗｗ．ｍｉｃｒｏｄｉｏｄｅ．ｃｏｍ
