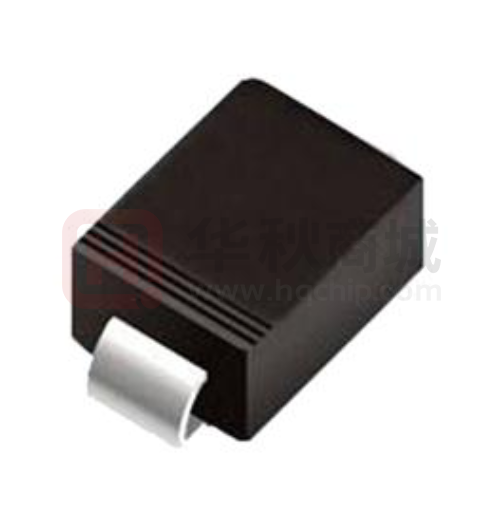

SS52 THRU SS5200 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts FEATURES DO-214AC/SMA The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Low reverse leakage Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals 0.110(2.80) 0.100(2.54) 0.067 (1.70) 0.051 (1.30) Forward Current - 5.0 Amperes 0.177(4.50) 0.157(3.99) 0.012(0.305) 0.006(0.152) 0.096(2.42) 0.078(1.98) MECHANICAL DATA 0.060(1.52) 0.030(0.76) Case: JEDEC DO-214AC molded plastic body Terminals: leads solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.002 ounce, 0.07 grams 0.008(0.203)MAX. 0.208(5.28) 0.188(4.80) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS52 SS53 VRRM VRMS VDC 20 14 20 30 21 30 SS54 SS55 40 28 40 SS56 50 35 50 60 42 60 SS58 SS510 SS5150 SS5200 UNITS 80 56 80 100 70 100 150 105 150 200 VOLTS 150 VOLTS 200 VOLTS I(AV) 5.0 Amps IFSM 125.0 Amps VF 0.70 0.55 IR CJ RθJA TJ, TSTG Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2 ”(5.0x5.0mm) copper pad areas 0.85 20 10 200 50.0 -50 to +125 -50 to +150 -50 to +150 0.95 0.2 2.0 0.5 Volts mA pF C/W C C FIG. 1- FORWARD CURRENT DERATING CURVE 5.0 4.0 Single Phase Half Wave 60Hz Resistive or inductive Load 3.0 2.0 SS52-SS56 SS58-SS5200 1.0 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES RATINGS AND CHARACTERISTIC CURVES SS52 THRU SS5200 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 150 120 90 60 30 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C INSTANTANEOUS FORWARD CURRENT,AMPERES TJ=25 C 10.0 1 SS52-SS54 SS55-SS56 SS58-SS5150 SS5200 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 0.1 100 10 TJ=100 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 20 40 60 80 100 1.6 INSTANTANEOUS FORWARD VOLEAGE, VOLTS FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 0 PERCENT OF PEAK REVERSE VOLTAGE,% 2000 1000 TJ=25 C 100 TRANSIENT THERMAL IMPEDANCE, C/W 0.01 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 10 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 100
