31100-004

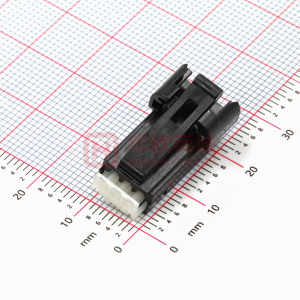

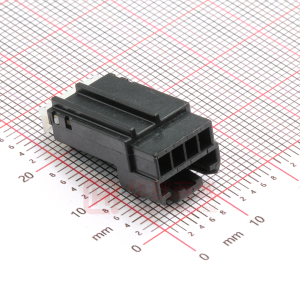

FEATURES AND SPECIFICATIONS H-DAC 64 single row connectors offer a space-saving solution for low-circuit count-unsealed applications The H-DAC 64 single row product family was designed to offer a space-saving alternative to single row USCAR-designed connectors. The H-DAC 64 single row connection system meets all unsealed USCAR-2 class 2 requirements while offering a 33% reduction in package size. This versatile product line consists of vertical and right angle 4-circuit headers, plus male and female in-line Features and Benefits n Circuit Sizes: 1X3, 1X4, 1X5 and 1X6 product offering tooled in high-multiple cavitations to support customer’s needs n Scoop-proof housing protects against accidental bending of pins n Three polarization options available in standard USCAR coloring scheme (black, gray and brown) providing color differentiation giving the operator visual aid during assembly to reduce the possibility of mating incorrect polarizations n TPA feature provides increased final terminal retention. n Positive lock provides audible click during mating offering feedback to operator to ensure mated system is secured in high-vibration systems n Optional clip slot feature aids in vehicle routing by offering optional orientation clip attachment SPECIFICATIONS Reference Information Product Specifications : PS-31067-0001, PS-31000-0001 Packaging: Female and Male In-line Housings – Bulk Pack Headers – Tray Pack Mates With: Male and female In-line Housing: 31067, 31068, 31072 and 31073 Headers: 31101 Use With: Tyco ‘GET’ male and female .64mm terminals Tooling: Tyco Electronics Designed In: Millimeters Electrical Voltage (max.): 500V Current (max.): 10A Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500VDC Insulation Resistance: 20 megohms min. Mechanical/Electrical Mating Force: Less than 45N (10.1 lb) Unmating Force: Less than 45N (10.1 lb) Connector Retention (Primary latch): 110N (24.7 lb) min. Contact Retention to Housing: 30N (6.7 lb) min. Contact Insertion Force Into Housing: 30N (6.7 lb) max. Connector Audible Feedback: 7dB over ambient Polarization Feature Effectiveness: 100N min. Durability (10 Cycles): 20 milliohms max. Thermal Shock (Class 2, 100cycles): 20 milliohms max. Vibration/Mechanical Shock (Class 2): 20 milliohms max. Temperature/Humidity Cycling (Class 2): 20 milliohms max. High temperature Exposure (Class 2): 20 milliohms max. Physical Housing: SPS+ 30% Glass Filled Contact: Copper Alloy Plating: Overplating – Overall Tin Underplating – Overall Nickel Operating Temperature: -40 to +100°C connectors available in 3 to 6 circuit configurations. Each terminal is capable of supporting both low-level signal as well as low-power applications up to 10.0A. For additional information on H-DAC 64 single row products visit: www.molex.com/link/hdac64single.html. 2.54mm (.100”) Pitch H-DAC 64™ Single Row Connector System 31067 3 Circuit In-line Connectors 31068 4 Circuit In-line Connectors 31072 5 Circuit In-line Connectors 31073 6 Circuit In-line Connectors 31101 4 Circuit Vertical Header 31100 4 Circuit Right Angle Header MARkETS AND APPlICATIONS 2.54mm (.100”) Pitch H-DAC 64™ Single Row Connector System n Commercial - Sensors - Lighting, Switches n Automotive - Sensors - Lighting, Switches ORDERING INFORMATION Header Assemblies Order No. 31100-004* 31101-004* Orientation Right Angle Vertical Gender Male Male 31067 3 Circuit In-line Connectors 31068 4 Circuit In-line Connectors 31072 5 Circuit In-line Connectors 31073 6 Circuit In-line Connectors 31101 4 Circuit Vertical Header 31100 4 Circuit Right Angle Header Housing Assembly 4 circuit header assembly with PCB hold down pegs 4 circuit header assembly with PCB hold down pegs Plant No. for Samples 3109 3109 Connector Housing Assemblies Order No. 31067-101* 31068-101* 31072-101* 31073-101* 31067-104* 31067-107* 31068-104* 31068-107* 31072-104* 31072-107* 31073-104* 31073-107* Component Connector Connector Connector Connector Connector Connector Connector Connector Connector Connector Connector Connector Gender Female Female Female Female Male Male Male Male Male Male Male Male Housing Assembly 3 Circuit Receptacle 4 Circuit Receptacle 5 Circuit Receptacle 6 Circuit Receptacle 3 Circuit Plug 3 Circuit Plug, XMAS Tree Slot 4 Circuit Plug 4 Circuit Plug, XMAS Tree Slot 5 Circuit Plug 5 Circuit Plug, XMAS Tree Slot 6 Circuit Plug 6 Circuit Plug, XMAS Tree Slot Plant No. for Samples 3109 3109 3109 3109 3109 3109 3109 3109 3109 3109 3109 3109 *Denotes Polarization Option 0=Option A-Black, 1=Option B-Grey, 2=Option C Brown H-DAC Product Family Terminal Selection Guide Terminal Type Source Tyco 0.64mm ‘GET’ Tyco Tyco Tyco Description 18/20 AWG Tin Female 22 AWG Tin Female 18/20 AWG Tin Male 22 AWG Tin Male Ford P/N 3F2T-14474-RA 3F2T-14474-SA 1L2T-14421-AA 1L2T-14421-BA Vendor P/N 1393366-1 1393367-1 2-1419158-5 1-1419158-6 www.molex.com/link/hdac64single.html Americas Headquarters Lisle, Illinois 60532 U.S.A. 1-800-78MOLEX amerinfo@molex.com Order No. 987650-2242 Asia Pacific North Headquarters Yamato, Kanagawa, Japan 81-46-265-2325 apninfo@molex.com Asia Pacific South Headquarters Jurong, Singapore 65-6268-6868 apsinfo@molex.com USA/KC/2008.09 European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, IL 60532 U.S.A. P: 630-969-4550 F: 630-9691352 © 2008, Molex
