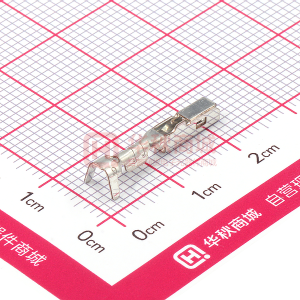

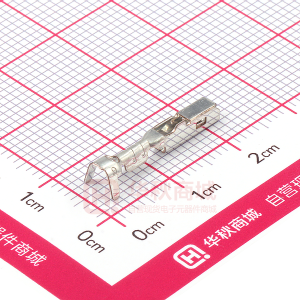

34083-2002

FEATURES AND SPECIFICATIONS 5.00mm (.197”) Pitch MX150TM Cable-Sealed 1-by-2 Connection System terminal-to-housing retention forces in excess of USCAR-2 requirements. The cost-effective connector design features all-in-one plug and receptacle housings with a pre-assembled interfacial seal and terminal position assurance (TPA). Optional connector position assurance (CPA) and clip slot features are offered to increase connector-toconnector and connector-to-vehicle retention during use. The MX150 cable-sealed connection system complements Molex’s extensive MX150 product line. For additional information about this product visit: www.molex.com/ind/mx150.html. MX150 cable-sealed, 1-by-2 connectors are the latest addition to the high-performance MX150 connector system, providing a valuable space-saving solution for small-circuit applications Molex’s MX150 cable-sealed, 1-by-2 connection system was designed to meet the need for a rugged, environmentally sealed connector system supporting both low-level signal as well as power applications up to 22.0A for small circuit size applications where space is a premium. The innovative cable-sealed connector family is based on the 1.50mm (.059”) pitch ISO blade-type terminal system. The cable-seal design offers increased sealing reliability for a large range of SAE wire gauges (14 to 22) as well metric size wires, while offering low terminal-to-housing insertion forces, and high Features and Benefits ■ Compact 1.50mm (.059”) terminal connector is capable of up to 22.0A continuous current ■ Meets USCAR footprint: 150-S-002-1-Z01 to ensure mating with USCAR connector interfaces ■ Glass-filled thermoplastic housing and pre-loaded Terminal Position Assurance (TPA) ensures crimped terminal leads are properly locked into the connector (TPA will not seat and the connector system will not latch if the terminal is not locked properly into position) and meets up to Temperature Class 3 performance ■ Integral locking latch with secondary, pre-loaded connector position assurance (CPA) option ensures the connector system is properly latched (CPA will not move to final locking position if the connector is not latched) ■ Optional clip slot aids in vehicle routing by offering an optional orientation clip attachment ■ Audible and tactile clicks on insertion, extraction and mating feedback facilitates reliable mating, and terminal loading and removal 34675 Male Connectors 34062 Female Receptacles 1-by-2 Cable-Sealed Connection System 1-by-2 Cable-Sealed Connection System Cable-Sealed Male and Female Terminals SPECIFICATIONS Reference Information Packaging: Housings – Bulk Pack Terminals – Reel Mates With: Series 34675 male connector to Series 34062 female receptacle Use With: Terminals: 34080 Male / 34083 Female Designed in: Millimeters Electrical Voltage (max.): 500V Current (max.): 22.0A Contact Resistance: 10 milliohms max. Dielectric Withstanding Voltage: 1500V AC Isolation Resistance: 20 Megohms min. Mechanical / Electrical / Sealing Mating Force: Less than 45N (10.1 lb) Unmating Force: Less than 45N (10.1 lb) Connector Retention (Primary latch): 110N (24.7 lb) min. Contact Retention to Housing: 90N (20.2 lb) min. Contact Insertion Force Into Housing: 30N (6.7 lb) max. Connector Audible Feedback: 7dB over ambient Polarization Feature Effectiveness: 220N min. FCLT (Class 3): 20 Milliohms max. Durability (10 Cycles): 10 Milliohms max. Thermal Shock (Class 3, 110cycles): 10 Milliohms max. Sealing: (USCAR-2 Rev 4) Pressure/Vacuum Immersion: 28kPa (4psi) 15 sec min. Isolation resistance: 20 Megohms @ 500V DC min. Physical Housing: Nylon 6, 30% glass-filled TPA: PBT, 30% glass-filled Contact: C19025 Copper (Cu) Alloy Plating: Contact Area — Tin (Sn) Underplating — Nickel (Si) Operating Temperature: -40 to +125 °C APPLICATIONS 5.00mm (.197”) Pitch MX150TM Cable-Sealed 1-by-2 Connection System 34675 Male Connectors 34062 Female Receptacles ■ Automotive Vehicles ■ Commercial Vehicles ■ Recreational Vehicles ■ Construction Equipment ■ Marine Equipment ORDERING INFORMATION Connector Order No. 34675-0002 34675-0003 34062-0022 34062-0023 Component Connector Connector Receptacle Receptacle Gender Male Male Female Female Housing Features TPA TPA TPA and Interfacial Seal TPA and Interfacial Seal Comment Polarization B, No Clip Slot Polarization C, With Clip Slot Polarization B Polarization C Plant No. for Samples 3109 3109 3109 3109 Terminal Order No. 34080-0002 34083-2002 Gender Male Female Plating Tin Tin Wire Size (AWG) 18 to 20 18 to 20 Plant No. for Samples 3109 3109 www.molex.com/ind/mx150.html Americas Headquarters Lisle, Illinois 60532 U.S.A. 1-800-78MOLEX amerinfo@molex.com Order No. 987650-2113 Asia Pacific North Headquarters Yamato, Kanagawa, Japan 81-46-265-2325 apninfo@molex.com Asia Pacific South Headquarters Jurong, Singapore 65-6268-6868 apsinfo@molex.com USA/KP/2008.06 European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, IL 60532 U.S.A. P: 630-969-4550 F: 630-969-1352 © 2008, Molex
