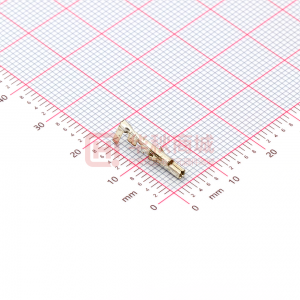

FEATURES AND SPECIFICATIONS 4.20mm (.165") Pitch Mini-Fit Plus HCS™ Terminal 45750 Crimp, Female Hot-pluggable, high-current Mini-Fit Plus HCS Terminals handle up to 12 amperes of current load and increase mating cycle durability The new, improved and patented Mini-Fit Plus HCS terminals are designed to be used with all existing Mini-Fit® crimp receptacle housings. The Mini-Fit Plus HCS terminals will allow for current loads up to 12.0A in 2 to 10 circuit configurations and 11.0A in 12 to 24 circuit configurations. The unique, elliptical contact dimple design increases durability, doubling to tripling the number of mating cycles versus standard Mini-Fit terminals. Terminals are available in post-plated versions only, enhancing the long-term electrical performance and of the mating interface. The gold-plated terminals are suitable for “hot-pluggable” applications. Features and Benefits I High-current terminal design enables customers to upgrade existing crimp receptacle housings to carry an additional 3.0A to 5.0A per circuit I Gold plated terminals are hot pluggable making them suitable for current interruption applications where hot mating and unmating is required I High force, low-pressure contact dimple design increases durability (cycling) while minimizing contact resistance I Two-point contact design assures high reliability I Compatible with existing Mini-Fit application tooling allowing customers to process these terminals with existing equipment SPECIFICATIONS Reference Information Packaging: Reel or bag Use With: 5557, 30067, 42474, and 44516 housings Designed In: Millimeters Electrical Voltage: 600V Current: 12.0A max. Current Interruption: 8.0A max. at 24V Contact Resistance: 10 milliohms max. Dielectric Withstanding Voltage: 2200V Insulation Resistance: 1000 Megohms min. Mechanical Contact Insertion Force: 1.54kg (3.40 lb) max. Contact Retention to Housing: 3.0kg (6.61 lb) min. Wire Pull-out Force: 6.0kg (13.23 lb) min. Mating Force: 1.14kg (2.51 lb) max. Unmating Force: 0.10kg (0.22 lb) min. Normal Force: 200g min. Durability: Tin (Sn) – 75 cycles Gold (Au) – 100 cycles Physical Contact: Copper (Cu) Alloy Plating: Contact Area – 100µ” Tin (Sn) or 30µ” Gold (Au) Underplating – 50µ” Nickel (Ni) Wire Range: 16, 18, 20 AWG Insulation Range: 3.10mm (.122”) max. Strip Length: 3.00 to 3.50mm (.118” to .138”) Operating Temperature: -40 to +105° C APPLICATIONS 4.20mm (.165") Pitch Mini-Fit Plus HCS™ Terminal I Automotive I Industrial Equipment I Medical I Power Supplies I Fan Trays I Lottery Systems I HVAC Systems I Personal Computers I Lighting Systems I Gaming Equipment I Office Equipment I Disk Drives I Network servers I Telecommunications - Base stations - Hubs and routers I Appliances I Business Equipment I Printers I PC Industry 45750 Crimp, Female Current Rating Chart Wire Range AWG 16 18 20 2 - 3 Circuits 12.0A 12.0A 9.0A 4 - 6 Circuits 12.0A 11.0A 9.0A 7 - 10 Circuits 12.0A 10.0A 8.0A 12 - 24 Circuits 11.0A 9.0A 8.0A Application Tooling Terminal 45750-01X1 45750-02X1 Wire Range (AWG) 16 18 - 20 Insulation Dia. (max.) 3.10mm (.112”) 2.15mm (.085) Strip Length 3.00 - 3.50mm (.188 - .138”) Applicator 63860-1200 63860-1400 ORDERING INFORMATION Order No. 45750-0111 45750-0112 45750-0211 45750-0212 45750-0121 45750-0122 45750-0221 45750-0222 Gold 18 - 20 Tin 18 - 20 Plating Wire Range (AWG) 16 Packaging Reel Bag Reel Bag Reel Bag Reel Bag 16 Americas Headquarters Lisle, Illinois 60532 U.S.A. 1-800-78MOLEX amerinfo@molex.com Far East North Headquarters Yamato, Kanagawa, Japan 81-462-65-2324 feninfo@molex.com Far East South Headquarters Jurong, Singapore 65-6-268-6868 fesinfo@molex.com European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, IL 60532 U.S.A. 630-969-4550 Fax:630-969-1352 Visit our Web site at http://www.molex.com/product/power/mf.html Order No. USA-318 Printed in USA/JI/2005.07 ©2005 Molex
