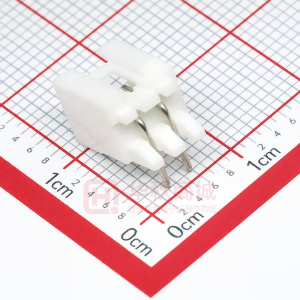

53426-XX19

2.50mm (.098") Pitch Mini-Lock™ Description Order No. Circuits Wire Range Mated Dimensions Material Packaging Terminals 50351-8000 Female Crimp Terminal 50351-8100 50837-8000 Male Crimp Terminal 50837-8100 — 22 - 28 AWG — Tin Plated Phosphor Bronze Bag — 22 - 28 AWG — Tin Plated Phosphor Bronze Bag Reel Reel Crimp Housings Positive Locking Receptacle Housing 51103-XX00 02 - 15 — — PBTP Bag 23.00mm (.906") Plug Housing 51198-XX00 02 - 10, 12, 14, 15 — 7.80mm (.307") PBT Bag 2.50mm (.098") Pitch Mini-Lock™ Headers Vertical Header with Peg 53375-YY10 53375-YY90 53426-XX19 Right Angle Header 53426-XX70 02 - 08 — 02 - 15 02 - 08 02 - 15 — 11.50mm (.453") — — 7.60mm (.200") 14.35mm (565") 7.75mm (.305") Glass-filled PBTP Radial Tape Glass-filled PBTP Radial Tape Tray Tray Replace “XX” with number of circuits. Replace “YY” with number of circuits plus 30; for example an 11 circuit header is part number 53375-4110 Note: Mated receptacle to header dimensions are for the -YY10 and -XX19 versions APPLICATION TOOLING Terminal 50351-8000 50351-8100 1.80mm (.071") max. 50837-8000 50837-8100 2.30 - 2.80mm (.091 to .110") Contact Molex — Contact Molex — — — — 57391-5000 Insulation Diameter Strip Length TM-2000 Applicator 63860-5100 — Order No. TM-40/TM-42 Applicator 63850-5100 — Extractor Tool 57309-6000 57309-6000 Hand Tool — 57295-5000 FEATURES AND BENEFITS I Four point contact design for greater reliability I Over-stress feature protects the locking latch I Pull tabs assist in easy unmating I Polarized mating geometry assures headers and 2.50mm (.098") Pitch Mini-Lock™ I Kinked solder tails assure PCB retention during wave I Anti-fishhooking contact design eliminates tangling of soldering crimped leads during cable assembly I Locking tang on contact for secure retention to the I Fully shrouded headers with guide ramp protects pins receptacles cannot be mis-mated orientation on PCB and aids mating housing I Positive lock on receptacle housing assures secure I Polarizing peg on vertical headers assures proper I Lead-free plating retention when mated to headers SPECIFICATIONS Reference Information Recommended Wire Style: UL 1007 UL File No.: E29179 CSA File No.: LR19980 TUV Approved RoHS Compliant Mechanical Mating Force (10 Circuit Parts): 6.4N max. Unmating Force (10 Circuit Parts): 0.98N min. Durability: 30 Cycles Electrical Current: 3.0A max. Voltage: 250V Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 1000V AC / 1 Minute Insulation Resistance: 1000 Megohms min. Physical Housing: PBTP, UL 94V-0 Header: PBTP, UL 94V-0 Terminal: Phosphor Bronze Pin: Phosphor Bronze Plating: Lead-free Tin Operating Temperature: -40 to +105°C 2.50mm (.098") Pitch Mini-Lock™ Polarized Mating Geometry Positive Lock Radial Tape Pull Tabs Fully Shrouded Header Guide Ramp Polarized Pegs Far East North Headquarters Yamato, Kanagawa, Japan 81-462-65-2324 feninfo@molex.com Far East South Headquarters Jurong, Singapore 65-6-268-6868 fesinfo@molex.com European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, IL 60532 U.S.A. 630-969-4550 Fax:630-969-1352 Americas Headquarters Lisle, Illinois 60532 U.S.A. 1-800-78MOLEX amerinfo@molex.com Visit our Web site at http: //www.molex.com Order No. USA-215 Printed in USA/7.5K/JI/JI/2004.04 ©2004, Molex
