78171-1005

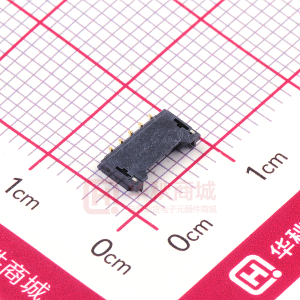

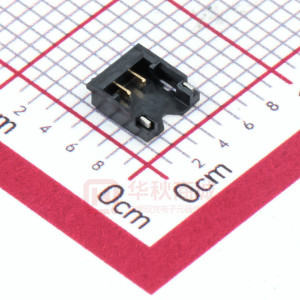

FEATURES AND SPECIFICATIONS Molex's new 1.20mm pitch Pico-EZmate™ connectors are compact and low profile, with a mated height of 1.40mm for wire-to-board applications. The Pico-EZmate connector design includes secure locking features between the receptacle housing and the PCB header, with an audible click to ensure mating integrity. The receptacle is mated vertically with the header, which allows excellent workability in production lines. The header design also provides sufficient space to allow stable pick-and-place operations in SMT lines. The headers are packed in the embossed tape packing for automatic insertion equipment. Both header and receptacle housings are made from a halogen-free resin with a 94 V-0 rated material. The series also complies to European RoHS directives. 1.20mm (.047”) Pitch Pico-EZmate™ W-to-B Connectors Series 78171 Header Features • Ultra low profile • Easy vertical mating • Multiple mating cycles • Assembly suction space on header • RoHS & halogen free compliance Benefits • Space savings • Excellent workability in production line • Allows multiple testing cycles • Stable pick-and-place area • Environmentally friendly 78172 -Receptacle housing - Terminal SPECIFICATIONS Reference Information Packaging: Embossed Tape UL File No.: TBD CSA File No.: TBD Designed In: mm Electrical Voltage: 50V Current: 1.5A Applicable wire range: AWG #28 to #30 UL3302 Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 100 Megohms minimum Physical Housing: LCP, UL94V-0, Black Contact: Copper alloy Plating: Gold Operating Temperature: -25°C to +85°C Markets and Applications Notebook Mobile Phone GPS MP3, MP4 Any compact mobile device application 1.20mm (.047”) Pitch Pico-EZmate™ W-to-B Connectors Series 78171 Header 78172 - Receptacle housing - Terminal Ordering Information PCB Header Order No. 78171-1002 78171-1003 78171-1004 78171-1005 Receptacle Housing Order No. 78172-0002 78172-0003 78172-0004 78172-0005 Receptacle Crimp Terminal Order No. 78172-0410 Circuits N/A Circuits 2 3 4 5 Circuits 2 3 4 5 Americas Headquarters 2222 Wellington Ct. Lisle, Illinois 60532 USA 1-800-78MOLEX amerinfo@molex.com Asia Pacific North Headquarters Yamato, Kanagawa, Japan 81-462-65-2324 feninfo@molex.com Asia Pacific South Headquarters Jurong, Singapore 65-6-268-6868 fesinfo@molex.com European Headquarters Munich, Germany 49-89-413092-0 eurinfo@molex.com Corporate Headquarters 2222 Wellington Ct. Lisle, Illinois 60532 USA 630-969-4550 Visit our Web site at http://molex.com Order No. : 9876501961 ©2008, Molex
