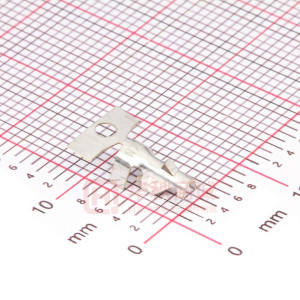

02-09-2105

This document was generated on 03/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 0002092105 Active Board-In Crimp Terminal, Series 4706, Male, Tin (Sn) Plated Brass Contact, 16-18 AWG, 11.20mm (.440") Terminal Progression Documents: Drawing (PDF) Product Specification PS-4706-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Comments Crimp Quality Equipment Product Name Crimp Terminals 4706 Progression 11.20 (.440) Yes Board-In Stand Alone Terminal EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male Brass Tin Tin Reel 100 2.50 100 2.50 Crimp or Compression 3.05mm (.120") max. 16, 18 N/A Material Info Old Part Number 4706-(P909) Search Parts in this Series 4706Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Crimper 0011010065 Terminator Die 0011402042 Terminator Die 0011402044 - OVERLAP INSULATION CRIMP Mini-Mac™ 0638934000 Applicator Reference - Drawing Numbers Product Specification Sales Drawing PS-4706-001 SD-4706 This document was generated on 03/17/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
