08-70-0048

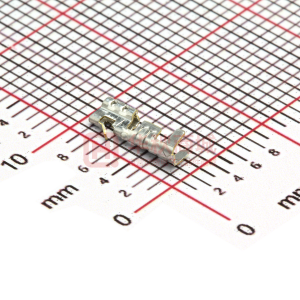

This document was generated on 06/01/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0008700048 Active kk KK® Cat Ear Crimp Terminal 5159, 22-28 AWG, Reel, Phosphor Bronze, Tin (Sn) Plating Documents: 3D Model Drawing (PDF) Product Specification PS-5045-001 (PDF) Product Specification PS-5045-002 (PDF) Product Specification PS-5047-001 (PDF) Product Specification PS-5051-003 (PDF) Product Specification PS-5051-004 (PDF) Product Specification PS-5102-004 (PDF) Product Specification PS-5159-003 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. General Product Family Series Crimp Quality Equipment Overview Product Name Crimp Terminals 5159 Yes kk Cat Ear, KK® Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Female Phosphor Bronze Tin Tin Reel 36 0.90 36 0.90 Crimp or Compression 1.20-1.70mm (.047-.067") 22, 24, 26, 28 N/A Search Parts in this Series 5159Series Use With 2695 , 5051 , 6471 , 3071 Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Extraction Tool 0011030022 Insertion Tool 0638120000 Mini-Mac™ 0638882000 Applicator, Use with Large Wire Insulation Diameter Mini-Mac™ 0638882100 Applicator, Use with Small Wire Insulation Diameter Material Info Old Part Number 5159PBT Reference - Drawing Numbers Packaging Specification Product Specification SPK-5159-001 PS-5045-001, PS-5045-002, PS-5047-001, PS-5051-003, PS-5051-004, PS-5102-004, PS-5159-003 SD-5159* Sales Drawing Japan Description Product # Hand Extraction Tool 0011260059 Applicator for M211A 0011260107 Bench Press, 22-28 AWG, for 5159 Crimp Terminal This document was generated on 06/01/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
