08-70-1043

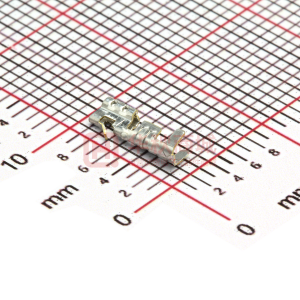

This document was generated on 05/20/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Description: 0008701043 Active Crimp Terminal 5394, AWG#22-#28, Reel Documents: Drawing (PDF) Product Specification PS-5395-001 (PDF) RoHS Certificate of Compliance (PDF) Series General Product Family Series Crimp Quality Equipment Product Name Crimp Terminals 5394 Yes Board-In image - Reference only EU RoHS China RoHS ELV and RoHS Compliant REACH SVHC Contains SVHC: No Halogen-Free Status Halogen-Free Need more information on product environmental compliance? Email productcompliance@molex.com For a multiple part number RoHS Certificate of Compliance, click here Please visit the Contact Us section for any non-product compliance questions. Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Packaging Type Plating min: Mating (µin) Plating min: Mating (µm) Plating min: Termination (µin) Plating min: Termination (µm) Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male Brass Tin Tin Reel 35 0.88 35 0.88 Crimp or Compression 1.20-1.90mm (.047-.075") 22, 24, 26, 28 N/A Material Info Old Part Number 5394T Reference - Drawing Numbers Product Specification Sales Drawing PS-5395-001 SD-5394* Search Parts in this Series 5394Series Use With 5395 Board-In Housing Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Terminator Die 0011402071 Japan Description Product # Applicator for M211A 0011260108 Bench Press, 22-28 AWG, for 5394 Crimp Terminal This document was generated on 05/20/2010 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
