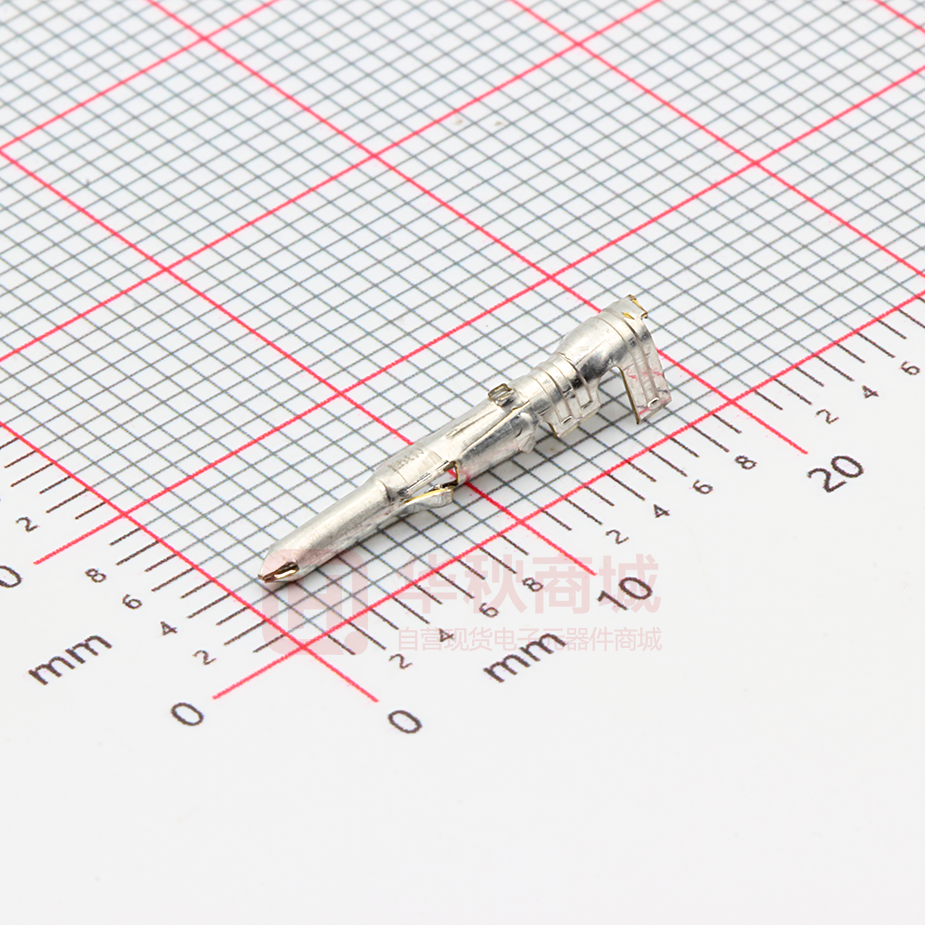

This document was generated on 11/29/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: Status: Overview: Description: 0002062101 Active Standard .062" Pin and Socket Power Connectors 1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1560, Male, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Reel Documents: Drawing (PDF) Product Specification PS-02-06-001 (PDF) RoHS Certificate of Compliance (PDF) Series image - Reference only General Product Family Series Application Crimp Quality Equipment Overview Packaging Alternative Product Name UPC Crimp Terminals 1560 Power, Wire-to-Wire Yes Standard .062" Pin and Socket Power Connectors 02-06-2103 (Loose) Standard .062" 800753616080 Physical Gender Material - Metal Material - Plating Mating Material - Plating Termination Net Weight Packaging Type Plating min - Mating Plating min - Termination Termination Interface: Style Wire Insulation Diameter Wire Size AWG Wire Size mm² Male Brass Tin Tin 0.120/g Reel 0.508µm 0.508µm Crimp or Compression 1.52-3.05mm 18, 20, 22, 24 N/A Solder Process Data Lead-freeProcess Capability N/A Material Info Engineering Number 1560-(P901) Reference - Drawing Numbers Product Specification Sales Drawing PS-02-06-001 SD-1560-X EU ELV Not Relevant EU RoHS China RoHS Compliant REACH SVHC Not Contained Per ED/61/2018 (27 June 2018) Halogen-Free Status Low-Halogen For more information, please visit Contact US China ROHS ELV RoHS Phthalates Green Image Not Relevant Not Contained Search Parts in this Series 1560 Series Application Tooling | FAQ Tooling specifications and manuals are found by selecting the products below. Crimp Height Specifications are then contained in the Application Tooling Specification document. Global Description Product # Hand Insertion Tool 11020001 Manual Extraction 11030002 Tool Terminator Die 11402004 Hand Crimper 638111000 DISTRIBUTION ONLY Hand Crimp Tool for 638191300 Standard 1.57mm Pin and Socket Crimp Terminals, 18-24 AWG Mini-Mac Applicator 638914000 This document was generated on 11/29/2018 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Molex: 02-06-2101 02-06-2101 (Mouser Reel) 02-06-2101 (Cut Strip)
